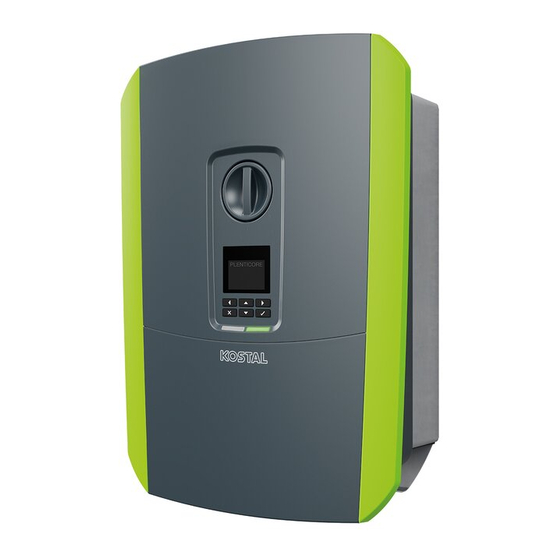

Kostal PLENTICORE plus Manualline

Commissioning inverter in combination with battery-box
Hide thumbs Also See for PLENTICORE plus:

Advertisement

Quick Links

Download this manual See also: Operating Manual
Guideline
Commissioning PLENTICORE plus inverter in
combination with a BYD Battery-Box HV H5.1 -
H11.5
This guide does not replace the operating instructions or manuals required for proper assembly and installation.
The trademarks, trade names, product descriptions and other designations used may be protected by law even without special
designation (e.g. as trademarks). KOSTAL Solar Electric GmbH does not assume any liability or warranty for their free usability.
Great care has been taken in the compilation of illustrations and texts. Nevertheless, errors cannot be excluded. The compilation
is made without guarantee. Technical changes and errors excepted
.
Seite 1 / 12
DOC_Guide_PLENTIOCRE_BYD_ 2019-04-17-FW_1.20_EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the PLENTICORE plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kostal PLENTICORE plus

Summary of Contents for Kostal PLENTICORE plus

  • Page 1 The trademarks, trade names, product descriptions and other designations used may be protected by law even without special designation (e.g. as trademarks). KOSTAL Solar Electric GmbH does not assume any liability or warranty for their free usability. Great care has been taken in the compilation of illustrations and texts. Nevertheless, errors cannot be excluded. The compilation is made without guarantee.
  • Page 2 The inverter and the battery must be completely disconnected from the voltage supply for all work on the inverter or on the supply lines. Refer to the relevant operating instructions for the respective devices (inverter/battery).  Install PLENTICORE plus inverter, connect AC cables and control cables but start up yet. ...
  • Page 3 PLENTICORE plus or PIKO IQ inverters.  The KOSTAL Smart Energy Meter can be installed directly in the sub-distribution cabinet and connected to the inverter without a PC (adjustment of parameters) and other settings. The device is immediately ready for use.
  • Page 4 Connection of the RS485 cable of the BCU from the BYD Battery-Box HV to the SCB (X601) of the PLENTICORE plus inverter. X601 on the SCB in PLENTICORE plus inverter. Position of jumper, it must be plugged to JP2, newer BCU devices have two jumpers plugged to (JP1 and JP2).
  • Page 5 Then click on the "Next" button.  Series Battery Counts - Enter number of memory modules - 4 to 9  Inverter - Select inverter manufacturer - KOSTAL Country - Select your country – e.g. Germany   Finally click on the "Finish" button.
  • Page 6 Initial commissioning of the PLENTICORE plus inverter  Attention: Commissioning only possible with sufficient PV voltage and irradiation.  Check the RS485 connection Energy Meter to the SCB of the inverter.  Plug in the DC plug of the PV strings.
  • Page 7  All other settings can now be entered in the service menu. Service menu  Energy management: Choice of energy meter and position of the  sensor Seite 7 / 12 DOC_Guide_PLENTIOCRE_BYD_ 2019-04-17-FW_1.20_EN...
  • Page 8 Checkbox: "Storage of excess AC energy from local generation." This feature works with the Energy Manager from B-control, the EM300 LR as well as with the KOSTAL Smart Energy Meter (KSEM). IMPORTANT: The sensor (Energy Manager/Meter) must be mounted in the "Mains connection point"...
  • Page 9 Service menu  Battery settings: All settings for the connected battery made here.  Seite 9 / 12 DOC_Guide_PLENTIOCRE_BYD_ 2019-04-17-FW_1.20_EN...
  • Page 10 A firmware update is available: Download from our homepage Download and install the software for the PLENTICORE plus inverter that was released/up to date at the time of installation. This software can be downloaded from our homepage under the following link: https://www.kostal-solar-electric.com/de-...
  • Page 11 Is the battery correctly configured?  The battery is OK and shows no error. In this case, restart the PLENTICORE plus inverter. Restart sequence: Switch off the device at the DC switch, switch off AC fuses, remove DC strings and wait 2 minutes. Then plug in the DC strings, switch on the AC fuses and switch on the DC switch again.
  • Page 12 If multicast filtering with Internet Group Message Protocol (IGMP*) is not used, the interfaces may be overloaded because they must respond permanently to multicast traffic that is not intended for them. Please note that KOSTAL cannot provide detailed recommendations for suitable network devices or support for the network architecture.
