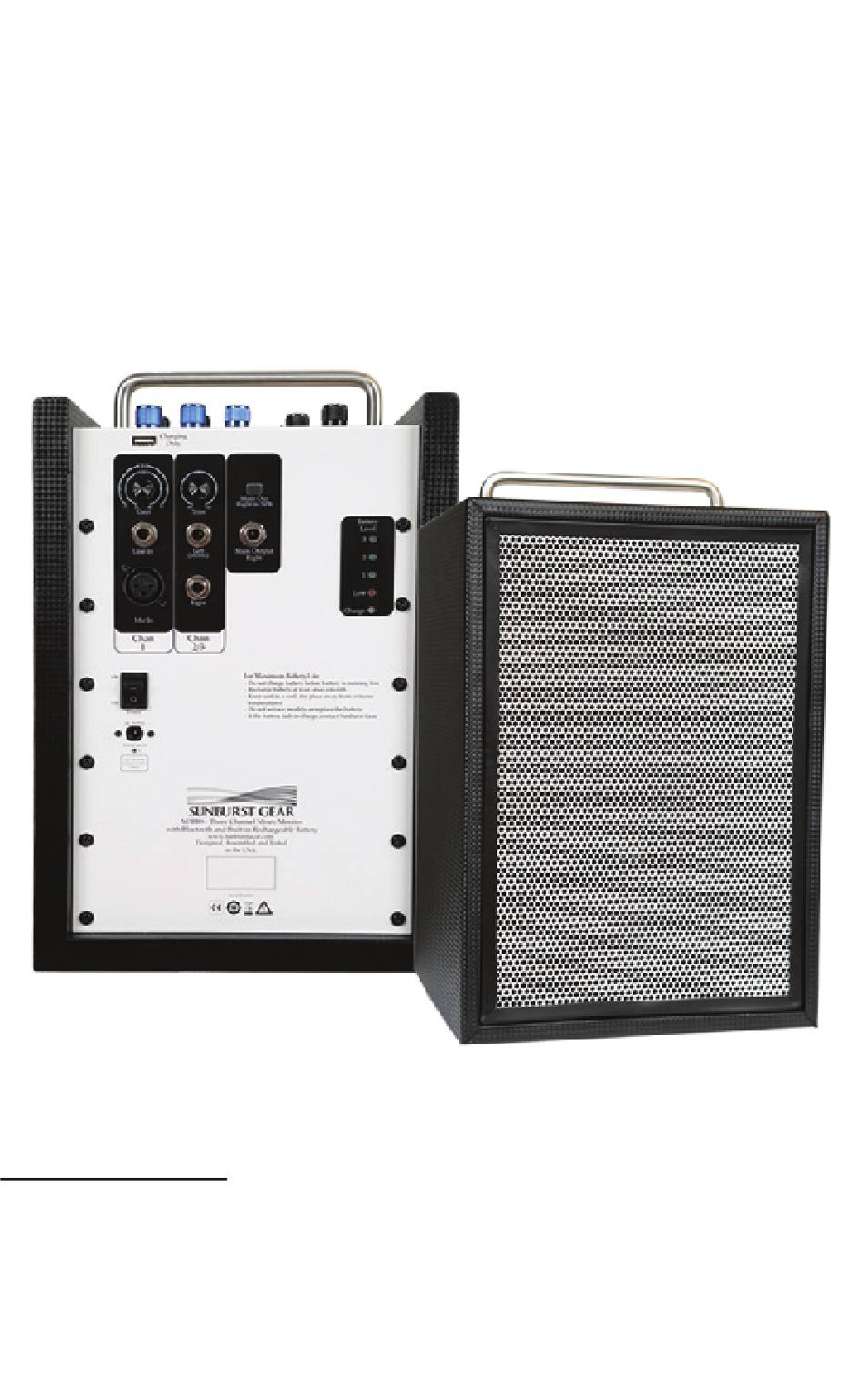

Three Channel Mixer/Bi-Amp
Monitor Speaker w/ Built-In
WHAT IS IN THE BOX
Your M3BR8/M3R8/MM3P* package contains the following:
(1) Speaker
(1) 12V AC Power Supply Adapter
(1) 12V DC Car Battery Supply Adapter
* Bluetooth® available in M3BR8 models only
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Ing. and any use of such marks
by Elite Acoustics Engineering, Inc is under license
NOTE: Due to continuous development and improvements of our products, features and specifications are subject to
change without notice. All weights and measures are approximate.
M3BR8/M3R8/MM3P
Rechargeable Battery
Quick Start Guide
(1) Right Angle Speaker Cable
(1) Quick Start Guide
(1) Registration Card
Advertisement
Related Manuals for Sunburst Gear MM3P
Summary of Contents for Sunburst Gear MM3P
- Page 1 Three Channel Mixer/Bi-Amp Monitor Speaker w/ Built-In Rechargeable Battery Quick Start Guide WHAT IS IN THE BOX Your M3BR8/M3R8/MM3P* package contains the following: (1) Speaker (1) Right Angle Speaker Cable (1) 12V AC Power Supply Adapter (1) Quick Start Guide...
-
Page 2: Quick Start
Main Right to SPK switch [6]: Right channel signal. When the button is up, only the Right channel mono signal is sent for connection to the L (mono) of additional speaker. Main Right Output [6]: Connect with extra speakers/monitors BLUETOOTH® FUNCTION(NOT AVAILABLE ON M3R8, MM3P) • To turn ON/OFF Bluetooth® function... - Page 4 Speaker Volume and EQ Speaker Volume - this should be set about 9 O’clock on power up before increasing. Signal - Green when input is present. Peak - When Red light is flashing, means level is too high and distortion can occur, reduce input level or Volume. Aux Input and Level Control.
- Page 5 Charge ONLY - use for Charging your MP3 Player or Phone. Input GAIN Knob - this should Input TRIM or GAIN knob be use to set the input level. for Chan 2. Signal LED on Chan 1 should be “GREEN” and Peak LED should NOT be red when Chan 2/3 or (Left/Right) setting this Gain Level.
-
Page 6: Car Adaptor
BLUETOOTH® FUNCTION (NOT AVAILABLE ON M3R8, MM3P) • To turn ON/OFF Bluetooth® function PRESS/HOLD down MODE button for approximately 5 seconds Both LEDs will flash at the simultaneously • To pair device to the speaker system Bluetooth® needs to be turned ON... - Page 7 ABOUT EQ SETTINGS High – used to add sibilance and crispness to your sound, with the knob at 12:00, there is no boost or cut to the high frequency content. Mid – Helps control the clarity of your overall mix and should be adjusted to suit lower or higher volume performance levels.
- Page 8 • Speakers: 5 1/4” Woofer, one 1” Tweeter • Amplifier: Class D Bi-AMP • Nominal Input Level (1 kHz): CH1: -60 dBu, CH2/3: -20 dBu, AUX in: -10 dBu • Nominal output level (1 kHz): Right Channel Link out: -10 dBu •...
- Page 9 Legal Notice: CALIFORNIA PROPOSITION 65 WARNING WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
