EN
DEHUMIDIFIER
OPERATING INSTRUCTIONS
Read the instructions carefully before operating or servicing the dehumidifier.
Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or damage.
Keep these instructions in a safe place for future reference.
V 09/17
11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BABYDRY 11 and is the answer not in the manual?

Questions and answers

Related Manuals for Argo BABYDRY 11

Summary of Contents for Argo BABYDRY 11

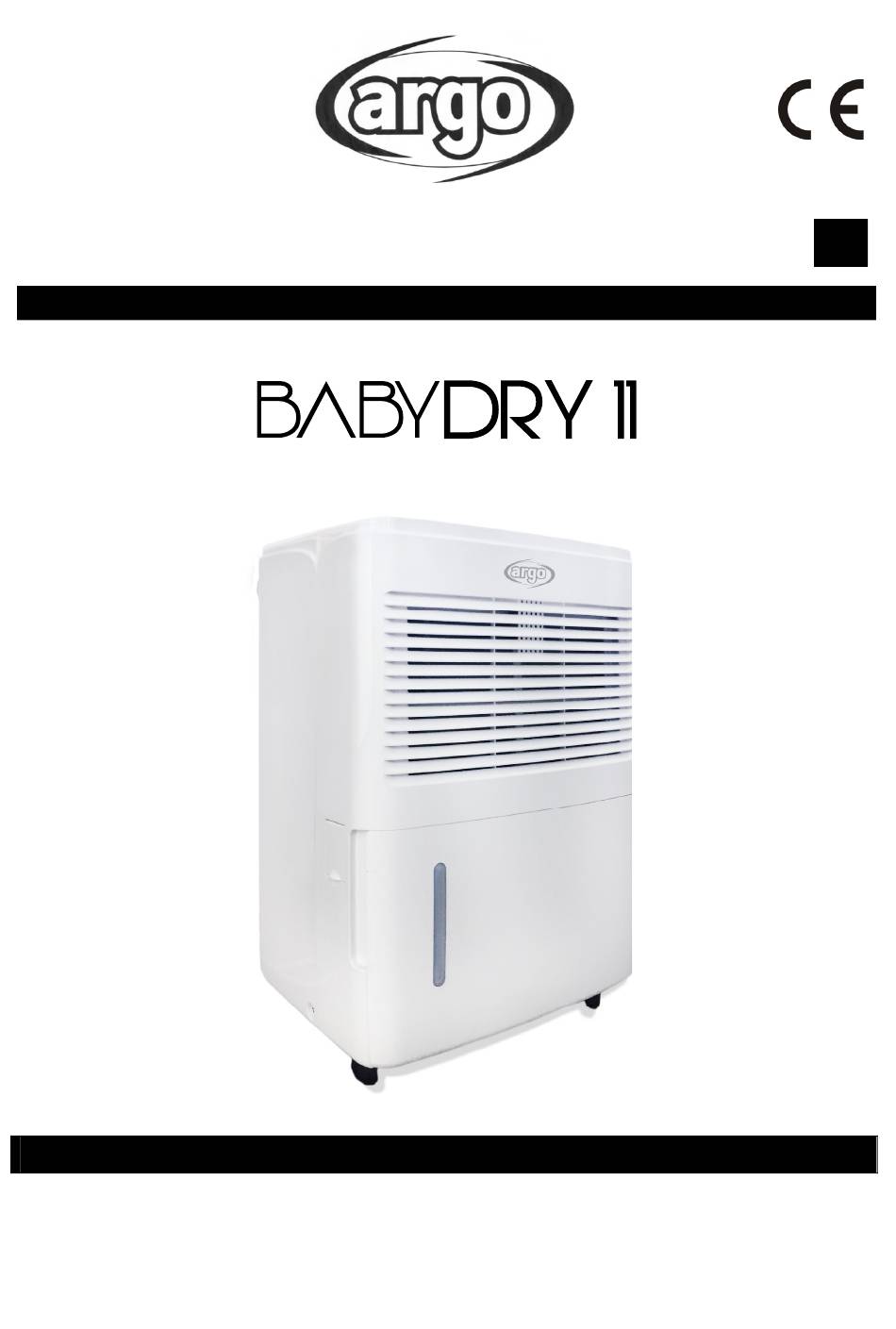

  • Page 1 DEHUMIDIFIER OPERATING INSTRUCTIONS Read the instructions carefully before operating or servicing the dehumidifier. Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or damage. Keep these instructions in a safe place for future reference. V 09/17...
  • Page 2 GENERAL OPERATING AND SAFETY INSTRUCTIONS  This appliance is a highly efficient dehumidifier, designed for domestic use only!  Use this dehumidifier only as outlined in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or malfunctions. ...
  • Page 3  To disconnect the appliance, set the switch to OFF and remove the plug from the socket. Only pull on the plug. Do not pull the cord.  Do not bend, drag or twist the cord, or apply force to remove it. Do not operate the unit if its cable or plug are damaged;...

  • Page 4: Description Of Parts

     Do not spray insecticides, oils or paints near the appliance; doing so may damage its plastic parts or start a fire.  Keep flammable gases and oils away from the appliance! Do not move the appliance while it is operating; doing so can ...

  • Page 5: Pre-Operating Checks

    PRE-OPERATING CHECKS Make sure the floater and the condensate collection tank are correctly positioned 1. Pull out the tank using both hands, following the direction of the arrow. OPERATING INSTRUCTIONS APPLIANCE START-UP Place the product on a flat and stable heat-resistant surface, at least 1 metre away from flammable or heat-sensitive materials and 50 cm away from walls or other obstructions.
  • Page 6 TURNING THE DEHUMIDIFIER OFF To turn the dehumidifier off press the ON/OFF button. This shuts off power to the unit. Unplug the appliance if you do not intend to use it for some time. HOW TO ELIMINATE CONDENSATE The water extracted from the air can be collected in the provided front tank. When the tank is full, not inserted or not correctly inserted, the FULL TANK led turns on and the unit beeps for about 10 seconds, at the end of which the unit turns off.

  • Page 7: Control Panel

    CONTROL PANEL CONTINUOUS LED FULL TANK LED SMART LED RUNNING Smart Full Running MODE BUTTON ON/OFF BUTTON BUTTONS (1) ON/OFF BUTTON Press this button to turn the dehumidifier on and off. (2) MODE BUTTON Press this button to select one of the modes: the corresponding LED will light on. It is possibly to choose between two different modes: ...

  • Page 8: Cleaning The Water Tank

    CLEANING AND MAINTENANCE MAINTENANCE OF THE HUMIDIFIER’S EXTERIOR SURFACE Warning Always pull the dehumidifier's plug out of the power socket before cleaning it, to prevent electric shock and malfunction. Warning Do not wet the appliance or immerse it in water, otherwise electric shocks may occur. Use a damp and soft cloth to clean the exterior surface of the dehumidifier.
  • Page 9 TROUBLESHOOTING PROBLEM POTENTIAL CAUSE SOLUTION The dehumidifier is not working. The temperature is above 32 ° C or below 5 Empty the tank It is not possible to adjust the settings. °C. Position the tank correctly The internal tank is full. Correctly connect the plug The tank is not positioned correctly.
  • Page 10 REGULATION (EU) N. 517/2014 - F-GAS BABYDRY 11 The unit contains R134a, a fluorinated greenhouse gas with global warming potential (GWP) = 1430 - Kg. 0.075 = 0.107 Tons CO equiv. Do not release R-134a into the atmosphere. INFORMATION FOR THE CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EUROPEAN DIRECTIVE 2012/19/EU This appliance may not be scrapped with domestic waste at the end of its life cycle.
