FarmBoy
All 'FarmBoy' products are sold without any warranty or
guarantee. Please satisfy yourself before buying this
product. No returns, exchanges or refunds allowed
(Formerly known as KisanKraft Machine Tools Pvt. Ltd)
Sri Huchhanna Tower, #4,1
HAF Post, Hebbal, Bangalore 560024,Karnataka,INDIA
♦ Bangalore (HO) ♦ Ahmedabad ♦ Bhopal ♦ Bhubaneswar ♦ Coimbatore ♦
♦ Guwahati ♦ Patna ♦ Hinudpur ♦ Hubli ♦ Hyderabad ♦ Jaipur ♦ Karnal ♦
♦ Kolkata ♦ Lucknow ♦ Nagpur ♦ Pune ♦ Raipur ♦ Shimla ♦
: www.kisankraft.com

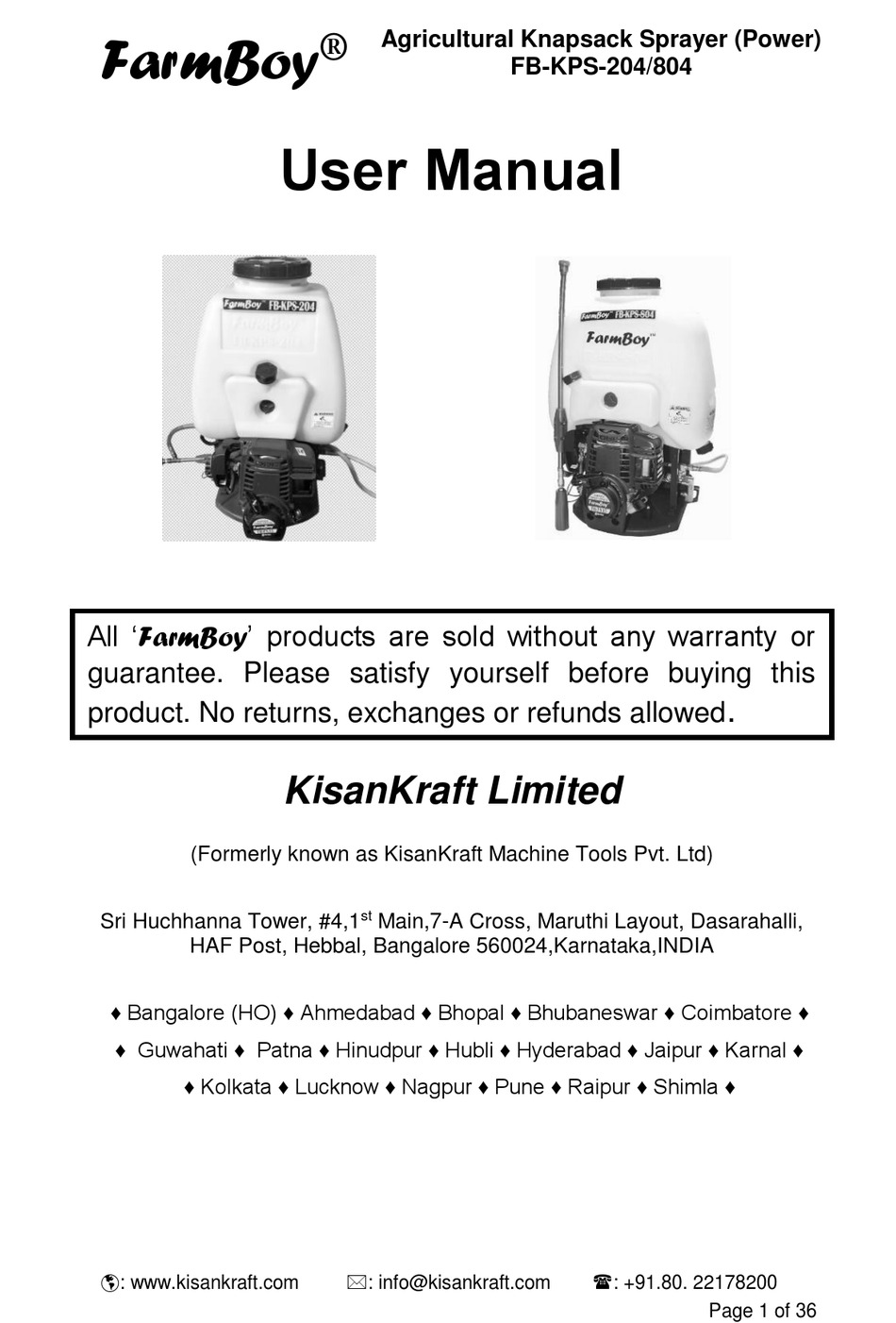

Agricultural Knapsack Sprayer (Power)
®
User Manual
KisanKraft Limited
st
Main,7-A Cross, Maruthi Layout, Dasarahalli,
: info@kisankraft.com
FB-KPS-204/804
: +91.80. 22178200
.
Page 1 of 36
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KISANKRAFT FarmBoy FB-KPS-204/804
Summary of Contents for KISANKRAFT FarmBoy FB-KPS-204/804
- Page 1 All ‘FarmBoy’ products are sold without any warranty or guarantee. Please satisfy yourself before buying this product. No returns, exchanges or refunds allowed KisanKraft Limited (Formerly known as KisanKraft Machine Tools Pvt. Ltd) Sri Huchhanna Tower, #4,1 Main,7-A Cross, Maruthi Layout, Dasarahalli, HAF Post, Hebbal, Bangalore 560024,Karnataka,INDIA ♦...
- Page 2 FarmBoy Agricultural Knapsack Sprayer (Power) ® FB-KPS-204/804 : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 2 of 36...
-
Page 3: Table Of Contents
Parts Diagram - Body ............16 Parts List - Body ..............17 Pressure Pump Parts – Diagram ......... 19 Pressure Pump Parts-List ........... 20 Operation Manual-4 Stroke Petrol Engine ......22 : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 3 of 36... -
Page 4: Before Getting Started
If your mouth or eyes are spattered with chemicals, wash them with clean water and then visit a doctor. If the operator has a headache or dizziness, should stop working at once and consult a doctor immediately. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 4 of 36... -
Page 5: Overview Of Components
Spray over, according to pesticide manual to clean out any residual spray mixture in chemical tank. After spraying always wash your hands and face thoroughly Overview of Components FB-KPS-204/804 FB- P764: : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 5 of 36... -
Page 6: Assembly
Open the air bleed nozzle, and bleed until the chemical is draining out, and then close the nozzle securely .Before spraying the agrochemical, be sure to put on suitable protective : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 6 of 36... - Page 7 Set the throttle lever to the middle speed position (not necessarily to maximum). FB-KPS-204/804: Matching mark at Starting FB -P764: Pull the recoil starter lightly 2-3 times. Pull the recoil starter strongly to start the engine. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 7 of 36...
- Page 8 When the nozzle cock is opened, chemicals will be atomized as they come out of the nozzle. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 8 of 36...
- Page 9 Start the engine at just less than high speed for 15-20 seconds to spray out the water in the spray hose and nozzle. When water stops coming from the nozzle, turn off the engine at once. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com...
-
Page 10: Maintenance And Storage
Remove the spark plug and coat the cylinder with a small amount of oil. Pull the recoil starter lightly 2-3 times to spread the oil over the cylinder completely as shown in the figure below. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com... -
Page 11: Technical Specifications
Fuel Used Petrol Fuel Tank 900 ml (Petrol) Capacity Chemical tank 25 L capacity For Engine :80 ml (20W40 Grade) For Pump: 100 ml(20W40 Grade) Consumption 500 ml/hour (Engine) : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 11 of 36... -
Page 12: Troubleshooting
Fill the tank with fuel No fuel in the Fuel valve is faulty or fuel Clear air vent hole carburetor tank air vent is plugged. Lines are bent Replace lines : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 12 of 36... - Page 13 Carburetor not adjusted Adjust carburetor properly faulty gap properly compression Slow acceleration good quality Poor gasoline oil quality gasoline-oil mixture. Carbon pile up Clean the carbon : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 13 of 36...
-
Page 14: Parts Diagram - Engine
FarmBoy Agricultural Knapsack Sprayer (Power) ® FB-KPS-204/804 Parts Diagram - Engine : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 14 of 36... -
Page 15: Parts List - Engine
Circlip-Piston Pin Needle Bearing- EH-16 Screw 4x8-Star EJ-8 Piston Pin EH-17 Nut Rocker Adjusting EJ-9 Bearing 6201 EH-18 Screw 5x12- Allen EJ-10 Bearing 6202 EH-19 Screw Rocker Adjusting EJ-11 Crankshaft : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 15 of 36... -
Page 16: Parts Diagram - Body
FarmBoy Agricultural Knapsack Sprayer (Power) ® FB-KPS-204/804 Parts Diagram - Body : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 16 of 36... -
Page 17: Parts List - Body
Nut M6-Nylon B-81 Valve Assy Fixed Plate-Flex Suction Chamber- B-26 B-82 Accelerator Right B-28 Switch On/Off B-83 Clip-L B-3O Nut M8-Hex B-83-1 Clip-S B-31 Screw M6x18-Hex B-84 Suction Hose-5" : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 17 of 36... - Page 18 B-107 Hose Pipe Handle B-55 Drum Case B-108 Fuel Tank Lid B-56 Clutch Drum B-109 Ball Cock-One Way Packing-High B-57 Bearing-6200 B-110 Pressure Hose B-58 Bearing-6203 B-111 Spray Rod : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 18 of 36...
-
Page 19: Pressure Pump Parts - Diagram
KK Part No. KK Part Name Gasket-Fuel Tank B-59 Fuel Pipe Short B-112 B-60 Gear B-115 Nozzle(3 Hole) B-61 Bearing-608 B-123 Fixed Plane Pressure Pump Parts – Diagram (Portable Power Sprayer) : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 19 of 36... -
Page 20: Pressure Pump Parts-List
3-81-4 Valve seat 3-46 Pump delivery hose assembly 3-81-5 Valve ring 3-47 Pump suction hose 3-81-6 Valve packaging 3-48 Roller bearing 3-82 Hose clamp 3-49 3-38 Metal plate washer : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 20 of 36... - Page 21 Regulating screw 3-52 O-ring 12x1.8 3-96 Adjusting pan 3-53 Bush 3-97 Washer 3-54 Gasket, upper case 3-98 3-55 Upper case 3-99 Piston 3-56 Clutch drum 3-100 Gear box body : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 21 of 36...
-
Page 22: Operation Manual-4 Stroke Petrol Engine
This general gasoline engine series are of excellent quality. They can be started up easily and reliably with strong power output, remarkable oil-saving effect, low operating noise and emission. There are diversified types of power take-off ends, and our perfect after-sales : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com... - Page 23 Prolonged or repeated exposure to gasoline or engine oil may cause skin carcinoma, even though this possibility is very low. Wash hand thoroughly with soap and water after handling gasoline and engine oil : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com...
- Page 24 Preparation and Check Prior to Operation The gasoline engine is not filled with engine oil before it is delivered from the factory. Please fill it with engine oil firstly : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 24 of 36...
- Page 25 If the continuous spark knock sound can still be heard when the gasoline engine operates under the normal load, it is suggested to replace the gasoline with other brands; after then, if the sound still exists, please consult the specially authorized service shop for solution : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com...
- Page 26 5%. Startup of Petrol Engine Forcibly press the oil pump until fuel fuel pipe (transparent oil pipe) can be seen : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 26 of 36...
- Page 27 With the increase of the elevation, the power of the gasoline engine will have some decline. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 27 of 36...
- Page 28 Immediately shut down the engine in case of abnormal sound, severe vibration, unstable rotating speed, blasting and other adverse phenomena of the gasoline engine. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 28 of 36...
- Page 29 Fuel screen Check ■ Fuel tank Check Fuel pipe Check Every 2 years (replacement if necessary) Note: Increase the maintenance interval if it is used in the dusty area. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 29 of 36...
- Page 30 Screw the bolt of the air filter anticlockwise at the position shown on the figure, so as to take off the air filter cap. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com...
- Page 31 Check whether the washer of the spark plug is in good condition when placing in the spark plug; manually screw it in for 2~3 turns, and then screw it up with the socket special for the spark plug. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 31 of 36...
- Page 32 Disposal of waste oil: Please store the waste oil in the gasoline engine with a container and deliver it to the local waste oil treatment station for treatment, and do not pour it anywhere. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com...
- Page 33 Throttle is close. Open the throttle. Rotating speed The ventilation of the muffler is not Replace the muffler. cannot smooth increased; Moving members are worn Inspect and replace them. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 33 of 36...
- Page 34 The gasoline engines provided by our company are of high-quality, environment- friendly and of high performance-price ratio. In case of any trouble encountered or any question during your operation, please contact the dealer. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com...
- Page 35 KisanKraft ® PRODUCT RANGE KisanKraft has a large range of products to serve the farmers. A list of our products is given below: Brush Cutters and Accessories Cultivators and Accessories Brush Cutter/Power Weeder Petrol and Diesel Backpack Brush Cutter Sprayers and Accessories...
- Page 36 KisanKraft ® Wide Range of Products for Every Need MISSED CALL: 07676065555 For more information give Many of our products have BIS: ISI certification. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 36 of 36...
