SPRAYER-MANUAL
KisanKraft
Brand
 KK-1L, KK-1.5L, KK-2L, KK-3L
Model
 KK-5L, KK-8L, KK-11L
 KK-12L, KK-16L
W
ARRANTY
6
MONTHS
P
ERIOD
Dealer's
Invoice Date
Buyer's Info (Name, Address, Phone,
etc.):
Buyer's Sign
What is covered: KisanKraft Machine Tools Private Limited and its manufacturers
warrant this product to be free from defects in material or workmanship. All parts
defective in material and workmanship are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limited to repair or replacement by KisanKraft Machine Tools Private
Limited or its manufacturers at the premises of Authorized Dealers, of such parts as
appear to KisanKraft or its manufacturers, upon inspection, to be defective in material
and/or workmanship. KisanKraft or its manufacturers make no warranty with respect
to trade accessories not manufactured or sold by them.
What is not covered: The warranty shall become null and void and neither
KisanKraft Machine Tools Private Limited nor any of its manufacturers, nor its
authorized dealers assumes any responsibility, if the failure was caused by the
following:
(1) Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of
machine or misuse, (3) Lack of maintenance, (4) Negligence, (5) Accident or physical
damage, (6) Repairs made by unauthorized parties and/or with unauthorized parts,
(7) Improper set up, adjustments, tampering or altered products
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer's stamp.
KisanKraft Machine Tools Private Limited
: www.kisankraft.com

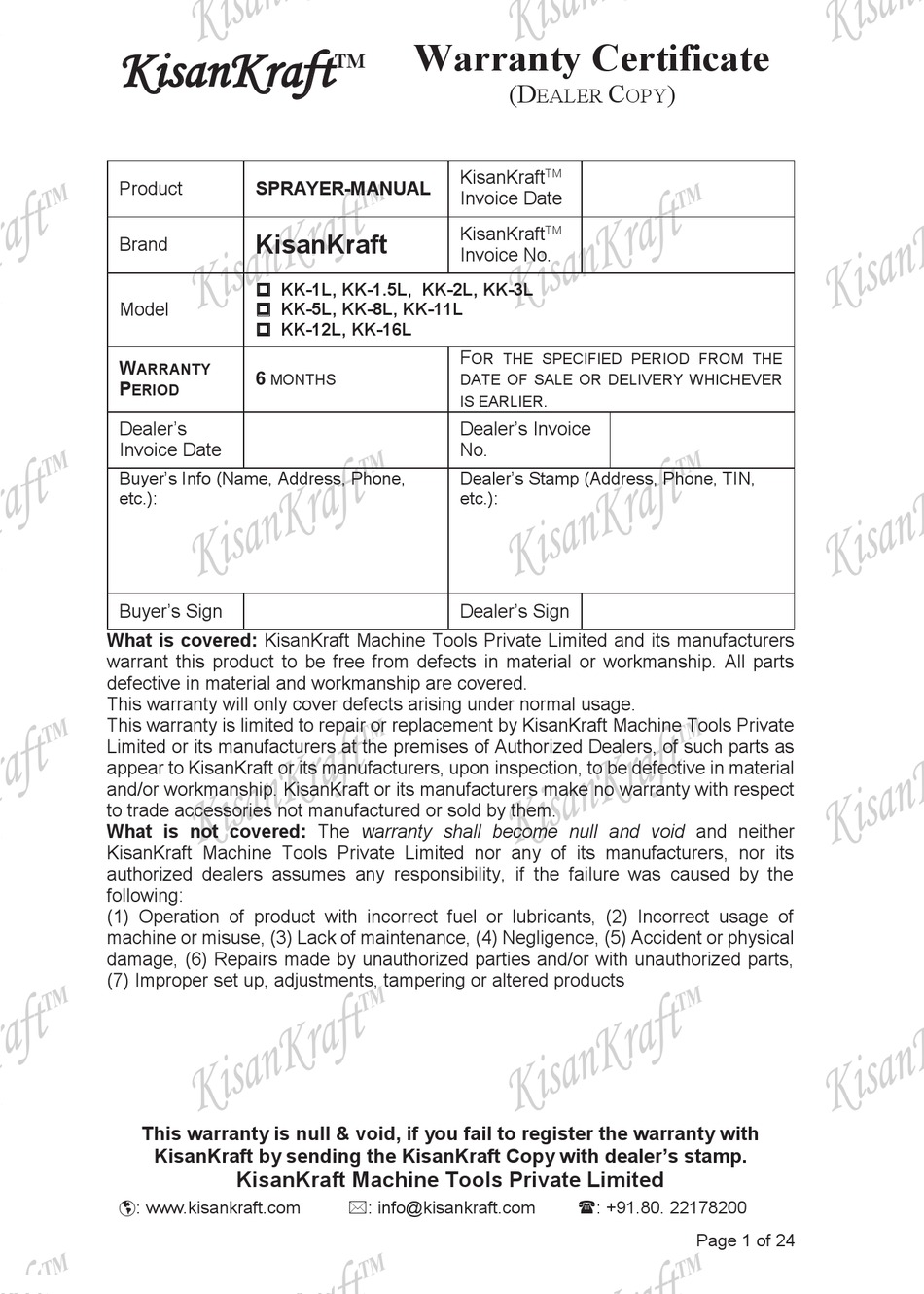

Warranty Certificate
TM
KisanKraft
Invoice Date
KisanKraft
Invoice No.
F
OR THE SPECIFIED PERIOD FROM THE
DATE OF SALE OR DELIVERY WHICHEVER
IS EARLIER
Dealer's Invoice
No.
Dealer's Stamp (Address, Phone, TIN,
etc.):
Dealer's Sign
: info@kisankraft.com
(D
C
)
EALER
OPY
TM
TM
.
: +91.80. 22178200
Page 1 of 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KK-1L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KISANKRAFT KK-1L

  • Page 1 This warranty will only cover defects arising under normal usage. This warranty is limited to repair or replacement by KisanKraft Machine Tools Private Limited or its manufacturers at the premises of Authorized Dealers, of such parts as appear to KisanKraft or its manufacturers, upon inspection, to be defective in material and/or workmanship.
  • Page 2 Private Limited, its manufacturers and its dealers reserve the right to inspect the claimed defective part(s) to determine if the malfunction is the result of a defect covered by this warranty. Please note that the decision of KisanKraft Machine Tools Pvt Ltd with respect to any warranty claim is final.
  • Page 3 ™ KisanKraft KK-1L,1.5L,2L,3L,5L,8L,11L KK - 12L,16L Operation Manual KisanKraft Machine Tools Pvt. Ltd. Sri Huchhanna Tower, #4,1 Main,7-A Cross, Maruthi Layout, Dasarahalli, HAF Post, Hebbal, Bangalore 560024,Karnataka,INDIA ♦ Bangalore (HO) ♦ Ahmedabad ♦ Bhopal ♦ Bhubaneswar ♦ Coimbatore ♦ ♦ Ernakulam ♦ Guwahati ♦ Patna ♦ Hinudpur ♦ Hubli ♦ Hyderabad ♦...
  • Page 4 SPRAYER-MANUAL ™ KisanKraft KK-1L,1.5L,2L,3L,5L,8L,11L KK - 12L,16L : www.kisankraft.com : info@kisankraft.com : +91.80. 22178200 Page 4 of 24...
  • Page 5: Table Of Contents

    BEFORE GETTING STARTED ..............8 APPLICATION ..................8 SAFETY INSTRUCTIONS ................. 8 OPERATION - (KK-1L, 1.5L, 2L, 3L, 5L, 8L, 11L) ........10 STRUCTURE, WORKING PRINCIPLE & CHARACTERISTICS ..... 10 OPERATION - (KK-12L, 16L) ..............11 TECHNICAL SPECIFICATION ..............12 TROUBLE SHOOTING ................
  • Page 6 KisanKraft or its manufacturers make no warranty with respect to trade accessories not manufactured or sold by them. What is not covered: The warranty shall become null and void and neither KisanKraft Machine Tools Private Limited nor any of its manufacturers, nor its authorized dealers...
  • Page 7 Private Limited, its manufacturers and its dealers reserve the right to inspect the claimed defective part(s) to determine if the malfunction is the result of a defect covered by this warranty. Please note that the decision of KisanKraft Machine Tools Pvt Ltd with respect to any warranty claim is final.
  • Page 8: Before Getting Started

    If your mouth or eyes are spattered with chemicals, wash them with clean water  and then visit a doctor. If the operator has a headache or dizziness, should stop working at once and  consult a doctor immediately. : www.kisankraft.com : info@kisankraft.com : +91.80. 22178200 Page 8 of 24...
  • Page 9 If the sprayer is not used for a long period or continuously operated for several  days, please add Vaseline to the sealing washer and activating parts to reduce wear and to ease obstruction. : www.kisankraft.com : info@kisankraft.com : +91.80. 22178200 Page 9 of 24...
  • Page 10: Operation - (Kk-1L, 1.5L, 2L, 3L, 5L, 8L, 11L)

    KK - 1L,1.5L,2L,3L,5L,8L,11L KK - 12L,16L OPERATION - (KK-1L, 1.5L, 2L, 3L, 5L, 8L, 11L) Pull up the nozzle of pressure release valve, to release the pressure, then unscrew the air pump and take the pump out of the tank.
  • Page 11: Operation - (Kk-12L, 16L)

    4 Hole adjustable spray: This can be used for spraying on the high stalk crops and fruit trees. Its shortcoming is the serious running off the medicinal liquid. : www.kisankraft.com : info@kisankraft.com : +91.80. 22178200 Page 11 of 24...
  • Page 12: Technical Specification

    SPRAYER-MANUAL ™ KisanKraft KK - 1L,1.5L,2L,3L,5L,8L,11L KK - 12L,16L TECHNICAL SPECIFICATION Hand Operated Pressure Sprayer KK-1L Model KK-1L KK-1.5L KK-2L KK-3L KK-5L KK-8L KK-11L (Trigger) Tank capacity (liter) Knapsack Manual Sprayer Model KK-12L KK-16L Output capacity 30 to 70 litre/hour (liquid) Cylinder &...
  • Page 13: Trouble Shooting

    All the plastic parts must neither be exposed to the sunlight nor pressed by heavy matter. Cover the machine with plastic dustcoat and store in a dry and clean place. : www.kisankraft.com : info@kisankraft.com : +91.80. 22178200 Page 13 of 24...
  • Page 14: Parts Diagram & List

    SPRAYER-MANUAL ™ KisanKraft KK - 1L,1.5L,2L,3L,5L,8L,11L KK - 12L,16L PARTS DIAGRAM & LIST (KK-1L / 1.5L / 2L) Pressure Handle 13. Pressure O-ring (Back) Handle Cap 14. Bottle Handle Trigger 15. Bottle O-ring Trigger Handle 16. Outlet Tube Trigger Lock 17.
  • Page 15: Www.kisankraft.com

    30. Oil Seal (Pressure Chamber) 31. Tank 32. Rod-Safety Valve 33. O-Ring (Safety Valve) 34. Spring (Safety Valve) 35. Cap (Safety Valve) 36. O-Ring (Safety Valve Lock) 37. Lock - Safety Valve : www.kisankraft.com : info@kisankraft.com : +91.80. 22178200 Page 15 of 24...
  • Page 16: Www.kisankraft.com

    SPRAYER-MANUAL ™ KisanKraft KK - 1L,1.5L,2L,3L,5L,8L,11L KK - 12L,16L KK-12L : www.kisankraft.com : info@kisankraft.com : +91.80. 22178200 Page 16 of 24...
  • Page 17: Www.kisankraft.com

    O-ring 12.4x2.65 Handle Sealing 6-10 Plastic Tube Core Washer/Ring Small Filter/Filter 6-11 Plastic Tube Nut Screen 6-12 Handle Rocker Bar Clamp Rim Cover/Flared Operation Arm Fix Sheath Ring/Rocker Bar Snap : www.kisankraft.com : info@kisankraft.com : +91.80. 22178200 Page 17 of 24...
  • Page 18: Www.kisankraft.com

    Hose/Plastic Tube Rocker Bar Assy Air Intake Screw M5x8 Plug/Ventilator Plug Container Cap/Tank Fan-Style Head Tank Seal Washer Dual Head Filter/ Big Filter Adjustable Head With Screen Four Apertures : www.kisankraft.com : info@kisankraft.com : +91.80. 22178200 Page 18 of 24...
  • Page 19: Www.kisankraft.com

    SPRAYER-MANUAL ™ KisanKraft KK - 1L,1.5L,2L,3L,5L,8L,11L KK - 12L,16L KK-16L : www.kisankraft.com : info@kisankraft.com : +91.80. 22178200 Page 19 of 24...
  • Page 20: Www.kisankraft.com

    Buy #50 Air Chamber With Felt Ream Cover Air Chamber With Cap Hose Nut Fan Style Spray Head Hose 30 Double Spray Head Spindle Nut 4-Hole Adjustable Head Hose Cover : www.kisankraft.com : info@kisankraft.com : +91.80. 22178200 Page 20 of 24...
  • Page 21: Www.kisankraft.com

    ™ KisanKraft PRODUCT RANGE KisanKraft has a large range of products to serve the farmers. A list of our products is given below: Brush Cutters and Accessories Cultivators and Accessories Brush Cutter/Power Weeder Petrol and Diesel Backpack Brush Cutter Sprayers and Accessories...
  • Page 22: Www.kisankraft.com

    ™ KisanKraft Wide Range of Products for Every Need MISSED CALL: 07676065555 For more information give Many of our products have BIS: ISI certification. : www.kisankraft.com : info@kisankraft.com : +91.80. 22178200 Page 22 of 24...
  • Page 23: Www.kisankraft.com

    This warranty will only cover defects arising under normal usage. This warranty is limited to repair or replacement by KisanKraft Machine Tools Private Limited or its manufacturers at the premises of Authorized Dealers, of such parts as appear to KisanKraft or its manufacturers, upon inspection, to be defective in material and/or workmanship.
  • Page 24 Limited, its manufacturers and its dealers reserve the right to inspect the claimed defective part(s) to determine if the malfunction is the result of a defect covered by this warranty. Please note that the decision of KisanKraft Machine Tools Pvt Ltd with respect to any warranty claim is final.
