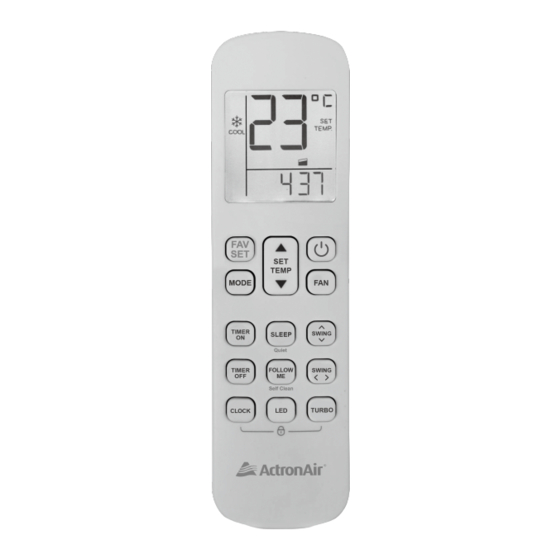

ActronAir RC-01 Manual

Suitable for models: cre-071as, cre-100as, cre-125as, cre-140as, wre-026as, wre-035as, wre-050as, wre-071as, wre-080as, mre-035as, mre-050as
Hide thumbs

Advertisement

Quick Links

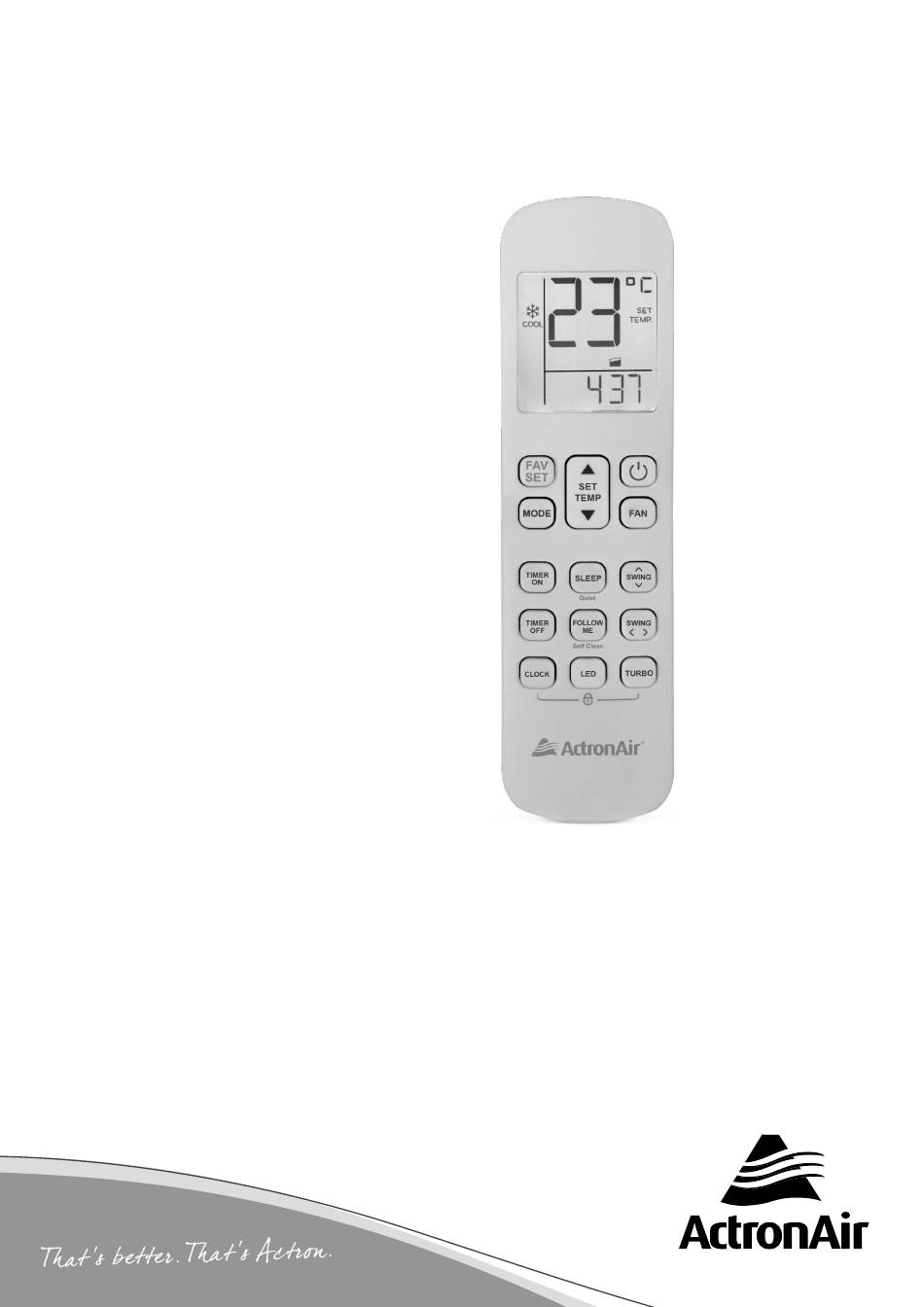

REMOTE CONTROL MANUAL
Universal
Suitable For Models:
CRE-071AS
CRE-100AS
CRE-125AS
CRE-140AS
WRE-026AS
WRE-035AS
WRE-050AS
WRE-071AS
WRE-080AS
MRE-035AS
MRE-050AS
IMPORTANT NOTE:
Please read this manual carefully before operating your new remote control and keep it near the unit for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the RC-01 and is the answer not in the manual?

Questions and answers

Related Manuals for ActronAir RC-01

Summary of Contents for ActronAir RC-01

  • Page 1 REMOTE CONTROL MANUAL Universal Suitable For Models: CRE-071AS CRE-100AS CRE-125AS CRE-140AS WRE-026AS WRE-035AS WRE-050AS WRE-071AS WRE-080AS MRE-035AS MRE-050AS IMPORTANT NOTE: Please read this manual carefully before operating your new remote control and keep it near the unit for future reference.

  • Page 2: Table Of Contents

    -5°C~60°C This manual is a controlled document which contains confidential and proprietary information. Distribution, modification, copying and/or reproduction are prohibited without written consent from ActronAir Product design and specifications are subject to change without prior notice for product improvement. Page 2...

  • Page 3: General Information

    1. General Information Remote Control Location of the remote controller • Use the remote controller within a distance of 8 metres from the appliance, pointing it towards the receiver. Reception is confirmed by a beep. CAUTIONS • The air conditioner will not receive the command if curtains, doors or other materials block the signals from the remote controller to the indoor unit.
  • Page 4 1. General Information Remote Control Replacing Batteries The following cases are indications of a low or dead batteries, if encountered please replace old batteries with new ones. • Beep sound is not emitted when a signal is transmitted. • LCD Indicator fades away. The remote controller is powered by two 1.5V AAA batteries housed in the back of the remote controller and protected by a cover.

  • Page 5: Function Buttons

    2. Function Buttons Remote Control Overview 1. ON/OFF This button turns the air conditioner ON or OFF. 2. MODE Press this button to modify the air conditioner mode in a sequence of following: TEMP. COOL 3. FAN Used to select the fan speed in four steps: NOTE: You can not switch the fan speed in AUTO or DRY mode.
  • Page 6 2. Function Buttons Remote Control Overview 8. LED 13. FOLLOW ME/SELF CLEAN Activate or Disable the indoor unit Display. Press this Press this button to Activate or Disable FOLLOW ME button to hide the indoor unit display, press it again to function.

  • Page 7: Lcd Indicator

    3. LCD Indicators Remote Control LCD indicators Information is displayed when the remote controller is powered up. HEAT AUTO COOL Displayed when data transmitted. Set temperature or show room temperature. Description of low battery detection • The low-battery indicator on the remote control will continue to blink when the batteries are low, it may reduce the transmission distance of the remote...

  • Page 8: System Operation

    4. System Operation Remote Control Auto Operation 1. Press the MODE button to select Auto. 2. Press the UP/DOWN button to set the desired temperature. The temperature can be set within a range of 17°C~ 30°C in 1°C increments. 3. Press the ON/OFF button to start the air conditioner. TEMP.

  • Page 9: Timer Setup And Operation

    5. Timer Setup and Operation Remote Control Clock Setting and Timer Operation Set the clock Timer operation Before you start operating the air conditioner, set the Press the TIMER ON button to set the auto-on timer of clock of the remote controller using the procedures the unit.
  • Page 10 5. Timer Setup and Operation Remote Control Example of Timer setting TIMER ON (Auto-on Operation) The TIMER ON feature is useful when you want the unit to turn on automatically at a desired time. Example: To start the air conditioner in 6 hours. Start 1.
  • Page 11 5. Timer Setup and Operation Remote Control Example of Timer setting COMBINED TIMER (Setting both ON and OFF timers simultaneously) TIMER OFF →/ TIMER ON (On Stop-Start operation) This feature is useful when you want to stop the air conditioner after you go to bed, and start it again in the morning when you wake up or when you return home.
  • Page 12 1300 522 722...
