TENT INFLATION TECHNOLOGY
OWNERS HANDBOOK
PCT Patent Pending GB/2017/050391 &
Australian Patent Pending 2017902549
Design Registration No. 201712065
& No. 201712062
opuscamper.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OP4 and is the answer not in the manual?

Questions and answers

Related Manuals for Air OPUS OP4

Summary of Contents for Air OPUS OP4

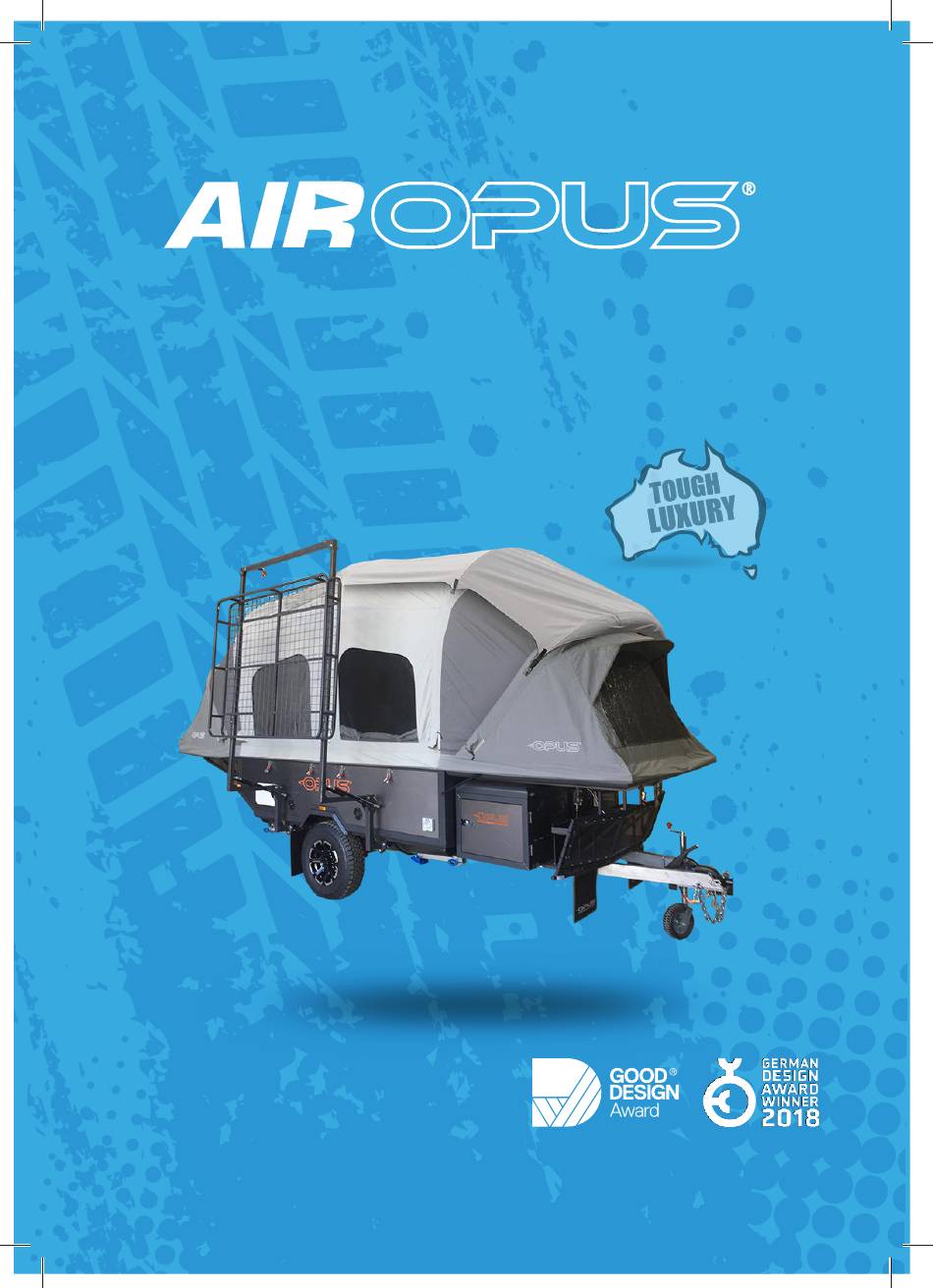

  • Page 1 TENT INFLATION TECHNOLOGY OWNERS HANDBOOK PCT Patent Pending GB/2017/050391 & Australian Patent Pending 2017902549 Design Registration No. 201712065 & No. 201712062 opuscamper.com.au...
  • Page 2 PCT Patent Pending GB/2017/050391 & Australian Patent Pending 2017902549 Design Registration No. 201712065 & No. 201712062 TENT INFLATION TECHNOLOGY...

  • Page 3: Table Of Contents

    Setting Up your Air OPUS ® Camper Page 12-13 ® Understanding the Air OPUS Switchboard Page 14 ® Understanding the air valves when setting up your Air OPUS Camper Page 15 ® Air OPUS Water System Page 16 -17 ® Air OPUS...

  • Page 4: My Air Opus Camper

    235-75 R15 TYRE SIZE: DEALER: CLAIM: by receiving this handbook, you confirm there you have read and agree to all the terms and conditions and understood the use and maintaince care of the Air OPUS ® opuscamper.com.au TENT INFLATION TECHNOLOGY...

  • Page 5: Vehicle Identification Number (Vin)

    Vehicle Identification Number (VIN). The VIN Plate can be found ® on the exterior of your Air OPUS to the left of the door secured, to the draw bar. We recommend making a note of your VIN in the template below.

  • Page 6: Specifications

    SPECIFICATIONS - OP4 Colour Orange, Blue, Grey, Black Body Work Baked enamel finish Box Material Main body aluminium frame & composite panel exterior, with galvanlized steel chassis and draw bar Dimension (Lid Closed) 5100 (5600 inc. spare wheel) x 2100 x 1450mm...
  • Page 7 SPECIFICATIONS - OP4 Electrical Power Supply 12V & 240V Towing 7 PIN flat plug & Anderson plug Player Included within stereo Stereo System Stereo System with 2x speakers, Radio, USB inputs, CD & DVD player Battery 2x 100Ah deep cycle AGM batteries with 240V charger...

  • Page 8: Dimensions

    DIMENSIONS - OP4 2000mm 2150mm 6140mm 5100mm (excluding spare wheel) 5600mm (including spare wheel) 4 SLEEPER opuscamper.com.au opuscamper.com.au TENT INFLATION TECHNOLOGY...
  • Page 9 12 Quick Tips to set up and pack up your Air OPUS ® 12 Handy tips that will make you a PRO at setting up an Air OPUS! Tip 1 - Invest in a cordless drill and 19mm hex head bit to adjust stabiliser legs rather than manually winding them.
  • Page 10 12 Quick Tips to set up and pack up your Air OPUS ® Tip 3 - When folding the bed lids away, always fold the rear bed lid first and ensure all canvas is tucked in. Tip 4 - Take special care to ensure all canvas is tucked away on all sides especially around gas struts, hinge points and where the two folding lids meet in the centre of the camper.
  • Page 11 12 Quick Tips to set up and pack up your Air OPUS ® Tip 8 - During canopy inflation make sure all external air valves are closed off and the main air valve is open before turning air pump on.

  • Page 12: Hitching & Trailer Electrics

    About your Coupling The Air OPUS comes as standard with a ® two part polyblock off-road coupling. When hitching the Air OPUS to your towing ® vehicle use the trailer handbrake in order to maintain control of the trailer, particularly when manoeuvering on uneven ground or a slope.

  • Page 13: Air Opus ® Brake Set Up

    Air OPUS BRAKE SET UP ® About your Brakes The Air OPUS® is fitted with electric trailer brakes. You need an electric brake controller fitted to your car in order to tow the Air OPUS® and operate the electric brakes safely.

  • Page 14: Setting Up Your Air Opus Camper

    IMPORTANT Corner support legs are only to support the Air OPUS ® NOT to be used to level or lift. STEP 4 Unclip the spare wheel carrier and lower it down...
  • Page 15 SETTING UP YOUR Air OPUS CAMPER ® Initial Steps STEP 6 Unlatch & open the front lid completely. Gas struts are fitted to aid the process and support the weight of the lid at this stage. Secure the front lid to...

  • Page 16: Understanding The Air Opus

    UNDERSTANDING THE Air OPUS SWITCHBOARD ® Main features of your switchboard 1 Main Power Key Switch Kitchen Tank 10 Air Pump Master 2 240V Red Circuit Breaker 11 Air Inflation 3 Kitchen Pump 12 Battery Level Indicator 4 Shower Pump...

  • Page 17: Understanding The Air Valves When Setting Up Your Air Opus

    UNDERSTANDING THE AIR VALVES WHEN SETTING UP YOUR Air OPUS CAMPER ® Close all 5 external air valves on tent and 2) When inflating twist the Main Inflation valve switch (inside camper) to a Vertical 7 on annexe OPEN position by rotating anti-clockwise.

  • Page 18: Air Opus ® Water System

    80L fresh water tanks. With one unit mounted in front of the axle and the other unit mounted behind the axle. Each water tank has its own lockable fill point located on the driver side of the body of the Air OPUS ®...
  • Page 19 The kitchen sink is connected with a short hose with fitting attached, this is to be plugged ® into the water outlet connection on the Air OPUS and the water intake on the kitchen, which is only accessible when the kitchen is fully extended.

  • Page 20: Air Opus Gas System

    Keep pressing the button until the gas has had time to fill up the system and the burner will ignite STEP 7. Ensure that the gas bottle valve is closed prior to packing up the Air OPUS ®...
  • Page 21 CABLES DO NOT CAUSE A The main 15Amp power input is found on HAZARD. ® the driver’s side of the Air OPUS There is 3x internal 240V power points 1x External Passenger Side. In the rear storage area behind the seats there is a 240V power point.
  • Page 22 ® Inside the Air OPUS there are four 12V mini sockets. These are for the 12V LED light kit (optional extra). Above the main circuit board inside the Air OPUS ® there is a twin 12V USB socket.
  • Page 23 Air OPUS 12 VOLT POWER ® All switches have their own resetable fuse next to each of the switches. In the battery compartment the large resettable fuse is wired to the 50amp Anderson plug fitted at the drawbar. The internal 12V sockets and external 12V socket, fridge and lighting will operate on 12V power from the leisure battery;...
  • Page 24 SETTING UP THE ADDITIONAL BED Seating moved to create additional bed ® The seating area inside the Air OPUS can be reconfigured to provide an additional bed. BOLSTERS The furniture of the Camper with the inclusion of the table forms the base of the additional bed; the table is reinforced to provide adequate support for sleeping.

  • Page 25: Setting Up The King Size Bed Extension

    SETTING UP THE KING SIZE BED EXTENSION Optional Extra Seating moved to create King Size Bed Extension ® The seating area inside the Air OPUS can be reconfigured for the North South bed. The furniture of the Air OPUS ®...
  • Page 26 INSTALLING YOUR Air OPUS ANNEXE ® Attaching annexe to canopy Step 1 - To attach the annexe to the canopy of the camper deflate the canopy to attain easy access to zip area (see picture as shown). Step 2A - Zip on annexe...

  • Page 27: Installing Your Air Opus Annexe

    INSTALLING YOUR Air OPUS ANNEXE ® Step 3 - Spread annexe canvas out from the camper as shown Inflating the annexe when attached to canopy Step 4 - Make sure the 5 valves on the Opus camper tent are closed and inflate the main tent whilst the annexe attached.
  • Page 28 INSTALLING YOUR Air OPUS ANNEXE ® Inflating the annexe when attached to canopy continued... Step 8 - After main pump shuts off it has reached the desired pressure. Remember to turn the MAIN GREEN INFLATION switch in the camper to the horizontal CLOSED position when inflation is complete.
  • Page 29 INSTALLING YOUR Air OPUS ANNEXE ® Attaching the wall skirt ® With your OPUS Camper fully erected, you’re ready to assemble the annexe, and the first step is to attach the wall skirt: STEP 1 - Position the OPUS ®...

  • Page 30: Air Opus ® Care & Maintenance

    Air OPUS CARE AND MAINTENANCE ® Changing a faulty bladder when product is not inflated/in use 1. Locate the faulty air beam and check that all valves are closed on the beam. 2. Remove linking air tubes from faulty beam.
  • Page 31 Air OPUS CARE AND MAINTENANCE ® 4. Undo the ties holding the zips on the grey tube together and unfasten the zip. While unzipping or zipping be careful NOT to allow the zipper to pinch the air tube. 5. Remove the bladder from the grey tube. When you remove the bladder, you will remove the bladder and the plastic tube and valve as shown below.
  • Page 32 Air OPUS CARE AND MAINTENANCE ® 8. The bladder is longer than the grey tube and it is essential that you carefully and tightly roll the bladder at both ends and fit carefully into the grey tube. Rolling the bladder on both ends is essential for the bladder to function correctly.
  • Page 33 Air OPUS CARE AND MAINTENANCE ® 12. Open the valves at on the beam. 13. Air should go into the replacement bladder. 14. Depending on the size of the bladder it may be necessary to switch your pump ‘ON’ to ensure there is sufficient air in the air tent for it to be rigid.
  • Page 34 Air OPUS CARE AND MAINTENANCE ® ® IMPORTANT THE OPUS CAMPER MUST NOT BE STORED WET/DAMP Storage Pack down the camper correctly and ensure nothing is out of place. Make sure that you pack down your OPUS ® tent and annexe when the canvas is completely dry BEFORE being stored.
  • Page 35 MUST NOT be left wet/damp when packed away. ® If it is unavoidable that you will have to pack down your Air OPUS when the canvas is ®...
  • Page 36 Air OPUS CARE AND MAINTENANCE ® • Take care when setting up and packing down the camper to ensure the tent, and the annexe beading is not caught or snagged, should this occur retrace the steps and retry making sure the issue is rectified.
  • Page 37 External Care for your Air Opus ® ® • Inspect the outside panels of your Air OPUS including the roof (bed lids) for any damage or cracks. • Inspect the sealant around the panels to verify that there is adequate bonding around the body panels and exterior features such as the front storage box/fridge cabinet.
  • Page 38 If in storage for a long period of time such as 4 weeks or longer, its recommended to ® open and let it breathe for 24 hours. If the Air OPUS is based in tropical warm areas eg. NSW, QLD, NT etc. will cause condensation when closed.
  • Page 39 ® Ventilation ® Ventilation is more important than is generally realised - your Air OPUS camper and annxe have several windows/vents that can be opened to help increase air ventilation. An increase in ventilation will result in a decrease of condensation.
  • Page 40 Air OPUS WARRANTY ® Introduction The following information relates to warranties offered by OPUS. Please read all the information carefully, and should you have any questions relating to any aspect of this section, please contact OPUS. By purchasing an item from OPUS, you hereby agree to all terms and conditions of warranty as set out herein.

  • Page 41: Air Opus Warranty

    Air OPUS WARRANTY ® • OPUS shall not be liable (in part or whole) for any warranties, either express or implied, made by agents or resellers on behalf of OPUS without the knowledge or express written permission of OPUS. Such unauthorised claims shall be the responsibility of the agent or reseller only.
  • Page 42 Air OPUS WARRANTY ® Tents Tents are guaranteed to be in new merchantable condition at the time of purchase. A limited manufacturer’s warranty period of 3 Years applies to OPUS canvas components, poles and fittings, air beams and valves. General wear and tear excepted.

  • Page 43: Air Opus ® Internal Features

    Air OPUS INTERNAL FEATURES ® Zippable block out, pvc clear window and Beds private sleeping pods fixed fly screen. Stereo System with 2x speakers, Radio, USB inputs, CD & DVD player Full LED Lighting System with dimmer switch opuscamper.com.au TENT INFLATION TECHNOLOGY...
  • Page 44 Air OPUS INTERNAL FEATURES ® Fire Extinguisher USB Sockets Toilet Batteries 2x 100Ah deep cycle AGM batteries with 240V charger opuscamper.com.au TENT INFLATION TECHNOLOGY...

  • Page 45: Air Opus Storage

    Air OPUS STORAGE ® Driver side storage Passenger side Fridge slide storage opuscamper.com.au TENT INFLATION TECHNOLOGY...
  • Page 46 Air OPUS ACCESSORIES ® LED Kitchen Lighting Leg stabiliser lever Support leg for slide out kitchen Wheel chocks opuscamper.com.au TENT INFLATION TECHNOLOGY...
  • Page 47 NOTES opuscamper.com.au TENT INFLATION TECHNOLOGY...

  • Page 48: Pct Patent Pending Gb/2017/050391 & Australian Patent Pending 2017902549

    PCT Patent Pending GB/2017/050391 & Australian Patent Pending 2017902549 Design Registration No. 201712065 & No. 201712062 For further information please ® contact the Air OPUS team 03 9588 2959 enquiries@opuscamper.com.au Find us on Facebook & Instagram opuscamper.com.au Photographs and diagrams are for illustration purposes only. Actual product may vary and any specifications are subject to change without prior notice.
