Summary of Contents for Daikin KDDP55D160-2

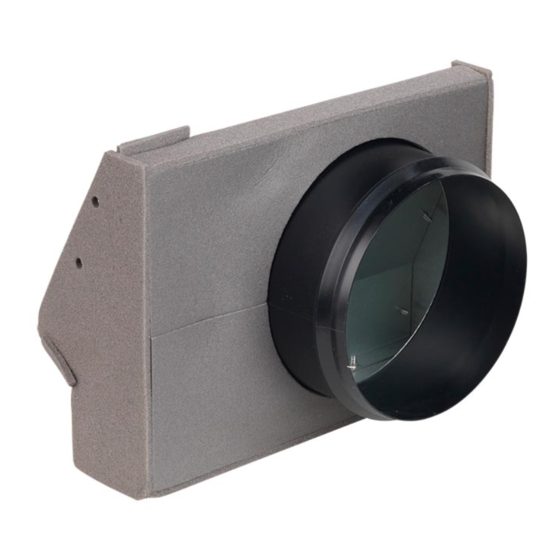

- Page 1 4P564849-1 Daikin Air Conditioner Fresh air intake kit (without duct fan) Installation manual KDDP55D160-2...
- Page 2 Quantity 1. Selection of location and access door (1) Refer to the following fi gure to select the mounting position (unit: mm). Duct (field supply) Inspection hatch Indoor unit 455 mm (Ceiling opening space) Fresh air intake kit - KDDP55D160-2...
- Page 3 2. Install the suction chamber on the indoor unit using hooks (4 positions). Fig.3, Fig.5. 3. Fix the hooks at the four positions with reference to Fig.4. 4. Install the indoor unit and suction chamber while aligning their contours. Fig.4, Fig.6. Fresh air intake kit - KDDP55D160-2...
- Page 4 1. Push up the square holes of the connecting chamber (Left) or (Right) while fi tting them onto the hook (tab) of the suction chamber (2 positions). 2. Fix the connecting chamber using the screws M5 provided. (2 positions). Fresh air intake kit - KDDP55D160-2...
- Page 5 Control box lid Decoration panel Wireless air conditioners ● For details of the connection procedure, please refer to the installation manual provided with the wireless remote controller kit (provided separately) Fresh air intake kit - KDDP55D160-2...
- Page 6 4P564849-1 2019.01...
