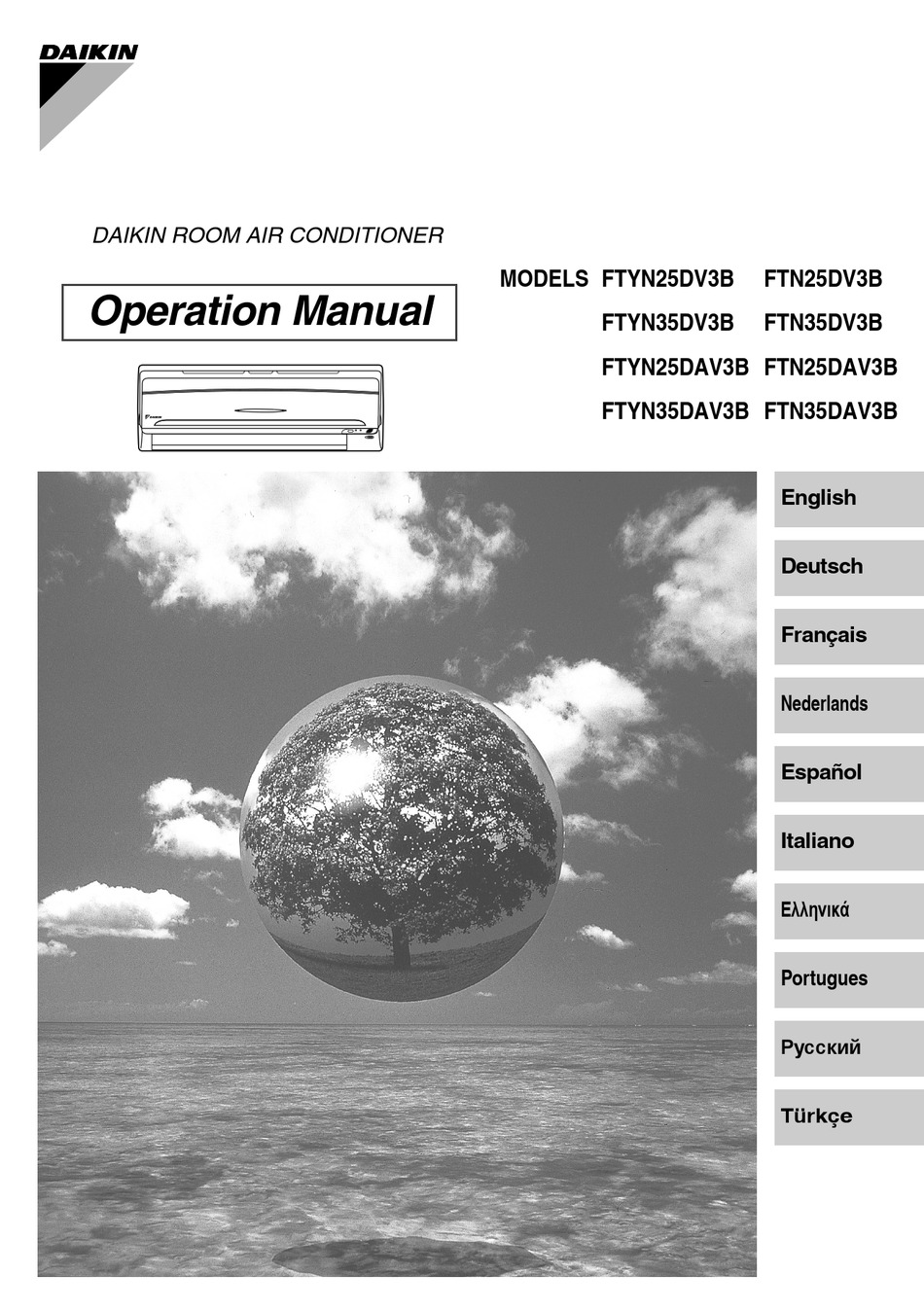

- Page 1 DAIKIN ROOM AIR CONDITIONER MODELS FTYN25DV3B FTN25DV3B Operation Manual FTYN35DV3B FTN35DV3B FTYN25DAV3B FTN25DAV3B FTYN35DAV3B FTN35DAV3B English Deutsch Français Nederlands Español Italiano ΕλληνικÜ Portugues Рóссêий Türkçe...
-
Page 2: Table Of Contents
CONTENTS READ BEFORE OPERATION Safety precautions ......... 2 Names of parts..........4 Preparation Before Operation ......7 OPERATION AUTO · DRY · COOL · HEAT · FAN Operation ............. 10 Adjusting the Air Flow Direction ....12 POWERFUL Operation ........ 13 TIMER Operation ......... -
Page 3: Safety Precautions
• Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself. Incorrect work will cause electric shocks, fire etc. For repairs and reinstallation, consult your Daikin dealer for advice and information. • The refrigerant used in the air conditioner is safe. Although leaks should not occur, if for some reason any refrigerant happens to leak into the room, make sure it does not come in contact with any flame as of gas heaters, kerosene heaters or gas range. - Page 4 • Do not stand or sit on the outdoor unit. Do not place any object on the unit to avoid injury, do not remove the fan guard. • Do not place anything under the indoor or outdoor unit that must be kept away from moisture. In certain conditions, moisture in the air may condense and drip.
-
Page 5: Names Of Parts
Names of parts I Indoor Unit... - Page 6 I Outdoor Unit & Indoor Unit I I I I 1. Air filter 11. Indoor Unit ON/OFF switch: • Push this switch once to start operation. 2. Titanium Apatite Photocatalytic Push once again to stop it. Air-Purifying Filter: • This switch is useful when the remote controller •...
- Page 7 I Remote Controller " & 〈 〉 ARC445A1, A3 1. Signal transmitter: 6. MODE selector button: • It sends signals to the indoor unit. • It selects the operation mode. (AUTO/DRY/COOL/HEAT/FAN) (page 10.) 2. Display: • It displays the current settings. 7.
-
Page 8: Preparation Before Operation
Preparation Before Operation I To set the batteries 1. Pull the tabs on top down and open the lid. 2. Set two dry batteries (AAA). 3. Insert the two tabs in the bottom of the lid and close the lid as it was before. - Page 9 Preparation Before Operation I To operate the remote controller • To use the remote controller, aim the transmitter at the indoor unit. If there is anything to block signals between the unit and the remote control- ler, such as a curtain, the unit will not operate. •...
- Page 10 I Turn the breaker ON • Turning ON the breaker opens the flap, then closes it again. (This is a normal procedure.) NOTE I I I I Tips for saving energy • Be careful not to cool (heat) the room too much. Keeping the temperature setting at a moderate level helps save energy.
-
Page 11: Auto · Dry · Cool · Heat · Fan Operation
OPERATION AUTO · DRY · COOL · HEAT · FAN Operation The air conditioner operates with the operation mode of your choice. From the next time on, the air conditioner will operate with the same operation mode. I To start operation 1. - Page 12 I To change the air flow rate setting 5. Press “FAN setting button”. DRY mode AUTO or COOL or HEAT or FAN mode Three levels of air flow rate setting from “ ” to “ ” plus “ ” are available. The air flow rate setting is not variable.
-
Page 13: Adjusting The Air Flow Direction
Adjusting the Air Flow Direction You can adjust the air flow direction to increase your comfort. I To adjust the horizontal blades (flaps) 1. Press “SWING button”. The display will light up and the flaps will begin to swing. 2. When the flaps have reached the desired position, press “SWING button”... -
Page 14: Powerful Operation
POWERFUL Operation POWERFUL operation quickly maximizes the cooling (heating) effect. You can get the maximum capacity. I To start POWERFUL operation 1. Press “POWERFUL button”. • POWERFUL operation ends in 20 minutes. Then the system automatically operates again with the settings which were used 1, 2 before POWERFUL operation. -
Page 15: Timer Operation
TIMER Operation Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use OFF TIMER and ON TIMER in combination. I To use OFF TIMER operation 1. Press “OFF TIMER button”. The TIMER lamp lights up. - Page 16 I To use ON TIMER operation 1. Press “ON TIMER button”. The TIMER lamp lights up. • The time changes in 1 hour increments every time the button is pushed, with a maximum of 12 hours. I To cancel ON TIMER operation 2.
-
Page 17: Care And Cleaning
CARE Care and Cleaning CAUTION Before cleaning, be sure to stop the operation and turn the breaker OFF. Units I Indoor unit, Outdoor unit and Remote controller 1. Wipe them with dry soft cloth. I Front panel 1. Open the front panel. •... - Page 18 Filters 1. Open the front panel. (page 16.) 2. Pull out the air filters. • Push a little upwards the tab at the center of each air filter, then pull it down. 3. Take off the Titanium Apatite Pho- tocatalytic Air-Purifying Filter. Titanium Apatite Photocatalytic •...
- Page 19 Check Check that the base, stand and other fittings of the outdoor unit are not decayed or corroded. Check that nothing blocks the air inlets and the outlets of the indoor unit and the outdoor unit. Check that the drain comes smoothly out of the drain hose during COOL or DRY operation. •...
-
Page 20: Trouble Shooting
TROUBLE SHOOTING Trouble Shooting These cases are not troubles. The following cases are not air conditioner troubles but have some reasons. You may just continue using it. Case Explanation Operation does not start soon. • This is to protect the air conditioner. •... - Page 21 Check again. Please check again before calling a repair person. Case Check The air conditioner does not • Hasn’t a breaker turned OFF or a fuse blown? operate. • Isn’t it a power failure? (OPERATION lamp is off.) • Are batteries set in the remote controller? •...
- Page 22 Call the service shop immediately. WARNING I I I I When an abnormality (such as a burning smell) occurs, stop operation and turn the breaker OFF. Continued operation in an abnormal condition may result in troubles, electric shocks or fire. Consult the service shop where you bought the air conditioner.
- Page 23 Fault diagnosis. FAULT DIAGNOSIS BY REMOTE CONTROLLER In the ARC445A series, the temperature display sections on the main unit indicate corresponding codes. 1. When the TIMER CANCEL button is held down for 5 seconds, a “ ” indication flashes on the temperature display section.
