Poulan Pro PP270 Owner's Manual

Poulan Pro PP270 Owner's Manual

Portable power steam cleaner
Hide thumbs
Table of Contents

Advertisement

Quick Links

PP270
P O R T A B L E P O W E R S T E A M C L E A N E R
O W N E R ' S G U I D E

Advertisement

Table of Contents
loading

Related Manuals for Poulan Pro PP270

Summary of Contents for Poulan Pro PP270

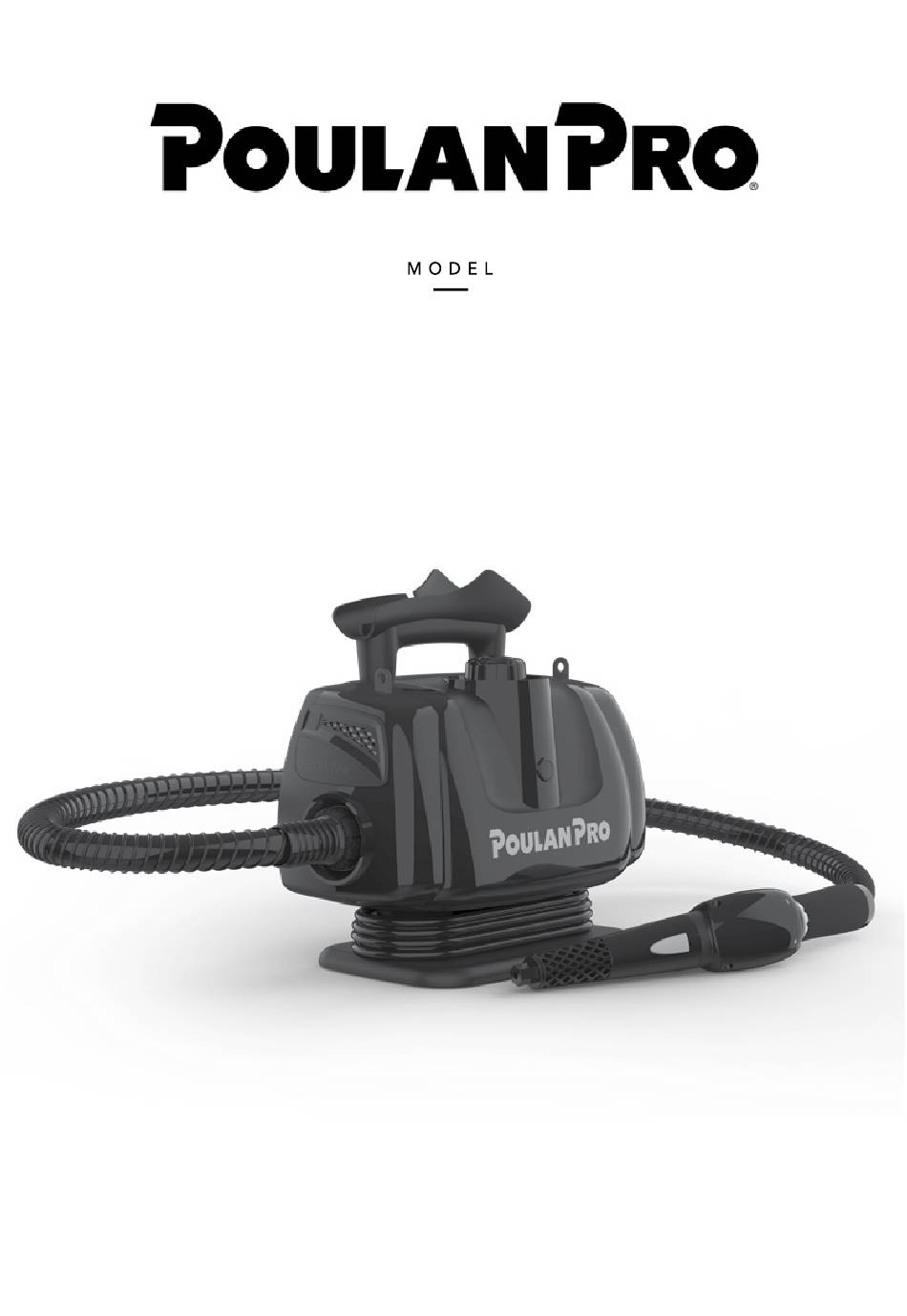

  • Page 1 PP270 P O R T A B L E P O W E R S T E A M C L E A N E R O W N E R ’ S G U I D E...

  • Page 2: Important Safety Instructions

    7. Do not operate unit with a damaged power cord or if the unit has been dropped or damaged. To avoid risk of electrical shock, do not disassemble unit; contact Poulan Pro Consumer Service for examination and repair. Incorrect reassembly can cause a risk of electrical shock when unit is used.
  • Page 3 Poulan Pro Consumer Service at 1-800- 711-6617. Changes or modification to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 4: Product Information

    Product Information The following features and accessories are included with your Portable Power Steam Cleaner. Carefully inspect the packing material for all parts listed below. To obtain possible missing parts, refer to Product Support on Page 13 of this manual for Consumer Service contact information. UNIT FEATURES &...
  • Page 5 Assembling Your Portable Power Steam Cleaner STEAM CLEANING ACCESSORIES WARNING: Do not try to connect accessories while unit is emitting steam. EXTENSION WANDS 1. Select one of the Extension Wands. Insert end (A) of Wand onto Main Nozzle (B) with yellow lock/release button slightly off center with hole.

  • Page 6: Microfiber Pads

    MICROFIBER PADS 1. Lay one Microfiber Pad on flat surface, with two fastener strips facing upward. 2. Align Mop Head with Microfiber Pad. Make sure Mop Head is oriented with Pad as shown, and centered as best as possible (See figure 2-A). 3.
  • Page 7 Assembling Your Portable Power Steam Cleaner STEAM CLEANING ACCESSORIES WARNING: Do not connect accessories while unit is emitting steam. JET NOZZLE 1. Select Jet Nozzle and push onto the Main Nozzle (A). 2. Rotate accessory until the yellow lock/release button snaps into the accessory hole (B). NOTE: The Jet Nozzle can be connected to the end of an Extension Wand for reaching high or difficult spots.

  • Page 8: Shoulder Strap

    Assembling Your Portable Power Steam Cleaner SHOULDER STRAP 1. Grasp clasp on one end of Shoulder Strap. Press lever down to open clasp, and continue to hold open (FIGURE 4-A). 2. Thread clasp through one of the strap bases (it does not matter which one), then release lever to close clasp (FIGURE 4-B).
  • Page 9 Using Your Portable Power Steam Cleaner FILLING RESERVOIR 1. Place Portable Power Steam Cleaner on a flat, level surface. 2. Make sure Lighted On/Off Switch is set to “O” (off) position and power cord is unplugged from electrical outlet. 3. Cautiously remove Reservoir Cap by unscrewing it in a counter-clockwise direction, and lift it off. CAUTION: Refer to refilling procedure below for additional safety precautions that must be taken when refilling the unit after it has been in use.

  • Page 10: Steam Cleaning

    STEAM CLEANING NOTE: Be sure that Reservoir has been filled and that all desired accessories are connected before following these steps. 1. For first time use, remove protective plastic cover from electrical plug. Plug power cord into a convenient electrical outlet. 2.

  • Page 11: Storage & Care

    Storage & Care PROPER STORAGE Preparing your Portable Power Steam Cleaner for storage is quick and simple. When you have fin- ished your steaming tasks, follow the steps listed below. 1. Set Lighted On/Off Switch to “O” (off) position and unplug power cord from electrical outlet. 2.

  • Page 12: Troubleshooting

    Troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION Unit fails to heat up. Unit is not plugged in. Plug power cord into electrical outlet. Reset circuit breaker / ground fault Household circuit breaker / ground NOTE: Always allow sufficient time interrupter, or replace fuse. If you fault interrupter has tripped or for unit to heat up before pressing need assistance, contact a licensed...

  • Page 13: Product Support

    What is covered Poulan Pro® is a licensed brand of Steamfast, a division of Vornado Air, LLC (“Steamfast”). Subject to the terms and conditions of this 2-Year Limited Warranty (“Warranty”) as set forth below, Steamfast warrants to the original consumer or purchaser (“Buyer”) that this Poulan Pro®-branded steam product, excluding all accessories and attachments, (the...
  • Page 14 Warranty Information • Use of the Product other than for normal household purposes. • Normal wear and tear. • Used consumable parts, accessories and attachments, including, but not limited to, brushes, hangers, scrub pads and mop pads. • Use of parts and accessories other than those produced or recommended by Steamfast. •...
  • Page 15 Poulan Pro 415 East 13th, Andover, KS 67002 1-800-711-6617 poulanprosteam.com help@poulanprosteam.com T270-005 R-, V01...
