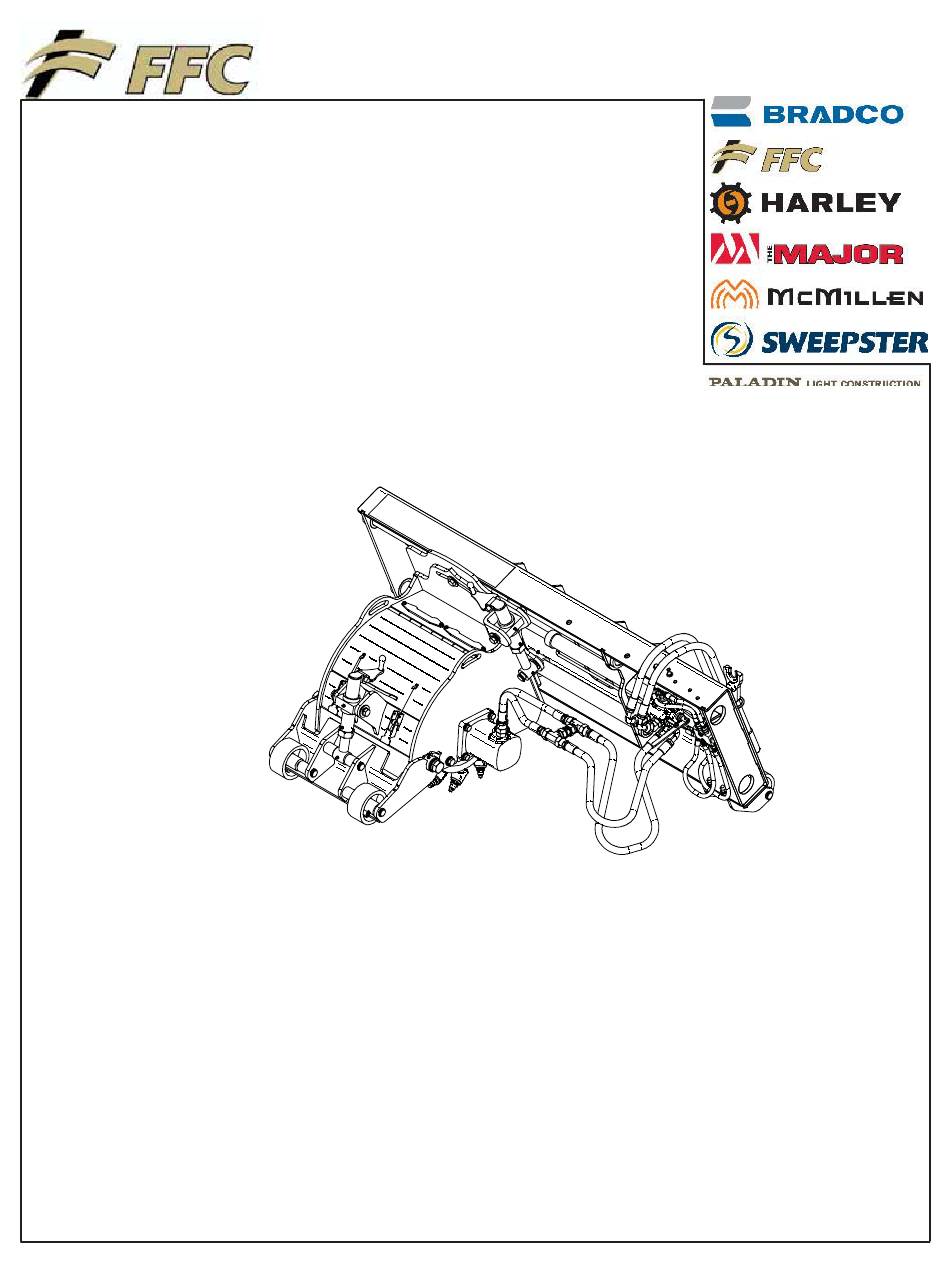

- Page 1 STANDARD FLOW COLD PLANER SERIAL NUMBER: ___________________ Manual Number: MR15650 Models: LAF5412 & LAF5413 MODEL NUMBER: ___________________ Release Date: January 30, 2006 800-747-2132 I www.paladinbrands.com 100 East Lee Road, Lee, IL 60530, United States of America...
-
Page 3: Table Of Contents
INTRODUCTION Congratulations on your purchase of a new FFC Attachments Cold Planer. This product has been designed and built for planing & milling asphalt. This product may also be used for roughing concrete. You or any other person who will be assembling, operating, maintaining, or working with this product are required to read and completely understand the information and instructions contained in this manual. -
Page 4: Definitions Of Safety Terms And Symbols
FFC Attachments. YOU can reduce the risk of injury or death by The best safety device is a careful operator. FFC Attachments and your dealer ask that YOU be that following all safety precautions and by using good careful, responsible equipment operator. -
Page 5: Accident Prevention, Safety Instructions
SAFETY INSTRUCTIONS WORK SAFELY - A CAREFUL OPERATOR IS THE BEST INSURANCE AGAINST ACCIDENTS !! SECTION 1 When using tools, wear the protective equipment specified by the tool manufacturer. (i.e. hardhat, WARNING SECTION safety glasses, work gloves, protective shoes, etc.) WARNING Obey all the safety instructions listed in WHEN YOUR POWER UNIT IS USED DURING ANY... - Page 6 / result in death or serious injury. quick-attach manufacturer. If this product does not fit properly, contact FFC WHEN DEALING WITH HYDRAULICS DURING ANY Attachments before operating. TYPE OF ASSEMBLY, OPERATION, MAINTENANCE,...
-
Page 7: Safety Signs
Replace all missing, illegible, or damaged safety signs. Replacement parts for parts with safety signs attached must also have safety signs attached. Safety signs are available, free of charge, from your dealer or from FFC Attachments. PLACEMENT OR REPLACEMENT OF SAFETY SIGNS 1. - Page 8 SAFETY SIGN LOCATIONS (CONTINUED) DECAL PARTS LIST ITEM QTY. PART # DESCRIPTION LAF8231 NON-SKID TAPE RDL3100 DECAL, WARNING ROTATING CUTTER 50-0724 DECAL, WARNING OIL INJ. HAZARD 50-0723 DECAL, WARNING READ MANUAL RDL3159 DECAL, WARNING FLYING OBJECTS 50-0721 DECAL, WARNING CRUSHING HAZARD RDL3179 DECAL, LIFT POINT RDL3301...
-
Page 9: Power Unit Specifications
POWER UNIT SPECIFICATIONS IMPORTANT Exceeding any of the maximum recommended tractor or power unit specifications CAN result in damage to this product and WILL void all FFC Attachments warranties. DESCRIPTION SPECIFICATIONS Weight of Power Unit without Planer 11,000 lbs. maximum Operating Capacity of Power Unit’s loader... -
Page 10: Setup
PLANER SETUP SAFETY FIRST!! READ AND UNDERSTAND THE SAFETY INSTRUCTIONS (pages 2-4 of this manual) BEFORE BEGINNING ANY PLANER SETUP Setting planer depth: Turn the depth jack (located on the front of the planer) to adjust planing depth. A depth indicator decal is located on the left side of the chassis. Setting planer sideshift: To sideshift the planer, actuate the diverter valve (LAF4699). -
Page 11: Operation
PLANER OPERATION SAFETY FIRST!! READ AND UNDERSTAND THE SAFETY INSTRUCTIONS (pages 2-4 of this manual) BEFORE BEGINNING ANY PLANER OPERATION Starting a Cut: 1. To begin a cut, adjust the tilt and depth jacks to the desired tilt depth with the planer slightly above the ground. -
Page 12: Maintenance
PLANER MAINTENANCE SAFETY FIRST!! READ AND UNDERSTAND THE SAFETY INSTRUCTIONS (pages 2-4 of this manual) BEFORE BEGINNING ANY PLANER MAINTENANCE WARNING Failure to obey the following procedures could result in death or serious injury. Never walk under or climb on raised liftarms or a raised attachment. If the attachment must be raised, block the machine with blocks or jackstands, NOT lift jacks or hoists. -
Page 13: Service
PLANER SERVICE SAFETY FIRST!! READ AND UNDERSTAND THE SAFETY INSTRUCTIONS (pages 2-4 of this manual) BEFORE BEGINNING ANY PLANER SERVICE 1. Park your power unit on a level surface with this product properly attached. 2. Place your power unit’s transmission in “Park” and engage the parking brake. 3. - Page 14 STANDARD FLOW COLD PLANER PARTS ILLUSTRATION DETAIL A 63 50...
-
Page 15: Parts List
Hydraulic Fitting 12MFS 12MB Straight LAF4229 LAF4229 Hydraulic Fitting 6MFS 6MB Straight Hydraulic Quick Coupler, Female Contact FFC to obtain the correct item Hydraulic Quick Coupler, Male Contact FFC to obtain the correct item LAF4694 LAF4694 Hydraulic Tee 12MFS 12FFS 12MFS... - Page 16 STANDARD FLOW COLD PLANER PARTS LIST (cont.) LAF5412 LAF5413 ITEM QTY. 12" 16" DESCRIPTION RHW1604 RHW1604 Grade 5 Hex Head Cap Screw, 5/8” x 2” RHW1908 RHW1908 Grade 5 Hex Head Cap Screw, 1” x 2-1/2” RHW5062 RHW5062 Grade 5 Flat Washer USS, ¼”...
-
Page 17: Cylinder Illustration & Parts List
60” 1116 lbs + 15 SSP16 LF PLANER REQUIREMENTS Model Number Required Pressure Required Flow LAF5412 SSP12 LF 2200 psi 13 gpm LAF5413 SSP16 LF 2200 psi 16 gpm TORQUE SPECIFICATIONS FOR STANDARD MACHINE HARDWARE Bolt Size SAE Grade Bolt Torque Ft./Lbs... -
Page 18: Warranty
NOTE! Make one copy each for the dealer’s and owner’s records. Mail original to FFC Attachments. Form MR00000-000 Rev. 09/04 FFC Attachments • 100 E. Lee Road • PO Box 122 • Lee, IL 60530 • 800-747-2132 • Fax 815-824-2071 www.ffcattachments.com... - Page 19 Our obligation under the warranty is expressly limited, at our option, to the replacement or repair at FFC, of Lee, Illinois, or at a service facility designated by us, or such part or parts as inspection shall disclosed to have been defective. We are not responsible for unauthorized repairs or replacements.
