COLD PLANER
SERIAL NUMBER: ___________________
MODEL NUMBER: ___________________
800-747-2132 I www.paladinbrands.com
HIGH FLOW
Manual Number: MR25664
Models: LAF5416, LAF5418,
Release Date: January 30, 2006
100 East Lee Road, Lee, IL 60530, United States of America
LAF5420, LAF5424,
LAF5430 & LAF5436
Advertisement
Table of Contents
Related Manuals for FFC LAF5416
Summary of Contents for FFC LAF5416

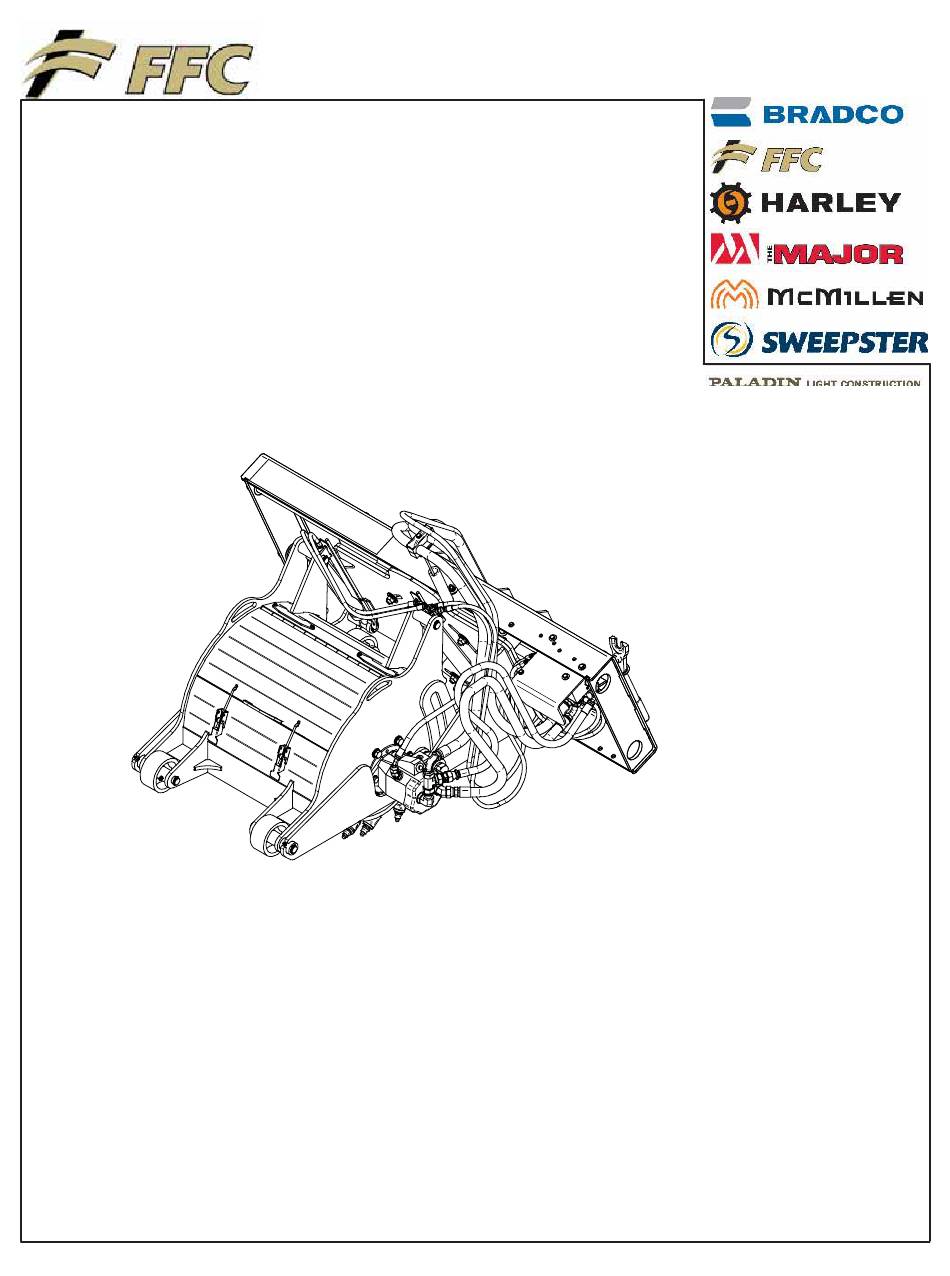

- Page 1 HIGH FLOW COLD PLANER SERIAL NUMBER: ___________________ Manual Number: MR25664 Models: LAF5416, LAF5418, MODEL NUMBER: ___________________ LAF5420, LAF5424, LAF5430 & LAF5436 Release Date: January 30, 2006 800-747-2132 I www.paladinbrands.com 100 East Lee Road, Lee, IL 60530, United States of America...
-
Page 3: Table Of Contents
INTRODUCTION Congratulations on your purchase of a new FFC Attachments Cold Planer. This product has been designed and built for planing & milling asphalt. This product may also be used for roughing concrete. You or any other person who will be assembling, operating, maintaining, or working with this product are required to read and completely understand the information and instructions contained in this manual. -
Page 4: Definitions Of Safety Terms And Symbols
YOU can reduce the risk of injury or death by The best safety device is a careful operator. FFC following all safety precautions and by using good Attachments and your dealer ask that YOU be that safety practices. - Page 5 SAFETY INSTRUCTIONS WORK SAFELY - A CAREFUL OPERATOR IS THE BEST INSURANCE AGAINST ACCIDENTS !! SECTION 1 WHEN YOUR POWER UNIT IS USED DURING ANY TYPE OF ASSEMBLY, OPERATION, MAINTENANCE, WARNING SECTION OR OTHER WORK ON OR NEAR THIS PRODUCT: WARNING Before leaving the operator’s station or before Obey all the safety instructions listed in...
- Page 6 / quick-attach manufacturer. WHEN DEALING WITH HYDRAULICS DURING ANY If this product does not fit properly, contact FFC TYPE OF ASSEMBLY, OPERATION, MAINTENANCE, Attachments before operating. OR OTHER WORK ON OR NEAR THIS PRODUCT:...
-
Page 7: Safety Signs
Replace all missing, illegible, or damaged safety signs. Replacement parts for parts with safety signs attached must also have safety signs attached. Safety signs are available, free of charge, from your dealer or from FFC Attachments. PLACEMENT OR REPLACEMENT OF SAFETY SIGNS 1. -
Page 8: Safety Signs
SAFETY SIGN LOCATIONS (CONTINUED) ITEM QTY. PART # DESCRIPTION RDL3100 STAND CLEAR RDL3127 PINCH POINT 50-0724 HYDRAULIC 50-0723 READ MANUAL RDL3159 FLYING DEBRIS 50-0721 CRUSH HAZARD NOTE: items with quantity (2) are located directly opposite the item shown. -
Page 9: Power Unit Specifications
POWER UNIT SPECIFICATIONS IMPORTANT Exceeding any of the maximum recommended tractor or power unit specifications CAN result in damage to this product and WILL void all FFC Attachments warranties. DESCRIPTION SPECIFICATIONS Weight of Power Unit without Planer 11000 lbs. maximum Operating Capacity of Power Unit’s loader... -
Page 10: Hydraulic Connection
PLANER HYDRAULIC CONNECTION SAFETY FIRST!! READ AND UNDERSTAND THE SAFETY INSTRUCTIONS (pages 2-4 of this manual) BEFORE BEGINNING ANY PLANER HYDRAULIC CONNECTION Disconnect the hydraulic hose quick couplers from one another and attach the quick couplers to your power unit as per the instructions in your power unit’s operator’s manual. -
Page 11: Operation
PLANER OPERATION SAFETY FIRST!! READ AND UNDERSTAND THE SAFETY INSTRUCTIONS (pages 2-4 of this manual) BEFORE BEGINNING ANY PLANER OPERATION Starting a Cut: 1. To begin a cut, adjust the depth cylinders to the desired depth with the planer slightly above the ground. -
Page 12: Maintenance
Tilt cylinder must be centered (head level). Sideshift cylinder must be fully retracted (left side maximum). Depth cylinder must be fully extended (shallowest cut position). Failure to do so CAN result in damage to this product and WILL void all FFC Attachments warranties. -
Page 13: Maintenance
PLANER MAINTENANCE (continued) SAFETY FIRST!! READ AND UNDERSTAND THE SAFETY INSTRUCTIONS (pages 2-4 of this manual) BEFORE BEGINNING ANY PLANER MAINTENANCE WARNING Failure to obey the following procedures could result in death or serious injury. Never walk under or climb on raised liftarms or a raised attachment. Do not use blocking made of concrete blocks, logs, buckets, barrels or any other material that could suddenly collapse or shift positions. -
Page 14: Service
PLANER SERVICE SAFETY FIRST!! READ AND UNDERSTAND THE SAFETY INSTRUCTIONS (pages 2-4 of this manual) BEFORE BEGINNING ANY PLANER SERVICE WARNING Failure to obey the following procedures could result in death or serious injury. Never walk under or climb on raised liftarms or a raised attachment. Do not use blocking made of concrete blocks, logs, buckets, barrels or any other material that could suddenly collapse or shift positions. - Page 15 PARTS ILLUSTRATION 5-LINE MANIFOLD 11 81...
- Page 16 PLANER: PARTS LIST ITEM QTY. LAF5416 LAF5418 LAF5420 LAF5424 LAF5430 LAF5436 Description 16" 18" 20" 24" 30" 36" 07-10017 Grade 5 Hex Head Cap Screw 3/8"- 16tpi x 6-1/2" f/ 3-Line Grade 5 Hex Head Cap Screw 5/16"- 07-10050 18tpi x 4-1/2" f/ 5-Line 13-50392 Rod 2"...
- Page 17 PLANER: PARTS LIST (Continued) ITEM QTY. LAF5416 LAF5418 LAF5420 LAF5424 LAF5430 LAF5436 Description 16" 18" 20" 24" 30" 36" RHW1004 Grade 5 Hex Head Cap Screw 1/4"- 20tpi x 3/4" f/ 3-Line RHW1108 Grade 5 Hex Head Cap Screw 5/16"- 18tpi x 1-1/2"...
- Page 18 PLANER: PARTS LIST (Continued) ITEM QTY. LAF5416 LAF5418 LAF5420 LAF5424 LAF5430 LAF5436 Description 16" 18" 20" 24" 30" 36" RHW7001 Grade 5 Hex Nut 1/4" f/ 3-Line f/ 5-Line RHW7101 Grade 5 Hex Nut 5/16" f/ 3-Line f/ 5-Line f/ 3-Line RHW7201 Grade 5 Hex Nut 3/8"...
- Page 19 HYDRAULIC & ELECTRICAL GROUP ILLUSTRATION 3-LINE...
- Page 20 HYDRAULIC & ELECTRIC GROUP ILLUSTRATION 5-LINE...
- Page 21 DECAL GROUP ILLUSTRATION Item Part No. Title RDL3179 4 LABEL, DECAL, LIFT POINT RDL3300 LABEL, DECAL, CASE DRAIN RDL3302 LABEL, DECAL, TILT IDICATOR RDL3303 2 LABEL, DECAL, DEPTH INDICATOR NOTE: items with a quantity of (2) or (4) are located directly opposite the item shown.
-
Page 22: Cylinder Illustrations & Parts Lists
CYLINDER ILLUSTRATION(S) & PARTS LIST Sideshift Cylinder (LAF4698) Item # Part # Description LAF4723 NUT, ¾-16 GRADE C ANTIVIBRATION LAF4724 HEAD, 1.0” I.D. NOMINAL LAF4725 PISTON 1.5” O.D. X 1” I.D. NOMINAL LAF4726 SEAL KIT 1.5” BORE 1.0” ROD LAF4727 COLLAR, 1.0 I.D. - Page 23 33” 60” 2235 lbs + 10 SSP36 HF PLANER REQUIREMENTS Model Number Required Pressure Required Flow LAF5416 SSP16 HF 2200 psi 24 gpm LAF5418 SSP18 HF 2200 psi 28 gpm LAF5420 SSP20 HF 2200 psi 28 gpm LAF5424 SSP24 HF...
- Page 24 NOTE! Make one copy each for the dealer’s and owner’s records. Mail original to FFC Attachments. Form MR00000-000 Rev. 09/04 FFC Attachments • 100 E. Lee Road • PO Box 122 • Lee, IL 60530 • 800-747-2132 • Fax 815-824-2071 www.ffcattachments.com...
- Page 25 Our obligation under the warranty is expressly limited, at our option, to the replacement or repair at FFC, of Lee, Illinois, or at a service facility designated by us, or such part or parts as inspection shall disclosed to have been defective. We are not responsible for unauthorized repairs or replacements.
