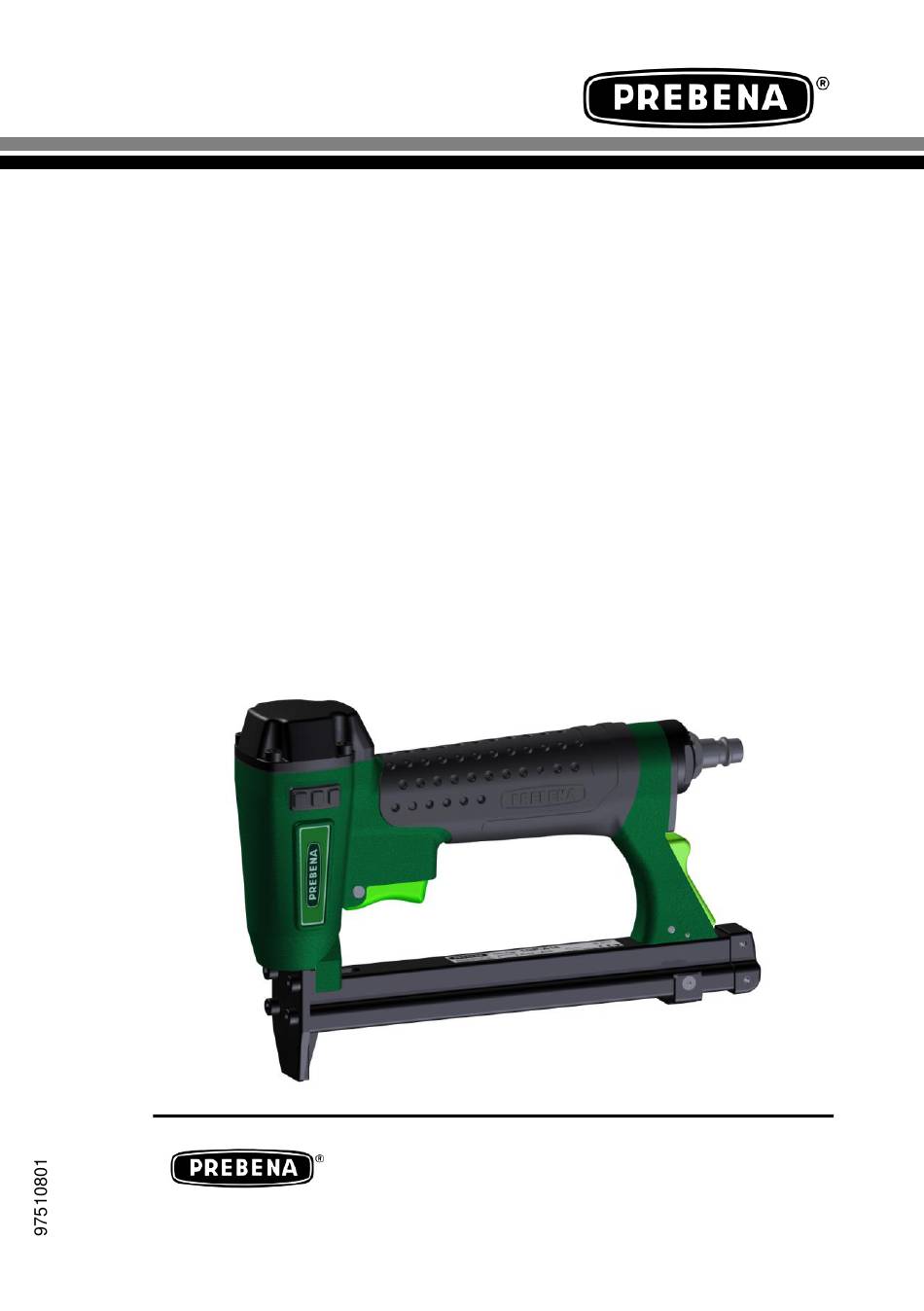

Original Operating Instructions for
Pneumatically-Driven Tackers
1GP-A16
1GP-D16
1GP-V16
1GP-XA16
1GP-A16LN50
1GP-V16LN50
PREBENA Wilfried Bornemann GmbH & Co. KG
Seestraße 20 – 26, 63679 Schotten, Germany
Tel.: +49 (0) 60 44 / 96 01 – 0, Fax: +49 (0) 60 44 / 96 01 – 820
E-mail: info@prebena.com
www.prebena.de, www.kartuschen-tausch.de
Advertisement
Table of Contents
Related Manuals for Prebena 1GP-A16
Summary of Contents for Prebena 1GP-A16
- Page 1 1GP-V16 1GP-XA16 1GP-A16LN50 1GP-V16LN50 PREBENA Wilfried Bornemann GmbH & Co. KG Seestraße 20 – 26, 63679 Schotten, Germany Tel.: +49 (0) 60 44 / 96 01 – 0, Fax: +49 (0) 60 44 / 96 01 – 820 E-mail: info@prebena.com...
-
Page 2: Preface
Preface These operating instructions will help you with the proper use as intended, safe and cost-effective use of the following pneumatically-driven tackers: 1GP-A16 1GP-D16 1GP-V16 1GP-XA16 1GP-A16LN50 1GP-V16LN50 In the operating Instructions, these compressed air-driven staplers and nail guns are referred to as tackers. -
Page 3: Table Of Contents
Table of contents Table of contents Preface ....................2 Table of contents ................3 Layout characteristics ..............5 General layout characteristics ............5 Features of the danger warnings ............5 Features of the notes on property or environmental damage .... 6 Safety .................... - Page 4 Oil the tacker ..................26 Malfunctions ................... 27 Malfunction overview ............... 28 Ordering accessories ..............30 Reordering fasteners ............... 30 1GP-A16 / 1GP-A16LN50..............30 1GP-D16 ..................30 1GP-V16 / 1GP-V16LN50..............31 1GP-XA16 ..................31 Ordering other accessories ............. 31 All types ................... 31 Disposing of tacker ...............
-
Page 5: Layout Characteristics
Layout characteristics Layout characteristics General layout characteristics Various elements in the operating instructions are marked with specific layout characteristics. This allows you to easily distinguish whether it is normal text, lists or process steps that you are reading about. ... -
Page 6: Features Of The Notes On Property Or Environmental Damage
Layout characteristics CAUTION Warnings with the word CAUTION warn of hazards that can lead to minor or moderate injuries. Features of the notes on property or environmental damage CAUTION These notes warn about dangers that can lead to property or environmental damage. -
Page 7: Safety
with accessories other than those stipulated in these operating instructions, connected to compressed air sources not listed in these operating instructions. PREBENA WILFRIED BORNEMANN GMBH & CO. KG accepts no liability for any damage resulting from any such improper or unspecified use. -
Page 8: Avoid The Risk Of Fatal Injuries
Safety Avoid the risk of fatal injuries During the triggering sequence and whenever the tacker is connected to the air supply, ensure that body parts are not near the opening. Only trigger the tacker when the tool lug is pressed onto the workpiece. -
Page 9: Avoid Damage To The Tacker
Safety Avoid damage to the tacker Never open the tacker. Always leave repairs to qualified specialists. Do not use the tacker if it has been dropped or is damaged. Have it inspected by qualified specialists before putting it into use again. -
Page 10: Description
Description Description Device overview Explanation Handle Compressed air supply, ID 7.2 Ventilation Lock for lower pusher Closure for lower pusher Stop for lower pusher Lower pusher Magazine Trigger lever Opening Tool plate Lateral contact protection Rating plate on the magazine (without illustration) -
Page 11: Scope Of Supply
All tackers work with compressed air that corresponds at least to quality class 4 according to DIN ISO 8573-1. The compressed air source is PREBENA compressors or the PREBENA PKT compressed air cartridge technology. -
Page 12: Information On The Rating Plate
Description Information on the rating plate The rating plate is glued to the top side of the magazine. It contains the following information: Explanation Company name and full address of the manufacturer Designation of machine - DN = Druckluftbetriebenes Eintreibgerät (Pneumatically-driven tacker) Model designation Year of manufacture... -
Page 13: Preparing The Tacker
Preparing the tacker Preparing the tacker Unpacking the tacker Remove the tacker from the packaging. Remove all packaging materials, such as plastic films, filler material and the cardboard box. WARNING Do not allow children to play with plastic packaging films. -
Page 14: Connecting Tacker To Compressed Air Supply
If no oiler is installed, the length of the air line to the tacker must not exceed 10 m. Otherwise three to five drops of PREBENA special nailer oil must be filled directly into the air inlet of the tacker every day prior to use. - Page 15 Preparing the tacker CAUTION Operation on compressed air systems that do not meet the above-mentioned preconditions can lead to damage to the tacker. Only operate the tacker on suitable compressed air systems. Only use the tacker if it is in perfect working order. ...
-
Page 16: Opening Magazine
Preparing the tacker Push the quick coupler (1) of the air hose onto the connection (2) until it engages audibly. Check the operating pressure at the pressure display of the compressor. The maximum permissible operating pressure of the tackers is 7.0 bar. -
Page 17: Inserting Fastener
Preparing the tacker Inserting fastener To insert the fastener (14) in the magazine, turn the tacker upside down and place the staple bars with the back downwards in the magazine. Closing magazine To close the magazine (8), press the lower pusher (7) forwards again. -
Page 18: Checking Function
Preparing the tacker Ensure that the lower pusher (7) engages at the lock (4). Push the lock (4) forwards if necessary. The magazine is closed. Checking function To check correct operation of the tacker, proceed as follows: CAUTION ... -
Page 19: Operating The Tacker
Operating the tacker Operating the tacker Regulating the driving depth via operating pressure The driving depth of the fastener in the material can be set by regulating the operating pressure. At a high operating pressure, the fasteners are driven in deeper and not so deep at a lower operating pressure. -
Page 20: Driving In Fasteners
Operating the tacker Driving in fasteners WARNING Risk of injury due to electric shock. Before triggering the tacker, always ensure that a power supply line cannot be struck. WARNING During operation, injuries to the eyes and other body parts are possible due to flying splinters. ... -
Page 21: Triggering The Tacker
Operating the tacker The driving depth of the fasteners depends on the hardness and thickness of the wooden workpiece and the set operating pressure. Ensure that there are no persons behind the workpiece. Then check the operation of the tacker at a low operating pressure by triggering it once. -
Page 22: After Operation
After operation After operation After use or prior to prolonged shutdowns, perform the steps described below. Disconnect the compressed air supply Switch off the compressor. Pull the quick coupler of the air hose away from the handle. The quick coupler is now released. ... -
Page 23: Transporting And Storing The Tacker
Transporting and storing the tacker Transporting and storing the tacker Packing Pack the tacker prior to storage or before the following types of transport: Distances of more than 10 m Transport over unsafe ground Transport that involves unaccustomed posture. Carry out the following preparatory steps: ... -
Page 24: Transport Over Long Distances
Always set down the box in a horizontal position with the lid facing upwards. Storage Oil all metal parts of the tacker thinly with PREBENA special nailer oil. Pack the tacker in the cardboard box. Store the tacker at room temperature in a dry place protected... -
Page 25: Servicing The Tacker
Slight contamination Wipe off the tacker housing with a dry cloth. Oil all metal parts of the tacker thinly with PREBENA special nailer oil. Serious contamination Wipe off the tacker housing with a cloth dampened slightly with a mild soap solution. -
Page 26: Oil The Tacker
If no oiler is installed and the length of the air line to the tacker is over 10 m, sufficient lubrication is not guaranteed. In this case, pour two to five drops of PREBENA special nailer oil directly into the port for the compressed air supply once weekly before starting work. -
Page 27: Malfunctions
If faults occur on the tacker that you are unable to correct based on the measures in the malfunction overview, you have to notify PREBENA Service. Do not perform repair work on the tacker. Ensure that all malfunctions to the tacker are eliminated by... -
Page 28: Malfunction Overview
Service (see page 34). Triggering without a The magazine is Clean the magazine. fastener being driven in contaminated. The wrong fasteners Empty the magazine. were loaded in the Fill the magazine with magazine PREBENA fasteners (see page 17). - Page 29 Malfunctions Symptom Possible cause Corrective measure The tacker is Fill PREBENA special insufficiently nailer oil into compressed lubricated. air connection used. Actuate trigger several times. The operating Increase the operating pressure is too low. pressure. The piston with driver ...
-
Page 30: Ordering Accessories
Only use original PREBENA accessories or accessories approved by PREBENA for operation of the tacker. Reordering fasteners The tackers must only be used with the respective PREBENA fasteners shown on the rating plate. Special device types with lengths other than those on the rating plates are available upon request. -
Page 31: 1Gp-V16 / 1Gp-V16Ln50
Ordering accessories 1GP-V16 / 1GP-V16LN50 Type Wire dimension Length 0.58 x 0.75 mm 3.95 mm 0.58 x 0.75 mm 4.95 mm 0.58 x 0.75 mm 5.95 mm 0.58 x 0.75 mm 7.90 mm 0.58 x 0.75 mm 9.80 mm 0.58 x 0.75 mm 11.90 mm 0.58 x 0.75 mm 13.90 mm... -
Page 32: Disposing Of Tacker
Observe the valid specifications for the disposal of oil. Never throw the tacker or parts of it into normal domestic refuse. If you wish to dispose of the tacker, forward it to PREBENA. PREBENA can guarantee the correct disposal of the tacker. -
Page 33: Technical Data
Technical data Technical data 1GP-A16, 1GP-D16, 1GP-V16, 1GP-XA16 Dimensions of tacker (L x W x H): 220 x 50 x 155 mm Weight of tacker: 0.86 kg Dimensions of packaging box (L x W x H): 280 x 185 x 65 mm Weight of packaging box with content: 1.50 kg... -
Page 34: Manufacturer's Address
Manufacturer's address Manufacturer's address PREBENA Wilfried Bornemann GmbH & Co. KG Befestigungstechnik Seestraße 20–26 D-63679 Schotten Telephone: +49 (0) 60 44 / 96 01-0 Fax: +49 (0) 60 44 / 96 01-820 E-mail: info@prebena.de Homepage: www.prebena.de www.kartuschen-tausch.de... -
Page 35: Guarantee
The guarantee does not cover wearing parts such as O-rings, etc. It shall be at the discretion of PREBENA to fulfil the guarantee by replacement of the faulty part or by the supply of a new product. -
Page 36: Index
Index Index Accessories manufacturer's address ..34 Ordering ......30 Opening magazine ....16 After operation Operation Disconnect the compressed Tacker........19 air supply ......22 Packing ........23 Emptying magazine ..... 22 Rating plate ......12 Avoid dangers ......8 Safety ........ - Page 37 PREBENA Wilfried Bornemann GmbH & Co. KG Seestraße 20 – 26, 63679 Schotten, Germany Tel.: +49 (0) 60 44 / 96 01 – 0, Fax: +49 (0) 60 44 / 96 01 – 820 E-mail: info@prebena.com www.prebena.de, www.kartuschen-tausch.de...
