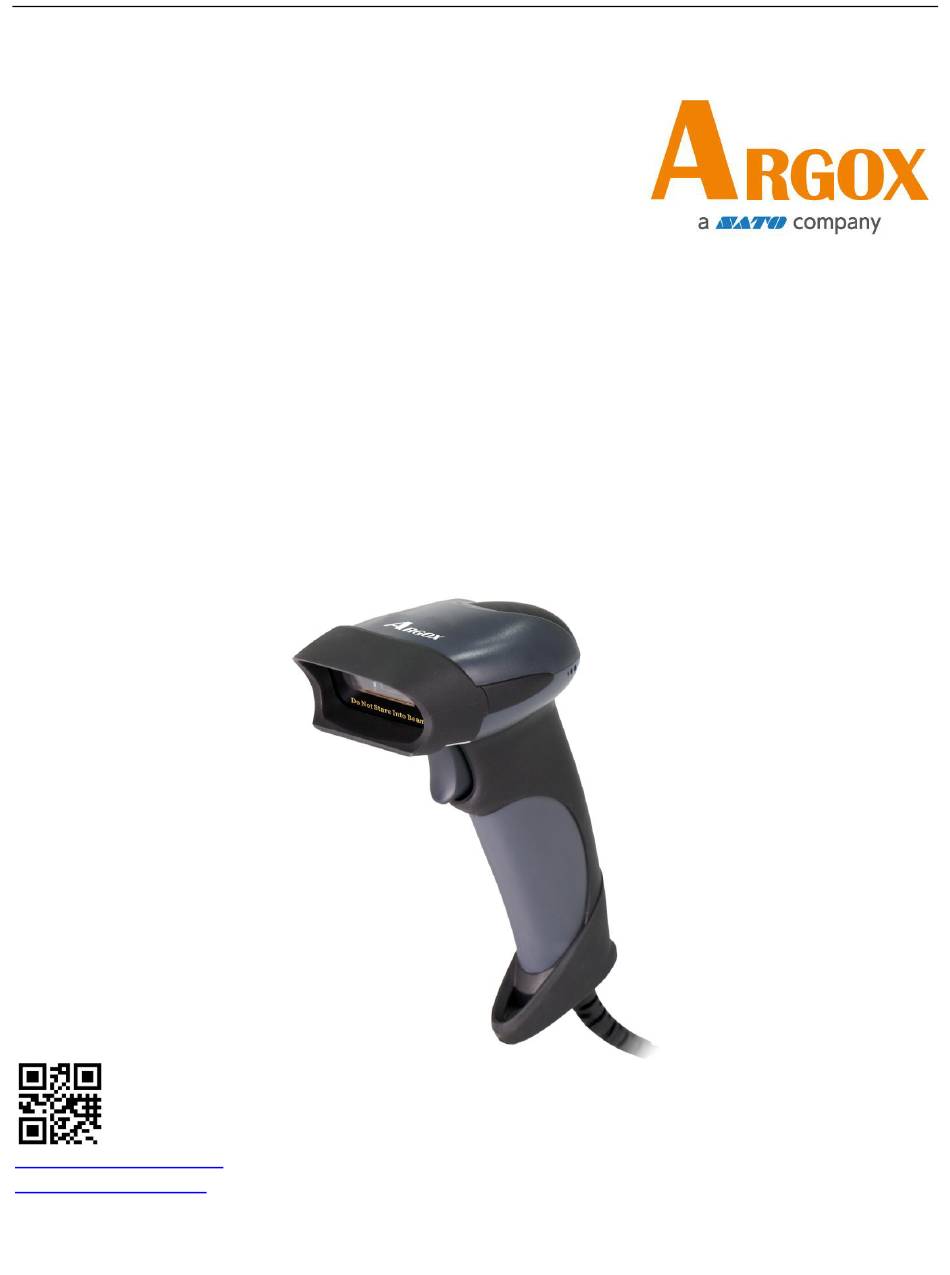

http://www.argox.com
service@argox.com

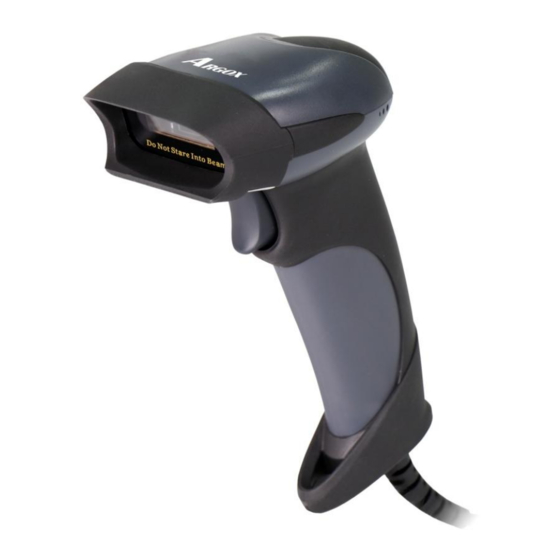

Barcode Scanner
User Guide
Version: 1.0
Date: Sept. 19, 2019
AS-9400

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARGOX AS-9400 and is the answer not in the manual?

Questions and answers

Related Manuals for SATO ARGOX AS-9400

Summary of Contents for SATO ARGOX AS-9400

  • Page 1 AS-9400 Barcode Scanner User Guide http://www.argox.com Version: 1.0 service@argox.com Date: Sept. 19, 2019...
  • Page 2 AS-9400 User Guide Regulatory Compliance FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 AS-9400 User Guide 警告使用者: 這是甲類的資訊產品，在居住的環境中使用時，可能會造成射頻干擾，在這種情況下，使用者會被 要求採取某些適當的對策。...

  • Page 4: Table Of Contents

    AS-9400 User Guide Contents DEFAULT SETTING ..............................1 Factory Default Configuration ..........................1 Default Configuration1 ............................1 Default Configuration2 ............................1 Default Configuration3 ............................2 Default Configuration4 ............................2 Default Configuration5 ............................2 ..............................2 URATION IN CANNING ................................3 OWER ................................
  • Page 5 AS-9400 User Guide Decode Data Packet Format ........................... 20 Host Serial Response Time-out ........................21 Stop Bit Select ..............................21 Intercharacter Delay ............................22 Host Character Time-out ..........................22 ..............................22 OMMUNICATION ..................................24 IEGAND Wiegand protocol type ............................24 Wiegand 26 Protocol Output Mode ........................
  • Page 6 AS-9400 User Guide 2D Global Switch ..............................41 All Barcode Switch .............................. 41 UPC/EAN ..................................42 Enable/Disable UPC-A ............................42 Enable/Disable UPC-E ............................. 42 Enable/Disable EAN-8 ............................43 Enable/Disable EAN-13 ........................... 43 Enable/Disable Bookland EAN(ISBN) ......................44 Decode UPC/EAN Supplementals ......................... 44 Transmit UPC-A Check Digit..........................
  • Page 7 AS-9400 User Guide 5/ITF/ ............................. 61 NTERLEAVED Enable/Disable Interleaved 2 of 5 ........................61 Set Lengths for Interleaved 2 of 5 Interleaved ..................... 61 I 2 of 5 Check Digit Verification ........................62 Transmit I 2 of 5 Check Digit ........................... 63 Convert I 2 of 5 to EAN-13 ..........................
  • Page 8 AS-9400 User Guide QR ....................................78 Enable/Disable QR ............................78 Read Multi-code ..............................79 ECI Control ..............................79 (DM) ................................ 80 ATRIX Enable/Disable Data Matrix(DM) ........................80 Read Multi-code ..............................80 Read Normal Phase/ Phase Reversal ......................81 ECI Control ..............................

  • Page 9: Default Setting

    AS-9400 User Guide Default Setting To restore Factory Default Configuration or Default Configuration 1-5, scan the appropriate bar code below. Set Factory Defaults - Scan this bar code to restore the factory default values listed in Table 4-6. Factory Default Configuration (0x00) Note:Default configurations of the scan engine depend on factory default configuration.

  • Page 10: Default Configuration3

    AS-9400 User Guide Default Configuration3 The parameter is main for scan engine parameters configuration Communication Mode: USB KBW Trigger Mode: Key holding Terminator : Enter(\r) (0x03) Default Configuration4 Communication Mode: Serial port 9600 Trigger Mode: Key holding. Terminator: Auto newline 2D barcode only open QR and DM.

  • Page 11: Power Mode

    AS-9400 User Guide Power Mode Parameter # 0x80 This parameter determines the power mode of the engine. In Low Power mode, the scan engine enters into a low power consumption Sleep power state whenever possible (provided all WAKEUP commands were released). SeePower Management .
  • Page 12 AS-9400 User Guide % & Level (0X00) Pulse (0X02) Continuous (0X04) Automatic Induction Mode (0x09) Host (0X08) (0x0A) Button Continuous...

  • Page 13: Interval Time

    AS-9400 User Guide Interval Time Parameter # 0x89 The interval time between two readings in continuous mode. Regardless of the last success or failure to read, more than the specified time will automatically trigger the next reading. Default: 500ms,unit: 100ms,range: 0-9900ms To set a Interval Time, scan the bar code below.

  • Page 14: Beep After Good Decode

    AS-9400 User Guide Beep After Good Decode Parameter # 0x38 Scan this symbol to set the scan engine to beep after a good decode. *Beep After Good Decode (0x01) Scan this symbol to set the scan engine not to beep after a good decode. The beeper still operates during parameter menu scanning and indicates error conditions.

  • Page 15: Indicator Light Function

    AS-9400 User Guide CR CR (0x04) CR LF CR LF (0x05) Indicator Light Function Parameter # 0xF2 0x0A Scan the appropriate bar code below to set indicator light function. Good Decode (0x00) Power LED (0x01) LED After Good Decode Parameter # 0xF2 0x0B To enable or disable LED after good decode, scan the appropriate bar code below.

  • Page 16: Mute

    AS-9400 User Guide Mute Parameter # 0xF2 0x0C To enable or disable close all prompt, scan the appropriate bar code below. * Disable (0x00) Enable (0x01) Boot prompt Parameter # 0xF2 0x0D Disable (0x00) * Enable (0x01) Setup Code Prompt Parameter # 0xF2 0x0E Disable (0x00)

  • Page 17: Transmit "No Read" Message

    AS-9400 User Guide * Enable (0x01) Transmit “No Read” Message Parameter # 0x5E Enable this option to transmit “NR” if a symbol does not decode during the timeout period or before the trigger is released. Any enabled prefix or suffixes are appended around this message. Enable No Read (0x01) When disabled, and a symbol cannot be decoded, no message is sent to the host.

  • Page 18: Send Setting Code

    AS-9400 User Guide Send Setting Code Parameter # 0xF1 0x71 Enable Send Setting Code to transmit bar codes in the following format, in Code 128, to the host: <FNC3>L<any length data> <FNC3>B<12 characters of data> Note that the special Code 128 character <FNC3> must appear at the beginning of this data. However, if the appropriate data does not follow this as shown above, it does not transmit to the host device.

  • Page 19: Linear Security Level 1

    AS-9400 User Guide Linear Security Level 1 The following code types must be successfully read twice before being decoded: *Linear Security Level 1 (0x01) Table 3-1 Code Type Length Codabar 4 or less D 2 of 5 8 or less I 2 of 5 8 or less Linear Security Level 2...

  • Page 20: Linear Security Level 3

    AS-9400 User Guide Linear Security Level 3 Code types other than the following must be successfully read twice before being decoded. The following codes must be read three times: Linear Security Level 3 (0x03) Table 3-2 Code Type Length 4 or less D 2 of 5 8 or less I 2 of 5...

  • Page 21: Invoice Type

    AS-9400 User Guide Enable (0x01) Invoice Type Parameter # 0xF2 0xAA *Special Invoice (0x00) Plain Invoice (0x01) Transmit Code ID Character Parameter # 0x2D A code ID character identifies the code type of a scanned bar code. This can be useful when decoding more than one code type.

  • Page 22: Prefix/Suffix Values

    AS-9400 User Guide V = Matrix 25 r = PDF417 u = DataMatrix(DM) q = QR a = Aztec Code x = Maxi Code v = Veri Code c = HanXin SymbolCode ID Character Code ID (0x02) AimCode ID Character AIM ID (0x01) *None (0x00)
  • Page 23 AS-9400 User Guide Scan Suffix 1 Scan Suffix 2 Data Format Cancel...

  • Page 24: Scan Data Transmission Format

    AS-9400 User Guide Scan Data Transmission Format Parameter # 0xEB To change the Scan Data Transmission Format, scan one of the eight bar codes corresponding to the desired format. *Data As Is (0x00) <DATA><SUFFIX 1> (0x01) <DATA><SUFFIX2> (0x02) <DATA><SUFFIX 1><SUFFIX 2> (0x03) <PREFIX><DATA >...

  • Page 25: Serial Parameters

    AS-9400 User Guide <PREFIX><DATA><SUFFIX 2> (0x06) <PREFIX><DATA><SUFFIX 1><SUFFIX 2> (0x07) Serial Parameters Baud Rate Parameter # 0x9C Baud rate is the number of bits of data transmitted per second.The scan engine's baud rate setting should match the data rate setting of the host device.If not, data may not reach the host device or may reach it in distorted form.
  • Page 26 AS-9400 User Guide *Baud Rate 9600 (0x06) Baud Rate 19,200 (0x07) Baud Rate 38,400 (0x08) Baud Rate 57600 (0x09) Baud Rate 115200 (0x0A)

  • Page 27: Parity

    AS-9400 User Guide Parity Parameter # 0x9E A parity check bit is the most significant bit of each ASCII coded character. Select the parity type according to host device requirements. If you select ODD parity, the parity bit has a value 0 or 1, based on data, to ensure that an odd number of 1 bits is contained in the coded character.

  • Page 28: Software Handshaking

    AS-9400 User Guide Software Handshaking Parameter # 0x9F This parameter offers control of the data transmission process in addition to that offered by hardware handshaking. Hardware handshaking is always enabled and cannot be disabled by the user. Disable ACK/NAK Handshaking When this option is selected, the scan engine neither generates nor expects ACK/NAK handshaking packets.

  • Page 29: Host Serial Response Time-Out

    AS-9400 User Guide Send Packeted Decode Data (0x01) Host Serial Response Time-out Parameter # 0x9B This parameter specifies how long the scan engine waits for an ACK or NAK before resending. Also, if the scan engine wants to send, and the host has already been granted permission to send, the scan engine waits for the designated time-out before declaring an error.

  • Page 30: Intercharacter Delay

    AS-9400 User Guide Intercharacter Delay Parameter # 0x6E The intercharacter delay gives the host system time to service its receiver and perform other tasks between characters. Select the intercharacter delay option matching host requirements. The delay period can range from no delay to 99 msec in 1 msec increments. After scanning the bar code below, scan two Numeric Bar Codes in appendix to set the desired time-out.
  • Page 31 AS-9400 User Guide USB Serial Port (0x02) AUTO UK (0x03) AUTO UV (0x04) Wiegand (0x05) RS485 (0x06) AUTO UW (0X07)

  • Page 32: Wiegand

    AS-9400 User Guide AUTO UR (0x08) (0x09) TTDATA (0x0A) TTDATA+serial port (0x0B) 1D module does not support USB KBW and USB serial port 【AUTO_UK】Automatic mode UK, USB and serial ports output simultaneously (use KBW) 【AUTO_UV】Automatic mode UV, USB and serial output simultaneously (use USB port) Wiegand Wiegand protocol type Parameter # 0xF2 0xA4...

  • Page 33: Wiegand 26 Protocol Output Mode

    AS-9400 User Guide WG26 (0x01) WG34 (0x02) WG66 (0x03) Wiegand 26 Protocol Output Mode Parameter # 0xF2 0xA5 *3+5 (0x00) Raw Data (0x01)

  • Page 34: Ps2 Mode

    AS-9400 User Guide PS2 Mode PS2 PS2 Operating Mode: 0: AUTO, connecting two PS2 deviceS. Default: The external keyboard is valid.The internal is valid when the data is output. 1: Independent PS2,only use internal PS2. Parameter # 0xF2 0xA6 AUTO (0x00) Independent PS2 (0x01)

  • Page 35: Positioning Lights Control (Only For 2D)

    AS-9400 User Guide Positioning lights control (only for 2D) Parameter # 0xF2 0x03 Lighting when Read (0x00) Always Lighting (0x01) Always Close (0x02) Sensitivity Level Set automatic induction triggering sensitivity Sensitivity Values Inquire the parameter values returned. Special: 0,high: 1,Middle: 8,Low: 15, Default: High Parameter # 0xF2 0x04 Special (0x00)

  • Page 36: Custom Sensitivity

    AS-9400 User Guide (0x03) Custom Sensitivity Set Automatic induction triggering sensitivity, The smaller ,the more sensitive, Values range 00-15 Default: 01 Parameter #0xF3 0x01 Custom Sensitivity For example： Set sensitivity is 2 Scan the custom sensitivity setting code,then scanNumeric Bar Codes0 and 2 Stability of Induction Time Stability of induction time,Default: 500ms, unit:100ms, range: 0-9900ms...

  • Page 37: Output Interval Of The Same Code

    AS-9400 User Guide Output Interval of The Same Code To avoid reading the same barcode multiple times in continuous mode and automatic induction mode, set the scan engine to allow reading the same barcode after a delay. Output interval of the same code is to refuse to read the same barcode within the set length of time. Default: 500ms, unit: 100ms, range: 0-9900ms To set output interval of the same code, scan the bar code below.

  • Page 38: Output Product Information

    AS-9400 User Guide Output Product Information Parameter # 0xF4 0x01 Output Character Set Type 0: Primitive Type 1:GBK(GB2312) 2: UTF8 Default: 0(Primitive Type) Parameter # 0xF2 0x06 *Primitive Type (0x00) GBK(GB2312) (0x01) UTF8 (0x02)

  • Page 39: Input Character Set Type

    AS-9400 User Guide Input Character Set Type Parameter # 0xF2 0xAB *AUTO (0x00) GBK(GB2312) (0x01) UTF8 (0x02) ASCII (0x03)

  • Page 40: Usb Type

    AS-9400 User Guide USB Type USB type,0: USB1.1(Full Speed), 1:USB2.0(High Speed),Default USB1.1 Parameter # 0xF2 0x0F *USB1.1(Full Speed) (0x00) USB2.0(High Speed) (0x01) Keyboard Country/Language Keyboard Parameter #0xF6 0x01 *American Keyboard (0x01) Belgium (0x02) Denmark (0x06)
  • Page 41 AS-9400 User Guide Finland (0x07) France (0x08) Austria、Germany (0x09) Italy (0x0D) Norway (0x10) Portugal 0x12...
  • Page 42 AS-9400 User Guide Russia (0x14) Spain (0x16) Sweden (0x17) Turkey_F (0x19) Turkey_Q (0x1A) England (0x1B)

  • Page 43: Time Interval That Keyboard Outputs Character

    AS-9400 User Guide Japan (0x1C) Time interval that keyboard outputs character Time interval that keyboard outputs character, range: 0-1000ms, unit: 5ms, default: 5ms Parameter #0xF3 0x04 For example: Time interval: 100ms First scan the setting code above, and then scan ‘0’, ‘2’, ‘0’ numeric barcodes in order. Quick Settings of Keyboard Output Time Interval Parameter # 0xF2 0xB2 (0x00)

  • Page 44: Letter Case Conversion

    AS-9400 User Guide Letter case conversion If set to "Case Inversion", the uppercase of the output data will be lowercase, lowercase letters will be uppercase; If set to "all uppercase", regardless of whether the letters in the output data are uppercase or lowercase, all converted to uppercase letters;...

  • Page 45: Output Ctrl Combination Key

    AS-9400 User Guide Output Ctrl Combination Key After opening the function, the ASCII control character between 0x00~0x1F becomes the output Ctrl combination control key. The specific combination keys refer to the attachment. Parameter # 0xF2 0xAD Disable (0x00) Enable (0x01) Keyboard Type Enable virtual keyboard, you can output the correct data in any keyboard language mode.When using virtual keyboard, you must ensure that the keypad keys are valid...

  • Page 46: Event Report

    AS-9400 User Guide Event Report Send Event Report Command refers to EVENT in SSI Commands. Boot Event Parameter # 0xF2 0xA2 *Disable (0x00) Enable (0x01) Trigger Event When scan engine triggers reading, it can be prompted by a command or GPIO pin. The GPIO pin is prompted to remain low until the end of the reading Parameter # 0xF2 0xA3 Disable...

  • Page 47: Setting Code Password Mode

    AS-9400 User Guide Enable Event&GPIO Pin Event (0x03) Setting Code Password Mode Enable setting code password mode,then scan setting code after inputing right password.Once input right password,this time boot is valid. Note: 2 password(00-99) Enable Setting Code Password Mode Parameter # 0xF2 0xA7 *Disable * (0x00) Enable...

  • Page 48: Modify Setting Code Password

    AS-9400 User Guide Modify Setting Code Password You can only modify password when you enable Setting Code Password Mode. Parameter # 0xF3 0x06 Scan below barcode to modify setting code password.Next scan two Numeric Bar Codes in appendix that correspond to new password.Single digit numbers must have a leading zero.For example,new password is 96,scan below barcode,then scan ‘9’...

  • Page 49: Barcode Global Switch

    AS-9400 User Guide Barcode Global Switch 1D Global Switch Parameter # 0xF2 0x11 Disable (0x00) Enable (0x01) 2D Global Switch Parameter # 0xF2 0x50 Disable (0x00) Enable (0x01) All Barcode Switch Parameter # 0xF2 0x90 Disable (0x00)

  • Page 50: Upc/Ean

    AS-9400 User Guide Enable (0x01) UPC/EAN Enable/Disable UPC-A Parameter # 0x01 To enable or disable UPC-A, scan the appropriate bar code below. *Enable UPC-A (0x01) Disable UPC-A (0x00) Enable/Disable UPC-E Parameter # 0x02 To enable or disable UPC-E, scan the appropriate bar code below. *Enable UPC-E (0x01) Disable UPC-E...

  • Page 51: Enable/Disable Ean-8

    AS-9400 User Guide Enable/Disable EAN-8 Parameter # 0x04 To enable or disable EAN-8, scan the appropriate bar code below. *Enable EAN-8 (0x01) Disable EAN-8 (0x00) Enable/Disable EAN-13 Parameter # 0x03 To enable or disable EAN-13, scan the appropriate bar code below. *Enable EAN-13 (0x01) Disable EAN-13...

  • Page 52: Enable/Disable Bookland Ean(Isbn)

    AS-9400 User Guide Enable/Disable Bookland EAN(ISBN) Parameter # 0x53 To enable or disable EAN Bookland, scan the appropriate bar code below. Enable Bookland EAN (0x01) *Disable Bookland EAN (0x00) Decode UPC/EAN Supplementals Parameter # 0x10 Supplementals are bar codes appended according to specific format conventions (e.g.UPC A+2, UPC E+2, EAN 13+2, EAN 13+5).

  • Page 53: Transmit Upc-A Check Digit

    AS-9400 User Guide Transmit UPC-A Check Digit Parameter # 0x28 Scan the appropriate bar code below to transmit the symbol with or without the UPC-A check digit. *Transmit UPC-A Check Digit (0x01) Do Not Transmit UPC-A Check Digit (0x00) Transmit UPC-E Check Digit Parameter # 0x29 Scan the appropriate bar code below to transmit the symbol with or without the UPC-E check digit.

  • Page 54: Upc-A Preamble

    AS-9400 User Guide UPC-A Preamble Parameter # 0x22 Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-A symbol. Select one of the following options for transmitting UPC-A preamble to the host device: transmit system character only, transmit system character and country code (“0” for USA), or transmit no preamble. No Preamble (<DATA>) (0x00)

  • Page 55: Upc-E Preamble

    AS-9400 User Guide UPC-E Preamble Parameter # 0x23 Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-E symbol. Select one of the following options for transmitting UPC-E preamble to the host device: transmit system character only, transmit system character and country code (“0” for USA), or transmit no preamble. No Preamble (<DATA>) (0x00)

  • Page 56: Convert Upc-E To Upc-A

    AS-9400 User Guide Convert UPC-E to UPC-A Parameter # 0x25 Enable this parameter to convert UPC-E (zero suppressed) decoded data to UPC-A format before transmission. After conversion, data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit). Scan DO NOT CONVERT UPC-E TO UPC-A to transmit UPC-E (zero suppressed) decoded data.

  • Page 57: Bookland Isbn Format

    AS-9400 User Guide Bookland ISBN Format Parameter # 0xF1 0x40 If you enabled Bookland EAN usingEnable/Disable Bookland EAN , select one of the following formats for Bookland data: Bookland ISBN-10 - The scan engine reports Bookland data starting with 978 in traditional 10-digit formatwith the special Bookland check digit for backward-compatibility.
  • Page 58 AS-9400 User Guide UPC/EAN Security Level 1 As bar code quality levels diminish,certain characters become prone to mis-decodes before others (i.e., 1, 2, 7, 8). If mis-decodes of poorly printed bar codes occur, and the mis-decodes are limited to these characters, select this security level.

  • Page 59: Code 128

    AS-9400 User Guide Code 128 Including AIM128 ,but the output type is different. Enable/Disable Code 128 Parameter # 0x08 To enable or disable Code 128, scan the appropriate bar code below. *Enable Code 128 (0x01) Disable Code 128 (0x00) Enable/Disable GS1-128 (formerly UCC/EAN-128) Parameter # 0x0E To enable or disable GS1-128, scan the appropriate bar code below.

  • Page 60: Enable/Disable Isbt 128

    AS-9400 User Guide Enable/Disable ISBT 128 Parameter # 0x54 To enable or disable ISBT 128, scan the appropriate bar code below. *Enable ISBT 128 (0x01) Disable ISBT 128 (0x00) Lengths for Code 128 No length setting is required for Code 128. Code 39 Enable/Disable Code 39 Parameter # 0x00...

  • Page 61: Set Lengths For Code 39

    AS-9400 User Guide Set Lengths for Code 39 Parameter # L1 = 0x12, L2 = 0x13 The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. Lengths for Code 39 may be set for any length, one or two discrete lengths, or lengths within a specific range.

  • Page 62: Code 39 Check Digit Verification

    AS-9400 User Guide Any Length - Scan this option to decode Code 39 symbols containing any number of characters. Code 39 - Any Length Code 39 Check Digit Verification Parameter # 0x30 When this feature is enabled, the scan engine checks the integrity of all Code 39 symbols to verify that the data complies with specified check digit algorithm.

  • Page 63: Enable/Disable Code 39 Full Ascii

    AS-9400 User Guide Enable/Disable Code 39 Full ASCII Parameter # 0x11 Code 39 Full ASCII is a variant of Code 39 which pairs characters to encode the full ASCII character set. To enable or disable Code 39 Full ASCII, scan the appropriate bar code below. Table 4-3for the mapping of Code 39 characters to ASCII values.

  • Page 64: Convert Code 39 To Code 32 (Italian Pharma Code)

    AS-9400 User Guide Convert Code 39 to Code 32 (Italian Pharma Code) Parameter # 0x56 Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate bar codebelow to enable or disable converting Code 39 to Code 32. Disable * (0x00) Enable...

  • Page 65: Code 93

    AS-9400 User Guide Code 93 Enable/Disable Code 93 Parameter # 0x09 To enable or disable Code 93, scan the appropriate bar code below. Enable Code 93 (0x01) *Disable Code 93 (0x00) Set Lengths for Code 93 Parameter # L1 = 0x1A, L2 = 0x1B The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains.

  • Page 66: Code 11

    AS-9400 User Guide Length Within Range - This option sets the unit to decode a code type within a specified range. Forexample, to decode Code 93 symbols containing between 4 and 12 characters, first scan Code 93 LengthWithin Range, then scan 0, 4, 1 and 2 (single digit numbers must always be preceded by a leading zero).Numeric Bar Codes is in appendix.
  • Page 67 AS-9400 User Guide Two Discrete Lengths - Select this option to decode only Code 11 symbols containing either of twoselected lengths. Select lengths using theNumeric Bar Codes in appendix. For example, to decode only those Code 11 symbols containing either 2 or 14 characters, select Code 11 - TwoDiscrete Lengths, then scan 0, 2, 1, and then 4.

  • Page 68: Code 11 Check Digit Verification

    AS-9400 User Guide Code 11 Check Digit Verification Parameter # 0x34 This feature allows the scan engine to check the integrity of all Code 11 symbols to verify that the data complies with the specified check digit algorithm. This selects the check digit mechanism for the decoded Code 11 bar code.

  • Page 69: Interleaved 2 Of 5/Itf

    AS-9400 User Guide Interleaved 2 of 5/ITF/ Enable/Disable Interleaved 2 of 5 Parameter # 0x06 To enable or disable Interleaved 2 of 5, scan the appropriate bar code below. *Enable Interleaved 2 of 5 (0x01) Disable Interleaved 2 of 5 (0x00) Set Lengths for Interleaved 2 of 5 Parameter # L1 = 0x16, L2 = 0x17...

  • Page 70: I 2 Of 5 Check Digit Verification

    AS-9400 User Guide Length Within Range - Select this option to decode only codes within a specified range. For example, todecode I 2 of 5 symbols containing between 4 and 12 characters, first scan I 2 of 5 Length Within Range, then scan 0, 4, 1 and 2 (single digit numbers must always be preceded by a leading zero).

  • Page 71: Transmit I 2 Of 5 Check Digit

    AS-9400 User Guide Transmit I 2 of 5 Check Digit Parameter # 0x2C Scan this symbol to transmit the check digit with the data. Transmit I 2 of 5 Check Digit (Enable) (0x01) Scan this symbol to transmit data without the check digit. *Do Not Transmit I 2 of 5 Check Digit (Disable) (0x00) Convert I 2 of 5 to EAN-13...

  • Page 72: Discrete 2 Of 5/Industrial 2 Of 5/Ind25

    AS-9400 User Guide Discrete 2 of 5/Industrial Enable/Disable Discrete 2 of 5 Parameter # 0x05 To enable or disable Discrete 2 of 5, scan the appropriate bar code below. Enable Discrete 2 of 5 (0x01) *Disable Discrete 2 of 5 (0x00) Set Lengths for Discrete 2 of 5 Parameter # L1 = 0x14, L2 = 0x15...

  • Page 73: Matrix 25

    AS-9400 User Guide Length Within Range - Select this option to decode codes within a specified range. For example, todecode D 2 of 5 symbols containing between 4 and 12 characters, first scan D 2 of 5 Length Within Range, then scan 0, 4, 1 and 2 (single digit numbers must be preceded by a leading zero). Numeric Bar Codes is in appendix.

  • Page 74: Matrix 25 Check Digit Verification

    AS-9400 User Guide Matrix 25 Check Digit Verification Parameter # 0xF2 0x21 Enable Matrix 25 Check Digit Verification (0x01) *DisableMatrix 25 Check Digit Verification* (0x00) Transmit Matrix 25 Check Character Parameter # 0xF2 0x22 Enable Matrix 25 Transmit Check Character (0x01) Disable Matrix 25 Transmit Check Character (0x00)

  • Page 75: Standard 25/Iata 25

    AS-9400 User Guide Two Discrete Lengths - Select this option to decode only those codes containing two selected lengths. Forexample, select Matrix 25 Two Discrete Lengths, then scan 0, 2, 1, 4, to decode only Matrix 25 symbols containing 2 or 14 characters.Numeric Bar Codes is in appendix.

  • Page 76: Standard 25 Check Digit Verification

    AS-9400 User Guide Standard 25 Check Digit Verification Standard 25 Parameter # 0xF2 0x24 Disable Standard 25 Check Digit Verification (0x00) Enable Standard 25 Check Digit Verification (0x01) Transmit Check Character Parameter # 0xF2 0x25 Disable Standard 25 Transmit Check Character (0x00) Enable Standard 25 Transmit Check Character (0x01)

  • Page 77: Codabar

    AS-9400 User Guide Two Discrete Lengths - Select this option to decode only those codes containing two selected lengths. Forexample, select Standard 25 Two Discrete Lengths, then scan 0, 2, 1, 4, to decode only Standard 25 symbols containing 2 or 14 characters.Numeric Bar Codes is in appendix.

  • Page 78: Set Lengths For Codabar

    AS-9400 User Guide Set Lengths for Codabar Parameter # L1 = 0x18, L2 = 0x19 The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. Lengths for Codabar may be set for any length, one or two discrete lengths, or lengths within a specific range.

  • Page 79: Notis Editing

    AS-9400 User Guide NOTIS Editing Parameter # 0x37 When enabled, this parameter strips the start and stop characters from decoded Codabar symbol. Enable NOTIS Editing (0x01) *Disable NOTIS Editing (0x00) Start Character and Terminator The start character and terminator are allowed to be one of the four characters of “A”, “B” “C” “D”.The terminator is also allowed to be one of the four characters of “T”, “N”, “*”, “E”.

  • Page 80: Letter Case Setting Of Start Character And Teminator

    AS-9400 User Guide Letter Case Setting of Start Character and Teminator Parameter # 0xF2 0x32 Uppercase (0x00) Lowercase (0x01) MSI/MSI PLESSEY Enable/Disable MSI Parameter # 0x0B To enable or disable MSI, scan the appropriate bar code below. Enable MSI (0x01) *Disable MSI (0x00)

  • Page 81: Set Lengths For Msi

    AS-9400 User Guide Set Lengths for MSI Parameter # L1 = 0x1E, L2 = 0x1F The length of a code refers to the number of characters (i.e., human readable characters) the code contains, and includes check digits. Lengths for MSI can be set for any length, one or two discrete lengths, or lengths within a specific range.

  • Page 82: Msi Check Digits

    AS-9400 User Guide MSI Check Digits Parameter # 0x32 These check digits at the end of the bar code verify the integrity of the data. At least one check digit is always required. Check digits are not automatically transmitted with the data. *One MSI Check Digit (0x00) If two check digits are selected, also select...

  • Page 83: Msi Check Digit Algorithm

    AS-9400 User Guide MSI Check Digit Algorithm Parameter # 0x33 When the Two MSI check digits option is selected, an additional verification is required to ensure integrity. Select one of the following algorithms. MOD 10/ MOD 11 (0x00) *MOD 10/ MOD 10 (0x01) GS1 DataBar/RSS Enable/Disable GS1 DataBar-14...

  • Page 84: Enable/Disable Gs1 Databar Limited

    AS-9400 User Guide Enable/Disable GS1 DataBar Limited Parameter # 0xF0 0x53 To enable or disable GS1 DataBar Limited, scan the appropriate bar code below. Enable GS1 DataBar Limited (0x01) *Disable GS1 DataBar Limited (0x00) Enable/Disable GS1 DataBar Expanded Parameter # 0xF0 0x54 To enable or disable GS1 DataBar Expanded, scan the appropriate bar code below.

  • Page 85: Pdf417

    AS-9400 User Guide PDF417 Scan normal or mirror image picture. Enable/Disable PDF417 Parameter # 0x0F To enable or disable PDF417, scan the appropriate bar code below. Disable PDF417 (0x00) *Enable PDF417 Read Multi-code Parameter # 0xF2 0x60 *Read Monocode (0x00) Read Dicode (0x01) Read Monocode /Dicode...

  • Page 86: Read Normal Phase/ Phase Reversal

    AS-9400 User Guide Read Normal Phase/ Phase Reversal Parameter # 0xF2 0x61 *Read Normal Phase (0x00) Read Phase Reversa (0x01) Read Normal Phase/ Phase Reversal (0x02) Read normal phase/ phase reversal/ mirror image picture Enable/Disable QR Parameter # 0xF0 0x25 To enable or disable QR, scan the appropriate bar code below.

  • Page 87: Read Multi-Code

    AS-9400 User Guide Read Multi-code Parameter # 0xF2 0x65 *Read Monocode (0x00) Read Dicode (0x01) Read Monocode /Dicode (0x02) ECI Control Parameter # 0xF2 0x66 *Not Output ECI (0x00) Output ECI (0x01)

  • Page 88: Data Matrix (Dm)

    AS-9400 User Guide Data Matrix (DM) Scan normal or mirror image picture. Enable/Disable Data Matrix(DM) Parameter # 0xF0 0x24 To enable or disable Data Matrix(DM), scan the appropriate bar code below. Disable DataMatrix (0x00) *Enable DataMatrix (0x01) Read Multi-code Parameter # 0xF2 0x6A *Read Monocode (0x00) Read Dicode...

  • Page 89: Read Normal Phase/ Phase Reversal

    AS-9400 User Guide Read Normal Phase/ Phase Reversal Parameter # 0xF2 0x6B *Read Normal Phase (0x00) Read Phase Reversal (0x01) Read Normal Phase/ Phase Reversal (0x02) ECI Control Parameter # 0xF2 0x6C *Not Output ECI (0x00) Output ECI (0x01)

  • Page 90: Maxi Code

    AS-9400 User Guide Maxi Code Enable/Disable Maxi Code Parameter # 0xF0 0x26 To enable or disable Maxi Code, scan the appropriate bar code below. *Disable MaxiCode (0x00) Enable MaxiCode (0x01) Aztec Code Enable/Disable Aztec Code Parameter # 0xF0 0x28 To enable or disable Aztec Code, scan the appropriate bar code below. *Disable Aztec Code (0x00) Enable Aztec Code...

  • Page 91: Han Xin Code

    AS-9400 User Guide Han Xin Code Enable/Disable Han Xin Code Parameter # 0xF0 0x2F To enable or disable Han Xin Code, scan the appropriate bar code below.9+ *DisableHan Xin Code (0x00) EnableHan Xin Code (0x01) Read Multi-code Parameter # 0xF2 0x70 *Read Monocode (0x00) Read Dicode...

  • Page 92: Read Normal Phase/ Phase Reversal

    AS-9400 User Guide Read Normal Phase/ Phase Reversal Parameter # 0xF2 0x71 *Read Normal Phase (0x00) Read Phase Reversal (0x01) Read Normal Phase/ Phase Reversal (0x02) ISSN ISSN turns to EAN13 when it’s disabled. Parameter # 0xF2 0x33 Disable (0x00) Enable (0x01)

  • Page 93: Plessey

    AS-9400 User Guide PLESSEY Parameter # 0xF2 0x34 Disable (0x00) Enable (0x01)

  • Page 94: Appendix

    AS-9400 User Guide 1. Appendix Table 4-1 Param Data Format Parameter Number Data Format 0 through 0xEF <param_num><value> 0xF0, 0xF1, 0xF2 <extended parameter code><param_num offset><value> 0xF4 <WORD parameter><Parameter Number><Value : High Byte><Value : Low Byte> <WORD parameter><Extended parameter code><Parameter Number> <Value : High Byte><Value : Low Byte>...

  • Page 95: Cancel

    AS-9400 User Guide Cancel To change the selection or cancel an incorrect entry, scan the bar code below. Cancel Setting Code Lengths Via Serial Commands There are two lengths (L1 and L2) for each variable length code type. Depending on the selected option, the scan engine decodes: One discrete length bar code；...

  • Page 96: Setting Prefixes And Suffixes Via Serial Commands

    AS-9400 User Guide Table 4-2 lists the requirements for each option. Table 4-2 Setting Variable Code Lengths Code Length Option L1 value L2 value One discrete length is decoded. Discrete length to decode 0x00 Two discrete lengths is decoded. Higher length value Lower length value Higher length value Lengths within a range are decoded within the scan...
  • Page 97 AS-9400 User Guide 1014 Insert CTRL N 1015 CTRL O 1016 CTRL P 1017 Home CTRL Q 1018 Print Screen CTRL R 1019 Delete CTRL S 1020 tab+shift CTRL T 1021 CTRL U 1022 CTRL V 1023 CTRL W 1024 CTRL X Table 4-3Character Equivalents (Continued)
  • Page 98 AS-9400 User Guide 1044 1045 1046 1047 1048 1049 1050 1051 1052 1053 1054 1055...
  • Page 99 AS-9400 User Guide Table4-3 Character Equivalents (Continued) Keyboard Function Key Keyboard Ctrl Scan Value Hex Value Combination Key 1056 1057 1058 1059 1060 < 1061 1062 > 1063 1064 1065 1066 1067 1068 1069 1070 1071 1072 1073 1074 1075 1076 1077 1078...
  • Page 100 AS-9400 User Guide Table 4-3 Character Equivalents (Continued) Keyboard Function Key Keyboard Ctrl Scan Value Hex Value Combination Key 1087 1088 1089 1090 1091 1092 1093 1094 1095 ‘ 1096 1097 1098 1099 1100 1101 1102 1103 1104 1105 1106 1107 1108 1109...
  • Page 101 AS-9400 User Guide 1116 1117...
  • Page 102 AS-9400 User Guide Table 4-3 Character Equivalents (Continued) Keyboard Function Key Keyboard Ctrl Scan Value Hex Value Combination Key 1118 1119 1120 1121 1122 1123 1124 1125 1126 1127 Undefined Values from 1128 through 1255 (hex values 80h through FFh for SSI) may also be set...

  • Page 103: Aim Code Identifiersaim

    AIM Code IdentifiersAIM Barcode Type AIM ID Instruction Code 128 Common data FNC1 in the first code word position. GS1-128(UCC/EAN-128) FNC1 in the second code word position. AIM 128 ISBT-128 Common data ]E4…]E1… Add2-bit additional code EAN8 ]E4…]E2… Add5-bit additional code Common data EAN13 Add 2/5-bit additional code...

  • Page 104: Parameter Command

    Check and output check character Check but don’t output check character Common data MOD11 single character check, and output check character. Code 11 MOD11 single character check, but don’t output check character. Plessey Common data Common data MOD10 check and output check character MSI-Plessey MOD10check but don’t output check character Standarddata packet...
  • Page 105 PARAM_DEFAULTS 04 C8 04 00 FF 30 PARAM_REQUEST Listed in the following table PARAM_SEND Listed in the following table REQUEST_REVISION 04 A3 04 00 FF 55 REPLY_REVISION None SCAN_DISABLE 04 EA 04 00 FF 0E SCAN_ENABLE 04 E9 04 00 FF 0F SLEEP 04 EB 04 00 FF 0D START_DECODE...
  • Page 106 Medium :07 C6 04 08 00 8C 01 FE 9A High: 07 C6 04 08 00 8C 00 FE 9B Beep After Good Decode 05 C7 04 00 38 FE F8 Enable：07 C6 04 08 00 38 01 FE EE Disable：07 C6 04 08 00 38 00 FE EF Terminator Disable:08 C6 04 08 00 F2 05 00 FE 2F...
  • Page 107 FE 39 Prefix+Data：07 C6 04 08 00 EB 04 FE 38 Prefix+Data+Suffix1：07 C6 04 08 00 EB 05 FE Prefix+Data+Suffix2：07 C6 04 08 00 EB 06 FE Prefix+Data+Suffix1+Suffix2：07 C6 04 08 00 EB 07 FE 35 Baud Rate 05 C7 04 00 9C FE 94 1200：07 C6 04 08 00 9C 03 FE 88 2400：07 C6 04 08 00 9C 04 FE 87 4800：07 C6 04 08 00 9C 05 FE 86...
  • Page 108 08 C6 04 08 00 F2 01 0A FE 29 TTDATA+Serial Port： 08 C6 04 08 00 F2 01 0B FE 28 Wiegand protocol type AUTO: 08 C6 04 08 00 F2 A4 00 FD 90 06 C7 04 00 F2 A4 FD 99 WG26: 08 C6 04 08 00 F2 A4 01 FD 8F WG34: 08 C6 04 08 00 F2 A4 02 FD 8E WG66: 08 C6 04 08 00 F2 A4 03 FD 8D...
  • Page 109 Quick Settings of Keyboard 0ms: 08 C6 04 08 00 F2 B2 00 FD 82 06 C7 04 00 F2 B2 FD 8B Output Time Interval 10ms: 08 C6 04 08 00 F2 B2 01 FD 81 50ms: 08 C6 04 08 00 F2 B2 02 FD 80 Letter case conversion Normal Letter Case: 08 C6 04 08 00 F2 A1 00 06 C7 04 00 F2 A1 FD 9C...
  • Page 110 AUTO Distinguish (02)：07 C6 04 08 00 10 02 FF 15 378/379 Supplemental Mode （04） ： 07 C6 04 08 00 10 04 FF 13 （05） ： 07 C6 04 08 978 Supplemental Mode 00 10 05 FF 12 Precise Mode（03）：07 C6 04 08 00 10 03 FF Preamble 05 C7 04 00 22 FF 0E None(00)：07 C6 04 08 00 22 00 FF 05...
  • Page 111 EAN-13 Scan 05 C7 04 00 03 FF 2D Disable：07 C6 04 08 00 03 00 FF 24 Enable：07 C6 04 08 00 03 01 FF 23 Supplemental Code 05 C7 04 00 10 FF 20 None(00)：07 C6 04 08 00 10 00 FF 17 Enable（01）：07 C6 04 08 00 10 01 FF 16 AUTO Distinguish (02)：07 C6 04 08 00 10 02 FF 15...
  • Page 112 Length Within Range: ： 02 to 09 09 C-6 04 08 00 12 02 13 09 FE F5 0x02 to 0x37(55)： 09 C6 04 08 00 12 02 13 37 FE C7 14 to 15: 09 C6 04 08 00 12 0E 13 0F FE E3 14 to 15 (Temporary) : 09 C6 04 00 00 12 0E 13 0F FE EB 15 to 16 :...
  • Page 113 Verification 1 bit：07 C6 04 08 00 34 01 FE F2 2 bits：07 C6 04 08 00 34 02 FE F1 Transmit Code 11 Check Digit Disable：07 C6 04 08 00 2F 00 FE F8 05 C7 04 00 2F FF 01 Enable：07 C6 04 08 00 2F 01 FE F7 Interleaved 2 of 5/ITF/ Enable Interleaved 2 of 5/ITF/...
  • Page 114 Length Within Range: 04 to 09 ： 0B C6 04 08 00 F5 00 04 F5 01 09 FD 2B Any Length： 0B C6 04 08 00 F5 00 00 F5 01 00 FD 38 Standard 25 / IATA 25 / Standard 25/IATA 25 06 C7 04 00 F2 23 FE 1A Disable：08 C6 04 08 00 F2 23 00 FE 11...
  • Page 115 Barcode Scanning Set Lengths for MSI 06 C7 04 00 1E 1F FE F2 One Discrete Length： 04：09 C6 04 08 00 1E 04 1F 00 FE E4 Two Discrete Lengths： 04 and 05 ： 09 C6 04 08 00 1E 05 1F 04 FE DF Length Within Range: 02 to 09 ：09 C6 04 08 00 1E 02 1F 09 FE DD Any Length：...
  • Page 116 QRCode 06 C7 04 00 F0 25 FE 1A Enable：08 C6 04 08 00 F0 25 01 FE 10 Disable：08 C6 04 08 00 F0 25 00 FE 11 Read Multi-code Read Monocode: 08 C6 04 08 00 F2 65 00 FD 06 C7 04 00 F2 65 FD D8 Read Dicode: 08 C6 04 08 00 F2 65 01 FD CE Read Monocode /Dicode: 08 C6 04 08 00 F2 65...
  • Page 117 ISSN 06 C7 04 00 F2 33 FE 0A Disable：08 C6 04 08 00 F2 33 00 FE 01 Enable：08 C6 04 08 00 F2 33 01 FE 00 PLESSEY 06 C7 04 00 F2 34 FE 09 Disable：08 C6 04 08 00 F2 34 00 FE 00 Enable：08 C6 04 08 00 F2 34 01 FD FF...
