Terex TS14G Maintenance Manual

Terex TS14G Maintenance Manual

Overhung scraper
Hide thumbs Also See for TS14G:

Advertisement

Quick Links

Download this manual See also: Maintenance Manual
TS14G
Overhung Scraper
Maintenance Manual
TECHNICAL PUBLICATIONS DEPARTMENT
TEREX EQUIPMENT LIMITED,
MOTHERWELL, SCOTLAND, ML1 5RY
REF. NO. 790
SM 1882 Rev 1 3-01

Advertisement

loading

Related Manuals for Terex TS14G

Summary of Contents for Terex TS14G

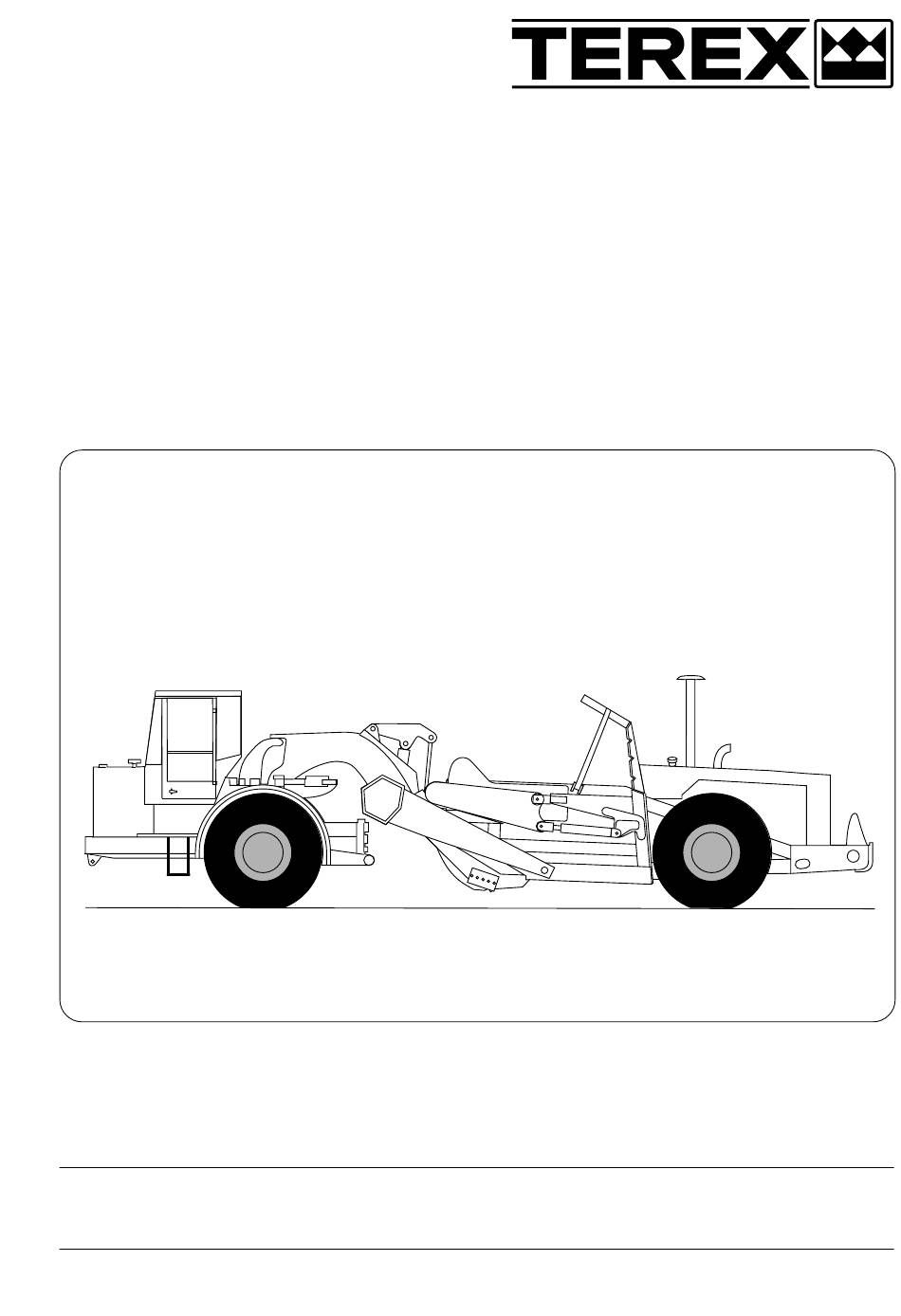

  • Page 1 TS14G Overhung Scraper Maintenance Manual TECHNICAL PUBLICATIONS DEPARTMENT TEREX EQUIPMENT LIMITED, MOTHERWELL, SCOTLAND, ML1 5RY REF. NO. 790 SM 1882 Rev 1 3-01...
  • Page 2 THIS PAGE IS INTENTIONALLY LEFT BLANK Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...
  • Page 3 TEREX SERVICE DEPARTMENT TEREX Equipment Limited, Motherwell, Scotland ML1 5RY Tel. (0698) 732121 Tlx. 77141 Fax. (0698) 734046 TEREX Division, Tulsa, Oklahoma, 74107 USA Tel. (918) 446-5581 Fax. (918) 446-9752 Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...
  • Page 4 THIS PAGE IS INTENTIONALLY LEFT BLANK Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...

  • Page 5: Important Safety Notice

    WARNING Never use parts which are altered, modified, or weakened in operation. This can seriously jeopardize the integrity of the machine and could result in property damage or serious personal injury. SM 222 Rev 1 9-93 Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...
  • Page 6 THIS PAGE IS INTENTIONALLY LEFT BLANK Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...
  • Page 7 TABLE OF CONTENTS Section No. Description SM No. GENERAL INFORMATION 0000 TS14G Technical Data 1884 CHASSIS 0010 Chassis, Hood and Fenders - Tractor 1885 0130 Steering Trunnion - Tractor 1695 ENGINE 0030 Engine and Mounting 1691 Rev 2 0050 Air Cleaner...
  • Page 8 1891 0050 Cutting Edges and Side Blades 1726 MISCELLANEOUS 0020 Lubrication System 1889 0070 Service Tools 1802 Rev 1 0080 Standard Bolt and Nut Torque Specs 1238 0090 Unit Storage 1239 SM 1883 Rev 1 3-01 Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...
  • Page 9 GENERAL INFORMATION - TS14G Technical Data Section 000-0000 SM - 2376 3 440 (11-3.5) Max. Width 3 060 3 060 (10-0.5) (10-0.5) 2 260 2 260 (7-5) (7-5) 1 460 1 460 (4-9.5) (4-9.5) 3 150 (10-4) to ground 3 810...
  • Page 10 General Information - TS14G Technical Data Section 000-0000 BRAKES Maximum Torque Full air operated drum brakes with automatic at 1 600 rev/min ......644 Nm (475 lbf ft) application on loss of air pressure. Secondary system Number of cylinders/configuration ....6, Inline can also be manually applied.
  • Page 11 General Information - TS14G Technical Data Section 000-0000 ELECTRICAL SYSTEM Servo Control Functions: Capacity at 2 200 rev/min ......43 litre/min Type ........24 volt, Negative Ground. (11.3 US gal/min) Battery ........ Two, 12 Volt, 165 Ah each System Pressure Accessories ............
  • Page 12 THIS PAGE IS INTENTIONALLY LEFT BLANK Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...
  • Page 13 Operate the The engine supports, transmission supports and steering in both directions several times to relieve any various other brackets are welded in position on the pressure in the steering system. frame. SM 1885 1-00 Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...

  • Page 14: Installation

    Refer to Section 160-0040, PLANETARY GEARING, for procedure. 2. Block all road wheels and place battery master switch in the 'Off' position. 5. Remove differential from the banjo. Refer to Section 160-0020, DIFFERENTIAL. SM 1885 1-00 Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...
  • Page 15 1 - Radiator Guard 2 - Seal 4 - Bolt 6 - Bolt 8 - Nut 3 - Grille 5 - Lockwasher 7 - Washer 9 - Handle Fig. 4 - Radiator Guard and Mounting SM 1885 1-00 Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...
  • Page 16 9. Install the oil transfer tube as described under the fabricated as shown in Fig. 6, through the spindles and heading ‘Oil Transfer Tube'. banjo. Align the spindle to the dimensions shown in Fig. 5 and tighten alignment tool. SM 1885 1-00 Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...
  • Page 17 7 - Shaft 1 - Spindle 3 - Banjo 5 - Washer 8 - Sleeve 2 - Banjo Outer Plate 4 - Nut 6 - Pilot 9 - Fixture Fig. 5 - Tractor Spindle Installation SM 1885 1-00 Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...
  • Page 18 CLICK HERE FOR HORIZONTAL DRAWING Chassis - Chassis, Hood and Fenders Section 100-0010 SM - 2210 Fig. 6 - Spindle Alignment Tool SM 1885 1-00 Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...

  • Page 19: Maintenance

    The 'Gasfoe' respirator has been approved by the U.S. Bureau of Mines: Approval number 23B-10, and is designed to protect against gases, vapours, and/or metal fumes. SM 1885 1-00 Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...
  • Page 20 Surfaces must be prepared using paint stripper prior to area being reworked. Recommended Industrial Hygiene and Safety Rules should be followed for protection of the welding operator from fumes. SM 1885 1-00 Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...

  • Page 21: Description And Operation

    Refer to Section 220-0010, STEERING LINES AND FITTINGS. 3. Block all road wheels and place battery master switch in the 'Off' position. SM 1695 2-99 Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...

  • Page 22: Installation And Assembly

    These tools are available from your dealer. Note: Tighten all fasteners, without special torques specified, to standard torques listed in Section 300-0080, STANDARD BOLT AND NUT TORQUE SPECIFICATIONS. SM 1695 2-99 Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...
  • Page 23 Chassis - Steering Trunnion Section 100-0130 SM - 2201 WASHER REF. 3 FIG. 1 1.30-60˚ BUSHING REF. 2 FIG. 1 STEERING TRUNNION REF. 1 FIG. 1 Fig. 2 - Washer and Bushing Installation SM 1695 2-99 Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...
  • Page 24 THIS PAGE IS INTENTIONALLY LEFT BLANK Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...
  • Page 25 There is a full-flow oil filter (2) remote mounted on the hand side of engine (1). The fuel filter (4) is in the fuel right hand side of the frame in a downward position. flow and acts as a strainer. SM 1691 Rev 2 3-01 Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...
  • Page 26 This machine is equipped with the HEUI electronic management system which continually monitors the engine and warns the operator when a problem SM 1691 Rev 2 3-01 Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...
  • Page 27 MPSI reader with the Navistar card. With the reader, it can be programmed on hours or fuel. Note: Active codes are displayed initially, followed by inactive codes. SM 1691 Rev 2 3-01 Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...

  • Page 28: Operation

    HEUI-equipped the engine. vehicle, this must be done by a person other than the operator. The operator must maintain control of the moving vehicle while the assistant performs the diagnosis. SM 1691 Rev 2 3-01 Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...
  • Page 29 & road speed limiting, if enabled and limites engine speed in all gears. 23 wide-window TRS signals were not received between two None If condition persists, engine will stop running. narrow signals. SM 1691 Rev 2 3-01 Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...
  • Page 30 ON engine OFF standard diagnostic test (ie. voltage drop across pins 17 & 37 was not between 5 - 20 Ohms). Main power relay failed the output circuit check, during key ON None None. engine OFF standard diagnostic test. SM 1691 Rev 2 3-01 Find manuals at http://best-manuals.com/search?&s=TEREX-SM1882...
