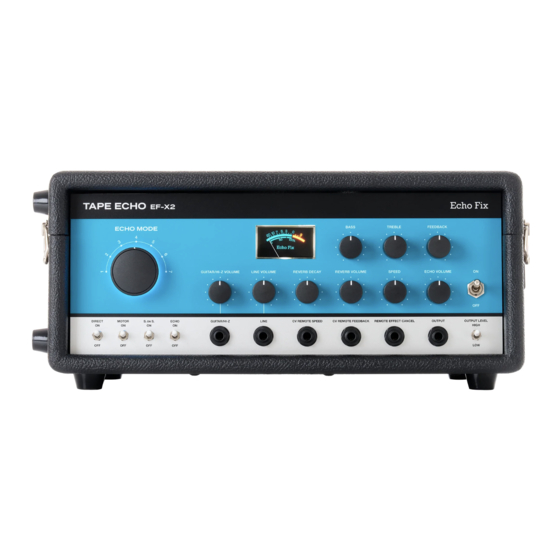

- Page 1 BASS TREBLE FEEDBACK ECHO MODE GUITAR/HI-Z VOLUME LINE VOLUME REVERB DECAY REVERB VOLUME SPEED ECHO VOLUME DIRECT MOTOR ECHO GUITAR/HI-Z LINE CV REMOTE SPEED CV REMOTE FEEDBACK REMOTE EFFECT CANCEL OUTPUT OUTPUT LEVEL HIGH U S E R MA NUAL...
- Page 2 USE R MAN UAL THANK YOU FOR CHOOSING THE TAPE ECHO EF-X2 Congratulations on your purchase of the EF-X2 Tape Echo! If you have not owned and maintained a tape echo unit before, it is strongly recomended that you review this document prior to use. PAGE 2 O F 8...
- Page 3 U SE R MANUAL TABLE OF CONTENTS 1. Start here 2. Understanding the unit 3. Upkeep and issues PAG E 3 O F 8...
-
Page 4: Start Here
U SE R MANUAL START HERE For over a decade, the Echo Fix team have serviced and repaired virtually every • It would also not be realistic to expect any analog device to operate without model of tape echo unit ever brought to market. When it came time to design the possibility of minor sonic interference. - Page 5 U SE R MANUAL UNDERSTANDING A. Direct ON/OFF Switch - Switches the direct signal off or on. For traditional echo operation (wet + dry signal), set to “ON”. For wet-only, set to “OFF”. THE EF-X2 B. Motor ON/OFF Switch - Allows you to turn the tape drive motor on or off. This is useful for achieving slow down/tape stop effects, or to increase tapelife when using the EF-X2 as a preamp or for reverb effect only.
- Page 6 U SE R MANUAL UNDERSTANDING I. Remote Effect Cancel - allows for bypassing of unit functions with an external footswitch. Connect a one-button TS footswitch to bypass the echo only, or a two-button TRS footswitch for bypass of the echo (tip) and reverb THE EF-X2 (ring).
- Page 7 U SE R MANUAL UNDERSTANDING Q. Speed - Adjusts the echo rate, corresponding to the heads selected with control L. Turn counterclockwise for longer echo times, or clockwise for shorter. Please note: This is controlling the physical motion of a motor and echo times THE EF-X2 will ramp up or down gradually when adjusted, with the pitch of any repeated sound being sped up or slowed down accordingly.
- Page 8 - it hopefully goes without saying, but only use genuine Echo Fix EF-X2 parts IEC-C7 (“Figure 8”) cable for your region. If you should need to replace this for the upkeep of your unit.
