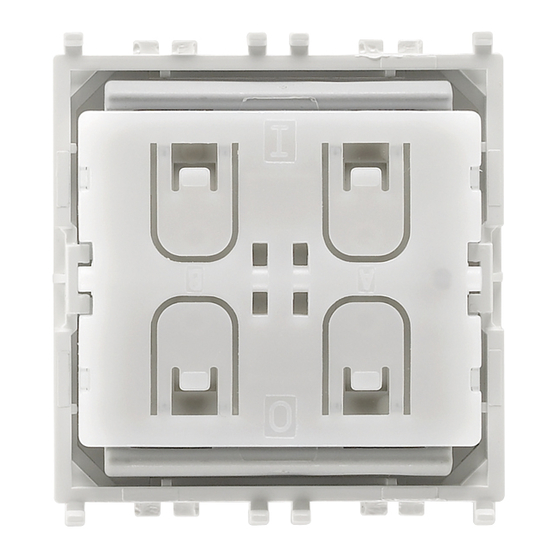

Two-rocker-buttons flat device with radio frequency transmitter 2.4 ghz standard 802.15.4 no battery, powered by built-in electrodynamich generator, to complete with dedicate 20506 eikon, 19506 arke or 14506 plana buttons.
Hide thumbs Also See for 03905:
Table of Contents

Advertisement

Quick Links

Download this manual
Installer Manual
03905
Two-Rocker-Buttons flat device with radio frequency
transmitter 2.4 GHz standard 802.15.4 no battery, powered
by built-in electrodynamich generator, to complete with
dedicate 20506 Eikon, 19506 Arké or 14506 Plana buttons.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 03905 and is the answer not in the manual?

Questions and answers

Related Manuals for Vimar 03905

Summary of Contents for Vimar 03905

  • Page 1 Installer Manual 03905 Two-Rocker-Buttons flat device with radio frequency transmitter 2.4 GHz standard 802.15.4 no battery, powered by built-in electrodynamich generator, to complete with dedicate 20506 Eikon, 19506 Arké or 14506 Plana buttons.
  • Page 2 Contents...

  • Page 3: Table Of Contents

    2.5.2.4 Radio channel adjustment examples ………………………………………………………………………………………………… 2.5.2.5 Determining the correct radio channel ……………………………………………………………………………………………… 2.5.2.6 Storing the new radio channel and return to data mode ………………………………………………………………………… 2.5.2.7 Setting 03905 to a defined state (data mode) ……………………………………………………………………………………… 3. Application information ……………………………………………………………………………………………………………… 3.1 Transmission range ……………………………………………………………………………………………………………………...

  • Page 4: General Description

    03905 enables the realization of energy harvesting wireless switches for ZigBee systems communicating based on the 2.4 GHz IEEE 802.15.4 radio standard. 03905 is mechanically compatible with the established PTM 21x form factor enabling quick integration into a wide range of designs. Key applications are wall- mounted or portable switches either with up to two rockers or up to four push buttons.

  • Page 5: Functional Information

    2.2 Basic Functionality 03905 devices contain an electro-dynamic energy transducer which is actuated by an energy bow (1). This bow is pushed by an appropriate push button, switch rocker or a similar construction mounted onto the device. An internal spring will release the energy bow a soon as it is not pushed down anymore.

  • Page 6: 03905 Radio Channel Parameters

    – if required – change the radio channel it uses for telegram transmission. 2.5.1 Data mode Data mode is the standard mode of operation. In this mode, 03905 will transmit data telegrams identifying the status of its four button contacts and the energy bar.

  • Page 7: Commissioning Telegram Transmission

    Functional information To enter commissioning mode, start by selecting one button contact of 03905. Any contact of 03905 (A0, A1, B0, B1) can be used. This contact is referred to as ButtonX in Figure 4 above. Next, execute the following long-short-long sequence: 1.

  • Page 8: Setting 03905 To A Defined State (Data Mode)

    03905 can always be set into a defined state (data mode) by shortly (< 7s) pressing two different buttons one after another. After that, 03905 will op- erate in data mode and the full sequence for commissioning mode entry (long-sort-long) would have to be executed to enter commissioning mode.

  • Page 9: Application Information

    Application information 3. Application information 3.1 Transmission range The main factors that influence the system transmission range are: - Type and location of the antennas of receiver and transmitter. - Type of terrain and degree of obstruction of the link path. - Sources of interference affecting the receiver.
