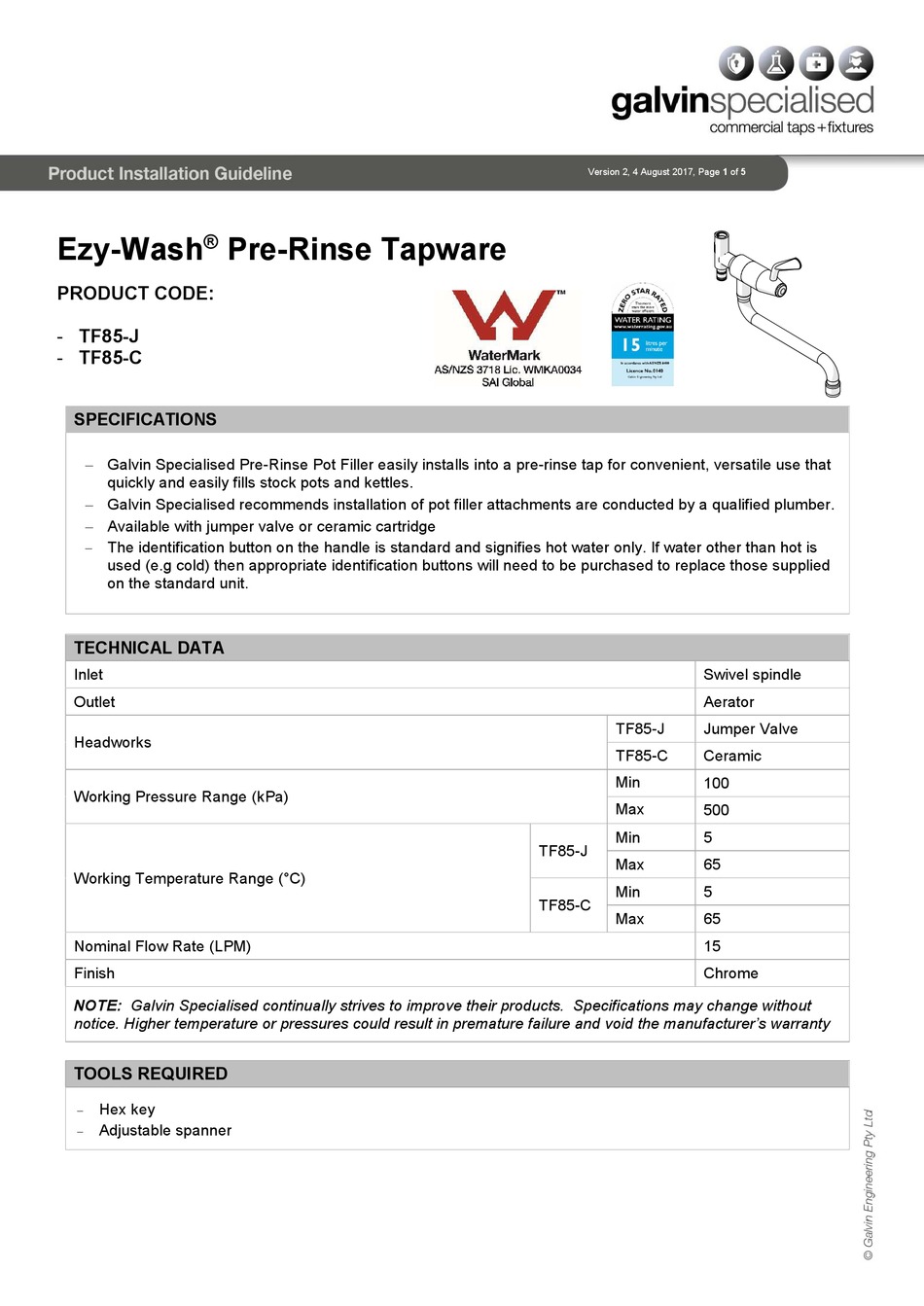

Ezy-Wash
Pre-Rinse Tapware
PRODUCT CODE:
- TF85-J
- TF85-C
SPECIFICATIONS
Galvin Specialised Pre-Rinse Pot Filler easily installs into a pre-rinse tap for convenient, versatile use that
quickly and easily fills stock pots and kettles.
Galvin Specialised recommends installation of pot filler attachments are conducted by a qualified plumber.
Available with jumper valve or ceramic cartridge
The identification button on the handle is standard and signifies hot water only. If water other than hot is
used (e.g cold) then appropriate identification buttons will need to be purchased to replace those supplied
on the standard unit.
TECHNICAL DATA
Inlet
Outlet
Headworks
Working Pressure Range (kPa)
Working Temperature Range (°C)
Nominal Flow Rate (LPM)
Finish
NOTE: Galvin Specialised continually strives to improve their products. Specifications may change without
notice. Higher temperature or pressures could result in premature failure and void the manufacturer's warranty
TOOLS REQUIRED
Hex key
Adjustable spanner
Version 2, 4 August 2017, Page 1 of 5
Swivel spindle
Aerator
TF85-J
Jumper Valve
TF85-C
Ceramic
Min
100
Max
500
Min
5
TF85-J
Max
65
Min
5
TF85-C
Max
65
15
Chrome
Advertisement
Table of Contents
Related Manuals for Galvin Specialised Ezy-Wash TF85-J
Summary of Contents for Galvin Specialised Ezy-Wash TF85-J
- Page 1 - TF85-C SPECIFICATIONS Galvin Specialised Pre-Rinse Pot Filler easily installs into a pre-rinse tap for convenient, versatile use that quickly and easily fills stock pots and kettles. Galvin Specialised recommends installation of pot filler attachments are conducted by a qualified plumber.
- Page 2 It is critical that the grub screw point locates accurately into hole recess of mating part. Failure to do so may result in damage and/or failure of the unit. Refer back to instructions supplied with new Galvin Specialised pre-rinse unit to complete installation.
- Page 3 Version 2, 4 August 2017, Page 3 of 5 Retro-Fit {Installation to existing Galvin Specialised Ezy-Wash Pre-Rinse unit (the unit will need to be isolated at the control valves)} 1. Disassemble wall bracket 2. Disassemble pre-rinse riser Unscrew grub screw from top riser ...
- Page 4 (overnight etc.), so that the unit is not under mains pressure when unsupervised. Flood damage may occur if a failure occurs whilst the unit is under mains pressure (warranty is void in this instance). Galvin Specialised recommends that the handpiece is periodically serviced by a qualified plumber . IMPORTANT: To seal the hose this unit uses Loctite 577 which is a thread sealant approved for use with potable water (AS/NZS 4020).
- Page 5 Version 2, 4 August 2017, Page 5 of 5 SERVICE AND MAINTENANCE JUMPER VALVE TAPWARE CERAMIC CARTRIDGE TAPWARE Turn off the water supply and turn on the tap Turn off the water supply and turn on the tap handle to drain water from the bodies. handle to drain water from the bodies.
