QUICK START GUIDE FOR DEMONSTRATION CIRCUIT 776
36V-72VIN, FORWARD CONVERTER

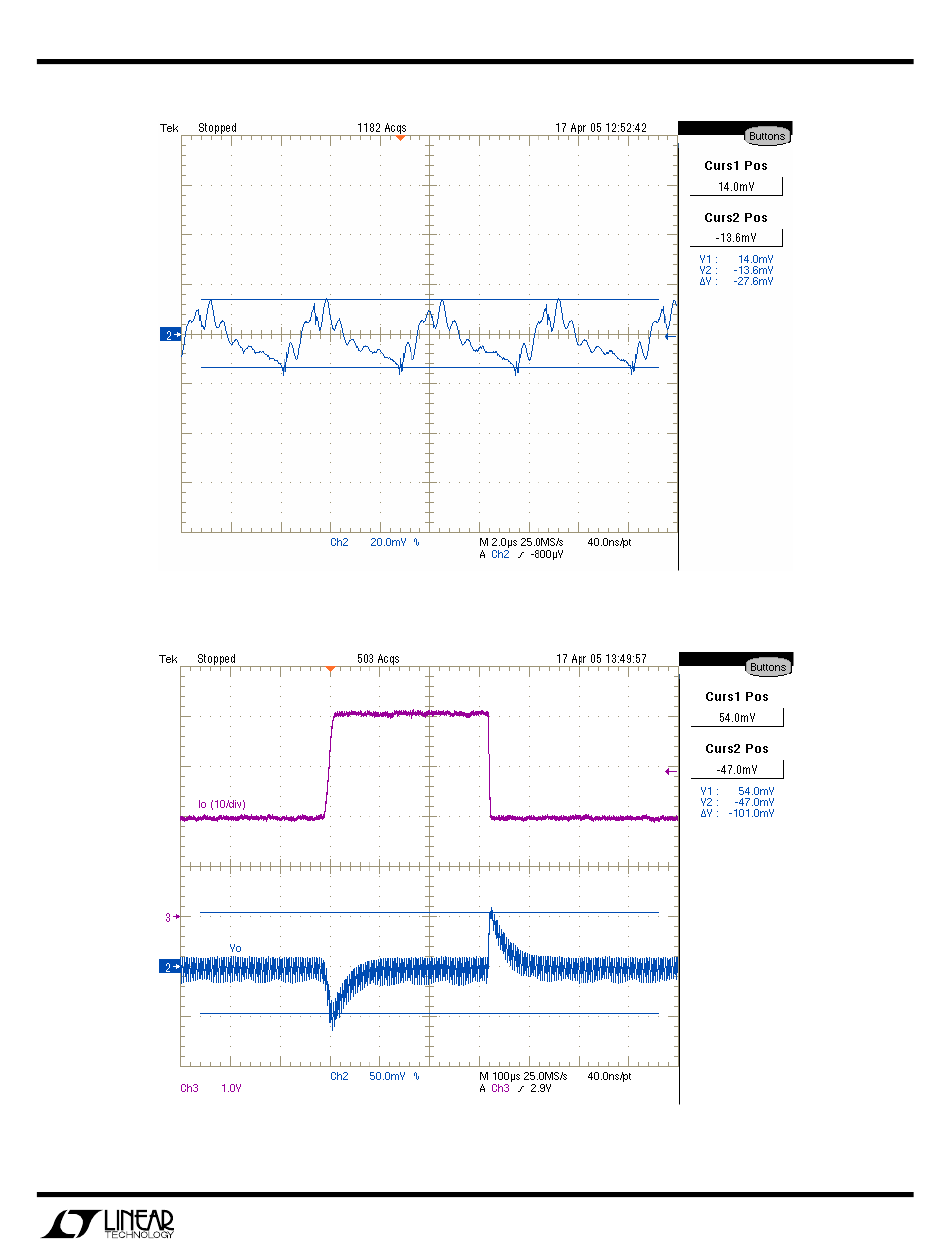

Figure 5. Output Voltage Ripple (72Vin and 50A)
Figure 6. Load Transient Response (>1A/us)
5
