Summary of Contents for Zotac ZBOX B Series

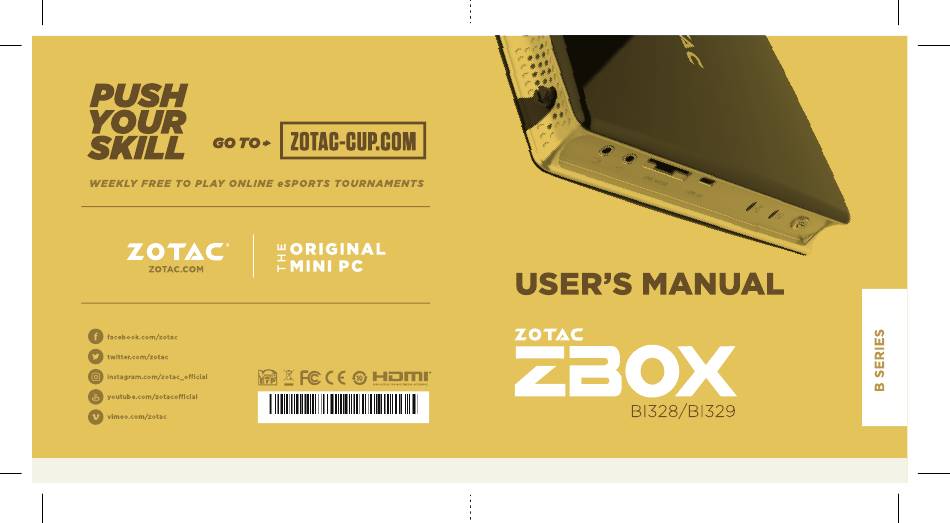

- Page 1 291-MB385-01S6F...
- Page 2 ZOTAC. Products and corporate names mentioned in this manual may not be registered trademarks or copyrights of their respective companies, and are used for identification purposes only.
-
Page 3: Table Of Contents
Safety information ----------------------------------------------------------------------------------------------4 Setting up your system -------------------------------------------------------------------------------------4 Care during use ----------------------------------------------------------------------------------------------4 Welcome -----------------------------------------------------------------------------------------------------------5 Package contents -------------------------------------------------------------------------------------------5 Getting to know your ZOTAC ZBOX ----------------------------------------------------------------------6 Front view -----------------------------------------------------------------------------------------------------6 Rear view ------------------------------------------------------------------------------------------------------7 Installing hardware inside the ZOTAC ZBOX ----------------------------------------------------------8 Installing a memory module -------------------------------------------------------------------------------9... -
Page 4: Product Specifications
ZOTAC ZBOX Product specifications q Microprocessor support v Intel Processor N4000 (dual core 1.1 GHz, up to 2.6 GHz) for ZBOX BI328 series v Intel Processor N4100 (quad core 1.1 GHz, up to 2.4 GHz) for ZBOX BI329 series q Operating systems:... -
Page 5: Safety Information
ZOTAC ZBOX Safety information Your ZOTAC ZBOX is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system Read and follow all instructions in the documentation before operating your system. -
Page 6: Welcome
ZOTAC ZBOX Welcome Congratulations on your purchase of the ZOTAC ZBOX. The following illustration displays the package contents of your new ZOTAC ZBOX. If any of the below items is damaged or missing, contact your retailer. Package contents • 1 x ZOTAC ZBOX •... -
Page 7: Getting To Know Your Zotac Zbox
ZOTAC ZBOX Getting to know your ZOTAC ZBOX Front view Refer to the diagram below to identify the components on this side of the system 1. Headphone/Audio Out jack The stereo headphone jack (3.5mm) is used to connect the system’s audio out signal to amplified speakers or headphones. -
Page 8: Rear View
ZOTAC ZBOX Rear view Refer to the diagram below to identify the components on this side of the system. 1. WiFi antenna connector The WiFi antenna connector supports WiFi antenna module. 2. DisplayPort The DisplayPort supports both external (box-to-box) and internal (laptop LCD panel) display connections. -
Page 9: Installing Hardware Inside The Zotac Zbox
ZOTAC ZBOX Installing hardware inside the ZOTAC ZBOX Before installing hardware, please follow the instructions below to remove the cover of your ZOTAC ZBOX. 1. Unscrew. 2. Gently remove the cover as the image below. -
Page 10: Installing A Memory Module
2. Gently press down on the memory module until it locks into place by the arms of the memory slot. Note: This ZOTAC ZBOX accomodates two DDR4 SO-DIMM memory modules. You must install at least one module for the system to function. -
Page 11: Removing A Memory Module
ZOTAC ZBOX Removing a memory module 1. Locate the SO-DIMM memory slot and gently press the two arms securing the memory module outwards, as shown in the image below, to release the memory module. 2. Remove the memory module from the slot at a 45-degree angle. -
Page 12: Installing A Hard Disk Drive
ZOTAC ZBOX Installing a hard disk drive 1. Locate the hard disk drive bracket, remove the coin-sized screw and lift the lid to fully open position. 2. Insert the hard drive/ SSD into the slot at a 45 degree angle and gently slide into the... - Page 13 ZOTAC ZBOX 3. Reinstall the coin-sized screw.
-
Page 14: Setting Up Your Zotac Zbox
ZOTAC ZBOX Setting up your ZOTAC ZBOX Please connect your peripherals before using your ZOTAC ZBOX. 1. Connecting a WiFi antenna module Connect a WiFi antenna module to the WiFi antenna connector. 2. Connecting a DisplayPort display Connect the DisplayPort connector to the DP port. - Page 15 Connect the supplied AC adapter to the DC IN jack on the system rear panel and then press the power switch on the front panel to turn on the system. When your ZOTAC ZBOX is not in use, unplug the power adapter or switch off the AC outlet to save on power consumption. ...
-
Page 16: Positioning The Zotac Zbox
ZOTAC ZBOX Positioning the ZOTAC ZBOX • Do not position the ZOTAC ZBOX where the ventilation holes are covered. To guarantee proper use, leave 4 inches (10 cm) of spacing in front of the ventilation holes. • ZOTAC ZBOX mini-PC systems provide ample connectivity in a tiny form factor, please choose connectors and cables in appropriate sizes to avoid interference. -
Page 17: Installing Drivers And Software
Install system drivers to gain full functionality of the ZOTAC ZBOX hardware and features. Installing system drivers Before you can use the full features of the ZOTAC ZBOX, the system drivers must be installed. The following types of operating systems are supported by the ZOTAC ZBOX driver DVD: •... -
Page 18: Using Your Zotac Zbox
Note: If you want to use high-amperage USB charging for smartphones and tablets, please install the driver USB Charger driver. Each driver must be installed individually to ensure proper operation of the ZOTAC ZBOX. Select the driver you want to install. The driver installer should launch. -
Page 19: Configuring Audio Output
ZOTAC ZBOX Configuring audio output Follow the steps below to enable audio output when connecting the ZOTAC ZBOX to a TV or receiver via HDMI/DP/VGA adapter. Access the Sound settings via the system Control Panel. Under Playback devices, click the display device that corresponds with your audio compatible display. - Page 20 ZOTAC ZBOX...
- Page 21 ZOTAC ZBOX 291-MB385-01...
