No part of this manual, including the products and software described in it,
may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language in any form or by any means,except documenta-
tion kept by the purchaser for backup purposes, without the express written
permission of ZOTAC.
Products and corporate names mentioned in this manual may not be reg-
istered trademarks or copyrights of their respective companies, and are
used for identification purposes only. All trademarks are the property of their
respective owners.
Every effort has been made to ensure that the contents of this manual are cor-
rect and up to date. However, the manufacturer makes no guarantee regard-
ing the accuracy of its contents, and reserves the right to make changes
without prior notice.
CAUTION:
Risk of explosion if the battery is replaced with an incorrect type. Batteries
should be recycled where possible. Disposal of used batteries must be in
accordance with local environmental regulations.
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
cerca il tuo prodotto tra le
migliori offerte di PC Desktop e Workstation

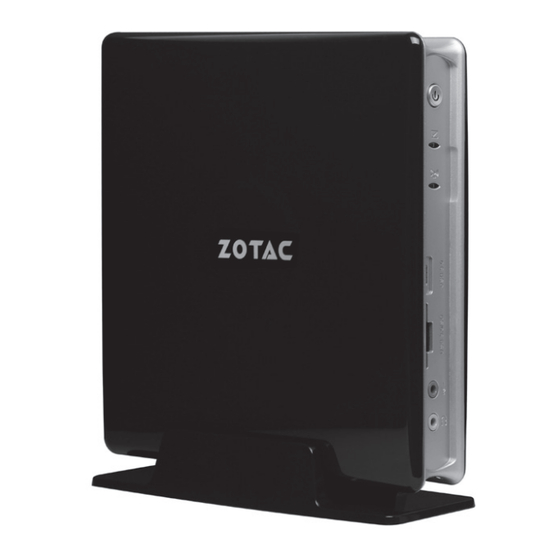

ZOTAC ZBOX
User's Manual
Zotac Serie ZBOX B ZBOX-BI324
ZOTAC ZBOX
o
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZBOX-BI234 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Zotac ZBOX-BI234

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Zotac Serie ZBOX B ZBOX-BI324 cerca il tuo prodotto tra le migliori offerte di PC Desktop e Workstation ZOTAC ZBOX ZOTAC ZBOX User’s Manual No part of this manual, including the products and software described in it,...
  • Page 2 Setting up your system ----------------------------------------------------------------------- 4 Care during use -------------------------------------------------------------------------------- 4 Welcome --------------------------------------------------------------------------------------------- 5 Package contents ------------------------------------------------------------------------------ 5 Getting to know your ZOTAC ZBOX -------------------------------------------------------- 6 Front view ---------------------------------------------------------------------------------------- 6 Rear view----------------------------------------------------------------------------------------- 7 Installing Hardware inside ZOTAC ZBOX ------------------------------------------------- 8...
  • Page 3 ZOTAC ZBOX Product Specifications q Microprocessor support v Intel Celeron Processor N3060 (Dual-core, 1.6 GHz, 2M Cache, ® ® up to 2.48 GHz ) q Operating systems: v Windows 7 64bit, Windows 8.1 64bit, Windows 10 32bit/64bit q System Memory support...
  • Page 4 ZOTAC ZBOX Safety information Your ZOTAC ZBOX is designed and tested to meet the latest standards of safety for infor- mation technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system Read and follow all instructions in the documentation before you operate your system.
  • Page 5 ZOTAC ZBOX Welcome Congratulations on your purchase of the ZOTAC ZBOX. The following illustration displays the package contents of your new ZOTAC ZBOX. If any of the below items is damaged or missed, contact your retailer. Package contents • 1 x ZOTAC ZBOX •...
  • Page 6 ZOTAC ZBOX Getting to know your ZOTAC ZBOX Front view Refer to the diagram below to identify the components on this side of the system 1. Headphone/Audio Out jack The stereo headphone jack (3.5mm) is used to connect the system’s audio out signal to amplified speakers or headphones.
  • Page 7 ZOTAC ZBOX Rear view Refer to the diagram below to identify the components on this side of the system. 1. DisplayPort DisplayPort supports both external (box-to-box) and internal (laptop LCD panel) display connections. 2. LAN port The eight-pin RJ-45 LAN port supports standard Ethernet cables for connection to a local network.
  • Page 8 DDR3_1 slot DDR3_2 slot Note: 1. When installing only one SO-DIMM, please install it to DDR3_1 slot. 2. This ZOTAC ZBOX accomodates two DDR3 SO-DIMM memory modules. You must install at least one module in one of the two slots.
  • Page 9 ZOTAC ZBOX 2. Gently press down on the memory module until it locks into place by the arms of the memory slot. 3. If you need, install the second memory module as the above steps.
  • Page 10 ZOTAC ZBOX Removing the memory module 1. Locate the SO-DIMM memory slot and gently press the two arms securing the memory module outwards, as shown in the image below, to release the memory module. 2. Remove the memory module from the slot at a 45-degree angle.
  • Page 11 ZOTAC ZBOX Installing a hard disk drive 1. Insert the hard disk drive into the slot at a 45 degree angle and gently slide into the connector. 2. Reinstall the screw.
  • Page 12 ZOTAC ZBOX Setting up your ZOTAC ZBOX You need to connect peripherals before using your ZOTAC ZBOX. 1. Connecting a DisplayPort display Connect the DisplayPort connector to the DP port. 2. Connecting to a network device Connect one end of a network cable to the LAN port on the system rear panel and the other End to a hub or switch.
  • Page 13 Connect the supplied AC adapter to the DC IN jack on the system rear panel and then press the power switch on the front panel to turn on the system. When your ZOTAC ZBOX is not in use, unplug the power adapter or switch off the ...
  • Page 14 Install system drivers to gain full functionality of the ZOTAC ZBOX hardware and features. Installing system drivers Before you can use the full features of the ZOTAC ZBOX, the system drivers must be installed. The following types of operating systems are supported by the ZOTAC ZBOX driver DVD: •...
  • Page 15 Select the driver you want to install. The driver installer should launch. Follow the onscreen instructions to install the drivers. Restart the system. Using your ZOTAC ZBOX Configuring wired connection Using a static IP Right-click the network icon in the notification area and select “Open...
  • Page 16 Configuring audio output via an HDMI /DP device Follow the steps below to enable audio output via HDMI /DP when connecting the ZOTAC ZBOX to a TV or receiver via HDMI /DP. Access the Sound settings via the system Control Panel.
  • Page 17 ZOTAC ZBOX Installing Windows 7 64-bit For user who want to install Windows 7 64-bit, you must run the Win 7 tool to load the image into a USB flash drive (above 4GB) before its installation. Please follow the instruction as below: 1.
  • Page 18 ZOTAC ZBOX 4. When load completed, click “OK”. 5. Plug the USB flash drive into ZOTAC ZBOX, power ON and install the Win7 64-bit from it.
  • Page 19 ZOTAC ZBOX Users also can install Windows 7 64-bit by creating new image. Please choose new path before creating new image.
  • Page 20 ZOTAC ZBOX 291-MB273-02...
