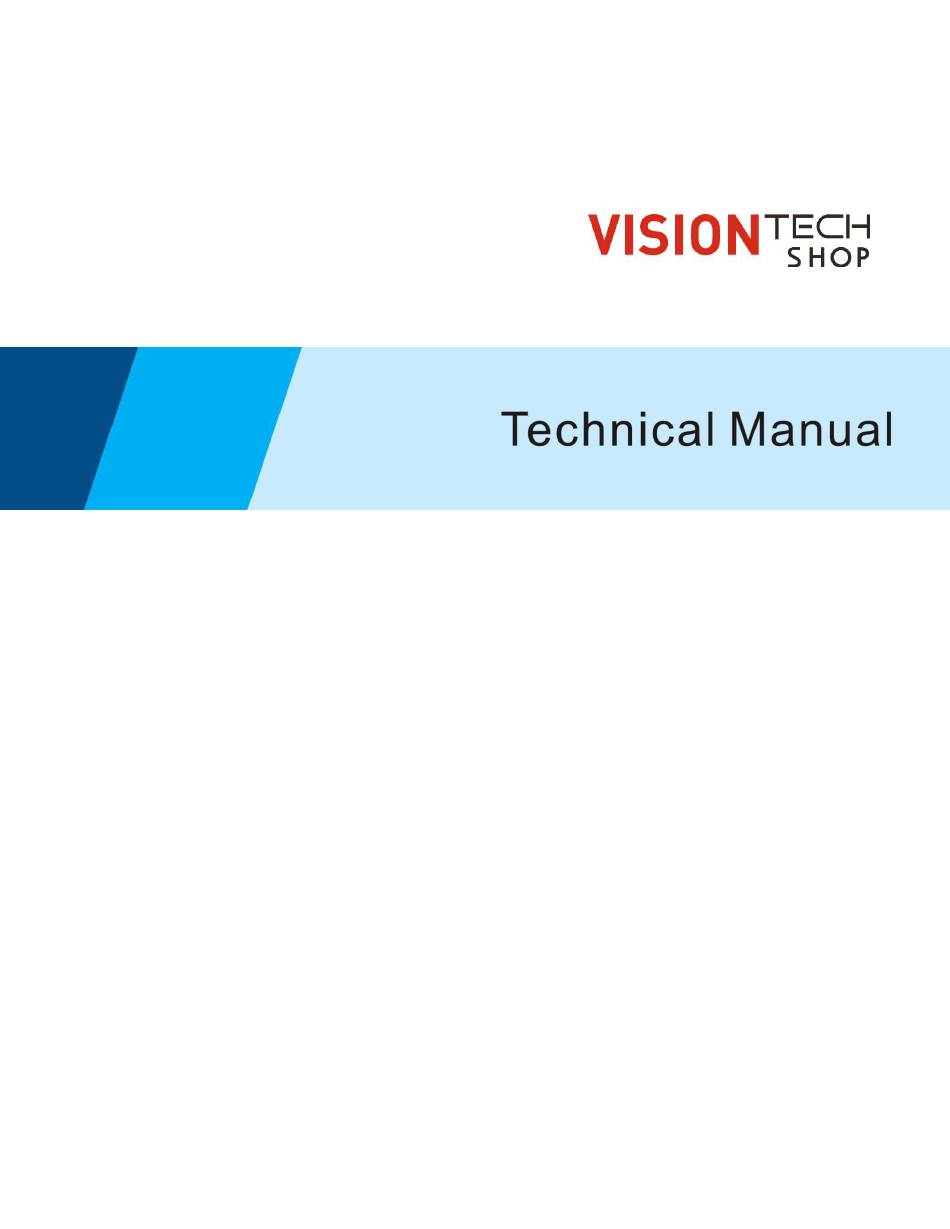

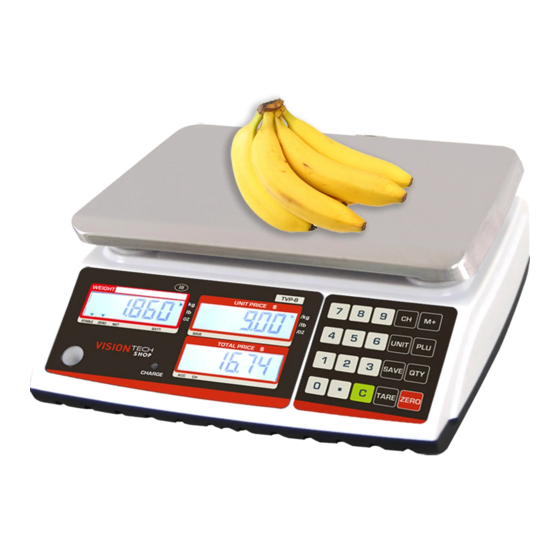

TVP-B_TVP-P
Price Computing Scales
Version 1.08_1.15g
09/09/2019
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TVP-B Series and is the answer not in the manual?

Questions and answers

Related Manuals for Vision Tech TVP-B Series

Summary of Contents for Vision Tech TVP-B Series

  • Page 1 TVP-B_TVP-P Price Computing Scales Version 1.08_1.15g 09/09/2019 - 1 -...

  • Page 2: Table Of Contents

    TVP-B_TVP-P Price Computing Scales Technical Manual CONTENTS 1. PRECAUTIONS ........................... - 3 - 2. SPECIFICATIONS........................- 5 - 3. INTRODUCTION.........................- 8 - 4. INSTALLATION...........................- 9 - 5. Parts Description........................- 11 - 5.1 Overall View..........................- 11 - 5.2 Key board..........................- 12 - 6.

  • Page 3: Precautions

    TVP-B_TVP-P Price Computing Scales Technical Manual 1. PRECAUTIONS WARNING DISCONNECT ALL POWER TO THIS UNIT BEFORE INSTALLING, CLEANING, OR SERVICING. FAILURE TO DO SO COULD RESULT IN BODILY HARM OR DAMAGE THE UNIT. CAUTION  Permit only qualified persons to service the instrument ...
  • Page 4 TVP-B_TVP-P Price Computing Scales Technical Manual the scale.  Only use original adaptor, other could cause damage to the scale.  Pluggable equipment must be installed near an easily accessible socket outlet.  Avoid unstable power sources. Do not use near large users of electricity such as welding equipment or large motors.

  • Page 5: Specifications

    TVP-B_TVP-P Price Computing Scales Technical Manual 2. SPECIFICATIONS MODEL TVP-B TVP-P Display 0.59inch/15mm LCD Display with white LED back Light Gross weight 9lb(4.1kg) 9.9lb(4.5kg) Capacity 12lb(6kg) 30lb(12kg) 60lb(30kg) Readability 0.002lb(1g) 0.005lb(2g) 0.01lb(5g) Max. Divisions 6000e Weighing Units kg/lb Pan size 8x10.5inch/204x265mm Housing ABS Plastic and Stainless Steel pan...
  • Page 6 TVP-B_TVP-P Price Computing Scales Technical Manual DIMENSIONS - 6 -...
  • Page 7 TVP-B_TVP-P Price Computing Scales Technical Manual - 7 -...

  • Page 8: Introduction

    TVP-B_TVP-P Price Computing Scales Technical Manual 3. INTRODUCTION  TVP-B, TVP-P series of economic price computing scales are very compact, reliable , high accuracy and much stable.  It use LCD display with white LED back light, with the different back light operation.

  • Page 9: Installation

    TVP-B_TVP-P Price Computing Scales Technical Manual 4. INSTALLATION 4.1 Unpacking Carefully take the scale out of its package, make it sure its not damaged and all accessories are included. Accessories, 1. Scale 2. Adaptor 3. Stainless steel pan 4. Product manual Keep the packaging material for your future use.
  • Page 10 TVP-B_TVP-P Price Computing Scales Technical Manual 4.3 Connect Adaptor Adaptor Jack Power Key  To charge the battery insert the adaptor pin to jack. Adaptor simply plug into the mains power. The scale no needs to be turned on.  The battery should be charged for 12 hours for full capacity. ...

  • Page 11: Parts Description

    TVP-B_TVP-P Price Computing Scales Technical Manual 5. Parts Description 5.1 Overall View - 11 -...

  • Page 12: Key Board

    TVP-B_TVP-P Price Computing Scales Technical Manual 5.2 Key board Key board Keys Press this key to Numeric Keys, enter unit price / PLU ； In setting mode ,press Clear incorrect entries and error conditions Set unit price in fix mode,press the key to input double zero;set unit price in float mode,press the key to input decimal point Returns the display to zero.In parameter settings,to escape from the menu...
  • Page 13 TVP-B_TVP-P Price Computing Scales Technical Manual Used to change unit (kg/lb/oz) Quantity key, use for without weighing. Display Overlay Display Symbols BATT. Battery indicator. When it’s illuminated, battery should be recharge BATT. Net Weight STABLE Stable indicator. When it’s illuminated, the scale is stable ZERO Zero indicator.

  • Page 14: Operation

    TVP-B_TVP-P Price Computing Scales Technical Manual 6. OPERATION Initial Start-Up Warm-up time of 15 minutes stabilizes the measured values after switching on. 1. Power ON/OFF Power switch is located below the right side of the scale. Switch on the scale by pressing on/off. The display is switched on and the self test is started.

  • Page 15: Sample Weighing

    TVP-B_TVP-P Price Computing Scales Technical Manual 4. Sample weighing  Place goods to be weighed on the platform.  Wait few seconds for stability display.  Read the result.  Avoid overloading. When display appears “ol” reduce the load or unload.

  • Page 16: Back Light

    TVP-B_TVP-P Price Computing Scales Technical Manual  Press numeric key 0 to 9, to select location. If want to select to numeric key 1, press 1. saved Unit price 10 saved into numeric key 1. Re-Cal Unit Price When you want to weigh stored unit price weighment, load Ps 0-9 ...

  • Page 17: Automatic Unit Price Clear

    TVP-B_TVP-P Price Computing Scales Technical Manual zero. Backlight will be turned always on bLSEt ModE on Backlight function will be turned off bLSEt ModE oFF 8.Automatic Unit Price Clear It can set automatic unit price clear. Press key to save indicator turn on or off. When save indicator on, unit price appear after return to zero.

  • Page 18: Give Change

    TVP-B_TVP-P Price Computing Scales Technical Manual  The scale must return to zero or a negative value before another sample can be stored.  Other products may be added by pressing the key. It may take up to 99 entries or until it reaches the maximum displayable digits. ...

  • Page 19: Parameter

    TVP-B_TVP-P Price Computing Scales Technical Manual 7. PARAMETER 7.1 PARAMETERSETTING Enter into the Menu  Turn on the scale. Press and hold key during the self test. Display will show “Pn” briefly PIN is activated. Press the PIN number to get into the parameter menu.

  • Page 20: Parameter Menu Block

    TVP-B_TVP-P Price Computing Scales Technical Manual 7.2 PARAMETER MENU BLOCK Menu Sub-Menu DESCRIPTION Calibration F0 CAL Set external resolution F1 rES 3000 6000 Dual-i Dual-r Set Scale Capacity F2 CAP 6KG/12lb 12KG/30lb 30kg/60lb Set Price Decimal Point F3 PdECi 0. 0 0.
  • Page 21 TVP-B_TVP-P Price Computing Scales Technical Manual This display will show XXXXX for indicating the F8 ISN internal counts. To set your local gravity value. F9 Gra Factory default settings F10 Reset Protocol Type :CAS F11 rS232 The scale RS232 protocol will be prin determined by the Baud &...
  • Page 22 TVP-B_TVP-P Price Computing Scales Technical Manual 400/115200) 8 data bits, no verify, 1 stop bit 7 data bits, Even verify, 1 stop bit 7 data bits, Odd verify, 1 stop bit To set change function on F12 change To set change function off Press key to choose "kg"...

  • Page 23: Calibration

    TVP-B_TVP-P Price Computing Scales Technical Manual 8. CALIBRATION Turn on the scale. Press and hold key during the self test. Display will show “Pn” briefly PIN is activated. Press the PIN number to get into the parameter menu. The default PIN number is “0000” 1.Press numeric key 0 four times , display will be shown Pn - - - - 2.Press key to confirm, It will enter into the parameter settings and will be...
  • Page 24 TVP-B_TVP-P Price Computing Scales Technical Manual 10.Remove calibration weight from the platform. 11.Press key to go back to the weighing mode. If display will be shown any error or incorrect value, repeat the procedure again. - 24 -...

  • Page 25: Rs 232 Output

    TVP-B_TVP-P Price Computing Scales Technical Manual 9. RS 232 OUTPUT The TVP-B& TVP-P Series of scales can be ordered with a standard RS-232 output. It can be connected to DEP-50 receipt printer &DLP-50 label printer 9.1. Print Format - 25 -...

  • Page 26: Error Codes

    TVP-B_TVP-P Price Computing Scales Technical Manual 10. ERROR CODES Error Message Description Solution Maximum load exceeded Unload or reduce weight ----- Incorrect date Enter the date by using format Err 1 “yy;mm:dd” Incorrect time Enter the time by using format Err 2 “hh:mm:ss”...
  • Page 27 TVP-B_TVP-P Price Computing Scales Technical Manual Tare out of range Remove the load and restart Err 17 scale again. Initialize zero error Calibration the scale. Err19 Over range Remove the load. --ol-- Re calibrate Fai l h / Calibration Error Re calibrate fai l l Printer error...

  • Page 28: Drawing

    TVP-B_TVP-P Price Computing Scales Technical Manual 11. DRAWING TVP-B - 28 -...
  • Page 29 - 29 -...
  • Page 30 TVP-B_TVP-P Price Computing Scales Technical Manual TVP-P - 30 -...
  • Page 31 TVP-B_TVP-P Price Computing Scales Technical Manual - 31 -...

  • Page 32: Sealing Method

    12. SEALING METHOD 12.1 Sealing chart A wire seal is passed through the holes in two sealing screws mounted on the bottom of the scale. TVP-B/TVP-P - 32 -...
  • Page 33 TVP-B_TVP-P Price Computing Scales Technical Manual - 33 -...
