MOFLASH SIGNALLING LED201 Series Installation & Technical Information

TECHNICAL DATA SHEET

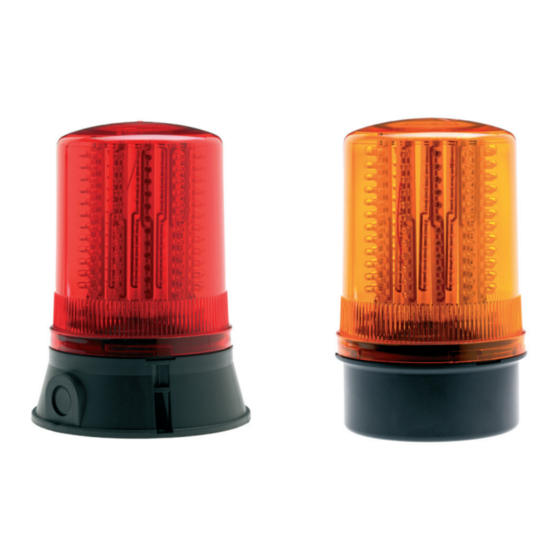

This range of beacons incorporates a 144 off LED array that emits its light through 360
around the vertical axis. They have a choice of four modes of alarm that are pre-set via a
two-way dip switch located under the lens. To maintain the ingress protection of the enclosure the
lens should always be mounted above the base. The 201/200 series is suitable for surface, conduit
box or wall mounting. The LED401/400 is suitable for surface or wall mounting.
Part Code: Voltage: Colours
Red & Amber
LED201-02 24v Dc ---
Green, Blue & Clear
Red & Amber
90-370v Dc ---
LED200-04 •
70-265v Ac ~
Green, Blue & Clear
Red & Amber
LED401-02 24v Dc ---
Green, Blue & Clear
Red & Amber
90-370v Dc ---
LED400-04 •
70-265v Ac ~
Green, Blue & Clear
• Current @ 115/230v Ac ~
• Current @ 280v Dc ---
Amber/Red in Static Mode is 40mA
All Models Pre-set to Flash Mode
For Lens colours add: -01 Amber, -02 Red, -03 Blue, -04 Green, -05 Clear
Key Features Include:
Note: The 201/200 series has the ability to be used in a 'loop in' 'loop out' daisy chain
application using the terminals provided, however the wire size must not exceed 2.5mm
• Connection terminals except upto 2.5mm
• Multi Voltage high volt options
• Operating Temperature -25 c to +55
o
• Case Material is UV Stable Polycarbonate & UV Stable ABS
• Weatherproof to IP65
• AC = 50/60 Hz
Optional Equipment:
• 50004 Mounting Bracket
• 50010 Cage Guard (cannot be used in conjunction with mounting bracket)
• 50080 Anti Vibration Mount (201/200 Series)
Current:
Flashing Rotating
210mA 130mA
115mA 50mA
110/55mA 50/25mA 200/100mA
65/40mA 27/20mA
210mA 130mA
115mA 50mA
110/55mA 50/25mA 200/100mA
65/40mA 27/20mA
2 Bar Rotating
cable
2
c
o
Moflash part code S00418 Issue 3
o
Static
440mA
230mA
120/59mA
440mA
230mA
120/59mA
.
2
MULTI-FUNCTIONAL VISUAL SIGNALLING DEVICES
Website: www.moflash.com
INSTALLATION &
TECHNICAL INFORMATION
PLEASE READ PRIOR TO INSTALLATION
LED201/200 & LED401/400 Series - (LED Array)
APPROVALS AND
CONFORMITIES
