Package Contents
The controller kit includes the following items:

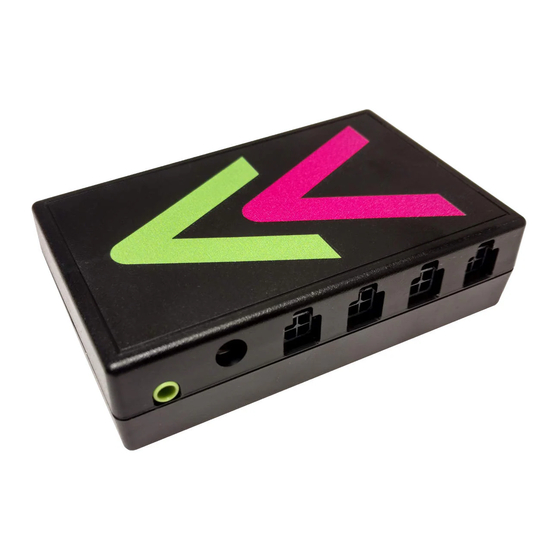

ViVi Music LED Controller
●
3 x LED Strip Adapters, 6" (4-pin Molex to 3-pin JST-SM)
●
3 x LED Strip Extensions, 2 meter (4-pin Molex to 4-pin Molex)
●
Audio Splitter Cable (3.5mm, one male to two female)
●
Audio Extension Cable (3.5mm, male-to-male)
●
External Microphone
●
Four Strip Complete Systems additionally include:
4 x LED Strip, 5 meters, 5V, WS2812B 30 LED/meter, white with silicone sleeve
●
2 x LED Strip Splitter Cable, 12" (4-pin Molex to 4-pin Molex) w/ extra LED Adapter
●
5V 8A power supply
●
Quick Setup
A quick setup video can be found at
1)
Use the LED strip adapter and extension cables to connect your ViVi unit to your
LED strips.
2)
Connect your audio device into the 3.5mm AUDIO port, use the included audio
splitter to connect to both ViVi and your speakers. OR use the include microphone to
detect sound.
3)
Plug in power from a 5 Volt power supply -
4)
Play your music and watch the light show take off automatically!
5) Download the ViVi VibeLink app to adjust strip length and other settings.
ViVi Music LED Controller
Instruction Manual – v1.0
http://vivimusicled.com/ info /
5V ONLY!!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ViVi Music LED Controller and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Visual Vibes ViVi Music LED Controller

Summary of Contents for Visual Vibes ViVi Music LED Controller

  • Page 1 ViVi Music LED Controller Instruction Manual – v1.0 Package Contents The controller kit includes the following items: ViVi Music LED Controller ● 3 x LED Strip Adapters, 6” (4-pin Molex to 3-pin JST-SM) ● 3 x LED Strip Extensions, 2 meter (4-pin Molex to 4-pin Molex) ●...

  • Page 2: Product Information

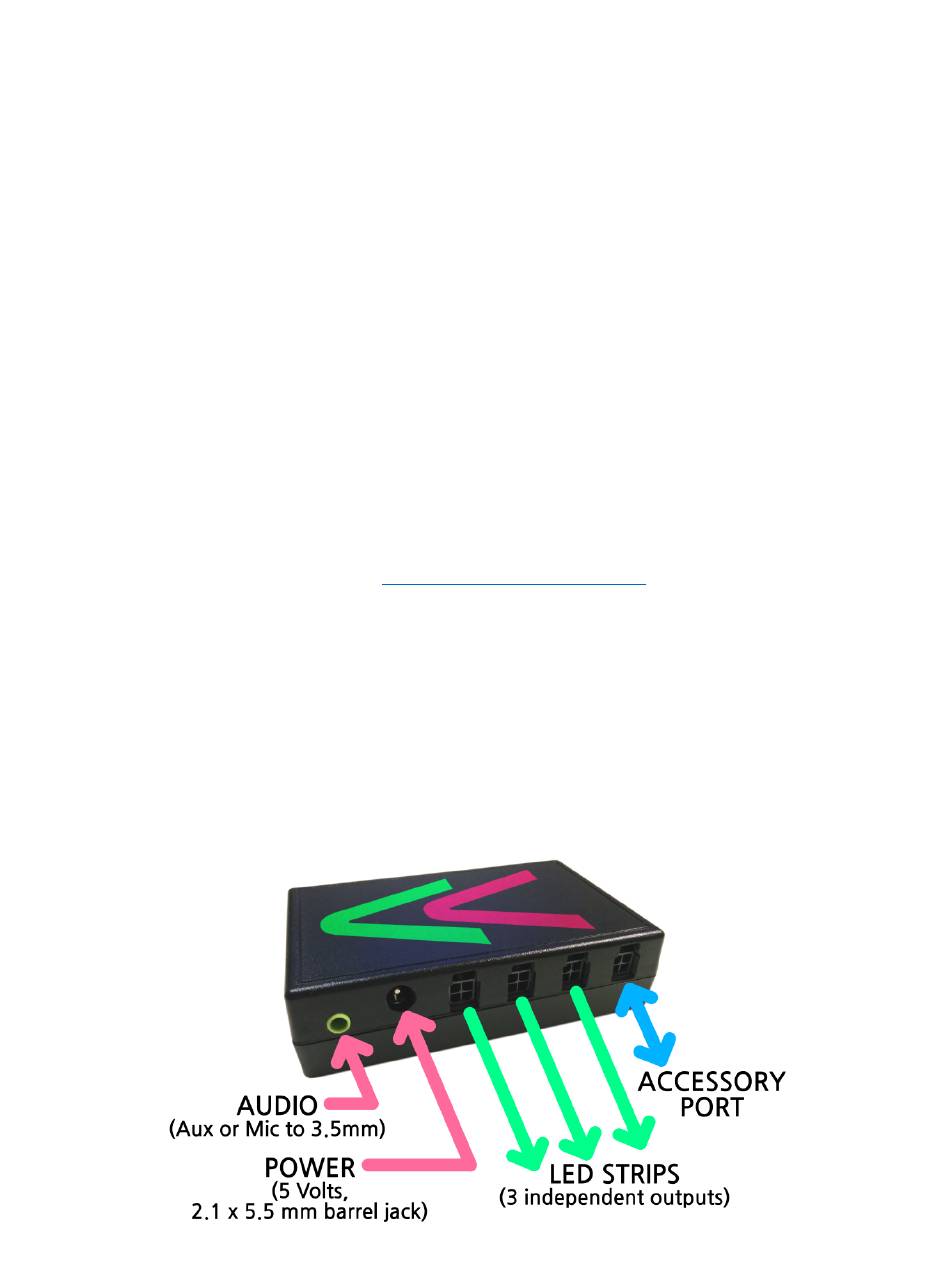

    On the bottom of the ViVi Music LED Controller is a diagram showing the pinout and colors of the wires, make sure Power, Ground, and Data connect correctly to the LED strip.
  • Page 3 This port will be used by Visual Vibes to develop additional features and plug-in attachments for the ViVi Music LED Controller. Keep up with us on on Social Media or sign up for The Vibe newsletter on our website to see what we create and when it will be released. Our current...
  • Page 4 The App – ViVi VibeLink Download ViVi VibeLink from the Apple Store or Google Play to change animations, colors, the length LED strips, and other settings. The application will be updated regularly to add and improve features for ViVi. Figure 1.1 Selecting Your ViVi Signal ●...
  • Page 5 Color Options Drop down selection for color changing options ● Figure 1.3 List of ViVi Color Cycle Options Color Modes Explained Static Color – Keeps one constant color ● ● Change with Auto Animation – If the Auto Animation check box is activated then this color option will cause the color to change each time the animation changes ●...
  • Page 6 Animation Options Drop down menu to choose an animation. Check the Auto Animation box below to ● randomly cycle through all available options every 10 – 20 seconds; Auto Animation excludes Constant (non-audio-reactive) options. Animation Choice Recommendations Name Recommended Frequency to use with Blink Mids / Highs Fade...

  • Page 7: Product Specifications

    LED Strip Light Count Figure 1.5 Light and Output Setup This is an important setting to make animations fit your custom setup perfectly. Use to adjust how many LEDs per strip you’d like the animations to use. Once you select the number of LEDs, ViVi will illuminate the first LED, last LED, and center LED(s) to let you see how animations will be placed and help you easily position your strip;...

  • Page 8: Faq And Troubleshooting

    Authority or retailer for recycling advice. Based on information provided by our material suppliers and manufacturers, this product does NOT contain the substances restricted by RoHS legislation at levels over the maximum concentration values. Visual Vibes LLC Virginia Beach, VA Customer Support: support@visualvibes.io Web: http://visualvibes.io...

  • Page 9: Manufacturer's 1-Year Limited Warranty

    Manufacturer’s 1-Year Limited Warranty Visual Vibes LLC hereby warrants, to the original purchaser, Visual Vibes products to be free of manufacturing defects in material and workmanship for one (1) year from the date of purchase. No other damage, defects, or malfunctions are covered under this warranty and if any damage that is determined to not be the direct result of a manufacturing defect is present then this warranty shall be void.
