Summary of Contents for Ryobi RBL26G

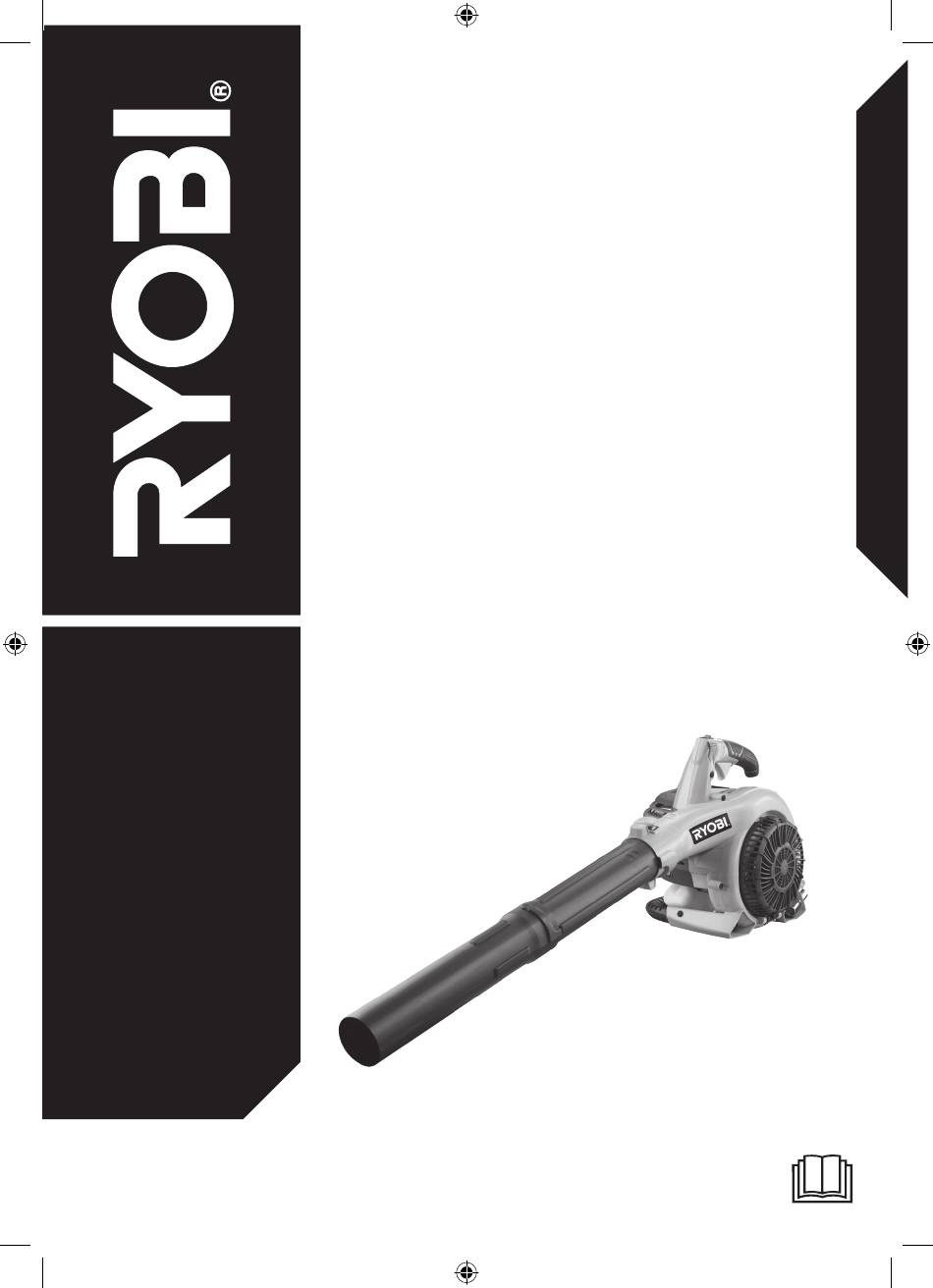

- Page 1 ORIGINAL INSTRUCTIONS Petrol Blower RBL26G...
- Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modification.
-
Page 3: Intended Use
glass, nails, wire, or string that can be Safety, performance, and dependability have blown a considerable distance by high been given top priority in the design of your velocity air. Wear hearing protection at blower. all times while operating the product. The product is noisy, and permanent hearing INTENDED USE injury may result if precautions to limit your... -
Page 4: Blower Safety Warnings
Replace damaged or unreadable labels. ■ Mix and store fuel in a container approved for fuel. Keep an appropriate type of fire ■ Keep all cooling air inlets clear of debris. extinguisher nearby for dealing with fuel ■ Never operate the product while people, fires. -
Page 5: Transportation And Storage
WARNING TRANSPORTATION AND STORAGE Do not at any time let brake fluids, petrol, ■ Stop the engine and allow the product to cool down before storing or transporting. petroleum-based products, penetrating lubricants, etc., come in contact with plastic ■ Clean all foreign material from the product. parts. - Page 6 See page 15. ■ If any parts are damaged or missing, please call your RYOBI service centre for The safe use of the product requires an assistance. understanding of the information on the product and in this operator’s manual as well WHAT’S IN THE BOX...
-
Page 7: Operation
FUELLING AND REFUELLING WARNING See page 16 (step 2). Do not use the product if any parts in the “What’s in the Box” section are already MIXING THE FUEL assembled when you first open the box. The product is powered by a 2-stroke engine The parts in the list are not assembled by and requires premixing petrol and 2-stroke oil. -
Page 8: Filling The Tank
FILLING THE TANK WARNING See page 17 (step 4). Always wear eye protection with side shields marked to comply with standards, WARNING along with hearing protection. Failure to Petrol is extremely flammable and explosive. do so could result in objects being thrown A fire or explosion from petrol will burn you into your eyes and other possible serious and others. -
Page 9: Cleaning The Exhaust Port, Muf- Fler, And Spark Arrestor
WARNING WARNING Do not place blower on top of or near loose To avoid a fire hazard, never run the blower debris or gravel. Debris may be sucked without the spark arrestor in place. into blower intake vent resulting in possible damage to the product and could result in FUEL CAP serious personal injury. -
Page 10: Symbols In This Manual
Press the primer bulb. Warning! Hot surface. Pull the starter grip. Beware of thrown or flying objects. Keep all bystanders, especially children and pets, Run the engine at full throttle at least 15 m away from the for 10 seconds. operating area. - Page 11 The following signal words and meanings are intended to explain the levels of risk associated with the product: DANGER Indicates imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
-
Page 12: Troubleshooting
TROUBLESHOOTING Problem Possible cause Solution No fuel in the tank. Fill the tank. The spark plug shorted or fouled. Replace the spark plug. The spark plug is broken (cracked Replace the spark plug. porcelain or electrodes broken). The spark plug wire is shorted, broken, Contact an authorised service centre. -
Page 14: What's In The Box
WHAT’S IN THE BOX RBL26G... -
Page 15: Know Your Product
Know your product KNOW YOUR PRODUCT 1. Switch 10. Sweeper nozzle 2. Throttle trigger 11. Starter grip 3. Upper handle 12. Combination wrench 4. Air filter cover 13. Impeller cover door 5. Air filter securing knob 14. High velocity nozzle with wet leaf scraper 6. -
Page 16: Getting Started
GETTING STARTED (50 : 1) Wear full eye and ear protection, substantial footwear, and Pre-mix 2-stroke engine lubricant and unleaded petrol in a long trousers at all times while operating the product. Do clean container approved for petrol at a 50:1 ratio. not operate the product when barefoot or wearing open sandals. - Page 17 GETTING STARTED GETTING STARTED GETTING STARTED 1. Align raised tabs on upper blower tube with the slots on blower housing outlet. 2. Attach and tighten securely by turning 1. Loosen the fuel cap slowly by turning it counterclockwise. Press the primer bulb 10 times or until fuel appears. Pull the cruise control lever back, towards the user.
- Page 19 OVERVIEW Warm start engine Using the blower Cleaning the air filter p.18 p.20 p.20 Cleaning the blower Storing the blower Replacing the spark plug p.22 p.24 p.25...
-
Page 20: Operation
OPERATION WARM START ENGINE 1. Press the primer bulb 10 times. 2. Set the choke lever to “RUN“ position. 3. Pull the starter grip until the engine starts. Do not pull the starter grip more than 6 times. 4. To stop the engine, toggle the switch to the “STOP”... - Page 21 OPERATION USING THE BLOWER 1. Align raised tabs on upper blower tube with the slots on blower housing outlet. Attach and tighten securely by turning the tube clockwise until it clicks into place. 2a. Attach the sweeper nozzle to upper blower tube.
-
Page 22: Maintenance
MAINTENANCE CLEANING THE AIR FILTER 1. To stop the engine, toggle the switch to the “STOP” position. 2. Loosen the air filter cover by turning the knob counterclockwise. 3. Remove the air filter cover and air filter. 4. Clean the air filter using a brush. - Page 23 MAINTENANCE 5. Reinstall the air filter. Reinstall the air filter cover. 6. Tighten the knob by turning it clockwise.
-
Page 24: Replacing The Spark Plug
MAINTENANCE REPLACING THE SPARK PLUG 1. To stop the engine, toggle the switch to the “STOP” position. 2. Disconnect the spark plug boot. 3. Using a combination wrench, loosen the spark plug by turning it counterclockwise. 4. Remove the spark plug. - Page 25 MAINTENANCE 5. Install the new spark plug. If using a combination wrench, tighten the spark plug by turning it clockwise with a torque of 216 in.lb. (24.40 Nm) minimum, 264 in.lb. (29.82 Nm) maximum. To hand-tighten the spark plug, make 4 turns plus another 1/5 turn.
-
Page 26: Cleaning The Blower
MAINTENANCE CLEANING THE BLOWER 1. To stop the engine, toggle the switch to the “STOP” position. 2. Clean the blower using a brush. WARNING: Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. -
Page 27: Storing The Blower
STORAGE STORING THE BLOWER 1. To stop the engine, toggle the switch to the “STOP” position. 2. Turn the nozzle counterclockwise, and then detach from the upper blower tube. 3. Using the combination wrench, lift the locking tab, then turn the upper blower tube counterclockwise. - Page 28 STORAGE 5. Loosen the fuel cap slowly by turning it counterclockwise. Remove the fuel cap. 6. Drain all fuel from the tank into a container approved for petrol. Replace and tighten the fuel cap. 7. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children.
-
Page 29: Product Specifications
PRODUCT SPECIFICATIONS VIBRATION LEVEL Blower WARNING Model RBL26G The declared vibration value has been Engine displacement 26 cc measured with a standard test method and may be used to compare one tool with Rated power 0.75 kW another. Engine speed (max) - Page 32 Imported by: Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited 2 Landing Drive, Mangere Auckland, 2022, New Zealand 960606020-01...
