SMS-FLAT
FLAT Sound Masking Speaker
User Guide
V20190725
Soft dB Inc.
1040, Belvedere Avenue, Suite 215
Quebec (Quebec) Canada G1S 3G3
Toll free: 1-866-686-0993 (USA and Canada)
E-mail:
info@softdb.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMS-FLAT and is the answer not in the manual?

Questions and answers

Summary of Contents for Soft dB SMS-FLAT

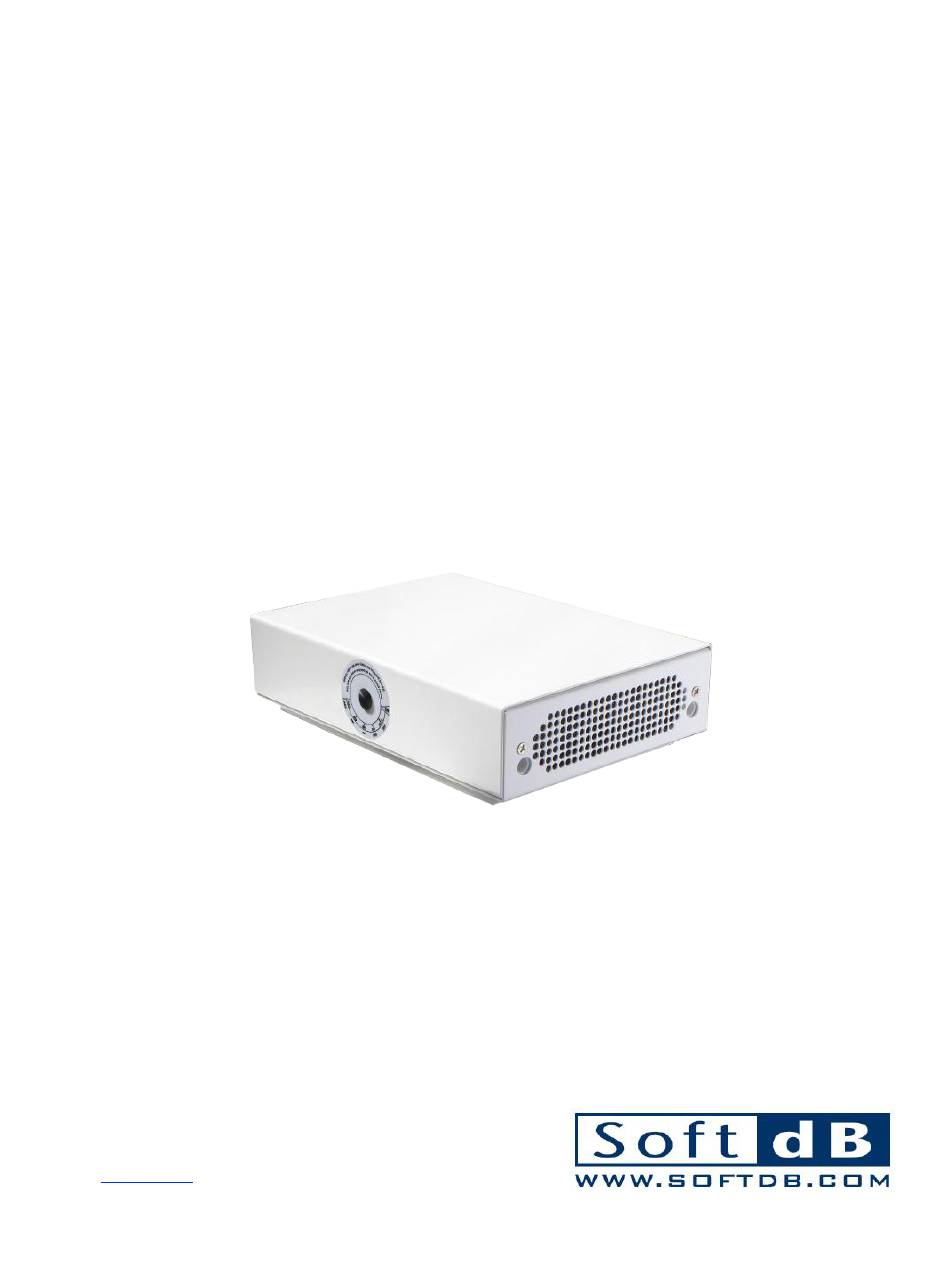

  • Page 1 SMS-FLAT FLAT Sound Masking Speaker User Guide V20190725 Soft dB Inc. 1040, Belvedere Avenue, Suite 215 Quebec (Quebec) Canada G1S 3G3 Toll free: 1-866-686-0993 (USA and Canada) E-mail: info@softdb.com...
  • Page 2: Table Of Contents

    Content Overview ..........................2 Specifications .......................... 3 Installation ..........................4 Safety Instructions ............................4 Connecting the Speaker ..........................5 Securing the Speaker ..........................6 Setting the Transformer Tap ........................7 Raised Floor Application ......................8...
  • Page 3: Overview

    1 Overview The SMS-FLAT loudspeaker is designed to generate the optimum masking sound in a tight space where a more standard loudspeaker wouldn’t fit. Equipped with two drivers in dipole configuration, the SMS-FLAT provides an effective loudspeaker in a very compact form factor.
  • Page 4: Specifications

    2 Specifications Specifications Power 10 W Line Voltage 25 V Sensitivity 85 dB Enclosure Material Painted Steel Frequency Response 100 Hz to 10 kHz Connectors Screw Terminal Driver 2.5 x 10 cm (1” x 4”) full range Color Black (RAL9011) or white (RAL9016) Dimensions 190 x 135 x 50mm (7-1/2 x 5-5/16 x 2”) Weight 1.13 kg (2.5 lbs) Box Dimensions 29.5 x 23 x 9.5 cm (11-5/8 x 9 x 3-3/4")
  • Page 5: Installation

    3 Installation 3.1 Safety Instructions • Read and keep these instructions. • Heed all warnings and follow all instructions contained within this manual. • Install in accordance with the manufacturer’s instructions. • Clean only with dry cloth. • Do not install near water. •...
  • Page 6: Connecting The Speaker

    3.2 Connecting the Speaker 1) Unscrew the cover plate to access the connector block: 2) Remove the connector block, connect the wires and put back the connector block in place. Use plenum rated cable and follow local regulations. Typical wire will be 18/2 FT4. If you connect more than one speaker, simply twist the wires in the same connector block.
  • Page 7: Securing The Speaker

    3.3 Securing the Speaker Secure the speaker by fastening the mounting bracket to the building structure using screws (not supplied). Slide the speakers on the mounting bracket. Note: When mounting the speaker on a vertical surface, be sure to mount the bracket with the forks facing up to avoid the speaker from falling down.
  • Page 8: Setting The Transformer Tap

    3.4 Setting the Transformer Tap Remove the rubber cover from the tap knob. Adjust the tap setting using a flat head screwdriver: The recommended tap for most applications is 4W @ 25V. Some limitations may apply to the sound masking controller. See controller specifications for more details.
  • Page 9: Raised Floor Application

    4 Raised Floor Application The SMS-FLAT speakers can also be used in a raised floor configuration where space is limited. Raised floor panels Since a raised floor panel has a high sound transmission loss, the sound power required to meet the sound masking target can be quite high, especially for low-frequency (bass) content.
