Soft dB SMS-VIBX User Manual

Surface transducer sound masking speaker

Advertisement

Quick Links

SMS-VIBX
Surface Transducer Sound Masking Speaker
User Guide
V20190731
Soft dB Inc.
1040, Belvedere Avenue, Suite 215
Quebec (Quebec) Canada G1S 3G3
Toll free: 1-866-686-0993 (USA and Canada)
E-mail:
info@softdb.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMS-VIBX and is the answer not in the manual?

Questions and answers

Summary of Contents for Soft dB SMS-VIBX

  • Page 1: User Guide

    SMS-VIBX Surface Transducer Sound Masking Speaker User Guide V20190731 Soft dB Inc. 1040, Belvedere Avenue, Suite 215 Quebec (Quebec) Canada G1S 3G3 Toll free: 1-866-686-0993 (USA and Canada) E-mail: info@softdb.com...
  • Page 2: Table Of Contents

    Connecting the Speaker ..........................5 Securing the Speaker ..........................6 3.3.1 Bonding the SMS-VIBX using the self-adhesive sticker ........... 6 3.3.2 Bonding the SMS-VIBX using Construction Adhesive............6 3.3.3 Bonding the SMS-VIBX using quick set time spray adhesive (3M Type 77): .... 6...
  • Page 3: Overview

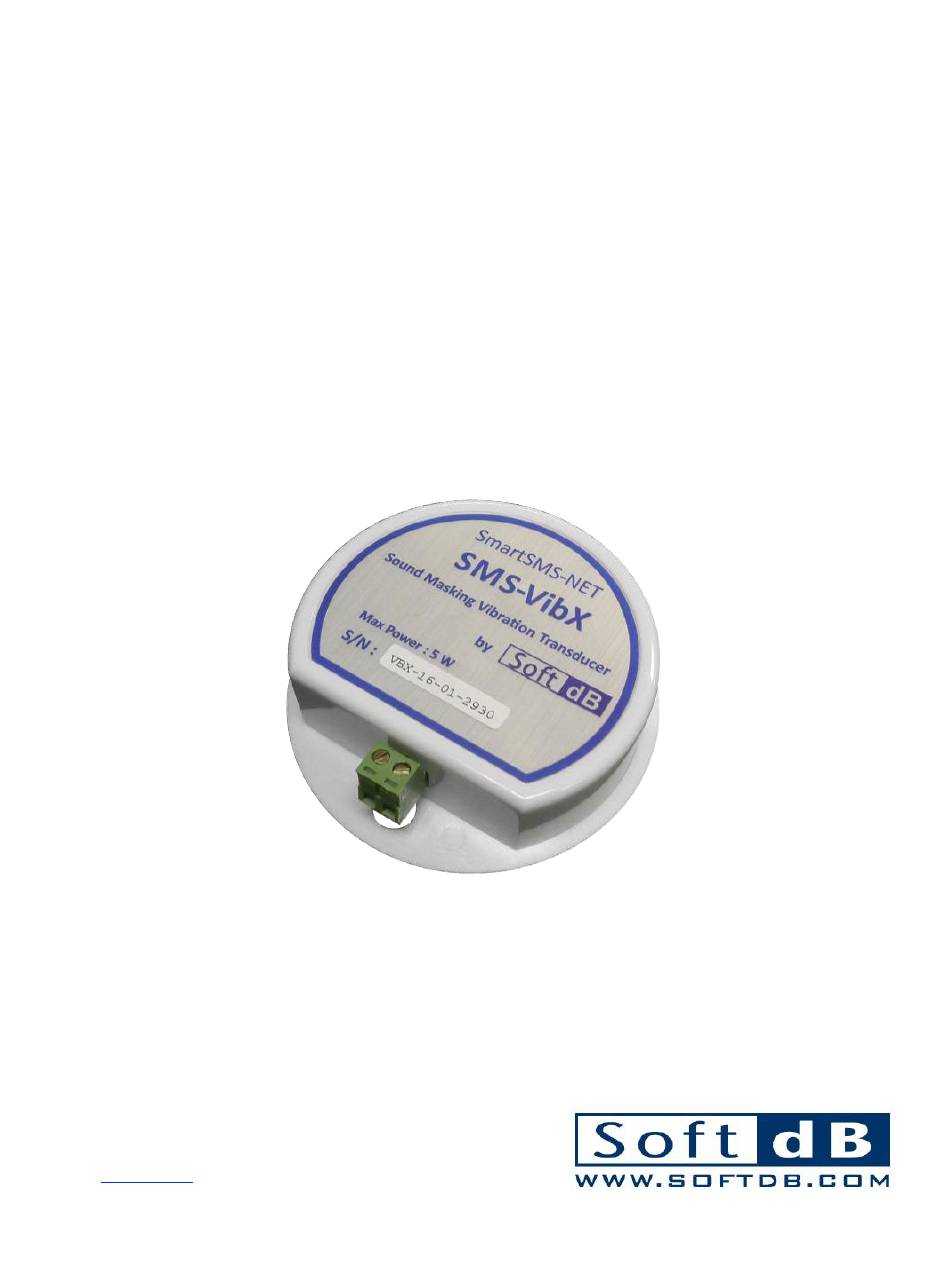

    SMS-VibX converts these ceiling surfaces into large loudspeakers, providing an impressively diffuse and clear sound field. The SMS-VibX is also an improved alternative to surface-mounted speakers in the case of gypsum, wood or any drop ceilings. Unlike surface or direct-field speakers, the SMS-VibX does not create acoustical hot spots, providing a significantly more diffuse sound field for excellent sound masking uniformity.
  • Page 4: Specifications

    2 Specifications Specifications Power 5W Enclosure Material Fireproof ABS Frequency Response 100 Hz to 10 kHz Connectors Screw-On Driver Vibration Transducer Mounting Self-adhesive* Color White (RAL9016) Weight 0.14 kg (0.3 lbs) Shipping Weight 0.25 kg (0.6 lbs) Box Dimensions 14.5 x 14.5 x 3.5 cm (5½ x 5½ x 1¼") * : Self-adhesive on a clean surface such as painted gypsum.
  • Page 5: Safety Instructions

    3 Installation 3.1 Safety Instructions • Read and keep these instructions. • Heed all warnings and follow all instructions contained within this manual. • Install in accordance with the manufacturer’s instructions. • Clean only with dry cloth. • Do not install near water. •...
  • Page 6: Connecting The Speaker

    If you connect more than one speaker, simply twist the wires in the same connector block. Since the SMS-VibX requires more power, only 4 to 6 SMS-HDN speakers are allowed on a sound masking controller output. Refer to sound masking controller specifications for more details.
  • Page 7: Securing The Speaker

    2) Spray the adhesive on both surfaces to bond (the SMS-VIBX and the tile for example); 3) Wait a couple of minutes as requested on the spray adhesive instructions and press the SMS-VIBX to the surface; 4) Wait about 1 hour until the adhesive is set before powering the SMS-VIBX and perform the calibration.
