Page 1: User Guide

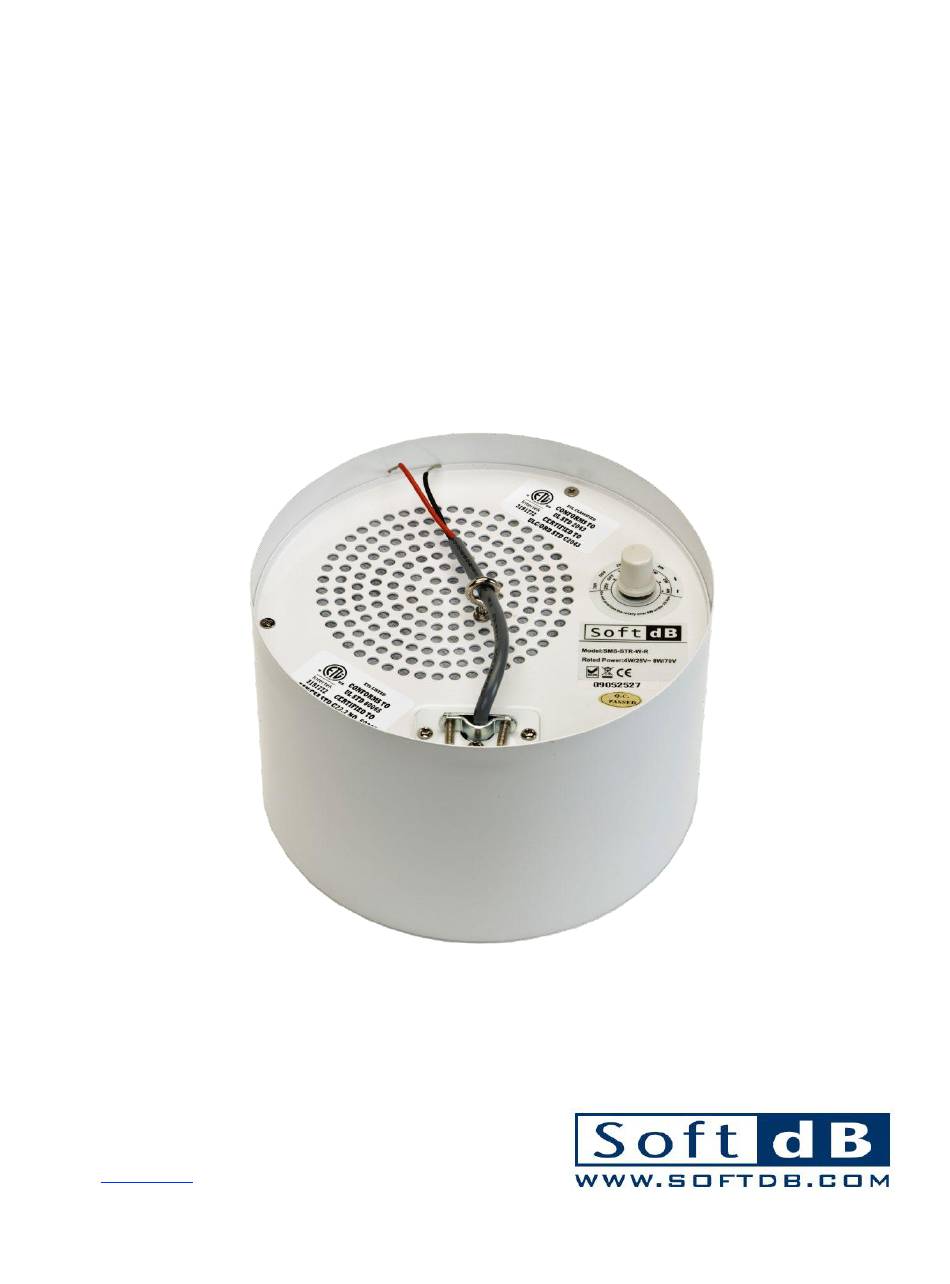

SMS-STR Open-Structure Masking Speaker User Guide V20190805 Soft dB Inc. 1040, Belvedere Avenue, Suite 215 Quebec (Quebec) Canada G1S 3G3 Toll free: 1-866-686-0993 (USA and Canada) E-mail: info@softdb.com... -
Page 2: Table Of Contents
Content Overview ..........................2 Specifications .......................... 3 Installation ..........................4 Safety Instructions ............................4 Connecting the Speaker ..........................5 Securing the Speaker ..........................6 Setting the Tap .............................. 7... -
Page 3: Overview

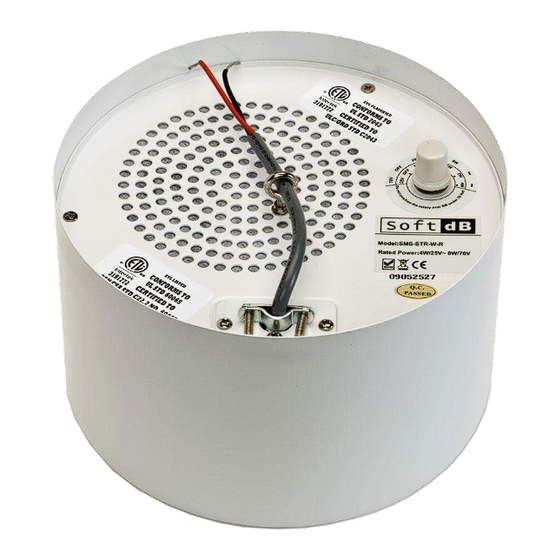

1 Overview The SMS-STR loudspeaker is designed to generate the optimum masking sound for a variety of ceiling conditions. It’s typically used in open ceiling configuration but it can also be installed in the plenum space, suspended between the acoustical tiles and the deck. -
Page 4: Specifications
2 Specifications Specifications Power 10W Line Voltage 25 V / 70 V Sensitivity 92 dB Enclosure Material Painted 19 gauge steel Frequency Response 100 Hz to 10 kHz Connectors 120 mm (4 ¾”) wire lead Driver 13 cm (5”) full range Color White (RAL9016) or Black (RAL9011) Anchor Device 10 mm hook at the center Seismic Security 3x 5mm holes on the top edge... -
Page 5: Installation
3 Installation 3.1 Safety Instructions • Read and keep these instructions. • Heed all warnings and follow all instructions contained within this manual. • Install in accordance with the manufacturer’s instructions. • Clean only with dry cloth. • Do not install near water. •... -
Page 6: Connecting The Speaker
3.2 Connecting the Speaker 1) Unscrew and remove the cable pass-through plate 2) Pass the power wire(s) through the wiring device. Making a knot at about 3 inches of the end of the wire is recommended to avoid the wire going out of the wiring device. Note: If required by the installation design, install the additional wire(s) that have to be connected to other speaker(s). -
Page 7: Securing The Speaker
3) Connect the power wire(s) to the speaker using twist connectors (not provided with the speaker). Note: It is recommend to connect the red wires (+) together and black wires (-) together. 4) Secure the wires to the cable pass-through plate and insert the wires in the speaker enclosure. -
Page 8: Setting The Tap
3.4 Setting the Tap The SMS-STR tap can be selected using the rotary switch to adjust the output level of each loudspeaker if required. It is recommended to use the 0 dB position tap as a default setting with the smartSMS-NET controllers.
