DESCRIPTION
The SP6651A Evaluation Board is designed to help the user evaluate the performance
of the SP6651A for use as a single Li-Ion battery Step-Down DC-DC Converter. The
SP6651A operates from 2.7V to 6.5V input, with the highest efficiency in the range 3.0V
to 4.2V where the Li-Ion battery has the most energy. The SP6651A evaluation board
is a complete power supply circuit to provide ease of evaluation for the DC/DC
Converter performance.

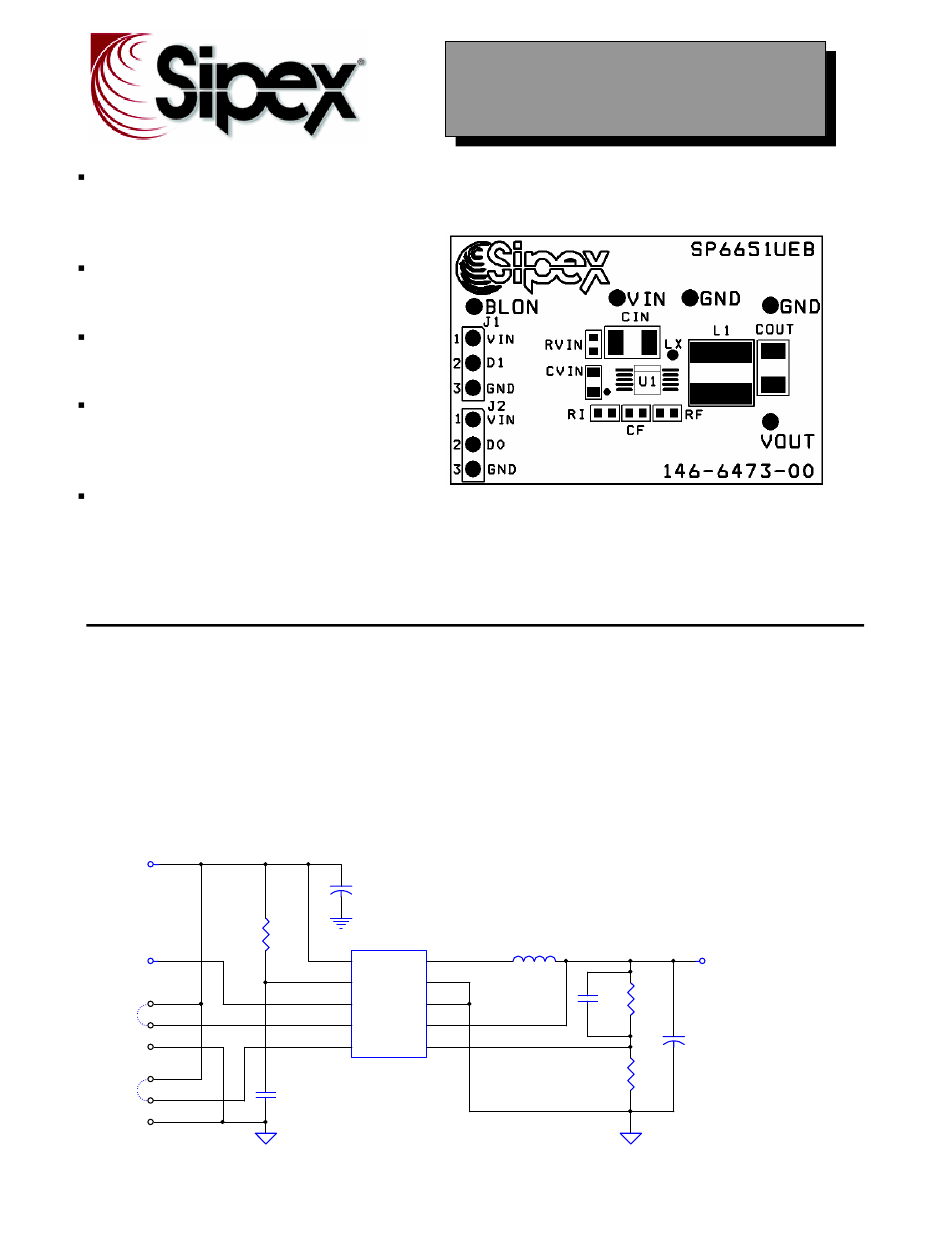

FIGURE 1. SP6651A 3.3V OUTPUT EVALUATION BOARD SCHEMATIC
Vin 2.7 - 6.5VDC
BLON
1
J1
2
D1
3
1
2
D0
J2
3
CIN
22uF
RV IN
10.0
U1
1
10
PV in
LX
2
9
V in
PGND
3
8
BLON
GND
4
7
D1
V out
5
6
D0
FB
SP6651A
CV IN
1.0uF
SP6651EB
Evaluation Board Manual
L1
10uH
CF
22pF
1
Vout 3.3V 800mA
RF
825K
COUT
22uF
RI
261K
Advertisement
Table of Contents
Related Manuals for Sipex SP6651EB
Summary of Contents for Sipex SP6651EB
- Page 1 SP6651EB Evaluation Board Manual High Efficiency Synchronous Step-Down Converter with up to 98% efficiency 800mA Output Current, only 20uA Quiescent Current 2.7V-6.5V Input Voltage range, Output Adjustable down to 0.8V MSOP Package & Ceramic Capacitors for small, low profile Power Supply...
- Page 2 FIGURE 2. SP6651A 1.5V OUTPUT EVALUATION BOARD SCHEMATIC Vin 2.7 - 6.5VDC 22uF RV IN 10.0 BLON 10uH Vout 1.5V 800mA PV in V in PGND 226K BLON 22pF V out COUT 22uF 261K SP6651A CV IN 1.0uF USING THE EVALUATION BOARD 1) Powering up the SP6651A Circuit &...
- Page 3 Table 2. SP6651EB BILL OF MATERIALS Component Vo = 3.3V Vo = 1.5V 10uH, CDRH5D28-100, Sumida 10uH, CDRH5D28-100, Sumida 22uF, TDK C3225X5R0J226M 22uF, TDK C3225X5R0J226M COUT 22uF, TDK C3225X5R0J226M 22uF, TDK C3225X5R0J226M RVIN 10 Ohm 5% 10 Ohm 5% CVIN...
- Page 4 EVALUATION BOARD LAYOUT FIGURE 3: SP6651AEU COMPONENT PLACEMENT FIGURE 4: SP6651AEU PC LAYOUT TOP SIDE FIGURE 5: SP6651AEU PC LAYOUT BOTTOM SIDE...
- Page 5 ORDERING INFORMATION Model Temperature Range Package Type SP6651EB ......…..-40°C to +85°C....SP6651 Evaluation Board...
