Signature EZ Indoor 8100 Series Installation & Programming Manual

Signature EZ Indoor 8100 Series Installation & Programming Manual

Irrigation controller

Advertisement

www.SignatureControlSystems.com
8 1 0 0 S e rie s
Irrigation Controller
8124US
Installation &
Programming Guide
www.scs-share.com
99903400

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZ Indoor 8100 Series and is the answer not in the manual?

Questions and answers

Bernard
May 1, 2025

How do you stop the 2 and 3 start times if they were programmed in error?

1 comments:
Mr. Anderson
May 16, 2025

To stop the 2 and 3 start times on the Signature EZ Indoor 8100 Series if programmed in error, turn the large dial to the START TIME A or B position. Press SELECT to choose start time 2 or 3. Then use the ADJUST button to set the time between 11:59pm and 12:00am. The display will show --:--, indicating the start time is deleted.

This answer is automatically generated

Summary of Contents for Signature EZ Indoor 8100 Series

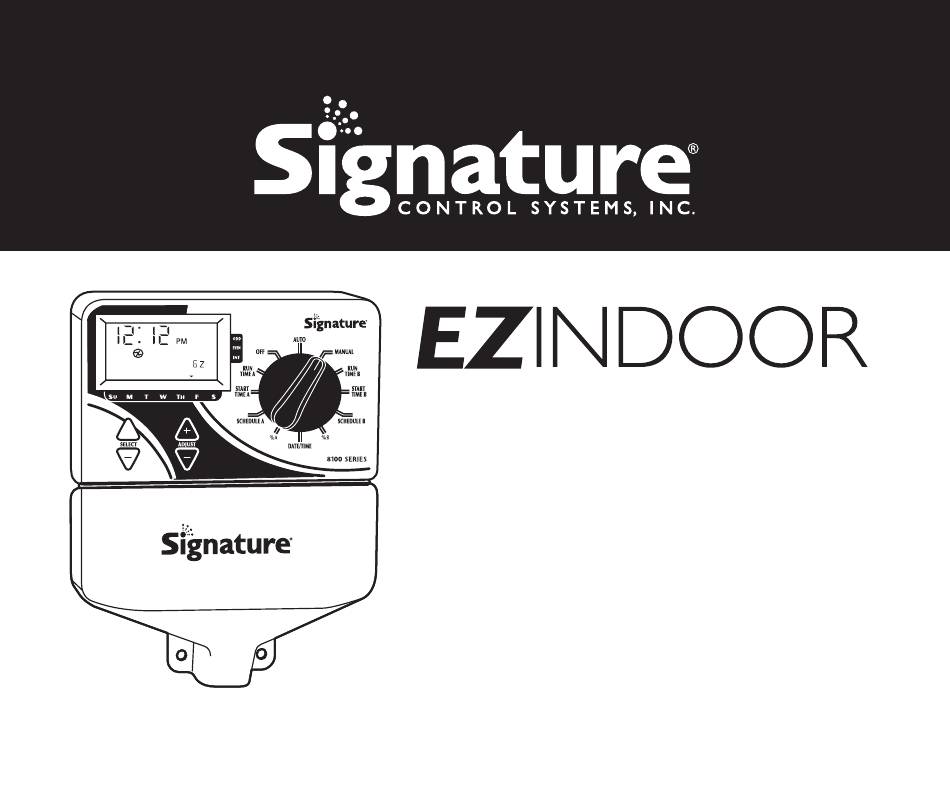

  • Page 1 ™ 8 1 0 0 S e rie s Irrigation Controller • 8124US Installation & Programming Guide www.scs-share.com www.SignatureControlSystems.com 99903400...
  • Page 2 No part of this document may be copied, reproduced, or transmitted by any means, Signature Control Systems, Inc. shall not be liable for technical or editorial errors or for any purpose without prior written permission from Signature Control Systems, Inc.
  • Page 3: Table Of Contents

    ™ TABLE OF CONTENTS Page FEATURES INSTALLATION INSTRUCTIONS 5 - 6 Low Voltage Wiring Connecting Master Valve Or Pump-Start Relay Connecting Rain/Moisture Sensor Connecting The Transformer PROGRAMMING INSTRUCTIONS 7-10 Programming Overview Front Panel Layout Set Time of Day, Date & Current Day of Week Select Zones and Set Their Run Times Set Start Times Start Time Stacking...
  • Page 4: Features

    FEATURES • Signature exclusive SELECT&ADJUST programming • Two independent programs • Three start times per program (6 total starts) • Stacking start times • Three scheduling options to suit the needs of plant material or to comply with watering restrictions (days of the week, 1-30 day interval, true odd/even) •...
  • Page 5: Installation Instructions

    ™ INSTALLATION INSTRUCTIONS The EZ Indoor™ 8100 Series can be easily mounted indoors. Find a location near a 120V receptacle (230/240V for IT, FR, PT & ES models). Install the EZ Indoor™ near eye level if possible. Install the top screw in the wall and adjust the depth for a snug fit when the controller is suspended on the screw.
  • Page 6 Figure 1 Battery CR2032 Common Pump / Master Valve Power Station Terminals 8100 Series Installation & Programming Guide...
  • Page 7: Programming Instructions

    Looking at the front panel, you see a large LCD, 4 rubber buttons and one large rotary dial.The rubber buttons are marked SELECT and ADJUST and are the core of Signature’s exclusive SELECT&ADJUST programming. The keys are identified with ‘+’ or ‘–’ for increasing or decreasing the segment you’re working on.
  • Page 8: Set Time Of Day, Date & Current Day Of Week

    SET TIME OF DAY, DATE & CURRENT DAY OF WEEK Turn the large dial to the DATE/TIME position. Press SELECT to select between hours, minutes, and 12/24 hour mode. Press ADJUST to scroll to the correct time or adjust between 12/24 mode. ‘A.M.’ will not appear on the LCD when in A.M.
  • Page 9: Set The Watering Schedule

    ™ SET THE WATERING SCHEDULE • WATER DAYS, or daily, lets you choose which days of the week you want to water (i.e., Monday, Wednesday, Friday only). • ODD/EVEN tells the controller to water on either the odd or even days of the month (i.e., the controller will water on the 31st and the 1st when an ODD schedule is chosen).
  • Page 10: Set Interval Scheduling Option

    SET INTERVAL SCHEDULING OPTION Turn the large dial to the SCHEDULE A or B position. The last scheduling option chosen for the current program appears on the LCD. Press SELECT to scroll to the interval days position. An arrow will appear on the LCD next to INT (Interval).
  • Page 11: Program Review

    ™ PROGRAM REVIEW To review the current program, turn the large dial to the setting you wish to review (i.e., turn the large dial to TIME to review the time set for the controller). When you need to view different zones or run times (1, 2, 3), use the SELECT buttons only.
  • Page 12: Advanced Features - Auto Mode

    AUTO position and the controller will finish the manual test. The EZ Indoor™ incorporates Signature’s ManualAdvance feature in the MANUAL procedure. ManualAdvance allows you to cease the currently running zone and immediately advance to any new zone you select. With the MANUAL or CYCLE procedure running a zone, Press SELECT to advance to a new zone.
  • Page 13: Technical Data

    ™ TECHNICAL DATA 1. Transformer 24 VAC internal transformer; 20 VA, .67A for zones and logic. The transformer can run a pump or master valve and one zone valve, maximum. 2. Sensor Operation Sensors must have normally closed connections (leads)and must be wired between the timer common terminal and the field com wire.
  • Page 14 6. Battery CR2032 coin cell. 7. Case Dimensions (approx.): 6” H x 4 1/2” W x 2” D 8. Reset Procedures To reset the controller to factory defaults, remove battery & remove power. In the event of a lock-up, follow the same procedure. 9.
  • Page 15: Troubleshooting/Service

    ™ TROUBLESHOOTING/SERVICE SYMPTOM POSSIBLE CAUSE SOLUTION No output to zone, pump, • AC disconnected • Check AC source master valve Controller not responding to • Unit needs reset • Remove battery and any dial/key press power down No output to a single zone •...
  • Page 16: Statement Of Conditions

    Signature Control Systems does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
  • Page 17: Declaration Of Conformity

    EN 55014-1:2006/A2:2011 AND EN 55014-2-1997/A2:2008 Conformity Is Declared: EN 61558-1:2005/A1:2009 AND EN 61558-2-6:2009 EN 60730-2-7:2010 Manufacturer’s Name: Signature Control Systems, Inc. Manufacturer’s Address: 16485 Laguna Canyon Rd., Suite 130, Irvine, California 92618 Tel: 949.580.3640 • Fax: 949.580.3645 Equipment Description: Electronic Irrigation Controller...
  • Page 18: Warranty

    SIGNATURE CONTROL SYSTEMS, INC LIMITED WARRANTY AND DISCLAIMER: TURF PRODUCTS 1) Signature Control Systems, Inc. [“SCS”] warrants to the owner (the “Buyer”) that all new products, as featured in the current Signature Turf Catalog at date of purchase will be free from original defects in materials and workmanship for the time periods described below, provided they are used for approved purposes under manufacturer’s recommended specifications.
  • Page 19 ™ If you have questions, problems or comments on your new EZ Indoor™ 8100 Series, please call our Technical Services Department toll-free at 1-866-4SIGNATURE, or by visiting us on our website at www.SignatureControlSystems.com w w w. S i g n a t u r e C o n t r o l S y s t e m s . c o m...
  • Page 20 Con tro lS y st e ms . co m FOR MORE INFORMATION SIGNATURE CONTROL SYSTEMS, INC. EUROPE & MIDDLE EAST REGIONAL OFFICES WORLD HEADQUARTERS 5 rue de la Vallee Yart 16485 Laguna Canyon Rd., Suite 130, Shenzhen •...
