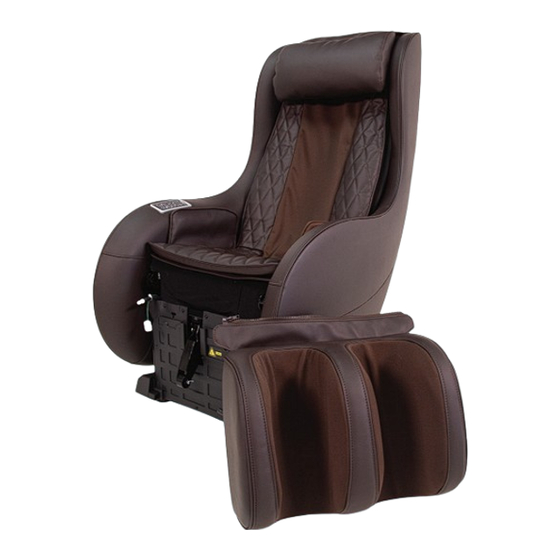

- Page 1 MC-750 Massage Chair Leg Rest Installation Guide Estimated Installation Time: 5 Minutes Required Tool: Phillips-Head Screwdriver...
- Page 2 Notable Parts Air Compression Tubing (Male) Front Panel Leg Rest Power Leg Rest Mounting Plug (Female) Platform Air Compression Tubing (Female) Leg Rest (Back) Leg Rest Mounting Peg Leg Rest Power Plug (Male)
- Page 3 Installation STEP 1: Remove each bolt from both Leg Rest Mounting Platforms using a Phillips-head screwdriver. Keep the bolts somewhere safe to avoid losing them. STEP 2: Ensure the Air Compression Tubing fi ts snugly in Line up the male and female connections for place and the Leg Rest Power Plug is fi...
- Page 4 Installation Close each clamp after mounting the Leg Rest STEP 4: Lift the clamps of the Leg Rest Mounting Platform (A) to allow you to properly mount the and fasten them using the previously removed Leg Rest using the Leg Rest Mounting Pegs (B) screws using your Phillips-head screwdriver (C).
