Your Personal Masseuse
Massage Chair | MC-3000
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the InstaShiatsu+ MC-3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for truMedic InstaShiatsu+ MC-3000

Summary of Contents for truMedic InstaShiatsu+ MC-3000

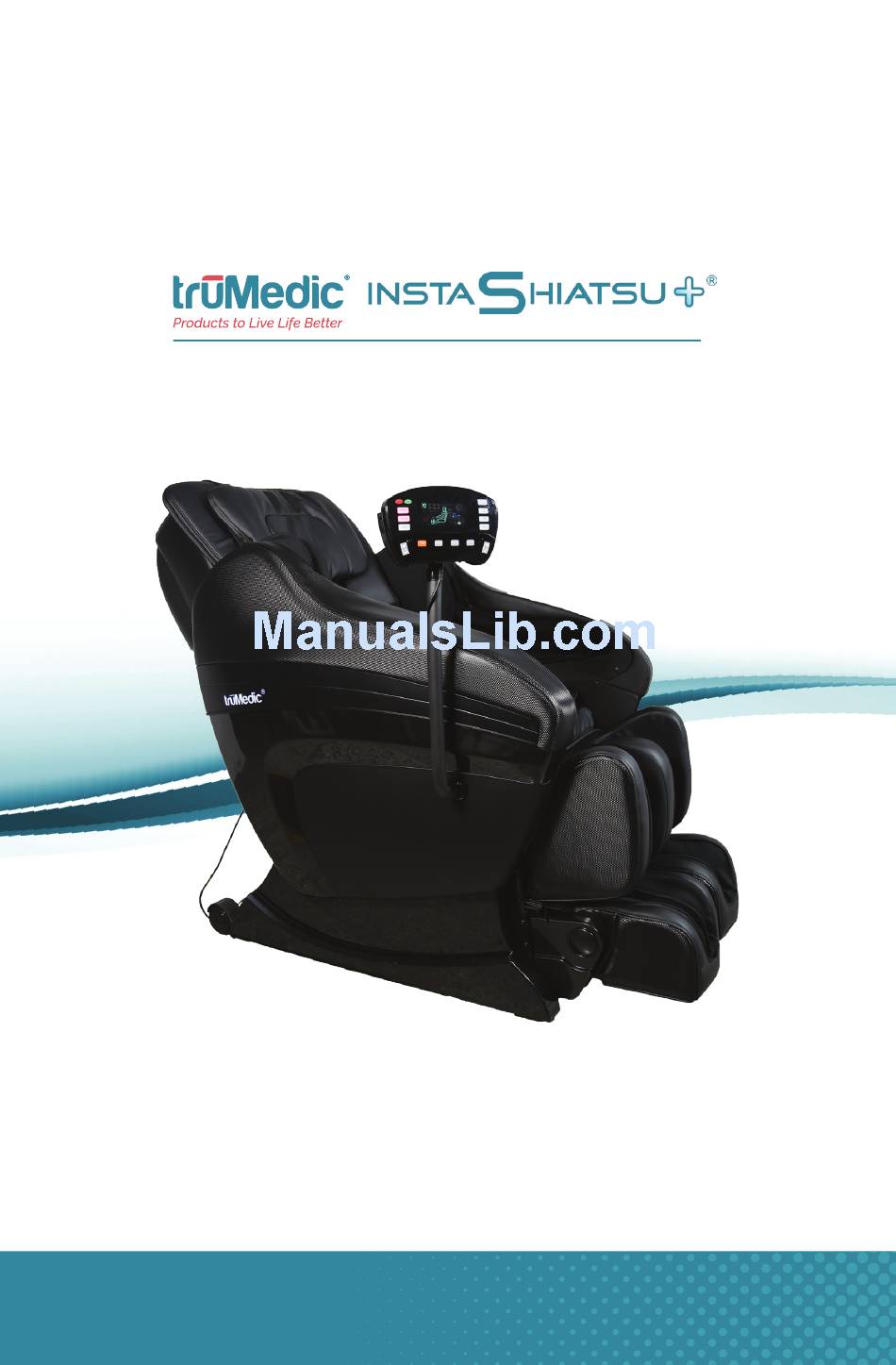

  • Page 1 Your Personal Masseuse Massage Chair | MC-3000 Instruction Manual...
  • Page 2 INTRODUCTION MC-3000 Massage Chair Operation Manual Thank you for purchasing the InstaShiatsu+ MC-3000 Massage Chair from truMedic. The MC-3000 was designed to combine the benefits of ergonomics with a stimulating full body massage. Sink into your new chair and take advantage of a relaxing spa experience in your own home.

  • Page 3: Table Of Contents

    Cleaning and Maintaining the MC-3000 Troubleshooting the MC-3000 Technical Specifications A Quick Note from truMedic As you install and begin to use your luxury massage chair, keep the following recommendations in mind: • Read the operation manual in full before you attempt to install or use your massage chair.

  • Page 4: Before Using The Mc-3000 Massage Chair

    SAFETY INSTRUCTIONS Before Using the MC-3000 Massage Chair Please note all symbols and signs outlined in this operation manual and follow the instructions listed for an effective and safe operating experience. Throughout this manual, we will use several symbols to indicate important areas: If you see this symbol, the The caution symbol denotes accompanying language will...

  • Page 5: Relevant Warnings And Notes Of Caution For The Mc-3000

    Relevant Warnings and Notes of Caution for the MC-3000 WARNING People Who Should Not Use the MC-3000 • Those with osteoporosis. • Those who have a pacemaker implant or other electrical medical implant. • Those who are pregnant or in poor health should discuss use with a physician. •...
  • Page 6 • Do not attempt to repair or replace a damaged power cord or plug. Contact the service team at truMedic or a professional dealer to receive a replacement. • Do not remove or open any part of the chair for any reason.
  • Page 7 Avoiding Accidents and Injuries • Do not press into or step on the massage heads. • Do not place your hands or feet in between gaps in the massage heads. • Do not put your hands or feet in between spaces in mechanical components. •...
  • Page 8 SAFETY INSTRUCTIONS CAUTION (CONT.) Avoid accidents: • Always turn OFF and unplug your chair after a massaging session. • Avoid power-related damage: • Always turn the switch to the OFF position and unplug your chair during electrical outages. Special Notes Grounding Note •...

  • Page 9: Getting To Know The Parts Of Your Chair

    We have outlined the exterior and interior parts you will need to know to install and maintain your chair. As soon as you unbox your massage chair, use the components listing to verify that service@truMedic.com you have all necessary parts. Contact truMedic at if you are missing any pieces. External Structure 1.
  • Page 10 UNDERSTANDING YOUR CHAIR External Structure (Cont.) 1. Power Case 6. Controller Socket 2. SD Interface 7. Power Cord Socket 3. USB Interface 8. Fuse Socket 4. Headphone Jack 9. Power Switch 5. Audio Input...

  • Page 11: Internal Structure

    Internal Structure 1. Massage Heads (Under Cushion) 2. Shoulder Airbags 3. Armrest Airbags 4. Side Seat Airbags 5. Seat Airbag 6. Leg Airbags 7. Foot Airbags...
  • Page 12 UNDERSTANDING YOUR CHAIR...
  • Page 13 Mechanical Components List Name Name Left Armrest Assembly Back Plastomer Assembly Left Side Panel Back Frame Assembly Mobile Left Armrest Rack Massage Machine Seat Assembly Back Cover Gas Case Power Case Assembly Seat Electric Actuator Pillow Footrest Electric Actuator Waist Cushion Assembly Caster Assembly Footrest Assembly Back Electric Actuator...

  • Page 14: Installation Guide

    INSTALLATION Installation Guide You now have all the knowledge you need to start installing and using your luxury MC-3000 massage chair. This section features a step-by-step guide to unboxing and setting up your chair. Follow the instructions closely, as this product contains several important components.
  • Page 15 Positioning the Backrest 3. Insert the Seat Protection Board Identify the smooth side of the seat protection board. This side will face down toward the interior of the chair. Place each of the 3 pins in the board in the corresponding metal frame holes in the base of the chair.
  • Page 16 INSTALLATION Right Armrest Left Armrest Notes on Disassembly: If you need to reverse the process, simply pull the tie-piece rotating panel to the rear of the armrest. While holding this piece, use your other hand to pull the armrest out of the clamp axis. Then, disassemble individual parts. Pull the locating shaft out of the front of the armrest, loosen the connector, and remove the locating shaft.
  • Page 17 6. Connect Seat Air Hoses The seat pad and air hoses are color-coded for installation convenience. You should see purple, dark brown, black, and gray tubes. Simply insert the corresponding hoses into the seat pad. Zipper Connection Black Hose Airbag Zipper Seat Cushion 7.
  • Page 18 INSTALLATION 8. Connect the MC-3000 to power. Use the following steps to finalize the installation: 1. Locate the power case under the backrest. The remote control plug and power plug fit into connections in this area. a. Use this connection for the remote control. b.

  • Page 19: Adjusting Your Mc-3000 Massage Chair

    PREPARATION Adjusting Your MC-3000 Massage Chair CAUTION Do not place your chair near any areas that may suffer from moisture or wetness. Avoid placing your chair in direct sunlight or near heating appliances. Always place your chair on an even and supported surface to avoid accidents and injuries.
  • Page 20 PREPARATION CAUTION Do not move your chair when the power is ON or the chair is plugged in. Tips for Moving Your Massage Chair Moving Your Chair to the Right Place Easily and Successfully • Wrap and place all cables in the seat of your chair to keep them out of the way and free from damage.
  • Page 21 Helpful Tip To protect your floors, consider placing a mat or rug under the chair before moving it to a new location. Adjusting Your Chair for Maximum Relaxation Improving Your Massaging Experience • Check the placement of the massage head to keep it from hitting you in the head during use.

  • Page 22: Mc-3000 Control Panel Usage Guide

    THE CONTROL PANEL MC-3000 Control Panel Usage Guide The variable frequency drive (VFD) control panel is designed for intuitive massage choices. Use the easy-to-read interface to adjust each setting as necessary. To help you along the way, we’ve compiled a simple operational guide. Revisit this section as needed to change your massage experience:...
  • Page 23 1. On/Off. The on/off switch on the chair will light up. As soon as you press a key on the remote control, the chair will start its detection cycle (an automatic setting). If you press the button again, all settings will stop. The massage rollers will return to a neutral position.
  • Page 24 THE CONTROL PANEL 18. Kneading image. For a kneading massage sensation, use this button. This feature can run in conjunction with other features. Use the button once more to stop it. 19. Tapping. For a tapping sensation, use this button to start and stop the experience. 20.
  • Page 25 41. Lower the seat. Continually press this button to lower the seat. When you reach your desired height or the seat lowers completely, release the button. 42. Raise the seat. Continually press this button to raise the seat. When you reach the desired height or the seat raises completely, release the button.

  • Page 26: Operating Your Mc-3000 Massage Chair

    OPERATION Operating Your MC-3000 Massage Chair 1. Turn On Your Chair A. Power ON. B. To turn on your chair at any point, make sure the controller plug is inserted firmly into the “a” connection. C. Place one end plug from the power cord into the “b” connection. D.
  • Page 27 2. Choose Massage Settings A. Choose the massage functionality of your choice. Refer to the remote control guide for more detail. B. After the massage cycle ends, the chair will return to its default position. If you do not press a button for 2 minutes, the chair will revert to a low-power mode. 3.
  • Page 28 OPERATION Function Cheat Sheet Raise the Leg Rest and Recline the Backrest Achieve a fully reclined position when you press the button. The chair will lock into position when you release the button. Raise the backrest and Lower the Leg Rest Return to a seated position when you press this button.
  • Page 29 Extend and Retract the Leg Rest Adjust the seat to your preferences with this setting. The MC-3000 has the ability to move in and out 20 cm. Initiate Arm and Shoulder Massage Place your arms comfortably between the airbags located on either side of the chair, and press the corresponding button.
  • Page 30 AFTER THE MASSAGE What to Do After Your Massage 1. Look around the chair for any potential hazards including pets and children. 2. Use the function buttons to return the seat to an upright position, or press the On/Off key on your control panel—this will automatically return the chair to default settings.

  • Page 31: Cleaning And Maintaining The Mc-3000

    CLEANING AND MAINTENANCE Cleaning and Maintaining the MC-3000 Follow these instructions as needed to keep your chair clean and well maintained Cleaning the synthetic leather surfaces General Cleaning • Wipe down your chair regularly with a dry, soft, clean cloth. •...
  • Page 32 CLEANING AND MAINTENANCE Cleaning and Maintaining the MC-3000 Cont. Cleaning Plastic Components: • Use a weak, natural solution to clean plastic components. Always wring out your cleaning cloth before applying to dirty parts. • Wipe down the part with a clean, damp cloth to remove any remaining cleaning solution.

  • Page 33: Troubleshooting The Mc-3000

    TROUBLESHOOTING Troubleshooting the MC-3000 If you experience difficulties while using your chair, refer to this section of the operation manual. Contact truMedic if this section does not address the problem you experience. Problem Solution The remote control may not be turned ON. Locate and press the ON switch on your remote control.
  • Page 34 If you notice any problems not listed in this short guide, stop using your chair immediately. Turn off all power and cut the electricity. Contact truMedic for more information on repair and maintenance at 888-264-1766 or service@trumedic.com...

  • Page 35: Technical Specifications

    TECHNICAL SPECIFICATIONS Technical Specifications Name MC-3000 Massage Chair Model MC-3000 Input Voltage AC120V - 60Hz AC220V - 50/60Hz AC240V - 50Hz Safety Design Class I Power 280W NW/GW Main Body: 106/121kg, Armrest: 27/34kg Packing Size Main Body: 1390mm × 770mm × 880mm (L ×...
  • Page 36 TRUCORE DISTRIBUTORS, INC. LOCATION 252 Indian Head Rd. Rocky Point NY, 11754 TEL (888) 264-1766 E-MAIL service@truMedic.com WEBSITE www.truMedic.com @truMedicMassage v1-EN FEB2017...
