Summary of Contents for Teufel CP 5100 DR

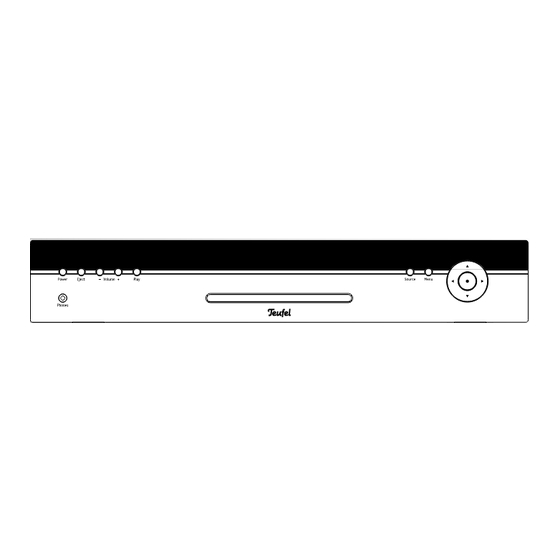

- Page 1 Technical description and operating instructions CP 5100 DR 5.1 DVD Receiver...
-
Page 2: Table Of Contents
Index ........27 “Resolution” button ..... . 16 • CP 5100 DR... -
Page 3: General Notes And Information
For questions, suggestions or any other issues please out prior notice and in no way constitutes any liability on contact our customer service department: the part of Lautsprecher Teufel GmbH. Lautsprecher Teufel GmbH No part of these instructions may be reproduced in any Gewerbehof Buelowbogen ·... -
Page 4: Safety Notes
Send the unit to our service address. • Never touch the mains adapter with wet hands. • Check the unit regularly for damage. • CP 5100 DR... - Page 5 • Never attempt to recharge normal batteries. • Do not expose batteries or rechargeable batteries to heat and never throw them in open fi re. • CP 5100 DR...
-
Page 6: Overview
Check that all items have been delivered and that noth- ing is damaged. • If the delivery is incomplete or you fi nd damage sus- tained in transit, do not operate the unit but contact our service department (see page 3). • CP 5100 DR... -
Page 7: Control Elements And Connections
HDMI connector and audio Input jacks for digital source HDMI 1 + 2 Input jacks for digital audio sig- devices with HDMI connector Coaxial 1 + 2 nals via coax cable Connector for USB storage device • CP 5100 DR... -
Page 8: Remote Control
Enter the tens decimal place for the station memory or music track 1... 0 Number keys Changing subtitles for DVD play- Subtitles back Angle Changing angle for DVD playback Stopping playback Playback/pause Switching the device on or to standby • CP 5100 DR... -
Page 9: Setup And Connection
Connecting the cables to the speakers should be de- scribed in the operating instructions for the speakers. If you use banana plugs, screw the cord into place on the plug (see instructions for the banana plug), remove • CP 5100 DR... -
Page 10: Am Antenna
Releasing the lever will hold the cable in place. Inputs for Source devices The CP 5100 DR offers three inputs for analog sources (Aux 1 – 3) and two digital HDMI sources. There are also two optical and two coaxial digital sound inputs availa- ble that you can freely assign to the source devices using the setup menu (see page 14). -
Page 11: Connecting To A Power Supply
(please follow the notes on page 26). • Insert the batteries in the battery compartment as shown in the fi gure. • Put the cover back on the com- partment and push it into place. • CP 5100 DR... -
Page 12: Basic Functions
By pushing the button 47 “Night” you can activate or deactivate night mode. The message “Night on” and/or “Night off” will briefl y appear on the display 5 and the television. • CP 5100 DR... -
Page 13: Menu Functions
Menu functions With the menu, you can set most functions of your CP 5100 DR. You control the menu with the remote con- trol; the menu itself is shown on the connected TV screen. Important The menu functions are only available if “DISC”... -
Page 14: Menu "Audio
Volume adjustment and sound test. Here, you can in- present, surround sound effects will be missing. If set crease or reduce the relative volume for each speaker. properly, the CP 5100 DR is able to make optimal use of the existing speakers: + 10... -
Page 15: Menu "System
After selecting the level the four-digit password (default setting “0000”) must be entered via the number pad on the remote control and confi rmed with the select button 41 “●”. If the password is entered incorrectly, the pass- word prompt will appear again. • CP 5100 DR... -
Page 16: Special Function Buttons
(increase). After three seconds of button inactivity, the device switches off the function. By tipping the button 46 “Resolution” you can set the resolution of the television set for HD playback. Possible values: HDMI 576P, HDMI 720P, HDMI 1080I, HDMI 1080P. • CP 5100 DR... -
Page 17: Dvd/Cd Mode
9 “Eject” and/or 31 “ ”. The DVD tray will eject to the front. • Take the DVD/CD out of the tray. • Press the button 9 “Eject” and/or 31 “ ”. The CD tray will close. • CP 5100 DR... -
Page 18: Radio Playback
You can directly choose stored stations by using the activity for fi ve seconds, the device will switch back to number pad 55. With the button 54 “10+” you can ac- normal mode. cess the memory slots with two-digit numbers. • CP 5100 DR... -
Page 19: Usb Mode
The fi le browser will appear on the screen shortly after- wards (see “File selection” in the next section). The playback functions for CD and USB are identical and are described in the section “Playback functions” on page 20. • CP 5100 DR... -
Page 20: Playback Functions
Subtitle – Changing or deactivating subtitles (if the DVD supports subtitles). Zoom – Enlarging the display by 2, 3, 4 and 5 times The device will deactivate the on screen display if there is no button activity for about 10 seconds. • CP 5100 DR... -
Page 21: Selecting Fi Les
Photo playback • Displaying the next photo: Tip the navigation button “▶”. • Displaying the previous photo: Tip the navigation but- ton 40 “◀”. • Rotating/fl ipping the photo: Tip the navigation buttons 40 “▲ ▼”. • CP 5100 DR... -
Page 22: Repeat Function (Repeat)
Folder Repeat On – Repeat all fi les in the current folder. • Disc Repeat On – Play through all fi les and start from the beginning. • Repeat Off – Repeat function off, normal playback. • CP 5100 DR... -
Page 23: Troubleshooting
The speaker is deactivated. Activate the speaker (see “Speaker confi g” on page 14). Playback speed has been increased or Switch to normal playback by pressing the reduced. PLAY button. • CP 5100 DR... - Page 24 “ ▲▼” and press the select button 41 “●”. The display will fl icker briefl y. Turn off the device with the power switch 23 “Power” on the back. Wait approximately 10 seconds before turning the device back on. • CP 5100 DR...
-
Page 25: Software Update
Software update The CP 5100 DR’s software is being developed continu- ally. You can download subsequent versions from our website www.teufelaudio.com/support/ and install them as follows: You will need a USB stick with a maximum capacity of 2 Attention Risk of damage! The DVD receiver must not be deactivated when carrying out the following steps. -
Page 26: Protecting The Environment
Distortion (THD+N): 0.19 % Dimensions (W x H x D): 430 x 81 x 355 mm Net weight: 5.9 kg Technical changes reserved! This product conforms with Council of the European Union guidelines 2004/108/EC and 2006/95/EC • CP 5100 DR... -
Page 27: Index
Software update 25 Sound control 14 source devices 10 Image format 13 Speaker confi g. 14 Subtitles 15, 20 S-Video 10 Language 15 SW version 15 Letterbox 13 System 15 Level 14, 16 Lip Sync 13 Locks 15 • CP 5100 DR... - Page 28 For questions, suggestions or other issues please contact our customer service department: Lautsprecher Teufel GmbH Tel.: 00800 200 300 40 (toll-free) No liability is accepted for the Gewerbehof Buelowbogen - Aufgang D1 Fax: +49 (0)30 - 300 930 930 accuracy of this information. Tech- 10783 Berlin (Germany), Buelowstr.
