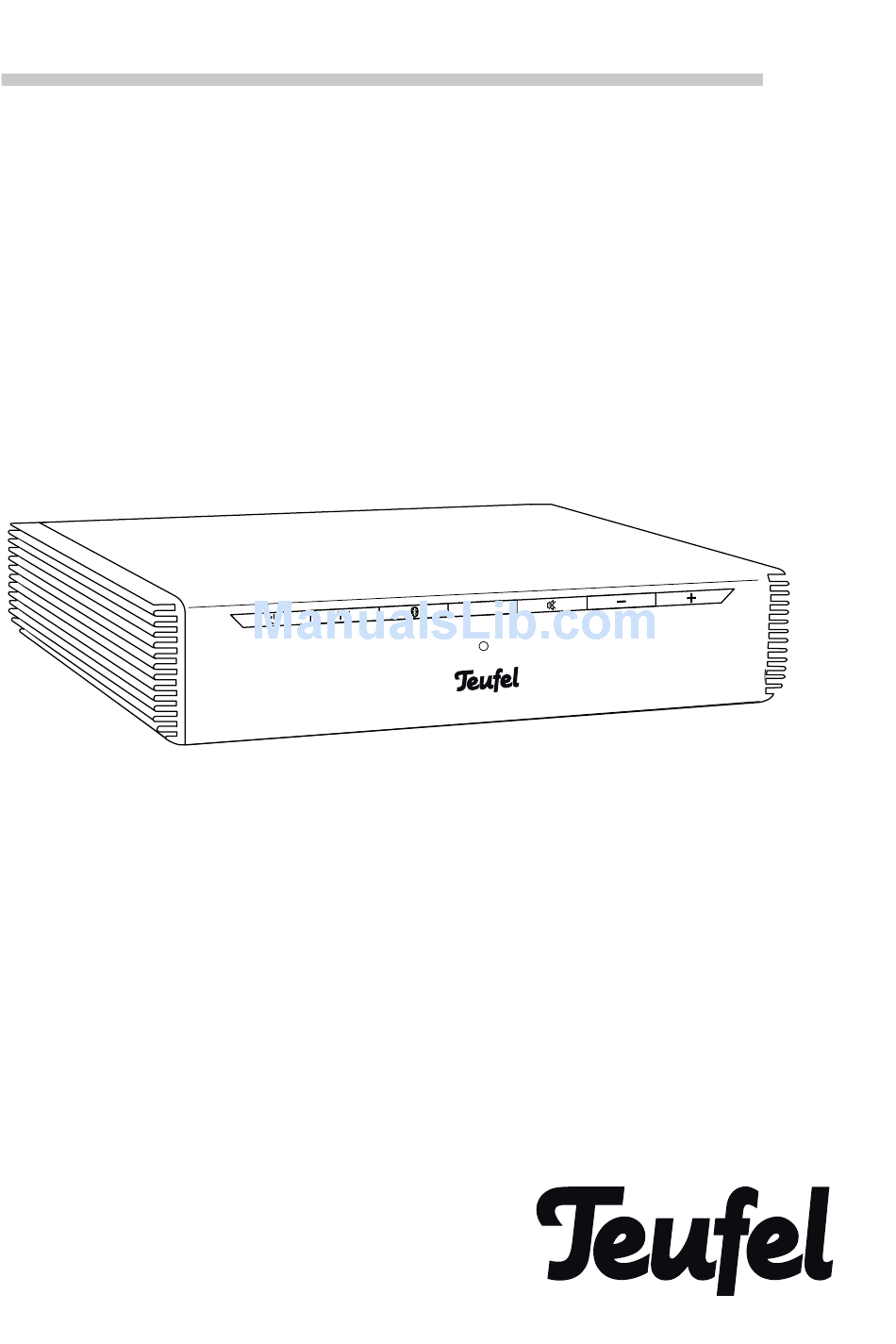

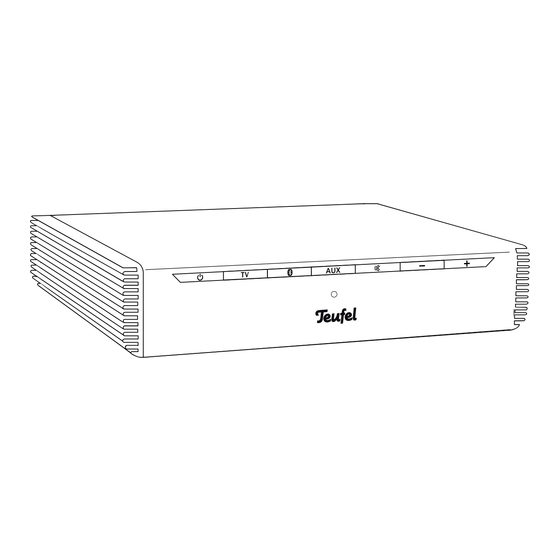

- Page 1 Technical Description and Operating Instructions AU X CoreStation Compact Ultra Compact 2.1 AV Receiver with Wireless Technology...
-
Page 2: Table Of Contents
Activating and deactivating ... 15 ble manner. Store the user manual in a Selecting a source ......16 safe place and also be sure to pass it Setting the volume ......16 on to any subsequent owner. • CoreStation Compact... -
Page 3: General Notes And Information
Lautsprecher Teufel GmbH. We can only accept the return of a unit WITH THE ORIGINAL PACKAGING. -
Page 4: Contact
Proper use thority/borough. This ensures that old The CoreStation Compact is designed devices are recycled in a professional for the playback of music and speech manner and also rules out negative from a TV set or an external player. -
Page 5: For Your Safety
– Never modify the device. Unauthor- – Check the device regularly for damage. ised interventions may affect the Immediately disconnect the mains safety and functionality. plug and do not operate the device if • CoreStation Compact... - Page 6 (e.g. control knobs or plug adapters). They could – Do not expose batteries and re- swallow the parts and choke. chargeable batteries to direct sunlight. – Never allow children to operate elec- trical equipment unsupervised. • CoreStation Compact...
-
Page 7: Overview
Product contents 1× CoreStation Compact 1× mains adapter with mains cord 2× mounting bracket 4× countersunk screw Wireless remote control “Teufel Puck” incl. 2 batteries type AAA Checking the product contents – Check that all items have been deliv- ered and that nothing is damaged. -
Page 8: Arc (Audio Return Channel)
Compact without the need for anoth- TV sets, you can also adjust the volume er cable when a TV signal is being of the CoreStation Compact with the received. remote control of your TV set. With many TV sets, the internal speak-... -
Page 9: Operational Controls And Connections
14 Control for subwoofer volume 10 Connection for active subwoofer 15 Initiate pairing for the wireless subwoofer 11 HDMI connection for the TV set 16 Input jack for mains adapter 12 Service jack 17 Speaker terminals 13 Control for crossover frequency • CoreStation Compact... -
Page 10: Setup / Mounting
Setup location behind the rear panel where you can You can set up the CoreStation Compact only see the screw holes on the out- so that it is concealed as it is controlled side. Please refer to the user manual by the TV set via HDMI and the remote for your TV set in this respect. - Page 11 CoreStation Compact as shown in the figure. 2. Depending on the spacing of the up- per VESA mounting points on your TV set, mount the CoreStation Compact...
-
Page 12: Connecting
TV jack (11). You will need a HDMI cable for this. Only the au- dio signal will be transmitted to the CoreStation Compact via this connec- tion. You can connect a source device with analogue audio (e.g. a cassette or CD player) to the RCA jacks AUX (9). -
Page 13: Speaker Outputs
Twist the single wire so that no strands are protruding. Tin coating is not necessary. – Push down the respective connector terminal and insert the end of the cable in the corresponding opening. Releasing the connector terminal will clamp the cable in place. • CoreStation Compact... -
Page 14: Connecting To A Power Supply
2. Connect the small plug of the mains adapter to the POWER jack (16). 3. Connect the mains adapter over the mains cord with a mains socket (100 V – 240 V ~, 50/60 Hz). The status LED (5) illuminates in red. • CoreStation Compact... -
Page 15: Basic Functions
HDMI is CEC-capable, the CoreStation Compact will be auto- matically switched and to standby together with the TV set. • If the CoreStation Compact does not receive any signal for more than 20 minutes, it will automatically switch to standby. -
Page 16: Selecting A Source
The status LED (5) will slowly pulse in white when muting. • If TV is selected as the signal source, the mute will also passed on to the CoreStation Compact by the remote control in case of CEC-capable TV sets. • CoreStation Compact... -
Page 17: Settings
(40 Hz). Wireless subwoofer To connect a wireless subwoofer with the CoreStation Compact: 1. On the wireless subwoofer, start the 3.75A process to establish a connection (see the corresponding user manu- al). -
Page 18: Subwoofer Volume
RCA output, you can connect it with the input AUX (9) of the CoreStation Com- pact. Configure the following setting afterwards: 1. Switch the CoreStation Compact to standby mode. 2. As soon as the status LED (5) con- tinuously illuminates in red, push... -
Page 19: Operation
® Bluetooth Via Bluetooth® you can wirelessly connect up to two compatible external players with the CoreStation Compact at the same time. The audio output of your external player is then emitted by the CoreStation Compact. The audio output can only be emitted by an exter- nal player at the same time. - Page 20 Bluetooth® options in the user manual for your external player/smartphone. Pairing To play the audio of your external player on your CoreStation Compact via ® Bluetooth , you must first connect the devices with each other. The technical term for this is “pairing”.
- Page 21 5. Select “Teufel CoreStation Compact” from the list of detected devices. Pairing is now complete and your CoreStation Compact will now act as ® a Bluetooth playback device. The CoreStation Compact will now play back all sounds that would otherwise be played by your external player/ smartphone.
-
Page 22: External Source
2. Start playback on your external player. The volume setting of the exter- nal player affects the volume of the CoreStation Compact. 3. Use your external player to con- MP3 player trol all playback functions. You can only adjust the volume on the CoreStation Compact. -
Page 23: Remote Control
Turn the cover (21). – Mute on/off: Tap the cover (21). Pairing the remote control 1. Turn the CoreStation Compact on. 2. Position the remote control at a dis- tance of no more than 25 cm to the CoreStation Compact. 3. Hold the button (20) down until the LED ring (22) starts to blink. -
Page 24: Changing The Batteries
– Do not allow battery acid to come into contact with skin, eyes or mucus membranes. In the event of contact with acid, immediately flush the applica- ble areas with plenty of clean water and consult a physician if necessary. • CoreStation Compact... -
Page 25: Software Update
Software Update The CoreStation Compact software is constantly developed and updated. Future versions can be downloaded from our website: www.teufelaudio.com/support/ Installing new software You will require a PC and a USB 2.0 cable with a USB A to Micro USB B connector. - Page 26 7. After the copy process is complet- ed pull the USB cable from the CoreStation Compact. The update will begin automatically. Afterwards the CoreStation Compact will switch to standby mode. The new software is now installed. • CoreStation Compact...
-
Page 27: Cleaning & Maintenance
In case of stubborn marks, a mild soap solution may be used. – Do not use caustic cleaning products, white spirit, thin- ners, petrol or similar under any circumstances. Such cleaning agents may damage the delicate surface of the housing. • CoreStation Compact... -
Page 28: Troubleshooting
(see page 3). Take note of the warranty instructions. Problem Possible cause Solution Status LED Software error. Restart the CoreStation Compact: (5) flashes in Pull the mains plug, wait until the red. status LED (5) goes out, insert the mains plug back into the socket. - Page 29 Establish a connection (see page ® Bluetooth 20). mode. CoreStation Compact has not On the external player, select been selected as the output “Teufel CSC” as the output device ® device. via Bluetooth ® Bluetooth connection Set up the CoreStation Compact...
-
Page 30: Technical Data
Playback is Generally speaking, the Make sure that the external noisy. CoreStation Compact is a very player emits a clear signal to the low-noise system. The device CoreStation Compact. with very high resolution in the high range area can expose the poor quality of a signal source (e.g. -
Page 31: Declaration Of Conformity
DIN EN 61000-3-3:2014 DIN EN 55022: 2011 DIN EN 55024: 2011 DIN EN 60065:2011 DIN EN 62321:2005 ETSI EN 301489-1 V1.8.1 ETSI EN 301489-17 V2.2.1 Edgar van Velzen Geschäftsführer Ausstellungsdatum / 01. November 2015 Date of issue: • CoreStation Compact... - Page 32 Please contact our customer service with any questions, suggestions or criticism: Lautsprecher Teufel GmbH Phone: 00800 - 200 300 40 (toll-free) BIKINI Berlin Fax: +49 (0)30 - 300 930 930 Budapester Str. 44 www.teufelaudio.com 10787 Berlin (Germany) No responsibility is assumed for the correctness of this information.
