Newworld 100GT Users Manual & Installation Handbook

Gas ovens and grill with gas hob
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Users Guide & Installation
Handbook

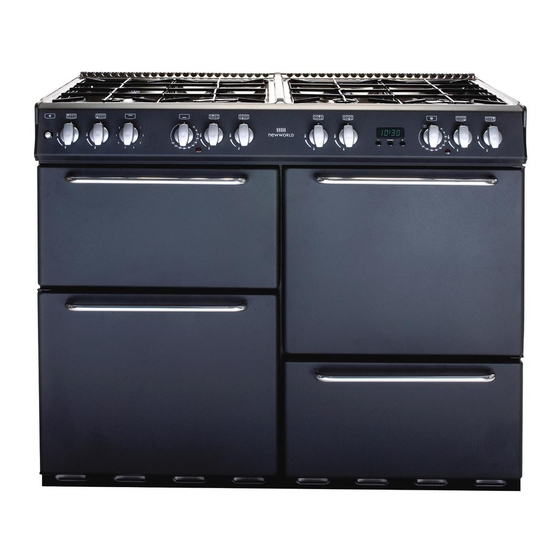

100GT Range cooker
Gas ovens and grill with gas hob
Please read carefully and retain for future reference
www.newworldappliances.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100GT and is the answer not in the manual?

Questions and answers

Related Manuals for Newworld 100GT

Summary of Contents for Newworld 100GT

  • Page 1 Users Guide & Installation Handbook 100GT Range cooker Gas ovens and grill with gas hob Please read carefully and retain for future reference www.newworldappliances.co.uk...
  • Page 2 If you smell gas: Do not try to light any appliance. Do not touch any electrical switch. 0800 111999 Call the Gas Emergency Helpline at TRANSCO on: IMPORTANT NOTICE Please note the cooling fan fitted to this appliance is an integral part of its safety and functionality.

  • Page 3: Table Of Contents

    Contents User’s Section ........2 - 21 Introduction .

  • Page 4: User's Section

    Introduction Thank you for choosing a British Your new appliance is designed to be built appliance by New World. installed free-standing or flush to base units. Certain features, such as the We hope that the following information griddle, are only available on some will help you to familiarise yourself models.
  • Page 5 Introduction Moving the cooker Stability bracket Do not attempt to move the cooker by If the cooker is to be fitted with a pulling on the doors or handles. Open flexible inlet connection, a stability the door and grasp the frame of the bracket should also be fitted to engage cooker, taking care that the door does in the back of the cooker.
  • Page 6 Introduction Environmental Protection We are committed to protecting the environment operate Environmental Management System which complies with BS EN ISO 14001. Disposal of packaging • All our packaging materials are recyclable and environmentally friendly. • Please help us to protect our environment by disposing of all packaging in an environmentally friendly manner.

  • Page 7: Storage Compartment

    Storage Compartment Storage compartment Your appliance has a generous storage compartment, located beneath the right-hand side oven. The storage compartments should only be used to store oven furniture. Baking trays and roasting tins may be stored in the compartment. Do not store items with plastic or wooden handles in the compartments, as they may be damaged by heat from the oven.

  • Page 8: Be Safe - Not Sorry

    Be Safe - Not Sorry I Do not use aluminium foil to cover When you are cooking, keep children away from the vicinity the grill pan, or put items wrapped of the appliance. in foil under the grill, as this creates a fire hazard.

  • Page 9: Using The Minute Minder

    Minute Minder Initial display and press again to listen to the second tone, etc. Releasing the minus button after a tone has sounded will automatically select that tone. Function Setting the minute minder 1. Press and release the plus button, to Minus Function Plus...

  • Page 10: Using The Hob

    Using the Hob Ignition Pans Push in and turn the selected control For optimum safety and performance, knob anticlockwise to the ‘full on’ posi- we recommend flat bottomed pans tion and press the ignition switch, or with a base diameter of minimum hold a lighted match or taper to the 100mm (4”) and maximum 250mm burner until the burner lights.

  • Page 11: Using The Griddle (If Supplied)

    Using the Griddle (if supplied) aution: Accessible parts may To season; I After cleaning, dry the griddle be hot when the griddle is used. Young children should be kept thoroughly. I Rub the cooking side of the griddle away. The appliance may be supplied with a sparingly with a minimum amount griddle.
  • Page 12 Using the Griddle Griddle cooking Griddle cooking is a traditional cooking method which allows anything from full breakfasts to drop scones to be cooked with ease. The griddle absorbs heat quickly and evenly, and there is ample space for cooking. The coating on the griddle allows for low fat cooking and ease of cleaning.

  • Page 13: Using The Grill

    Using the Grill aution: Accessible parts may be hot when the grill is used. When slower cooking is required the Young children should be kept grill can be turned down anti-clockwise away. to a slightly reduced setting, past the large flame symbol (full on), to the small flame symbol.
  • Page 14 Using the Grill Detachable grill pan handle Grilling Important: Keep the grill door open when the grill is on. The grill is variable. The speed of grilling can also be adjusted by select- ing a higher or lower shelf position. We recommend using a higher shelf position for toasting, and for cooking foods such as bacon, sausages or...
  • Page 15 Using the Grill Grilling guide Grilling times The times given in the grilling guide Grill shelf positions are based on a grill pre-heated at full Shelf positions are counted from the rate. The grilling times given are top down - shelf 1 is the highest. approximate, as differences in thick- ness, size of portion and personal preference will influence timing.

  • Page 16: Using The Ovens

    Using the Ovens aution: Accessible parts may be Notes: hot when the ovens are used. Young As part of the cooking process, hot air children should be kept away. is expelled through a vent at the top of the oven(s). When opening the oven The cooker has two conventional gas door, care should be taken to avoid ovens.
  • Page 17 Using the Ovens Baking tray and roasting tins Shelf positions For best cooked results and even The oven shelf must be positioned with browning, the maximum size baking the upstand at the rear of the oven and trays and roasting tins that should be facing upwards.
  • Page 18 Using the ovens Zones of heat baking tray in one even layer for satisfactory cooking. The temperature at the centre of the H Follow the cooking times given on oven corresponds with the selected gas mark and is slightly higher packaging but remember they are towards the top of the oven and slight- only intended as a guide and do...
  • Page 19 Using the ovens Baking guide Recommended Shelf Approximate Dish gas mark position cooking time Scones top to middle 8 - 15 mins Meringues “S” slow setting middle to bottom 3 - 4 hours Cakes Small cakes middle to top 15 - 25 mins Whisked sponge middle to top 20 - 30 mins...
  • Page 20 Using the Ovens Traditional fruit cakes Roast turkey It should be remembered that ovens Roasting turkey involves cooking two can vary over time, therefore cooking different types of meat - the delicate times can vary, making it difficult to be light breast meat, which must not be precise when baking fruit cakes.
  • Page 21 Using the Ovens Roasting guide Notes: H When cooking stuffed meat or The times given in the roasting guide are only approximate, because the poultry, calculate the cooking time size and age of the bird will influence from the total weight of the meat cooking times as will the shape of a plus the stuffing.

  • Page 22: Cleaning

    Cleaning aution: Any cleaning agent used incorrectly may damage Burner caps and heads the appliance. Important: Allow burners to cool Always let the cooker cool before cleaning. before cleaning. aution: Hotplate burners can be Some cooking operations generate damaged by soaking, automatic considerable amount of grease, this dishwashers (or dishwasher powders combined with spillage can become a...
  • Page 23 Cleaning Vitreous Enamel Parts Stainless steel surfaces & GRILL PAN GRILL COMPARTMENT HOB TOP (where fitted) & PAN SUPPORTS OVEN COMPARTMENT FASCIA PANEL HANDLES HOB SPILLAGE Use a mild cream cleaner - eg; “Cif”. & WELL OVEN SIDES DOORS FASCIA Stubborn marks may be removed Only use a clean cloth wrung out using a moistened “Brillo”...
  • Page 24 Cleaning Glass parts Griddle care and cleaning Do not use metal implements as they GLASS DOOR PANELS may damage the non stick surface. Do not use abrasives or polishes as they will scratch and damage the glass. After cooking allow the griddle cool completely before...

  • Page 25: Installation Instructions

    Installation Instructions Before start: Please read For installation in countries other than the instructions. Planning your installation will UK, the appliance must be connected in save you time and effort. accordance with all local gas and electrical regulations. In the Republic of Ireland, Prior to installation, ensure that the local Installers should refer to IS813 Domestic distribution conditions (nature of the gas and...
  • Page 26 Installation Instructions Whilst every care is taken to eliminate Clearances burrs and raw edges from this product, This cooker may be fitted flush to please take care when handling - we base units. However, for models with recommend the use of protective side opening doors, we recommend gloves during installation.
  • Page 27 Installation Instructions Stability bracket 4. Fix the bracket to the floor. If the cooker is fitted with a flexible Measure from floor level to connection, a stability bracket should engagement edge in the back of be fitted to engage in the back of the the cooker and add 3mm.
  • Page 28 Installation Instructions Connect to the gas supply The inlet to the cooker is ” BSP ⁄ internal, situated at the rear centre of the appliance. Use a 900 - 1125 mm length of flexible connector. Ensure that all pipe work is of the correct rating for both size and temperature.
  • Page 29 Installation Instructions Connect to the electricity supply As the colours of the wires in the mains lead for the appliance may Warning: This appliance must be not correspond with the coloured earthed. markings identifying the terminals in The flexible mains lead is supplied your plug, proceed as follows: connected to a BS 1363 fused plug, 1.

  • Page 30: Installation Instructions

    Installation Instructions Commissioning Ovens - Open the oven door. Push in and turn the control knob to the full Burner aeration on position. Hold the control knob in All burners have fixed aeration and no and operate the ignition button. A few seconds after the flame has established, adjustment is possible.

  • Page 31: Technical Data

    Technical Data - with Wok burner Data badge - Lower part of front frame. Electrical supply 220 - 240V ~ 50Hz Type of gas Warning: This cooker must be earthed. This cooker must only be used with either Spark generators Natural Gas only, or LP Gas only, as Two mains powered 6 outlet, two terminals specified on the appliance data badge.

  • Page 32: Technical Data

    Technical Data - without Wok burner Data badge - Lower part of front frame. Countries of destination GB - Great Britain, IE - Ireland Type of gas The adjustment conditions for this Electrical supply 220 - 240V ~ 50Hz appliance are stated on the data badge.
  • Page 33 08 25411 05 © 10.2009...
  • Page 34 08 25411 05 © 10.2009...
  • Page 35 08 25411 05 © 10.2009...

  • Page 36: New World Customer Care

    New World Customer Care In case of difficulty within the UK, please call New World Customer Care Centre Helpline on 0844 815 3747 When you dial this number you will hear a recorded message and be given a number of options. This indicates that your call has been accepted and is being held in a queue.
