Summary of Contents for Newworld G50S

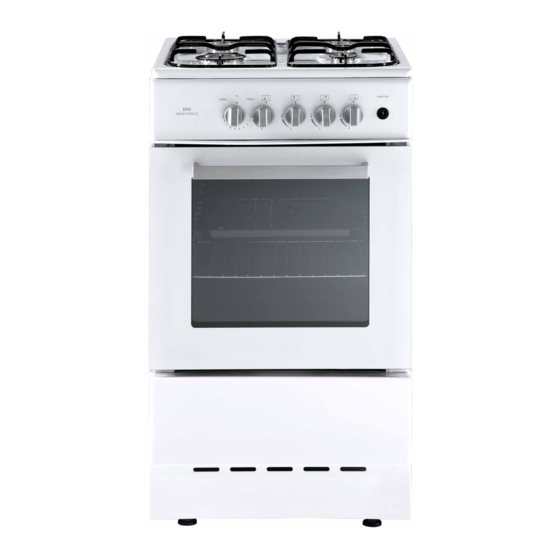

- Page 1 50cm Gas Freestanding Cooker Gas Single Oven and Grill with Gas Hob G50S User Guide & Installation Handbook This model is factory set for Natural Gas and must not be used on any other gas.
- Page 2 CONTENTS User Section ........... 3 - 17 Introduction .
-
Page 3: Introduction
INTRODUCTION We hope that the following information cooker, taking care that the door does will help you to quickly familiarise your- not shut on your fingers. self with the features of the appliance, Take care to avoid damage to soft or and to use it successfully and safely. - Page 4 INTRODUCTION Environmental Protection We are committed to protecting the environment and operate an Environmental Management System which complies with BS EN ISO 14001. Disposal of packaging • All our packaging materials are recy- clable and environmentally friendly. • Please help us to protect our envi- ronment by disposing of all packag- ing in an environmentally friendly manner.
-
Page 5: Be Safe - Not Sorry
BE SAFE - NOT SORRY When you are cooking, keep children Do not use foil on oven shelf or allow away from the vicinity of the appli- it to block the oven flue, as this cre- ance. ates a fire hazard, and prevents heat circulation. - Page 6 INTRODUCTION Purpose The cooker should be used for preparing household meals only. It must not be used for any other purpose. Parts Identification 1 - control panel 2 - oven and grill. 3 - gas burners - rear 1.75kW 4 - gas burner - front right 1.0kW 5 - gas burner - front left 2.4kW 6 - grill pan, trivet and handle 7 - control knobs...
-
Page 7: Using The Hob
USING THE HOB Using the hotplate • Before switching on a burner, make sure that the knob you are going to Before using the cooker for the first time use corresponds to the burner you you should: wish to switch on. The relationship •... -
Page 8: Using The Hob
USING THE HOB In the event of a cooking pan fire: overhanging the appliance, and cannot be caught accidentally. 1. Turn off the cooker at the wall switch. Commercial simmering aids should not be used as they create excessive tem- 2. -
Page 9: Using The Grill
USING THE GRILL Caution: Accessible parts may be hot when the grill is used, young children should be kept away. Detachable grill pan handle The handle should be removed from the pan during grilling, to prevent overheat- ing. The handle is designed for removing / inserting the grill pan under the grill when grilling. - Page 10 USING THE GRILL Preheating For best results, preheat the grill for 3 - 5 minutes. In order to vary the grilling temperature, the grill pan can be used in different shelf runner positions. Also the grill grid can be removed to increase the variation of grilling temperature available.
-
Page 11: Using The Oven
Using the Oven Accessible parts may be hot when Notes: the oven is used. Young children If you find that over a period of time, the should be kept away. oven becomes hotter when used at a par- Before using the oven for the first time it ticular gas mark, the thermostat may is recommended to leave the oven need to be replaced. - Page 12 Using the Oven Preheating The oven must be preheated for 15 - 20 minutes when cooking frozen or chilled foods, and we recommend preheating for yeast mixtures, batters, soufflés, whisked sponges and pastry. If you are not preheating the oven, the cooking times in the following guides may need to be extended, as they are based on a preheated oven.
-
Page 13: Baking Guide
Using the Oven Baking guide The temperature settings and times given in the baking guides are based on dishes Shelf positions in a gas oven are counted made with block margarine. If soft tub from the top down. margarine is used, it may be necessary Please note that the times and tempera- to reduce the temperature setting... -
Page 14: Traditional Fruit Cakes
Using the Oven Traditional fruit cakes Roast turkey It should be remembered that ovens can Roasting turkey involves cooking two vary over time, therefore cooking times different types of meat - the delicate light can vary, making it difficult to be precise breast meat, which must not be allowed when baking fruit cakes. -
Page 15: Roasting Guide
Using the Oven Notes: Roasting guide The times given in the roasting guide are When cooking stuffed meat or poultry, only approximate, because the size and calculate the cooking time from the age of the bird will influence cooking total weight of the meat plus the stuff- times as will the shape of a joint and the ing. -
Page 16: Care And Cleaning
CARE & CLEANING Caution: Any cleaning agent used your guarantee. It is recommended that incorrectly may damage the appli- the appliance is cleaned after open ance. roasting. Do not use caustic, corrosive or abrasive cleaning products, products Always let the appliance cool before containing bleach, coarse wire wool or cleaning. - Page 17 CARE & CLEANING Glass parts Warning ! door panels Disconnect the cooker from the power supply before proceeding with washing Use a mild cream cleaner - eg; “Cif”. and cleaning and wait until it cools Rinse thoroughly and dry with a soft down.
-
Page 18: Installation Instructions
INSTALLATION INSTRUCTIONS Before you start: Please read the For installation in countries other than the instructions. Planning your installation UK, the appliance must be connected in will save you time and effort. accordance with all local gas and electrical regulations. Prior to installation, ensure that the local distribution conditions (nature of the gas In the Republic of Ireland, Installers... - Page 19 INSTALLATION Positioning • Remove all packing materials includ- ing the protective film covering the chrome-plated and stainless steel parts (if applicable). • The kitchen should be dry and well ventilated. Position the cooker ensuring free access to all the con- trols.
- Page 20 INSTALLATION INSTRUCTIONS Whilst every care is taken to eliminate burrs and raw edges from this product, G50S please take care when handling - we rec- ommend the use of protective gloves Width during installation. This is a type X appliance regarding Depth installation requirements.
- Page 21 INSTALLATION INSTRUCTIONS ELECTRICAL CONNECTIONS CONNECTING THE COOKER TO THE GAS • Cookers equipped with a supply SUPPLY cable with a plug should be con- Before installing the cooker to the gas nected to an appropriate wall socket supply system, ensure that the appliance with an earth contact.
- Page 22 INSTALLATION INSTRUCTIONS Any electrical work required to Warning! install this appliance should be car- A cut off plug inserted into a 13 amp ried out by a qualified electrician or socket is a serious safety (shock) hazard. competent person. This appliance Ensure that it is disposed of safely.
-
Page 23: Technical Data
Gas category Natural gas I2H Pressure setting G20 Natural gas @ 20mbar Pressure test point Use hotplate injector Appliance class Class 1 Freestanding Burner G50S Front LHS hotplate 2.4kW Rear LHS hotplate 1.75kW Rear RHS hotplate 1.75kW Front RHS hotplate 1.0kW Grill 1.9kW... - Page 24 New World Customer Care In case of difficulty within the UK and Northern Ireland, please call the New World Customer Care Helpline on 0871 22 22 504 When you dial this number you will hear a recorded message and be given a number of options.
