Carton Contents; Install Wheel Kit - Generac Power Systems 1277-0 Owner's Manual

Your generator requires some assembly and is ready for
use after it has been properly serviced with the
recommended oil and fuel.
If you have any problems with the assembly of your
generator, please call the generator helpline at
1-800-270-1408.
IMPORTANT: Any attempt to run the unit before it has
been serviced with the recommended oil will result in an
engine failure.
REMOVE GENERATOR
FROM CARTON
• Set the carton on a rigid flat surface with "This Side Up"
arrows pointing upward.
• Carefully open the top flaps of the shipping carton.
Review "Cold Weather Operation" on page 9.
• Cut down corners at one end of carton from top to
bottom and lay that side of carton down flat.
• Remove all packing material, carton fillers, etc.
• Remove the generator from the shipping carton.

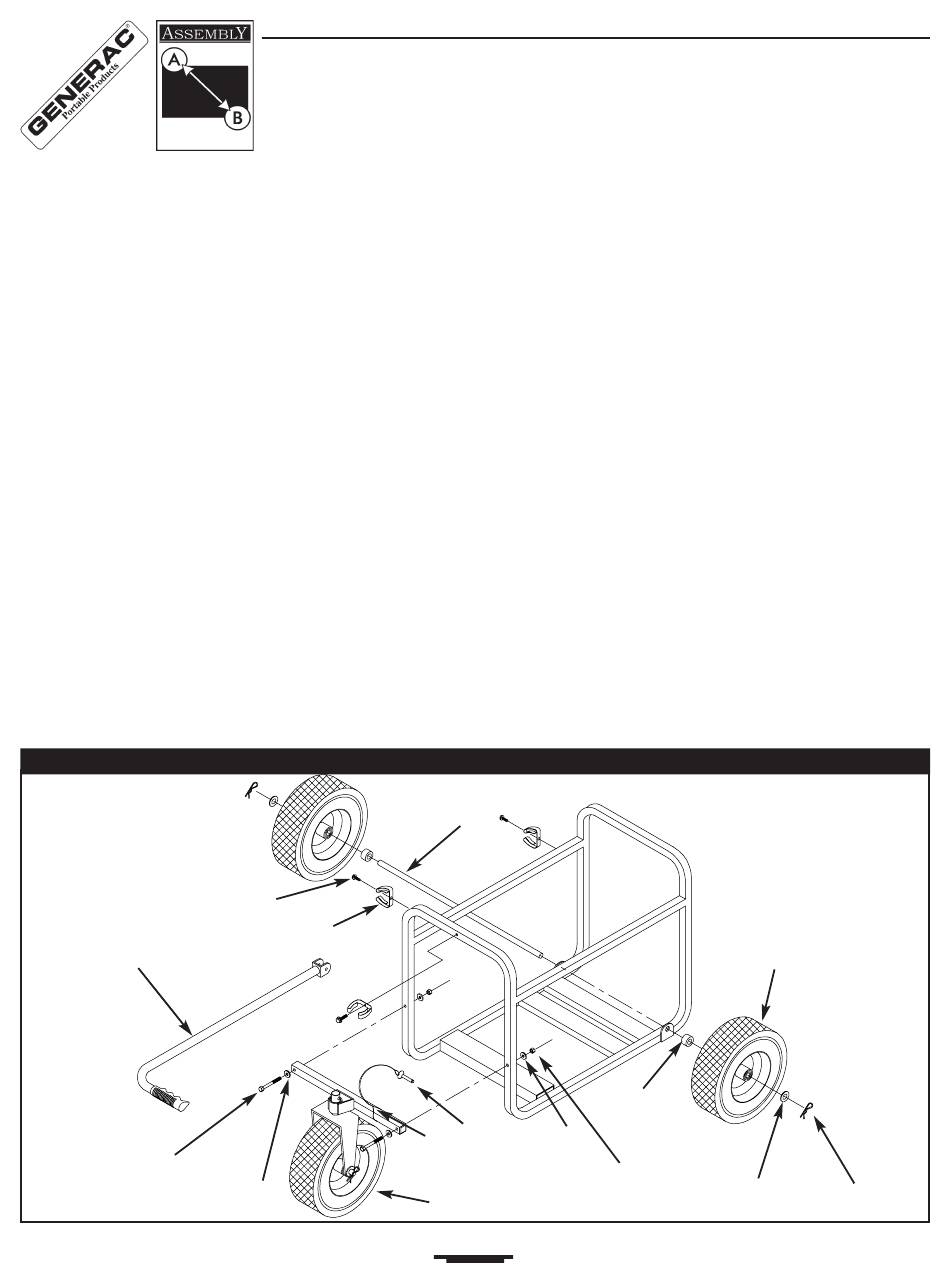

Figure 2 — Assemble Wheel Kit
Self Drilling Screw
Handle
Cap Screw
Generac Portable Products 7200 Watt Mobile Backup Power System
Spring Clip
Flat
Washer

CARTON CONTENTS

Check all contents. If any parts are missing or damaged, call
the generator helpline at 1-800-270-1408.
• The Generator
• Power Transfer System (See Power Transfer System
manual for installation and operating instructions)
• Generator and Engine Owner's Manuals
• 2 Bottles of Engine Oil
• Battery Float Charger
• Battery, Battery Tray, and Electric Start Components
• Wheel Kit
• Rechargeable Emergency Flashlight

INSTALL WHEEL KIT

To install your wheel kit, you need the following tool:
• Socket wrench with 1/2" or 13mm sockets.
• Philips head screwdriver.
Install Wheel Kit as follows: (See Figure 2)
• Place the generator on a hard flat surface.Temporarily
raise unit on blocks to ease assembly.
Axle
Handle
Flat
Release
Lanyard
Washer
Pin
Loop
Front wheel
Assembly
4
Wheel
Wheel
Spacer
Locking
Flat Washer
Nut
Retaining Pin
