CELL ROUTE-GSM

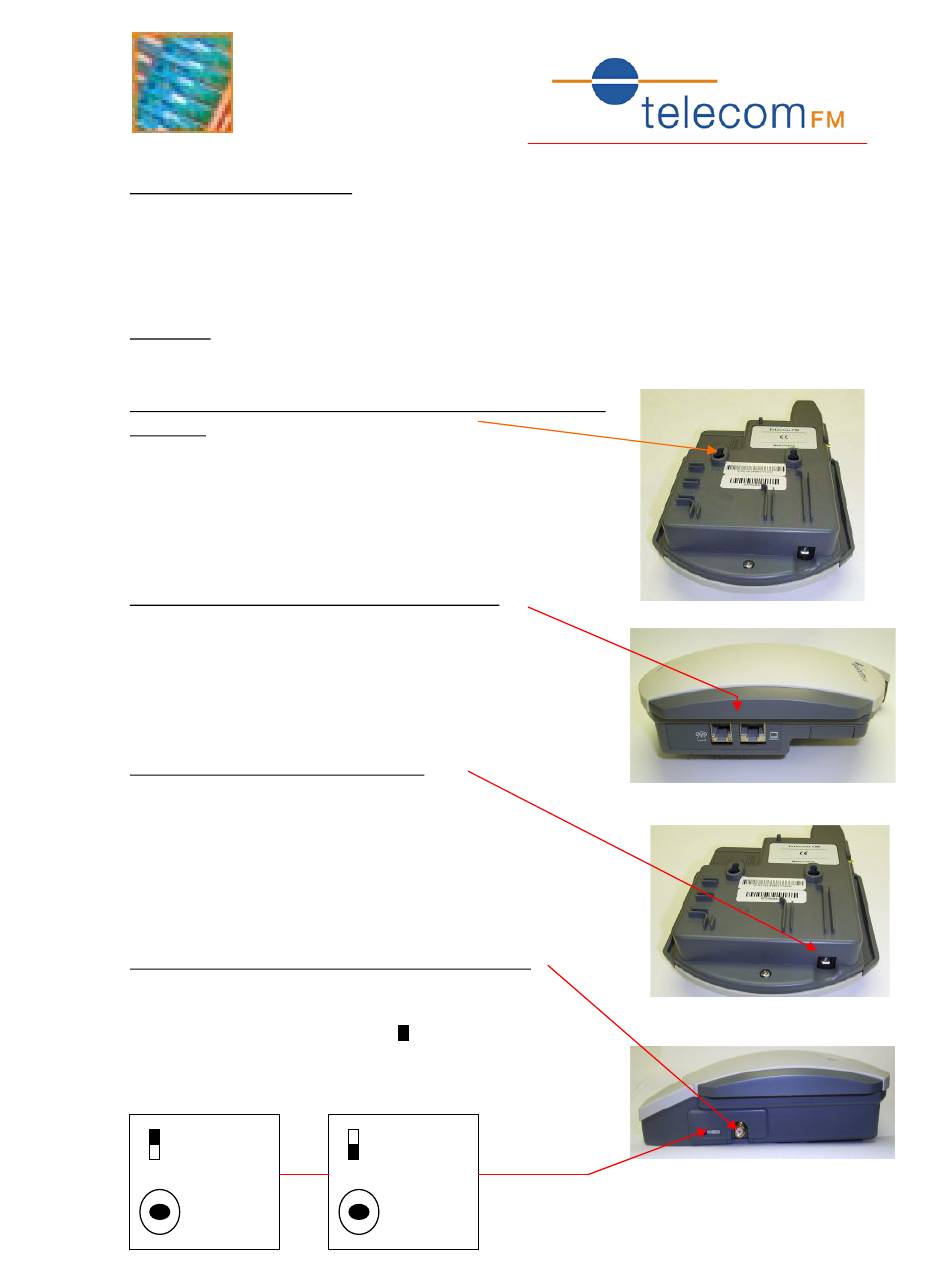

Getting Started
Location Of Cell Route
For best reception locate your CellRoute-GSM close to a window or
on an external wall within a minimum of 330mm from any metallic
object. The unit must be a minimum of 1 meter from any other sensitive
electronic equipment.
DO NOT locate in direct sun light or near any direct heat source.
Mounting the CellRoute-GSM and Power Supply
Bracket
Using the template provided, mark
location and fix with screws supplied.
Mount the Power Supply bracket within 1
meter from the CellRoute-GSM.
Connecting a telephone or Computer
• Connect your telephone(s)
Into the RJ11 socket provided.
• Connect your Computer into the
RJ45 socket provided.
Connecting the power Supply
• Connect the Mains lead into the
power supply unit then into the AC outlet.
• Connect the power cord from the
power supply unit to the CellRoute-GSM.
Connecting external Antenna if required
To activate the external antenna,
move the antenna switch ( ) to the
up position and screw the external
antenna into the SMA connector provided.
External
Antenna
SMA
Connector
Internal
Antenna
SMA
Connector
