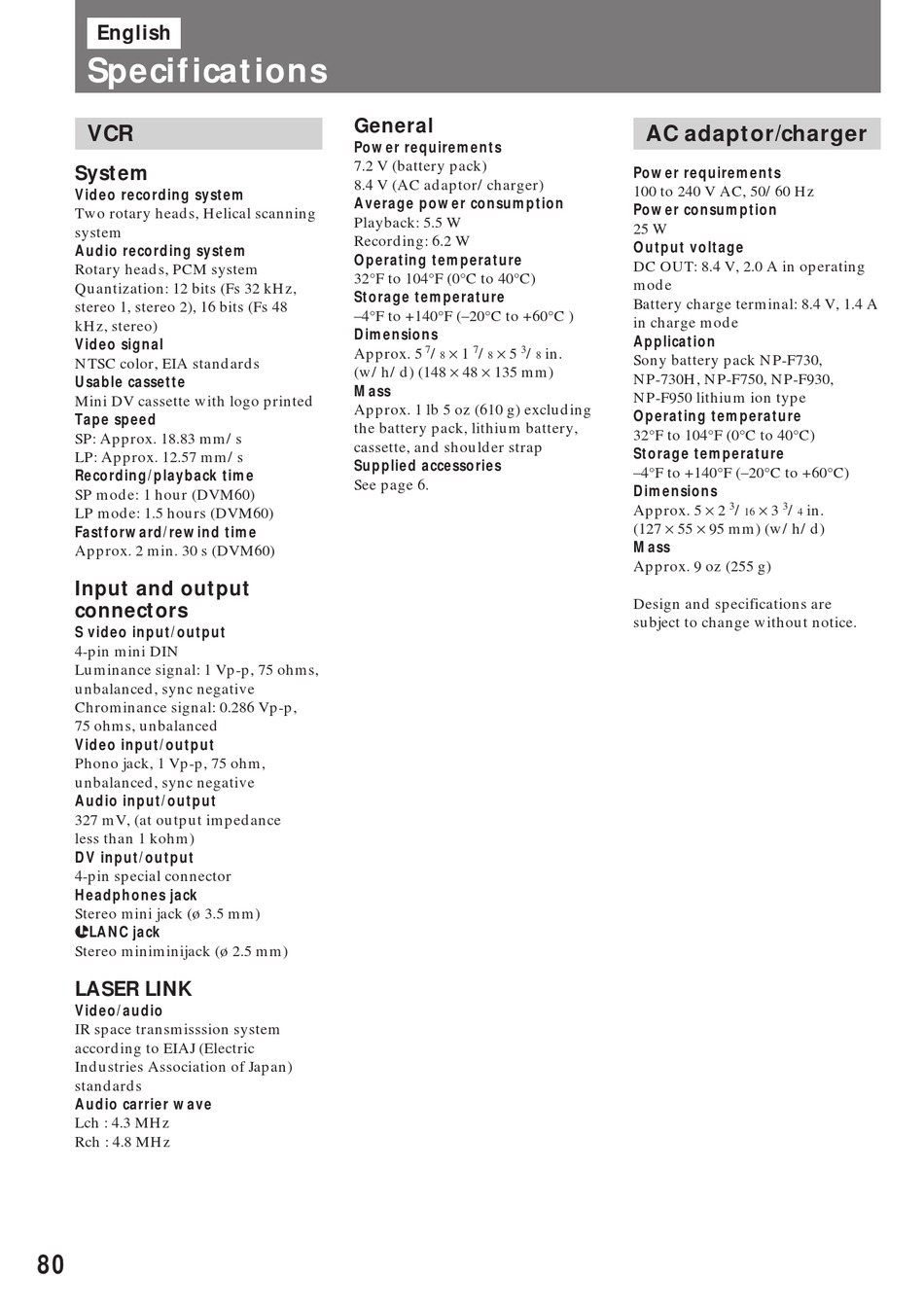

Specifications

VCR
System
Video recording system
Two rotary heads, Helical scanning
system
Audio recording system
Rotary heads, PCM system
Quantization: 12 bits (Fs 32 kHz,
stereo 1, stereo 2), 16 bits (Fs 48
kHz, stereo)
Video signal
NTSC color, EIA standards
Usable cassette
Mini DV cassette with logo printed
Tape speed
SP: Approx. 18.83 mm/s
LP: Approx. 12.57 mm/s
Recording/playback time
SP mode: 1 hour (DVM60)
LP mode: 1.5 hours (DVM60)
Fastforward/rewind time
Approx. 2 min. 30 s (DVM60)
Input and output
connectors
S video input/output
4-pin mini DIN
Luminance signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
Chrominance signal: 0.286 Vp-p,
75 ohms, unbalanced
Video input/output
Phono jack, 1 Vp-p, 75 ohm,
unbalanced, sync negative
Audio input/output
327 mV, (at output impedance
less than 1 kohm)
DV input/output
4-pin special connector
Headphones jack
Stereo mini jack (ø 3.5 mm)
lLANC jack
Stereo miniminijack (ø 2.5 mm)
LASER LINK
Video/audio
IR space transmisssion system
according to EIAJ (Electric
Industries Association of Japan)
standards
Audio carrier wave
Lch : 4.3 MHz
Rch : 4.8 MHz
80
General
Power requirements
7.2 V (battery pack)
8.4 V (AC adaptor/charger)
Average power consumption
Playback: 5.5 W
Recording: 6.2 W
Operating temperature
32°F to 104°F (0°C to 40°C)
Storage temperature
–4°F to +140°F (–20°C to +60°C )
Dimensions
7 7 3
Approx. 5 / 1 / 5 /
8 8
(w/h/d) (148 48 135 mm)
Mass
Approx. 1 lb 5 oz (610 g) excluding
the battery pack, lithium battery,
cassette, and shoulder strap
Supplied accessories
See page 6.
AC adaptor/charger
Power requirements
100 to 240 V AC, 50/60 Hz
Power consumption
25 W
Output voltage
DC OUT: 8.4 V, 2.0 A in operating
mode
Battery charge terminal: 8.4 V, 1.4 A
in charge mode
Application
in.
8
Sony battery pack NP-F730,
NP-730H, NP-F750, NP-F930,
NP-F950 lithium ion type
Operating temperature
32°F to 104°F (0°C to 40°C)
Storage temperature
–4°F to +140°F (–20°C to +60°C)
Dimensions
Approx. 5 2
(127 55 95 mm) (w/h/d)
Mass
Approx. 9 oz (255 g)
Design and specifications are
subject to change without notice.
