Summary of Contents for Boss Audio Systems BCAM70

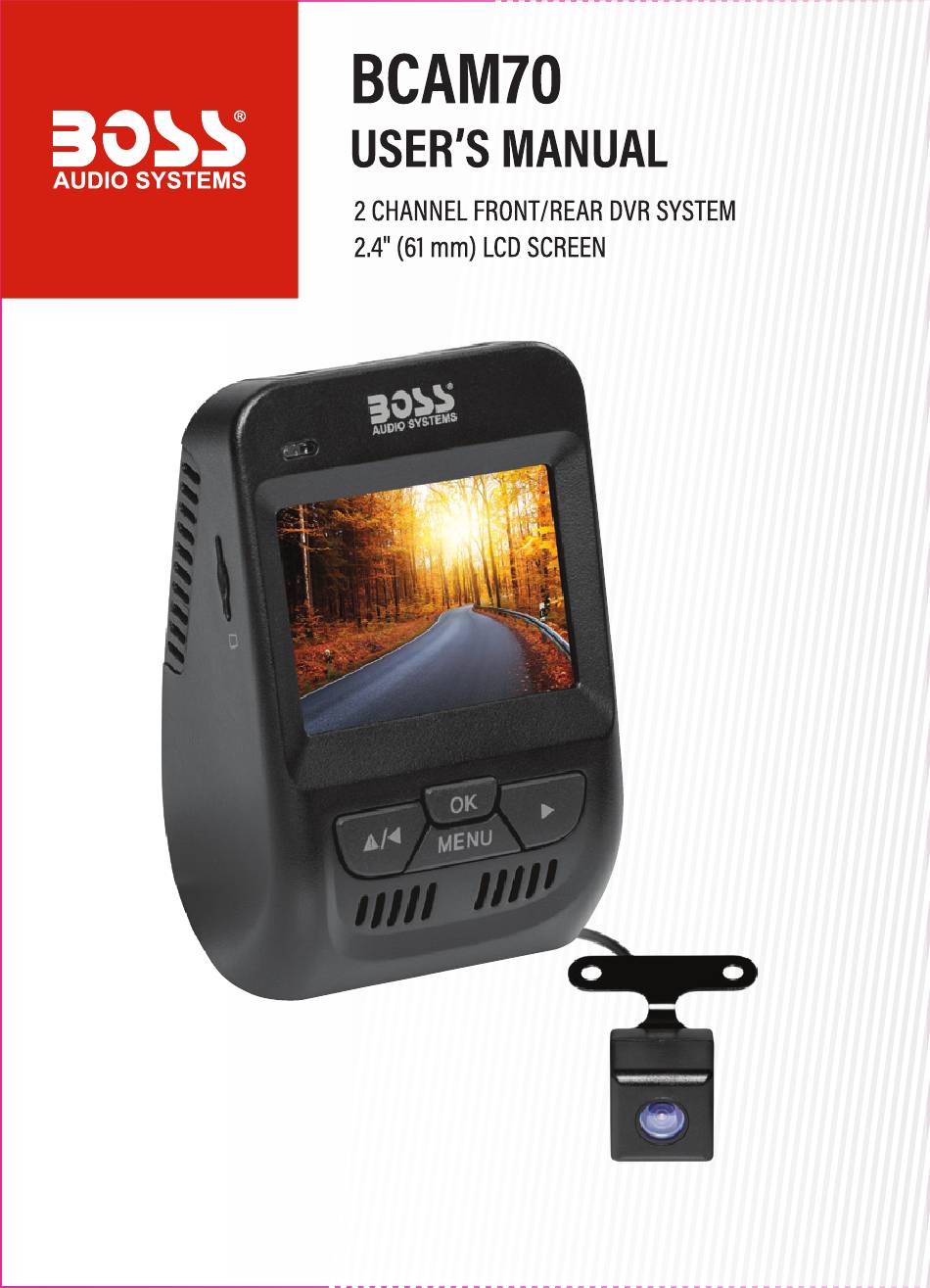

- Page 1 Please read all instructions carefully before using...
- Page 2 Cable Clip Car Charger User Manual Rear Camera 16GB Micro SD Card Thank you for purchasing a Boss Audio Systems product. If you are not totally satisfied, please give us a call at 805-751-4853 or visit our customer service at bossaudio.com/support.
-
Page 3: Before You Start
Before You Start Tips： 1. Clean windshield before mounting. 2. Preview the image before mounting. (ideally behind the rear view mirror) 3. Make sure there is no glare in the picture before mounting. 4. Do not block the view of the road or impede the deployment of any airbags in case the event of an accident. -
Page 4: Product Overview
Product Overview 1.Status Indicator 9.Down Button / Front / Rear 2.Display Camera Switch 3.Rear Camera Port 10.Heat Dissipation Hole 4.Micro USB Port 11.Micro SD Card 5.Mic 12.Reset Button 6.Up Button / Audio Switch 13.Power ON/OFF 7.Mode Button 14.Lens Knob 8.OK Button 15.Lens Description a. -
Page 5: Button Definitions
Button Definitions Recording/pause Open/off Mic Front/Rear Cam Tips: 1. Emergency recording: Video will be automatically locked when colliding 2. Screen Off: The Screen will keep recording unless you remove the car charger 3. Recording/Pause: When power on, it is recording, short press the "ok"... -
Page 6: Specifications
Specifications SONY IMX323 Sensor Lens F2.0 aperture, 150° wide angle, 6-layer glasses Image sensor Wide dynamic 1/2.9 inch 2.1 million pixel COMS Video resolution Full HD (1920*1080P/30fps); VGA 2.4-inch TFT LCD screen Pixel Support up to 32GB Micro SD Card Memory card Automatic sunny/cloudy/incandescent/carbon light White balance... - Page 7 How to install 1. Install Dash Cam Remove the protective sticker from the 3M mount and attach it to the center of the static sticker * Please push the bracket to make sure it is securely mounted on the static sticker. 2.
- Page 8 How to Use 1. Adjust Angle Adjust the camera angle to ensure it is facing the front of the car when powered on. 2. Recording Screen Overview Recording standby status Recording Loop recording Exposure compensation Microphone on/off Micro SD Card When the product is powered on, the flashing red icon indicates that it is in recording mode.
- Page 9 3. Emergency recording The "G-sensor" must be turned on in settings in order to use this function. It detects possible accidents or collisions automatically and locks the video in the "RO" folder. Due to the complexity of road conditions while driving, you may not find emergency videos in the "RO"...
- Page 10 5. Viewing Videos & Photos In recording mode, press the "OK" button to stop. Press and hold "Menu" twice to get into the playback interface. Press the "Up" or "Down" button to select playback video files or photos and press "OK" to playback/pause the selected video file. Press the "Down"...
- Page 11 7. HDR When set to "ON", the screen will adjust the brightness automatically. 8. WDR When set to 'ON"，the picture taken will be clearer at night .
- Page 12 9. Light Frequency Please set according to local grid frequency to avoid screen flicker effectively. 10. Press the "MENU" button twice to switch to the device settings page.
- Page 13 11. Micro SD Card This device supports a standard Class 10 and above Micro SD Card with 8GB to 32GB capacity. After inserting the Micro SD Card, please format it for better compatibility or there may be a "read card error or not formatted phenomenon". Storage Usage Video type 16GB...
-
Page 14: Troubleshooting
Troubleshooting Problem Possible Cause & Solution Installing High temperature Paste it in the center Process glue insecure Please check power supply If it connects to power supply properly, Cannot turn on please restart Power On Auto Restart Please use original accessories, and try to re-insert car charger Screen Off Please check power supply, and try to re-insert car charger. - Page 15 Rear camera function: 1. Rear detection: When the backup camera is plugged in, the screen automatically switches to the two-way display and both video frames will work normally. 2. Display switching between front and rear cameras: press “ ” to switch to single-screen display during video recording.
- Page 16 Precautions 1. This product is a driving assistance product that cannot ensure driving safety. 2. Some functions of the product may be unable to work properly due to vehicle conditions, driving style, driving environment or others. This product does not guarantee to save all videos in all situations.
