Page 3: Introduction Of Using A Dash Cam

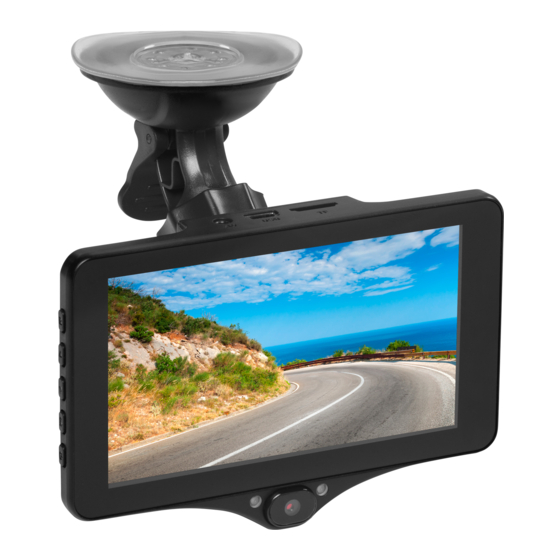

Thank you for purchasing BCAM60 Three-Channel Digital Vehicle Dash Cam. Our series of Dash Cams have been designed specifically with ease of use in mind, it is recommended NOT to change the default settings, which have been carefully selected to give the best performance for day to day use. -
Page 4: Cautions Of Using A Dash Cam
PRECAUTIONS Please read this manual carefully before operation and keep it for future reference. It will be helpful should you encounter any operational problem. WARNING: Do not expose this product to rain, moisture or water under any circumstances, doing so may result in the risk of electric shock or fire. CAUTION: To reduce the risk of electric shock, do not perform any servicing other than that contained in the instruction manual unless you are qualified to do so. -
Page 5: Table Of Contents
TABLE OF CONTENTS ..............03 INTRODUCTION OF USING A DASH CAM ................04 CAUTIONS OF USING A DASH CAM ....................05 TABLE OF CONTENTS ................... 06 PRODUCT SPECIFICATION ....................07 PACKAGE CONTENTS ....................07 PRODUCT FEATURES ................... 08 CAMERA - PARTS & CONTROLS ................... -
Page 6: Product Specification
PRODUCT SPECIFICATION Model Number BCAM60 Image Sensor 2.0MP(front) / 1.0MP(inside) / 0.3MP(rear) Video Resolution 1080P(front) / 720P(inside) / 480P(rear) Photo Resolution 12M / 10M / 8M / 5M / 3M / 2M / 1M / VGA Screen Size 4.0" IPS Screen... -
Page 7: Package Contents
PACKAGE CONTENTS Please check the contents of your BCAM60 product package.The actual products might appear slightly different from pictures shown below. BCAM60 Dash Cam Rear Cam Car Charger Instruction Manual Windshield Mount Adhesive Sticker x2 16G Micro SD card PRODUCT FEATURES 4.0"... -
Page 8: Camera - Parts & Controls
CAMERA - PARTS & CONTROLS Please see below to identify the parts and controls of your Dash Cam. 1. Front Camera Lens 2.0MP image sensor with 150° wide angle for optimum video quality ahead of your vehicle. 2. Inside Camera lens 1.0MP image sensor with 120°... - Page 9 CAMERA - PARTS & CONTROLS Continued from previous page. 4. Switch infrared lights / Lock file Press and hold to turn on / off the infrared lights of inside camera in standby mode. Press to lock / unlock the current file while recording. 5.
-
Page 10: In Vehicle Installation
IN VEHICLE INSTALLATION Please follow the instructions below for first-time installation of the Dash Cam. For day to day use simply remove the camera from the mount as required. 1. Insert MicroSD Card Insert a suitable MicroSD card (Class 10) into the Dash Cam, making sure that the gold contacts are facing towards the LCD screen side of the Dash Cam. -
Page 11: Video Mode
VIDEO MODE The key below explains the various information displayed on the screen when your Dash Cam is in Video mode, some icons will only be displayed once the relevant function has been selected within the Video menu, as described below. 1. - Page 12 VIDEO MODE (CONTD.) Video Menu The Video Menu is accessed by pressing the MENU button whilst in video mode. Use the up and down buttons to highlight the function that you'd like to change and press the OK button to enter the settings sub-menu. Once in the sub-menu, use the up and down buttons to highlight the required setting and then press OK to confirm your selection and return to the Video Menu.
- Page 13 VIDEO MODE (CONTD.) Continued from previous page. 4. License Turn on the license, the license plate will be shown on recorded files. Options: Off and On Default Setting: On 5. HDR Select for avoiding high exposure and low exposure. Options: Off and On Default Setting: On 6.
-
Page 14: Photo Mode
PHOTO MODE Press the MODE button to select Photo mode. The key below explains the information displayed on the screen when your Dash Cam is in Photo mode. 1. Photo Menu: press to enter menu setting in photo mode. 2. Video Mode: press to switch into video mode. 3. - Page 15 PHOTO MODE (CONTD.) Photo Menu The Photo Menu is accessed by pressing the MENU button whilst in photo mode. Use the up and down buttons to highlight the function that you'd like to change and press the OK button to enter the settings sub-menu. Once in the sub-menu, use the up and down buttons to highlight the required setting and then press OK to confirm your selection and return to the Photo Menu.
- Page 16 PHOTO MODE (CONTD.) Continued from previous page. 5. Sharpness Adjust the sharpness of recorded image. Options: Strong, Standard and Soft Default Setting: Standard 6. AWB Adjust the white balance for different light conditions Options: Auto, Sunlight, Overcast, Tungsten and Fluorescent Default Setting: Auto 7.
-
Page 17: Playback Mode
PLAYBACK MODE Press the Files button in homepage to select Playback mode. Files: 1. Lock: press to lock / unlock current video file. 2. Delete: press to delete the unlocked files. 3. Return: press to return to playback files. 4. File number: displays current file number. 5. -
Page 18: Setup Menu
SETUP MENU Setup Menu The Setup Menu is accessed by pressing the Setting button in homepage. The default settings have been carefully selected to allow you to use the Dash Cam without the need to change any settings. However, should you wish to change a setting then please see below. - Page 19 SETUP MENU (CONTD.) Continued from previous page. 2. Shutdown Turn off or adjust the timing of Auto Power Off function. This can be used to continue recording in event of loss of power within the vehicle. Options: Off, 1 Minute, 3 Minutes and 5 Minutes Default Setting: 1 Minute 3.
-
Page 20: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION The sticker will not stay in Ensure that the protective cover (plastic film) has been removed place upon my windscreen. from the adhesive sticker. I cannot insert the MicroSD MicroSD card are very small and require delicate use. Align the card. - Page 21 TROUBLESHOOTING PROBLEM SOLUTION I get the message “SD Card The SD card has been formatted in another device and the Error. Please format SD Cluster Size is not compatible or the SD card is formatted in card” on screen. ExFAT/NTFS. There may also be an error on the card. Use the Setup option to re-format the SD card from within the Dash Cam.
