Summary of Contents for HEAVTH HP101

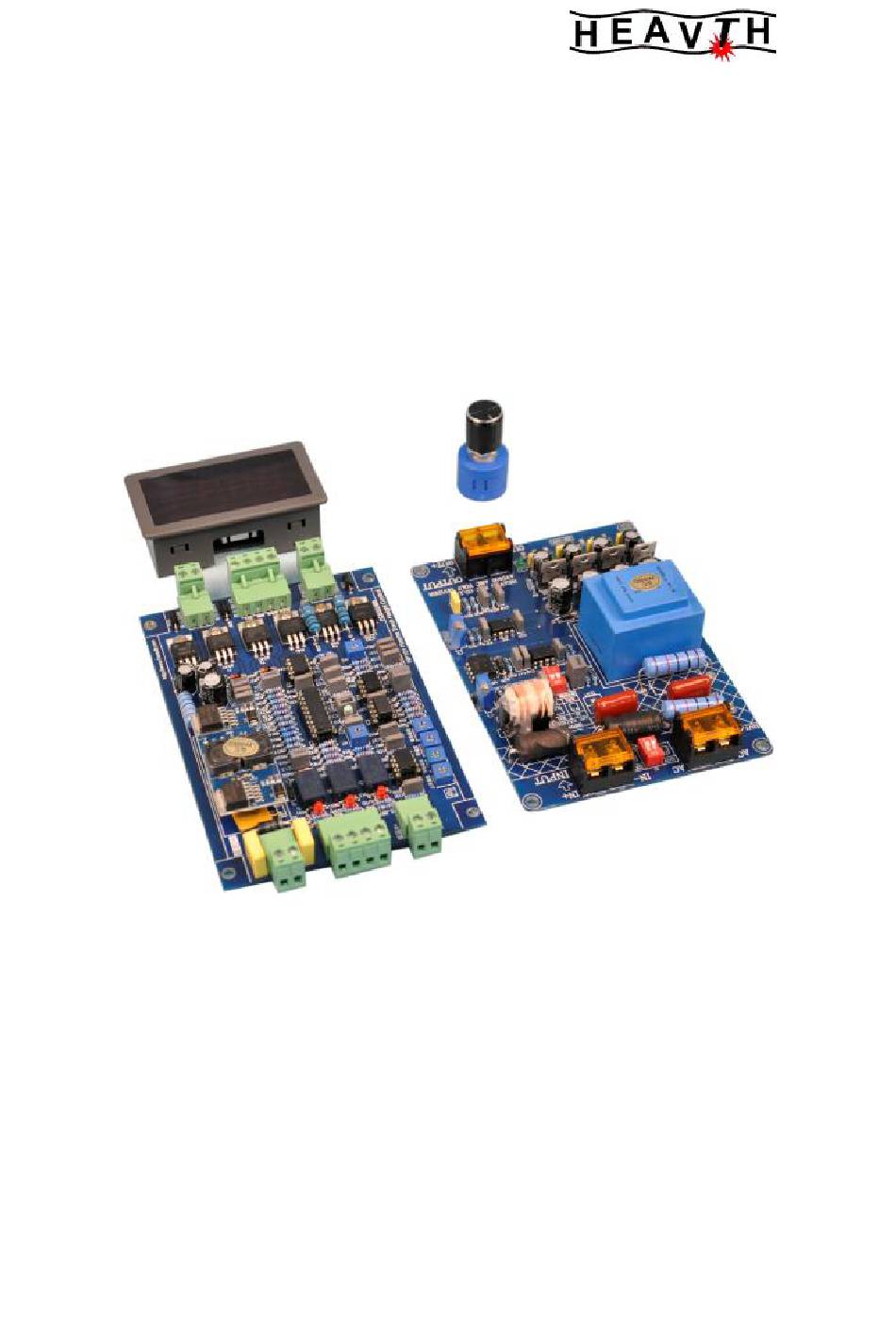

- Page 1 Focus on NC cutting height control field HP101 Plasma Arc Voltage Torch Height Controller Operation Manual Vision：1605 HEAVTH SCIENCE&TECHNOLOGY CO., LTD. 130# MINGXING ROAD MINGHUANG TOWN CHANGZHOU CITY JIANGSU.CHINA TEL：86-0519-89182619 FOX：86-0519-89183619...
- Page 2 1. Important information 1.1 Service assistance and contact information For service assistance, have the following information available: • HP101 model, part and serial number located on a label • Type of cutting application you are using You can contact us:...
- Page 3 HP101 torch height controller is equipped with constant current plasma. When the distance gets farther，the arc voltage increases; On opposite, the arc voltage will decrease. HP101 torch height controller will inspect the voltage change, then control the distance between cutting torch and material via the lift motor.
- Page 4 HP101 Plasma arc voltage height controller torch height will keep constant under regular speed. 2.2 Dimensions ： - - 4 - -...
- Page 5 HP101 Plasma arc voltage height controller 2.3 Technical parameter l Working Voltage: DC24±10%，50Hz/60Hz， Please prepare a isolated power, do not shared with others such as electronic valve . Especial Pay more attention the DC 24V l Lift motor: DC24V DC motor l Drive mode: PWM l Output current：MAX 2A.

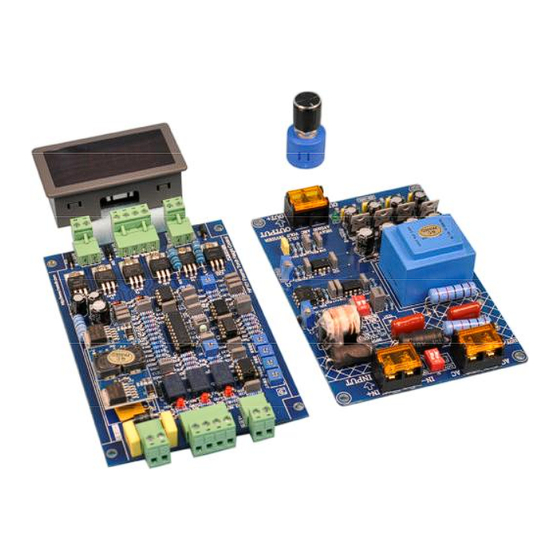

- Page 6 HP101 Plasma arc voltage height controller 2.4 Installation Digital display Set Potentiometer Main board Divide voltage board Function Description: Digital display（LED）: Display the Arc voltage. Auto model: Display actual arc voltage Manual model: Display set arc voltage Set Potentiometer: To set arc voltage...
- Page 7 HP101 Plasma arc voltage height controller 2.5 About wire The wire of the divide arc voltage board to the main board must be connect by the two core shielded wire, which is separated from the arc starting switch signal. The plasma source and the torch height controller must be strictly grounded.
- Page 8 HP101 Plasma arc voltage height controller - - 8 - -...
