Hotron HR50 Instruction Manual

ENG
Microwave Motion Sensor (HR50/HR50-Uni)
Instruction Manual
The HR50 sensors are highly sensitive, high performance products
that serve to control devices for the opening and closing of
automatic doors by detecting the movement of humans or objects.
For the safe and accurate use please read this instruction manual
carefully.
1. Technical specifications
Power Supply:
Microwave module:
Hold time:
Detecting field:
Power consumption:
Contact capacity:
Max Install height:
Operating Temp./Humidity
IP:
LED:
The specifications of this product can be changed without prior notice

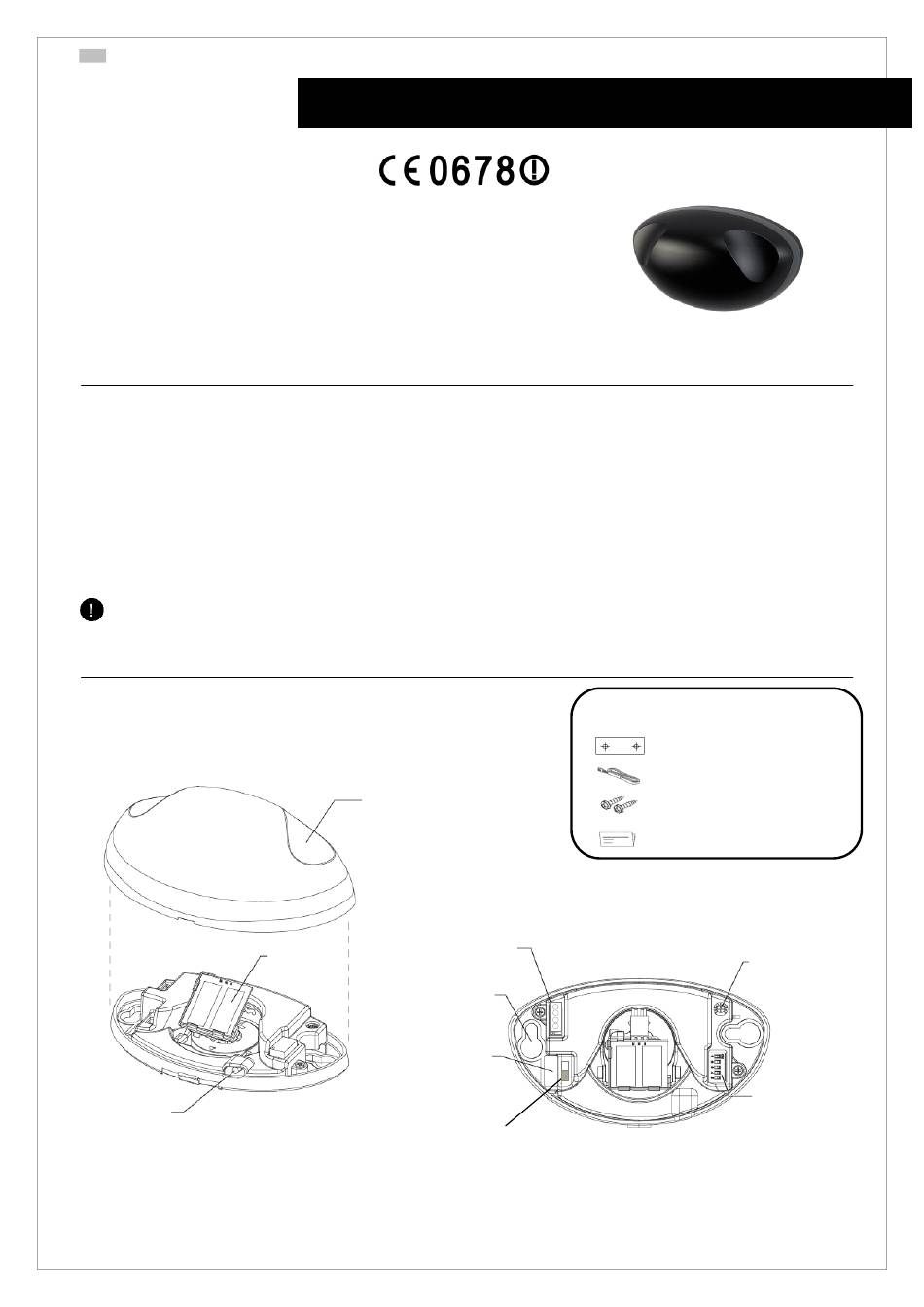

2. General Information
LED
Microwave Motion Sensor HR50/HR50-Uni
DC 12~30V, AC 12~24V
24,125 GHz
1,2s
~4000x3000 (WxD) (Height 2200mm)
< 1,4W
1A/24VDC
4000mm
-20ºC - +60ºC 0~90% (Non-Condensing)
54
Green = STANDBY
Blue = DETECTION
Green/Blue blinking = INTERNAL ERROR
Cover
Cable Terminal
Sensing Module
Screw Hole
Cable Hole
N.O. / N.C.
(HR50)
< Accessories >
Mounting Template
Cable
Screws x 2
Instructions
Sensitivity Volume
DIP Switches
(HR50-Uni)
