Summary of Contents for RADWAG WD-5/3Y

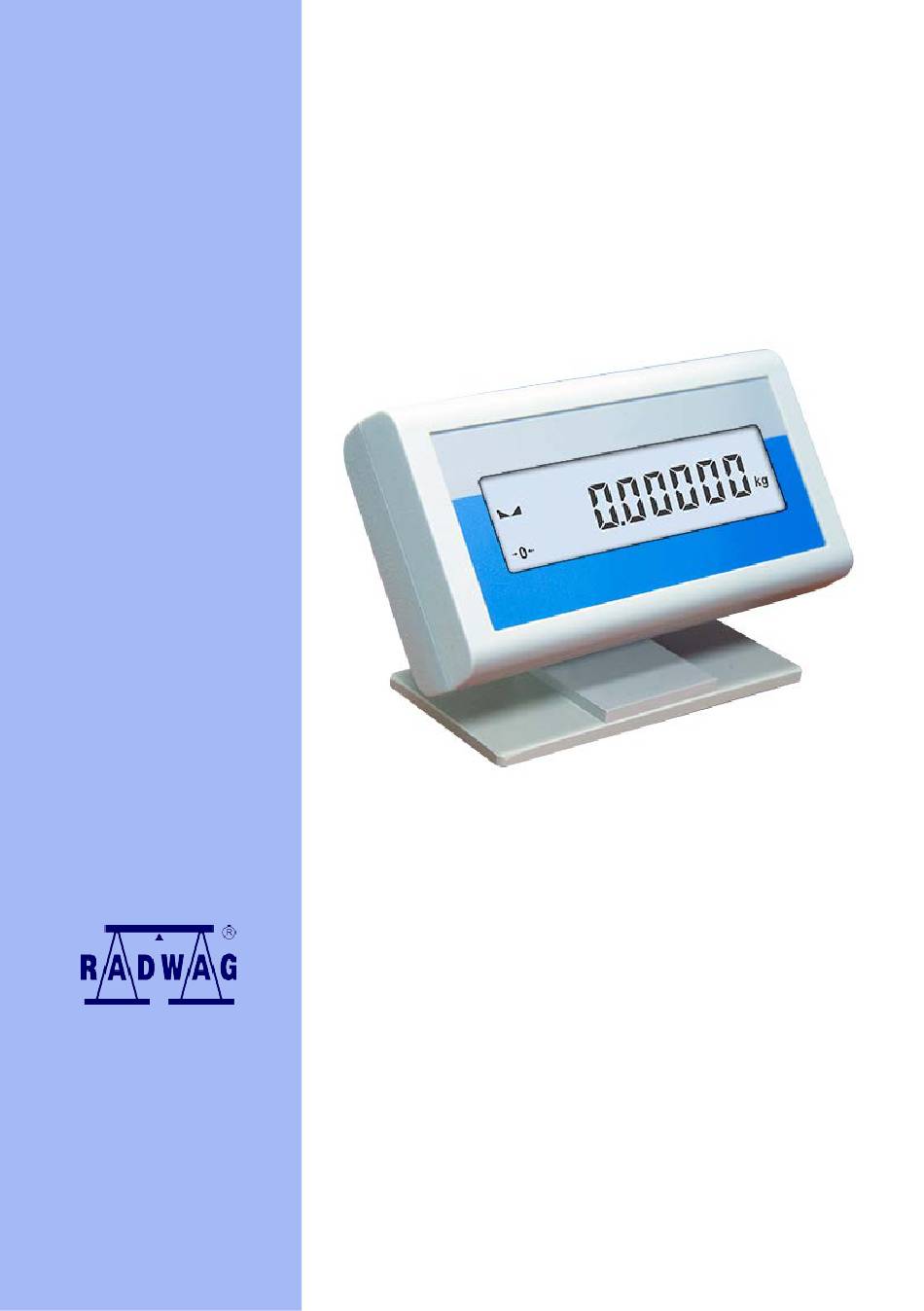

- Page 1 IMMU-51-01-08-14-ENG B A L A N C E S A N D S C A L E S RADWAG 26–600 Radom, Bracka 28, POLAND Phone +48 48 38 48 800, phone/fax: +48 48 385 00 10 Sales department +48 48 366 80 06...
- Page 2 AUGUST 2014...
-
Page 3: Table Of Contents
Table of Contents 1. GENERAL INFORMATION ...................... 4 1.1. Intended use ........................4 1.2. Precaution measures ......................4 1.3. Warranty conditions ......................5 1.4. The manual’s significance ....................5 2. PACKAGING ........................... 6 2.1. Unpacking ......................... 6 3. DISPLAY DESIGN ........................6 4. -
Page 4: General Information
D. Do not use any abrasive agents to clean the display, as it may cause damage to the device. E. The display may be connected only to scales of RADWAG company production. F. Displays to be decommissioned, should be decommissioned in... -
Page 5: Warranty Conditions
1.3. Warranty conditions A. RADWAG feels obliged to repair or exchange all elements that appear to be faulty by production or their construction, B. Defining defects of unclear origin and means of their elimination can only be realized with assistance of manufacturer and user representatives, C. -
Page 6: Packaging
Design: WD-x additional display, manufactured in a plastic housing, is characterized by LED backlighting. It may be connected to: • 3Y series – WD-5/3Y • R series – WD-6. • WLY – WD-4/4 Connection is established by means of cable with D-SUB 15 interface (male connector) or D-SUB 9 (female connector). -
Page 7: Operation
The user must remember to disconnect balance from mains prior connection of the additional display to it. Upon display connection, the balance may be powered again. Means of connecting WD-5/3Y display It is indispensable to set the balance in accordance with the below instruction before performing connection. - Page 8 NONE, COM 1, COM 2 Caution: The balance cooperates with an additional display of RADWAG production. For correct cooperation with the additional display the baud rate for port to which the additional display is connected shall be 115200 bit/s.
- Page 9 In order to establish communication of the balance with WD-4/4 display it is necessary to enter < Template> parameter and define the right communication protocol template. Procedure: Following point 16 of the balance user manual go to < Devices> parameter group. Select „...
- Page 10 RS232 pins marking for WD-x display boards: WD-5/3Y...
- Page 11 WD-6 WD-4/4...
- Page 12 Diagrams of connecting cables for WD-x displays: WD-5/3Y – cable PWD-3Y WD-6 – cable PWD-1 WD-4/4 – cable PT0150...
-
Page 13: Technical Specification
5. TECHNICAL SPECIFICATION WD-5/3Y WD-6 WD4/4 Display type Housing Plastic Digits size ~16,2 mm ~18,2 mm ~16,2 mm Intended for series 3Y and 4Y WLY (PUE 7) Communication RS-232 Power supply 6V DC from balance indicator D-sub 15pin D-sub 9pin... - Page 14 O F E L E C T R O N I C W E I G H I N G I N S T R U M E N T S RADWAG BALANCES AND SCALES POLAND, 26 – 600 Radom, Bracka 28 Phone.
