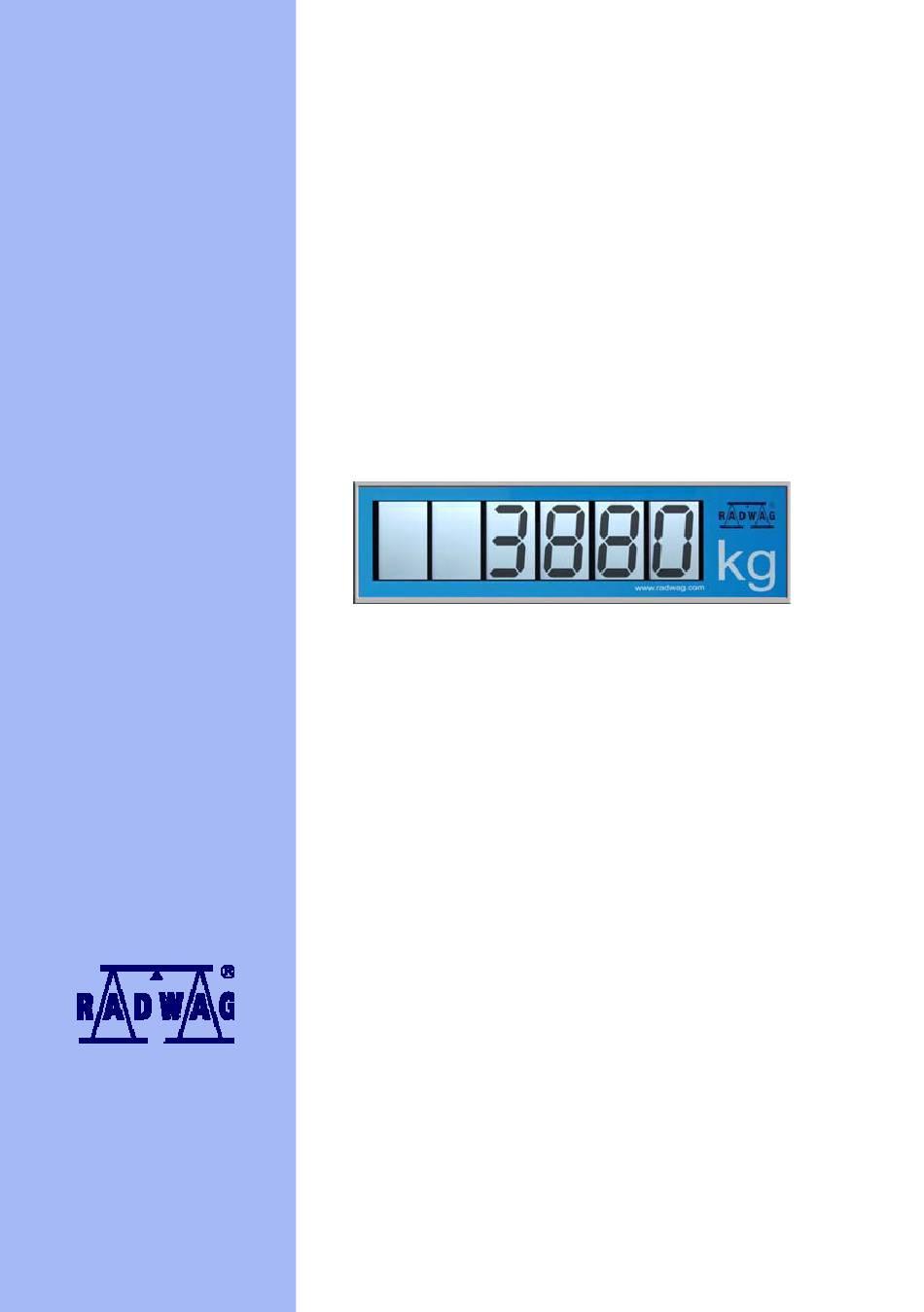

Page 1: User Manual
• WWG-2/4 B A L A N C E S A N D S C A L E S RADWAG, 26 – 600 Radom, Bracka 28 Phone +48 48 38 48 800, phone/fax: +48 48 385 00 10 Sales department +48 48 366 80 06... - Page 2 AUGUST 2014...
-
Page 3: Table Of Contents
Table of contents INTENDED USE ..................4 TECHNICAL SPECIFICATION ..............4 DIMENSIONS....................5 MOUNTING....................5 START-UP ....................5 SETTING PARAMETERS.................6 COOPERATION WITH AN INDICATOR ..........6 COMMUNICATION PROTOCOL..............8... -
Page 4: Intended Use
1. INTENDED USE WWG-2 large-size display comprises six backlit LCDs with digits size of 4,5” (11,2 cm). The display is housed in a stainless steel casing. It is equipped with a mounting bracket allowing either for placing the display on a table or for hanging it on a wall. -
Page 5: Dimensions
3. DIMENSIONS 4. MOUNTING 5. START-UP Depending on cable type, the display shall be connected to RS232 interface of PUE C/31H and PUE C/41H indicator or PUE 5 terminal. Next it must be connected to mains. Upon establishing communication the display is backlit, the mass displayed. -
Page 6: Setting Parameters
6. SETTING PARAMETERS PUE C/31H parameters: Parameter name Parameter value and number Printout type 2.1. Pr_n CntA Baud rate 2.3. bAud 2400 - 38400 Transmission parameters 2.4. S_rS 8d1SnP PUE C41H parameters: Parameter name Parameter value and number Send Data Port P 3.5.1 DISP. - Page 7 Diagram of cable connecting PUE C/31H with RS232 port of WWG-2/3 large-size display: Diagram of cable connecting PUE C/41H, PUE 5 with RS232 port of WWG-2/4 large-size display:...
-
Page 8: Communication Protocol
8. COMMUNICATION PROTOCOL The display supports frame formats sent in a form of continuous transmission. Frame format: 7-15 Stability space space character mass space unit marker [space] if stable Stability marker [?] if unstable [^] if error of exceeding range to + occurs [v] if error of exceeding range to - occurs Character [space] for positive values... - Page 9 O F E L E C T R O N I C W E I G H I N G I N S T R U M E N T S RADWAG BALANCES AND SCALES POLAND, 26-600 Radom, Bracka 28 Phone.
