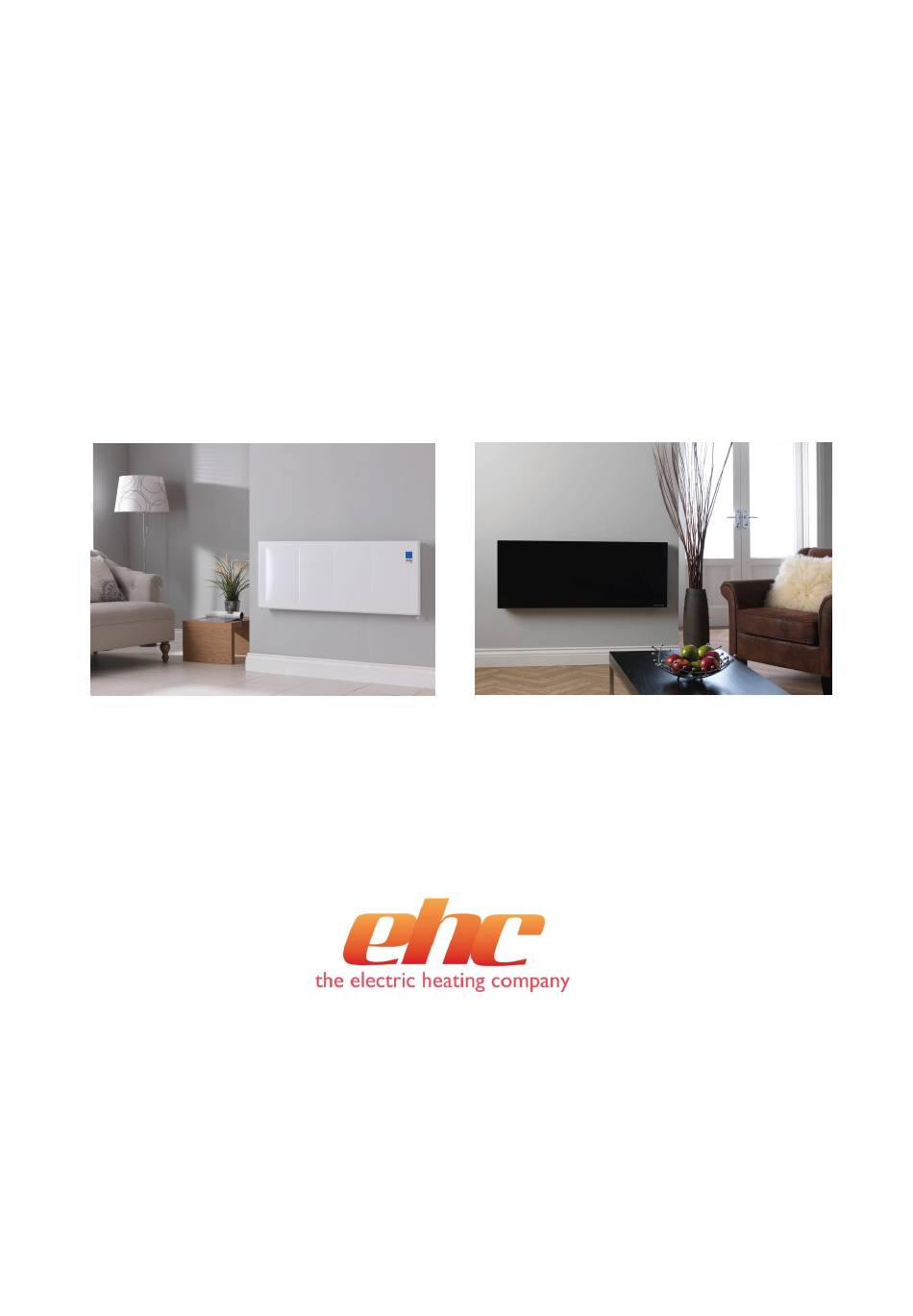

- Page 1 The Visage & Elegance Range of Electric Radiators INSTALLATION & OPERATING INSTRUCTIONS The Electric Heating Company Limited Unit 40, Block5 Third Road Blantyre Industrial Estate, Glasgow G72 0UP Tel: 01698 820 533 Fax: 01698 825 697 info@electric-heatingcompany.co.uk www.electric-heatingcompany.co.uk...
- Page 2 CONTENTS General information Safety information Installation Electrical Zones Operating Instructions Technical Dimensions...
-
Page 3: General Information

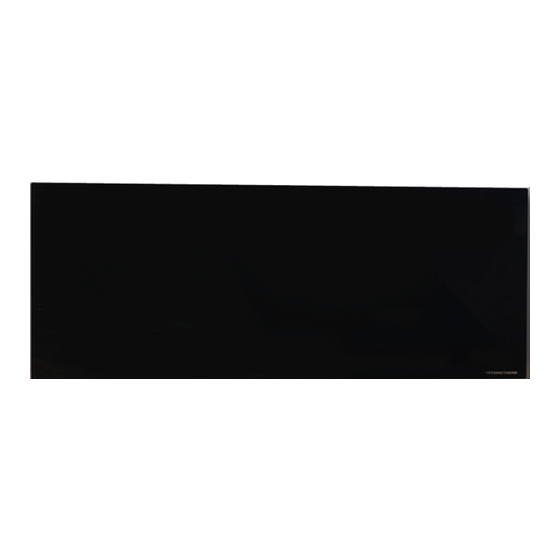

The EHC Visage, Elegance and Visage Glass radiators can be simply plugged in to a Standard Socket or Hard Wired to an existing spur connection. The Visage and Elegance has the flexibility of being wall mounted or free standing on Castors or Feet. -
Page 4: Safety Information
2. Safety Information; Electrical Connections. IMPORTANT The wires within the mains cable supplied with this heater are coloured as follows: GREEN-YELLOW: EARTH BLUE: NEUTRAL BROWN: LIVE WARNING – THIS APPLIANCE MUST BE EARTHED The radiator is fitted with a standard UK 3 pin plug that can be directly connected to an electrical socket. - Page 5 2.1. Safety Information WARNING: In order to avoid overheating, do not cover this appliance. • The appliance must not be located immediately below a socket"outlet. • To avoid burns, do not touch the hot surface of the appliance when it is in use. •...
- Page 6 3. Installation; Wall fixing information. When installing the appliance, the minimum safety distances detailed below must be maintained to ensure combustible objects cannot catch fire. Secure the heater to an upright wall that is resistant to a minimum temperature of 90°C. Ensure there is a minimum distance of 150mm to the floor and a minimum space of 100 mm between the appliance and any other objects.
- Page 7 3. Installation; Wall Types; Note: The appropriate fixings must be used depending on the wall types the heaters are to be fixed onto. Solid brick/High density block walls: Use the rawlplugs and screws provided with the heater. The correct size of drill (5.5mm) should be used and the hole should be drilled to a depth of 8mm greater than the length of the Rawlplug so that the fixing is made below the plaster layer.
- Page 8 4. Electrical Installation Electrical installation • The appliance has been designed to be connected to 230 V (nominal) alternating current (AC); 50Hz supply and comes with a standard UK 13A 3 pin plug that can be directly connected to an electrical socket.
-
Page 9: Normal Operation
5. Operating Instructions Normal Operation: Switch the radiator on by pressing the icon and select either the Comfort or DTi Instructions for use Economy Mode of operation. This is achieved by briefly pressing the Mode button until the desired icon is showing on the digital display. The digital display will also show the current temperature of the room. - Page 10 5. Operating Instructions TDi Instructions for use. Setting the Time and Day Step 1: Ensure the radiator is in OFF Mode. The symbol will be on the top left of the display. Step 2: Push the Right Hand Side mode button once to access the Time and Day Setting.
- Page 11 5. Operating Instructions STEP 4 – Auto Mode Push the mode button so that the moon symbol disappears and the auto symbol appears. In this mode the heater will now follow the temperatures that have been selected for specific times of the day. The heater has a default profile already displayed.
- Page 12 4. Operation Instructions DSR Wifi DSR Temperature Setting, Programming and Wifi Setup 1.0 Manual Instructions Modes The radiator can work in 3 different modes by pressing the "Mode" button Auto Mode The set temperature varies automatically following the Programmed Schedule, based on the 3 custom temperatures selected.
- Page 13 4. Operation Instructions DSR Wifi 2.0 Setting Temperatures Sleeping At Home At Work / Away The DSR controller has 3 temperature ranges, ) Normally when at home. -Comfort ( -Economy ( ) Normally used at night or for brief absence periods ) Normally used when away from home .
- Page 14 4. Operation Instructions DSR Wifi 3.0 Setting Program Time and Day Symbol Indication Sleeping At Work / Away At Home To start programming. Day of the week Temperature/hour bar 1. Press and hold for 3 seconds. Hour To select your temperature range 2.
- Page 15 ( LocH will be displayed ) for 3 seconds. Note Advanced settings should only ever be changed by a fully qualified engineer or with advice from EHC. 5.0 Advanced Engineer Settings To enter advance settings, Press the Config button Once to show this screen...
- Page 16 4. Operation Instructions DSR Wifi 6.0 Account Registration www.electric-heatingcompany.co.uk/ To create an account and activate your gateway go to: download/dsr "New user,sign up here " Click on, Follow the Online instructions to create your account. Note: Once registered, you will be sent a Confirmation email. Click on the link to confirm the email to activate your account then sign in.
- Page 17 4. Operation Instructions DSR Wifi 8.0 Pairing Once the DSR Gateway is connected to the Internet and fully registered, you can now pair it with your Heaters. There are 2 ways to put the DSR Gateway into pairing mode. Option 1. You can simply press button on the gateway as shown below, the gateway will now begin searching for external devices.
- Page 18 4. Operation Instructions DSR Wifi Installation of Power Meter The power meter should be connected to a spare 6 amp Mcb or Rcbo within the properties Consumer Unit. This supply should then be taken and connected to a fused switched spur with a minimum contact of 3mm and fuse rated to 3amps.
- Page 19 4. DSR Technical Radiator Controller • LCD STN with backlight • 4 buttons • RF 868Mhz • 1PCB for control, 1PCB for Power • 3 temperatures • Comfort • Economy • Frost • Measured temperature resolution: 0.1ºC • Setting temperature resolution: 0.5ºC •...
- Page 20 Conditions of Guarantee EHC Electric Radiators We are pleased to offer a 5 year guarantee on the recent purchase of your EHC Electric Radiator. The 5 year guarantee applies to the heating elements and body of the radiator. The period of guarantee commences from the day of delivery. If within the guarantee period the radiator is defective due to faulty components we undertake to repair the radiator free of charge.
- Page 21 Telephone: 01698 820533 Fax: 01698 825697 E-mail: info@electric-heatingcompany.co.uk Or visit our website www.electric-heatingcompany.co.uk...
