Electric Radiator
Operating and Installation Instructions
Models
:
eco SAVE: 750 - 1000 - 1250 - 1500
NOTE:
A qualified electrician must carry out the electrical installation of this radiator. The Electrical
installation must comply with the current UK regulations to BS.7671. Any claim on the warranty
could be invalid if these requirements have not been met.
1
Advertisement
Table of Contents
Related Manuals for EHC eco SAVE 750
Summary of Contents for EHC eco SAVE 750
- Page 1 the electric heating company Electric Radiator Operating and Installation Instructions Models eco SAVE: 750 - 1000 - 1250 - 1500 NOTE: A qualified electrician must carry out the electrical installation of this radiator. The Electrical installation must comply with the current UK regulations to BS.7671. Any claim on the warranty could be invalid if these requirements have not been met.
-
Page 2: General Information

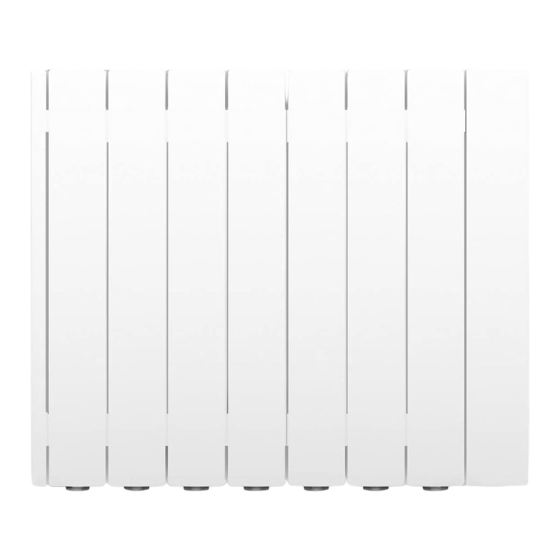

GENERAL INFORMATION The EHC eco SAVE heater has a special aluminium cast body designed to maximize the rate of convected and radiated heat through the circulation channels providing an efficient comfortable heating experience. The heaters are filled with a high performance heating oil in a unique way that provides a bubble free process to ensure that the heaters entire surface area is covered. - Page 3 Location An ideal location of where to site a radiator would be as close as possible to the coolest wall within a room. It is not recommended to mount the radiator on an un-insulated exterior wall. If this is the only wall available, we would recommend insulating behind the radiator in this instance.
- Page 4 Mounting The Radiator Sit the radiator on the floor and place the Lift the radiator and hang it on the supports, as supports between the fins as shown in Figure shown in Figure 4a and 4b. 2a, Mark the points on the wall through the fixing holes as shown in Figure 2b.
-
Page 5: Warning! This Appliance Must Be Earthed
Size (mm) Fins Rating (W) (Kg.) Rating 580 x 580 x 100 5 Amp. ehc eco SAVE 750 - RA1S1531S2 1000 740 x 580 x 100 10 Amp. ehc eco SAVE 1000 - RA1S1131S2 1250 900 x 580 x 100 10 Amp. - Page 6 The LCD screen will go blank. If the radiator is connected to an Radio paired icon EHC eco Save Smart Gateway, the radiator will now Desired lose connection with the gateway.
- Page 7 When the temperature setup icon starts Manual Programming flashing, press OK to scroll through each To assist with programming the LCD screen temperature mode. has a backlit display and will stay illuminated for approximately 10 seconds after the last button is COMFORT ECONOMY FROST...
- Page 8 Programming with EHC Smart kit To select one of the three advanced settings (C1 To program your eco SAVE heater with the eco to C3) use the +/- keys and choose the required SAVE Smart Wifi Kit, you must pair the radiator to mode by pressing OK.
-
Page 9: Default Values
Radiator Factory Reset The device RESET returns all settings to their default values. It will also delete its RF network (delete pairing) if paired with an eco SAVE Smart Home gateway. To activate the RESET feature press the OK button and the CONFIG button together for 10 seconds. -
Page 10: Maintenance And Care
In the event of a warranty repair being carried out during the heaters warranty period, EHC should be notified of the fault. The heater should be returned to EHC for the repair to be carried out or if agreed, an accredited engineer will visit site to repair the heater. If it is found that the heater has failed due to incorrect installation or misuse then the engineers call-out will be chargeable including any parts used. -
Page 11: Installation Notes
Installation Notes:... - Page 12 Any unauthorised repair or attempted repair will invalidate the guarantee. You may be asked to return the product to EHC for inspection to establish whether the fault is covered under the guarantee. The guarantee is valid in the UK only.
