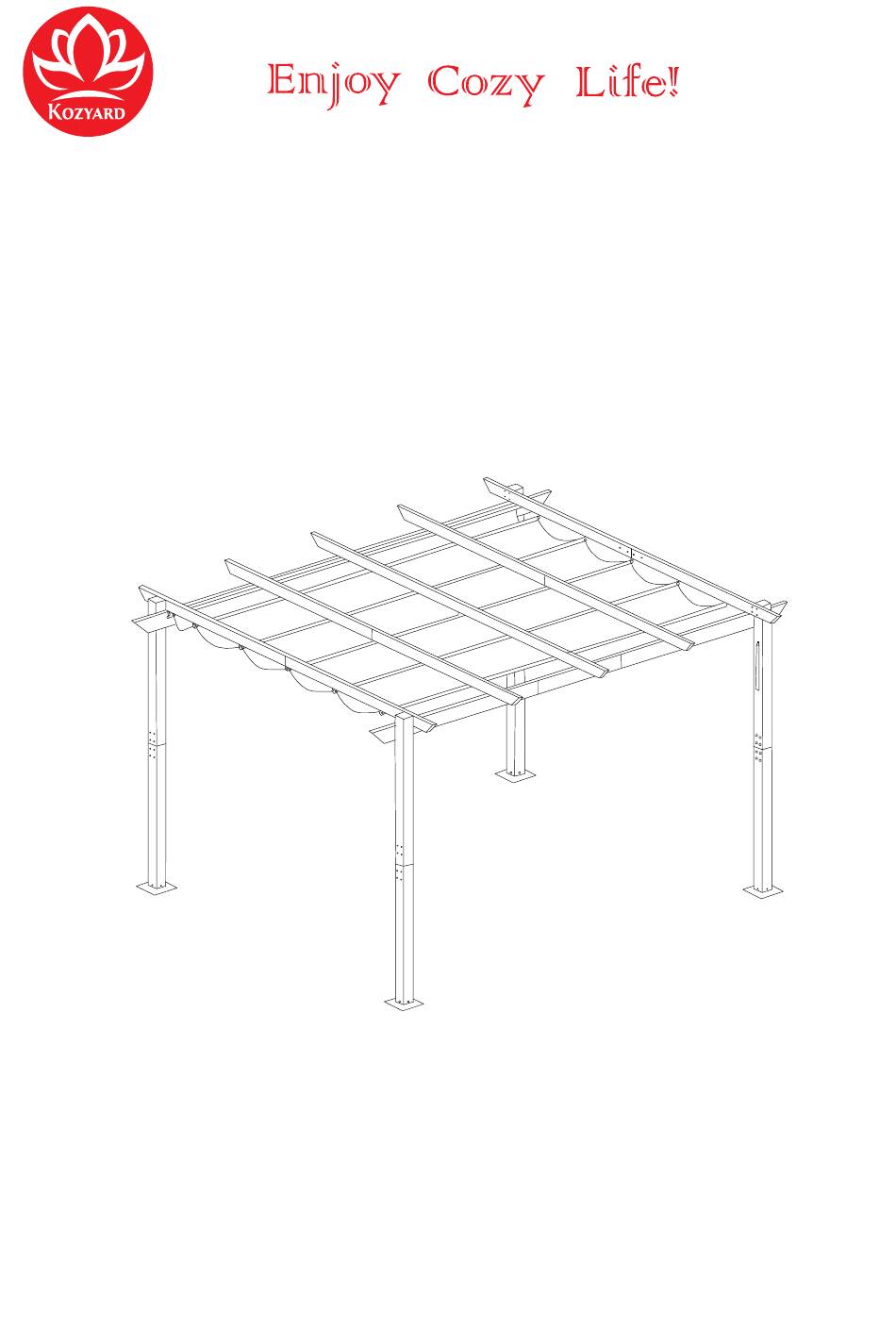

- Page 1 Atlantis Aluminum 10’x13’ Pergola Assembly Manual Kozyard LLC Products www.kozyard.com © Copyright 2016 - 2019 Kozyard LLC. | All Rights Reserved.
- Page 2 Use the hex keys in the box. You may need to use a drill for this step. Three or more people are required at this stage. You may need a ladder. Do not tighten screws all the way for now. Page 1...
- Page 3 Page 2...
- Page 4 OVERALL Page 3...
- Page 5 St ep 1 Connect A and A1 or A2 by using supporting part V and bolt J to build the four poles (2xA&A1 and 2xA&A2). A1 or A2 M 6x16 Don't tight the bolts too much when you insert A into A1 or A2. S tep 2 Connect Part I and 4 poles by using bolt J Tight bolt J after A connected with A1 or A2 vertially.
- Page 6 Connect B , B1 and B2 by using supporting part V1 St ep 3 and bold J to build the main beam 1 . Connect C, C1 and C2 by using supporting part V1 and bold J to build another main beam 2. M6x16 Page 5...
- Page 7 St ep 4 Connect the main beam 1 and main beam 2 with the four poles using bolt M. & M6x15 & St ep 5 1. Insert the hook into the slot of part D, Repeat twices. 2. Insert the hook P and hook O into the slot of part E.
- Page 8 Step 6 Connect D and D1 to build the cross beam (D&D1) by using bolt J and supporting part V2 M6x16 Step 7 Connect the cross beam (D&D1) with the four poles using bolt M. M6x15 Page 7...
- Page 9 1. Connect E and E1 by Step 8 using supporting part V2 and bold J to build the cross beam (E&E1). 2. Using the same method as the last step, use F and F1 to build the cross beam (F&F1). M6x16 Connect the cross beam (E&E1) and (F&F1) Step 9...
- Page 10 Step 10 Insert G, G1, H, H1 into the canopy from its side Connect G&G1 and B&B1 by bolt K, and hold the Step 11 canopy with the frames. & M6x16 & Connect the canopy and the hock using bolt J M6x30 Pull the line from the canopy and put on hook to tighten the canopy.
- Page 11 Step 12 Hook part T onto hook P Step 13 Secure the foot I to the ground using part U. Page 10...
- Page 12 KOZYARD LLC 2825 80TH AVE SE,SUITE 202 MERCER ISLAND,WA98040 EMAIL:INFO@KOZYARD.COM WWW.KOZYARD.COM TOLL-FREE:866-355-0018...
