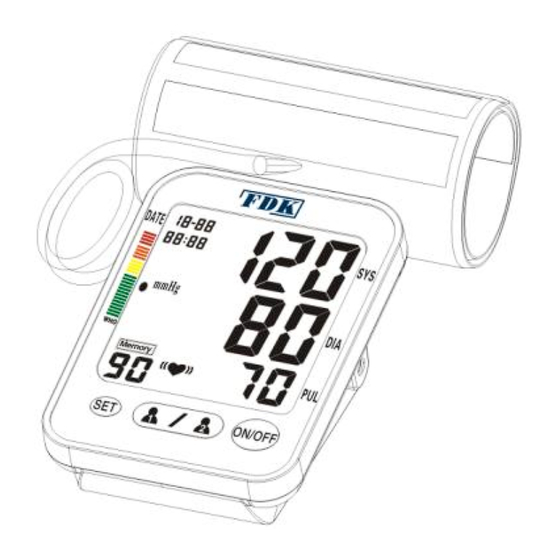

- Page 1 AUTOMATIC BLOOD PRESSURE MONITOR (Arm Cuff Type) INSTRUCTION MANUAL Models: FT-C11B, FT-C11B-V English Instruction Guide...
-
Page 2: Table Of Contents
Table of Contents IMPORTANT INFORMATION ………….………. (3) READING THE AVERAGE OF MEASUREMENTS (AUg).. . (11) PRECAUTION FOR USE………………..….…….(4) ACCESSING BLOOD PRESSURE FOR ADULTS. .(12) BEFORE YOU START….………………………(4)(5) CLASSIFICATION OF BLOOD PRESSURE….….. (12) MONITOR COMPONENTS…...…...……………..(5) SPECIFICATIONS…………………………………. .(13) DISPLAY OF LCD……………..……………….. . (6) TROUBLE SHOOTING……………………... -
Page 3: Important Information
IMPORTANT INFORMATION Please read this instruction manual thoroughly so that you completely understand the operations, cautions, performance and limitations with this monitor. After reading this manual, please keep it for future reference. You should not use this blood pressure monitor for self-diagnosis, self-treatment or to change medication without consulting your physician or other health care professional. -
Page 4: Precaution For Use
PRECAUTION FOR USE The FDK Arm Automatic Blood Pressure Monitor is designed to be operated by anyone who is eighteen years and older or by medical professionals to monitor blood pressure (systolic and diastolic) and pulse rate. BEFORE YOU START Please make sure you have installed 4 AA (1.5 volt) batteries (alkaline batteries are... -
Page 5: Monitor Components
Note： ★ When the LCD display shows “Low Battery” signal ,the batteries must be replaced for accurate readings. (voltage 1.2V) ★ Do not use rechargeable batteries . They are not suitable for this product, can damage the monitor and will caused inaccurate readings to be obtained. -
Page 6: Display Of Lcd
DISPLAY OF LCD Mode for LCD display: (1) Date: Month - Day (2) Time: Hour – Minute (3) Systolic Blood Pressure (unit: mmHg) (4) Diastolic Blood Pressure (unit: mmHg) (5) Pulse (unit: beat/minute) (6) WHO BP Classification Indicator (7) Inflation / Deflation Indicator (8) Blood Pressure Measurement Unit (9) Low Battery Indicator (10) Irregular heartbeat Indicator... -
Page 7: Tips For Blood Pressure Monitoring
TIPS FOR BLOOD PRESSURE MONITORING ★ Relax for about 5 minutes before measurement. ★ Do not smoke or ingest caffeine at least 30 minutes prior to measurement. ★ Remove any constricting clothing and place the cuff on a bare arm. ★... - Page 8 HOW TO WRAP THE CUFF ON YOUR ARM: Place the cuff around a bare arm ½” to ¾”’ ★ above the elbow joint. The pressure tube should be oriented to run down the center of (Refer to diagram on the inside of your arm. cuff for proper placement.
-
Page 9: Program Date, Clock And Languages
LCD DISPLAY FOR TAKING BLOOD PRESSURE After you are in a comfortable position, press the “ON/OFF” button. The device will verify itself showing all “8s”, then LCD will show “00”. PROGRAMMING DATE, CLOCK AND LANGUAGE ★ Press the “SET” button for 5 seconds during the device is turned off, the number of the YEAR will begin to blink on the LCD display. -
Page 10: Irregular Heartbeat Indicator
★ After you have set the YEAR, MONTH, DAY, HOUR and MINUTE press the “SET” button. The “SP” in the lower left corner of the LCD display will begin to blink. This will allow you to set the desired language by choosing “01”... -
Page 11: Reading The Average Of Measurements (Aug)
READING AN AVERAGE OF THE THREE MOST RECENT MEASUREMENTS (AVg) ★ When the monitor is turned off, press and release the “ ” button. The voice processor will announce and the LCD will display “AVg” in the right upper corner of the LCD Display. -
Page 12: Accessing Blood Pressure For Adults
ACCESSING BLOOD PRESSURE FOR ADULTS The following standards for assessing high blood pressure (without regard to age or gender) have been established as a guide according to WHO (World Health Organization). Please note that other risk factors (e.g. diabetes, obesity, smoking, etc.) need to be taken into consideration and may affect these figures. -
Page 13: Specifications
SPECIFICATION FT-C11B-V (Voice) Model No.: Operation Environment: Temperature: 5~40°C FT-C11B (No Voice) Humidity: < 85%RH Type: ------------------------------------- ---------------------------------------- Oscillometric; Automatic air Storage Environment: Temperature: -20~60°C inflation by air pump and Humidity: < 95%RH automatic deflation Classification: Class II, type B... -
Page 14: Trouble Shooting
TROUBLE SHOOTING (1) Abnormality Probable Reason Corrective action LCD shows Low Batter Batteries are low. Install new batteries. symbol Pneumatic system blocked or cuff Make certain the cuff is wrapped around is too tightly wrapped. your arm correctly and re-measure. The unit does not Pressure system was unstable Measure again. - Page 15 TROUBLE SHOOTING (2) Abnormality Reason Checkout LCD shows “Er U” Insufficient inflation Wait for 5 minutes and re-measure. LCD shows “Er H” Inflation over 305 mmHg operation still abnormal, contact manufacture or agent (see the last page) LCD shows “Er 1” Undetectable the pulse LCD shows “Er 2”...
-
Page 16: Limited Warranty Policy
LIMITED WARRANTY POLICY Fudakang guarantees that the Digital Blood Pressure Monitor will be free manufacturing defects under normal use for two years the original purchase. This warranty covers only normal use, and does not apply to use in clinical or commercial applications. It does not cover batteries or other power sources that may be provided with or used with the Digital Blood Pressure Monitor. -
Page 17: Contact Us
Returns are typically processed within 48 hours of receipt excluding weekends. Please allow 30 days to receive the repaired or replaced product. Repair or replacement of defective unit, at the warrantor’s option, is the sole remedy under this warranty. ANY IMPLIED WARRANTIES WHICH THE PURCHASER MAY HAVE ARE LIMITED IN DURATION TO THE TIME THAT THE ORIGINAL CONSUMER PURCHASER OWNS THE PRODUCT. -
Page 18: Blood Pressure Record
BLOOD PRESSURE RECORD REGISTRO DE LA PRESION ARTERIAL Name: Age: Weight: Nambre: Edad: Peso: Date: SYS/DIA PULSE SYS/DIA PULSE Fecha: SIS/DIA PULSO SIS/DIA PULSO Note: By monitoring and controlling high blood pressure, you can lower your risk of stroke, heart attack, heart failure and kidney disease...
