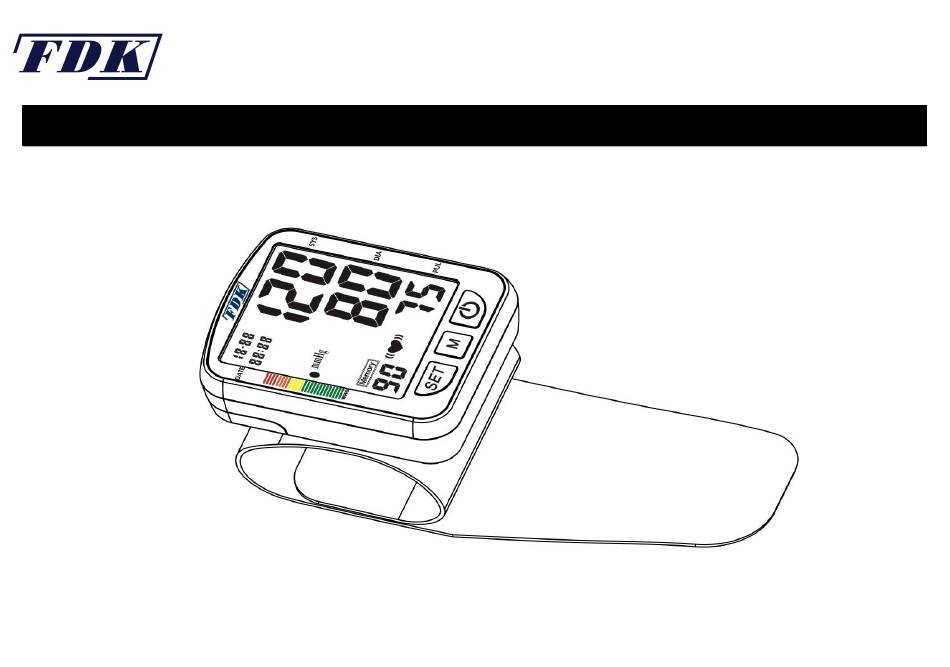

- Page 1 AUTOMATIC BLOOD PRESSURE MONITOR (Wrist Cuff Type) INSTRUCTION MANUAL Models: FT-B13W, FT-B13W-V English Instruction Guide...
-
Page 2: Table Of Contents
Table of Contents IMPORTANT INFORMATION ………….………..(3) ACCESSING BLOOD PRESSURE FOR ADULTS..(12)(13) PRECAUTION FOR USE………………..….…..….(4) CLASSIFICATION OF BLOOD PRESSURE….…..(13) BEFORE YOU START….……………………..…(4)(5) SPECIFICATIONS………………………………….. .(14) MONITOR COMPONENTS…...…...…………,,,,…..(5) TROUBLE SHOOTING……………………..…(15)(16) DISPLAY OF LCD……………..………………..,,,, . (6) LIMITED WARRANTY POLICY……………..…(17)(18) TIPS FOR BLOOD PRESSURE MONITORING..(7) CONTACT US…...……………….…...……….…... -
Page 3: Important Information
IMPORTANT INFORMATION Please read this instruction manual thoroughly so that you completely understand the operations, cautions, performance and limitations with this monitor.After reading this manual, please keep it for future reference. You should not use this blood pressure monitor for self-diagnosis,self-treatment or to ... -
Page 4: Precaution For Use
PRECAUTION FOR USE The FDK Wrist Automatic Blood Pressure Monitor is designed to be operated by anyone who is eighteen years and older or by medical professionals to monitor blood pressure (systolic and diastolic) and pulse rate. BEFORE YOU START Please make sure you have installed 2 - AAA (3 volt) batteries (alkaline batteries are recommended). -
Page 5: Monitor Components
Note： ★ When the LCD display shows “Low Battery” signal ,the batteries must be replaced for accurate readings. ★ Do not use rechargeable batteries (voltage 1.2V) . They are not suitable for this product, can damage the monitor and will caused inaccurate readings to be obtained. -
Page 6: Display Of Lcd
DISPLAY OF LCD Mode for LCD display: (1) Date: Month - Day (2) Time: Hour - Minute (3) Systolic Blood Pressure (unit: mmHg) (4) Diastolic Blood Pressure (unit: mmHg) (5) Pulse (unit: beat/minute) (6) WHO BP Classification Indicator (7) Inflation / Deflation Indicator (8) Blood Pressure Measurement Unit (9) Low Battery Indicator (10) Irregular heartbeat Indicator... -
Page 7: Tips For Blood Pressure Monitoring
TIPS FOR BLOOD PRESSURE MONITORING ★ Relax for about 5 minutes before measurement. ★ Do not smoke or ingest caffeine at least 30 minutes prior to measurement. ★ Remove any constricting clothing and place the cuff on a bare wrist. ★... - Page 8 HOW TO PLACE/WRAP THE CUFF ON YOUR WRIST? ★ Place the cuff around your bare wrist ½” - ¾” above the wrist joint on the opened-hand (inside) side of the wrist. ★ Keep the cuff at approximately the same level as your heart.
-
Page 9: Program Date, Clock And Languages
PROGRAM DATE, CLOCK AND LANGUAGE ★ During the monitor is turned off, if you continually press and the “SET” buttons for about 5 seconds, the number of the YEAR signal will begin to blink on the LCD display. Press the “M” (for memory) button to change the YEAR. -
Page 10: Irregular Heartbeat Indicator
★After you have set the YEAR, MONTH, DAY, HOUR and MINUTE press the “SET” button. The “SP” in the lower left corner of the LCD display will begin to blink. This will allow you to set up your preferable language by choosing “01” for ENGLISH or “02” for SPANISH voice announcement from monitor, that will be performed when the monitor is placed in “TALKING”... -
Page 11: Reading The Average Of Measurements (Aug)
READING THE AVERAGE OF THE LAST THREE MEASUREMENTS (AVg): ★ Each time, when you press and release the “M” button during the monitor’s being turned off condition, the LCD will display “AVg” symbol on the left upper corner of the LCD screen to show the average of the last three measurements record;... -
Page 12: Accessing Blood Pressure For Adults
DELETING MEASUREMENT FROM THE MEMORY: ★ Press and hold the “MEMORY” button until all the numbers change to ‘ZERO’. All results in memory are now deleted. NOTE: Date and time settings are not changed by using the memory delete function. ACCESSING BLOOD PRESSURE FOR ADULTS The following standards for assessing high blood pressure (without regard to age or gender) have been established as a guide according to WHO (World Health Organization). -
Page 13: Classification Of Blood Pressure
WHO CLASSIFICATION OF BLOOD PRESSURE Blood Pressure COLOR Classification (mmHg) (mmHg) INDICATOR Optimal <120 <80 GREEN Normal 120-129 80-84 High-Normal 130-139 85-89 Stage 1 140-159 90-99 YELLOW Hypertension Stage 2 160-179 100-109 ORANGE Hypertension Stage 3 ≥180 ≥110 Hypertension... -
Page 14: Specifications
SPECIFICATIONS Model No.: FT-B13W (No voice), Operation Environment: Temperature: 5~40°C FT-B13W-V (Voice) Humidity: < 85%RH ------------------------------------- ---------------------------------------- Type: Oscillometric; Automatic air Storage Environment: Temperature: -20~60°C inflation by air pump and Humidity: < 95%RH automatic deflation Classification: Class II, type B... -
Page 15: Trouble Shooting
TROUBLE SHOOTING (1) Abnormality Probable Reason Corrective action LCD shows Low Batter Batteries are low. Install new batteries. symbol Pneumatic system blocked or cuff Make certain the cuff is wrapped around is too tightly wrapped. your wrist correctly and re-measure. The unit does not Pressure system was unstable Measure again. - Page 16 TROUBLE SHOOTING (2) Abnormality Reason Checkout LCDshows “ErU” Insufficient inflation Wait for 5 minutes and re-measure. LCDshows “ErH” Inflation over 305 mmHg operation still abnormal, contact manufacture or agent (see the last page) LCDshows“Er1” Undetectable the pulse LCD shows “Er 2” Radiation interference Move away the radiation source LCD shows “Er 3”...
-
Page 17: Limited Warranty Policy
If you purchased this product via other marketplaces but not FDK's service directly, please check up your invoice or receipt for the contact info of your vender for the return policy. -
Page 18: Contact Us
Returns are typically processed within 48 hours of receipt excluding weekends. Please allow 30 days to receive the repaired or replaced product. Repair or replacement of defective unit, at the warrantor’s option, is the sole remedy under this warranty. ANY IMPLIED WARRANTIES WHICH THE PURCHASER MAY HAVE ARE LIMITED IN DURATION TO THE TIME THAT THE ORIGINAL CONSUMER PURCHASER OWNS THE PRODUCT. -
Page 19: Blood Pressure Record
BLOOD PRESSURE RECORD REGISTRO DE LA PRESION ARTERIAL Name: Age: Weight: Nambre: Edad: Peso: Date: SYS/DIA PULSE SYS/DIA PULSE Fecha: SYS/DIA PULSE SYS/DIA PULSE Note: By monitoring and controlling high blood pressure, you can lower your risk of stroke, heart attack, heart failure and kidney disease... -
Page 20: Statements And Declarations
STATEMENTS AND DECLARATIONS: 1. Wrist Blood Pressure Monitor needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in the ACCOMPANYING DOCUMENTS 2. Wireless communications equipment such as wireless home network devices, mobile phones, cordless telephones and their base stations, walkie-talkies can affect this equipment and should be kept at least a distance d = 3,3 m away from the equipment. - Page 21 Guidance and manufacturer’s declaration Guidance and manufacture’s declaration – electromagnetic emission The Wrist Blood Pressure Monitor is intended for use in the electromagnetic environment specified below. The customer of the user of the Wrist Blood Pressure Monitor should assure that it is used in such an environment. Emission test Compliance Electromagnetic environment –...
- Page 22 Guidance and manufacture’s declaration – electromagnetic immunity The Wrist Blood Pressure Monitor is intended for use in the electromagnetic environment specified below. The customer or the user of Wrist Blood Pressure Monitor should assure that it is used in such an environment. Electromagnetic environment Immunity test IEC 60601 test level...
- Page 23 transient/burst lines ±1 kV for Not applicable that of a typical commercial or IEC 61000-4-4 input/output lines hospital environment. Surge ±1 kV differential mode. Not applicable Mains power quality should be IEC 61000-4-5 ±2 kV common mode that of a typical commercial or hospital environment.
- Page 24 Power frequency (50Hz) 3A/m 3A/m Power frequency magnetic fields magnetic field should be at levels characteristic 61000-4-8 of a typical location in a typical commercial or hospital environment. NOTE UT is the a.c. mains voltage prior to application of the test level.
-
Page 25: Guidance And Manufacture's Declaration
Guidance and manufacture’s declaration – electromagnetic immunity The Wrist Blood Pressure Monitor is intended for use in the electromagnetic environment specified below. The customer or the user of Wrist Blood Pressure Monitor should assure that it is used in such an environment. IEC 60601 Complian Electromagnetic environment... - Page 26 Where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in meters(m). Field strengths from fixed RF transmitters, as not Applicable. Determined by an electromagnetic site survey, a should be less than the compliance level in each frequency range.
- Page 27 Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Wrist Blood Pressure Monitor is used exceeds the applicable RF compliance level above, the Wrist Blood Pressure Monitor should be observed to verify normal operation.
- Page 28 Recommended separation distances between portable and mobile RF communications equipment and the Wrist Blood Pressure Monitor. The Wrist Blood Pressure Monitor is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Wrist Blood Pressure Monitor can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Wrist Blood Pressure Monitor as recommended below, according to the maximum output power of the communications equipment.
- Page 29 3.689 3.689 7.379 11.667 11.667 23.333 For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
-
Page 30: Explanation Of Symbols
Explanation of Symbols: Symbol for “ENVIRONMENT PROTECTION - Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Symbol for batch code Check with your local Authority or retailer for recycling advice” Symbol for ‘CE” Symbol for “TYPE BF APPLIED PART”...
